Acer Abidpx ED323QUR Manual

Unpacking

Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.

Attaching/ Removing the base
Attaching/ Removing the base

  1. Remove the monitor from the packaging.
  2. Attach the footstand to the monitor, attach the base to the footstand.
  3. Secure the base to the stand by turn the screw clockwise using a screwdriver or a suitable coin.

Screen position adjustment
To optimize the viewving position, you can adjust the monitor tilt by using both of your hands to hold the edges of the monitor as shown below. The monitor can be adjusted to 15 degrees up or 5 degrees down.

Connecting the Power cord

  • Check first to make sure that the power cord you use is the correct type required for your area.
  • The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
  • Plug one end of the power cord to the AC inlet, and plug the other end into an AC outlet.
  • For units using 120 V AC:
    Use a UL-listed cord set, type SVT wire and plug rated 10 A/125 V.
  • For units using 220/240 V AC:
    Use a cord set consisting of H05VV-F cord and plug rated 10 A/250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

Power saving
The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the amber-flicker power LED.

Mode LED light
On Blue
Power saving Amber Flicker

The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.

Display Data Channel (DDC)
To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.

Connector pin assignment
19-Pin Color Display Signal Cable*

PIN Meaning PIN Meaning
1. TMDS Data2+ 10. TMDS Clock+
2. TMDS Data2 Shield 11. TMDS Clock Shield
3. TMDS Data2- 12. TMDS Clock-
4. TMDS Data1+ 13. CEC
5. TMDS Data1 Shield 14. Reserved (N.C. on device)
6. TMDS Data1- 15. SCL
7. TMDS Data0+ 16. SDA
8. TMDS Data0 Shield 17. DDC/CEC Ground
9. TMDS Data0- 18. +5V Power
19. Hot Plug Detect

* only for certain models

20-Pin Color Display Signal Cable*

PIN Description PIN Description
1. Lane0(p) 11. GND
2. GND 12. Lane3(n)
3. Lane0(n) 13. Config1
4. Lane1(p) 14. Config2
5. GND 15. AUX_CH (n)
6. Lane1(n) 16. GND
7. Lane2(p) 17. AUX_CH (p)
8. GND 18. Hot Plug Detect
9. Lane3(n) 19. DP Power_Return
10. Lane3(p) 20. DP Power

* only for certain models

24-Pin Color Display Signal Cable

PIN Meaning PIN Meaning
1. TMDS Data2- 13. NC
2. TMDS Data2+ 14. +5V Power
3. TMDS Data 2/4 Shield 15. Logic Ground
4. NC 16. Hot Plug Detect
5. NC 17. TMDS Data0-
6. DDC Clock 18. TMDS Data0+
7. DDC Data 19. TMDS Data 0/5 Shield
8. NC 20. NC
9. TMDS Data1- 21. NC
10. TMDS Data1+ 22. TMDS Clock Shield
11. TMDS Data 1/3 Shield 23. TMDS Clock+
12. NC 24. DDC TMDS Clock-

Standard timing table

No. Mode Resolution Refresh Rate
1 VGA 640x480 60 Hz
2 640x480 72 Hz
3 MAC 640x480 66.7 Hz
4 VESA 720x400 70 Hz
5 SVGA 800x600 56 Hz
6 800x600 60 Hz
7 800x600 72 Hz
8 XGA 1024x768 60 Hz
9 1024x768 70 Hz
10 VESA 1152x864 75 Hz
11 1280x960 60 Hz
12 SXGA 1280x1024 60 Hz
13 VESA 1280x720 60 Hz
14 WXGA 1280x800 60 Hz
15 1360x768 60 Hz
16 WXGA+ 1440x900 60 Hz
17 WSXGA+ 1680x1050 60 Hz
18 UXGA 1600x1200 60 Hz
19 VESA 1920x1080 60 Hz
20 VESA 2560x1440 60 Hz
21 VESA 2560x1440 75 Hz

Installation

To install the monitor on your host system, please follow the steps below:
Installation

  1. Connect cables
    1. Make sure both the monitor and computer are switched off.
    2. Connect the DVI-DL/ HDMI/ DP cable to the computer.
  2. Connect the power cord
    Connect the power cord to the monitor, then to a properly grounded AC outlet.
  3. Turn on the monitor and computer
    Turn on the monitor first, then the computer. This sequence is very important.
  4. If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.
    In order to prevent damage to the monitor, do not lift the monitor by its base.

Users controls

Users controls

Function key
  1. Monitor power off status Press to switch power on. In the normal display, anytime to Press more than 5 seconds switch to turn off the power.
  2. Blue indicates power on. Amber flicker indicates standby/power saving mode. No light display indicates Power off.
  3. Press to any directions switch key to display First Menu. Press again to enter next function in the First Menu.
  4. The single toggle button on the backside of the Display bezel operates like a joystick. To move the cursor, simply toggle the button in four directions. Press the button to select desires option. In Main Menu, Bright grey indicates operable, Dark grey indicates inoperable.

Adjusting the OSD settings
informationNote: The following content is for general reference only. Actual product specifications may vary.
The OSD (on-screen display) can be used for adjusting the settings of your LCD Monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to following page:

Main Page

  1. Menu OSD
  2. Mode
  3. Brightness
  4. Input selection

Turn Mode on or off
Open the Mode control and turn Mode on or off using the adjustment arrows (OFF/ON), and select which profile to use (Please see the OSD section for more information).

Adjusting the Brightness setting
Open the Brightness control and select the brightness setting using the arrows. When you are done, press the joystick to exit current page and store

Selecting the Input
The input control and select DVI-D,DP,HDMI or Auto Source. When you are done, press the joystick to exit current page and store.

The Function page
Open the Function page to adjust the functions, settings which you want using the arrows. When you are done, toggle the joystick to the left or right to go back one level

Adjusting the Picture

  1. Press the MENU key to bring up the OSD.
  2. Toggle the joystick to the up or down to select Picture from the OSD.Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Toggle to the left or right to adjust the sliding scales.
  4. The Picture menu can be used to adjust the Brightness, Contrast, Black Boost, Blue Light, ACM, and Super Sharpness, Auto Config, H. Position, V. Position, Focus and Clock.
  5. Brightness: Adjust the brightness from 0 to 100.
    informationNote: Adjusts the balance between light and dark shades.
  6. Contrast: adjust the contrast from 0 to 100.
    informationNote: Sets the degree of difference between light and dark areas.
  7. Black Boost: This boosts the amplitude of the dark color levels of the display– blacks will be less black. The higher the level, the higher the boost.
  8. Blue Light: filter out blue light by adjusting different Blue Light showing ratio - 80%, 70%, 60%, 50%.
    informationNote: Higher values allow more blue light through. For the best protection, select a lower value.
  9. ACM: Turn ACM on or off. The default is off.
  10. Super Sharpness technology can simulate high-resolution images byboosting the pixel density of the original source. It can make images sharper and clear.

Adjusting the Color

  1. Press the MENU key to open the OSD.
  2. Toggle the joystick to the up or down to select Color from the OSD. Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Toggle to the left or right to adjust the sliding scales.
  4. Gamma mode allows you to adjust the luminance tone. The default value is 2.2 (standard value for Windows).
  5. Color temperature: Default is warm. You can choose Cool, Warm, Bluelight or User.
  6. sRGB mode is for getting better color matching representation with the peripheral device, such as DSCs or printers.
  7. 6-axis Hue: Adjust the red, green, blue, yellow, magenta and cyan hue.
  8. 6-axis Saturate: Adjust the red, green, blue, yellow, magenta and cyan saturation.

Adjusting the aduio

  1. Press the MENU key to open the OSD.
  2. Toggle the joystick to the up or down to select Audio from the OSD.Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Toggle to the left or right to adjust the sliding scales.

Adjusting the performance

  1. Press the MENU key to open the OSD.
  2. Toggle the joystick to the up or down to select OSD from the OSD.Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Toggle to the left or right to adjust the sliding scales.
  4. Over Drive: Select Off, Normal, or Extreme.
  5. Freesync: Turn freesync on or off.
    information
    1. If FreeSync is "ON", then the Over Drive selection is set to "Normal" automatically
    2. If FreeSync is "OFF", then the user can set Over Drive to either one of the three settings including: (a) Extreme (b) Normal (c) Off
  6. Aim point: Show an Aim point on the screen in the middle for shooting games.

Adjusting the OSD

  1. Press the MENU key to open the OSD.
  2. Toggle the joystick to the up or down to select OSD from the OSD.Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Toggle to the left or right to adjust the sliding scales.
  4. Language: Set the OSD menu language.
  5. OSD Timeout: Adjust the delay before turning the off the OSD menu.
  6. Transparency: Select the transparency when using gaming mode. The transparency can be 0% (OFF), 20%, 40%, 60%, or 80%.
  7. Refresh rate num: Display the panel's current refresh rate on the screen.

Adjusting the System

  1. The System menu can be used to select settings such as Input, Auto source, Wide Mode, Hot Key Assignment, DDC/CI, HDMI Black level, Quick Start Mode and Over Drive.
  2. Press the MENU key to open the OSD.
  3. Toggle the joystick to the up or down to select System from the OSD. Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  4. Toggle to the left or right to adjust the sliding scales.
  5. Input: Select the source from DP or HDMI.
  6. Auto Source: Automatically searches for available input sources.
  7. Wide mode: You can select which screen aspect you are using. The options are Full, Aspect, 1:1.
  8. Hotkey Assigment: Select the function of shortcut key 1(Modes, Brightness, Input, Gamma, Contrast, Blue Light, Over Drive) and shortcut keys 2 (Modes, Brightness, Input, Gamma, Contrast, Blue Light, Over Drive)
  9. DDC/CI: Allows the monitor settings to be set through the software on the PC.
    informationNote: DDC/CI, short for Display Data Channel/Command Interface, which allows monitor controls to be sent via software.
  10. HDMI Black Level: You can select the level of blackness under HDMI source. The options are Normal and Low.
  11. Quick Start Mode: Enable monitor rapidly.

Product information

  1. Press the MENU key to open the OSD.
  2. Toggle the joystick to the up or down to select "Information" from the OSD. Then toggle to the right to navigate to the element you wish to adjust and press the joystick to enter it.
  3. Reset: Resets all settings to the factory defaults.

TROUBLESHOOTING

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.
(DVI/HDMI/DP Mode)

Problems Current Status Remedy

No Picture

LED ON
  • ˜ Using OSD, adjust brightness and contrast to maximum or reset to their default settings.
LED OFF
  • ˜ Check the power switch.
  • ˜ Check if AC power cord is properly connected to the monitor.
LED Flicker
  • ˜ Check if video signal cable is properly connected at the back of monitor.
  • ˜ Check if the power of computer system is ON.

Special notes on LCD monitors

The following are normal with the LCD monitor and do not indicate a problem.

  • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
  • You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
  • The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
  • Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.

Information for your safety and comfort

Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Cleaning your monitor
Please carefully follow these guidelines when cleaning the monitor:

  • Always unplug the monitor before cleaning.
  • Use a soft cloth to wipe the screen and cabinet front and sides.

Connecting/disconnecting the device
Observe the following guidelines when connecting and disconnecting power from the LCD monitor:

  • Make sure the monitor is attached to its base before connecting the power cord to the AC power outlet.
  • Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord.
  • If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.

Safe listening
To protect your hearing, follow these instructions.

  • Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
  • After setting the volume level, do not increase it after your ears have adjusted.
  • Limit the amount of time listening to music at high volume.
  • Avoid turning up the volume to block out noisy surroundings.
  • Turn the volume down if you can't hear people speaking near you.

  • Do not use this product near water.
  • Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
  • Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
  • Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
  • To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
  • Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.

Using electrical power

  • This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
  • Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
  • If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
  • Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
  • This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a nongrounded power outlet. Contact your electrician for details.

    The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
    informationNote: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
  • Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

  • the power cord or plug is damaged, cut or frayed
  • liquid was spilled into the product
  • the product was exposed to rain or water
  • the product has been dropped or the case has been damaged
  • the product exhibits a distinct change in performance, indicating a need for service
  • the product does not operate normally after following the operating instructions

informationNote: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.
This product has been shipped enabled for power management:

  • Activate display's Sleep mode within 5 minutes of user inactivity.
  • Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.

Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

  • numbness, or a burning or tingling sensation
  • aching, soreness or tenderness
  • pain, swelling or throbbing
  • stiffness or tightness
  • coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.
The following section provides tips for more comfortable computer use.

Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

  • refrain from staying too long in one fixed posture
  • avoid slouching forward and/or leaning backward
  • stand up and walk around regularly to remove the strain on your leg muscles

Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

  • Rest your eyes frequently.
  • Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
  • Blink frequently to keep your eyes from drying out.

Display

  • Keep your display clean.
  • Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
  • Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.
  • Eliminate glare and reflections by:
  • placing your display in such a way that the side faces the window or any light source
  • minimizing room light by using drapes, shades or blinds
  • using a task light
  • changing the display's viewing angle
  • using a glare-reduction filter
  • using a display visor, such as a piece of cardboard extended from the display's top front edge
  • Avoid adjusting your display to an awkward viewing angle.
  • Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits
Develop the following work habits to make your computer use more relaxing and productive:

  • Take short breaks regularly and often.
  • Perform some stretching exercises.
  • Breathe fresh air as often as possible.
  • Exercise regularly and maintain a healthy body.

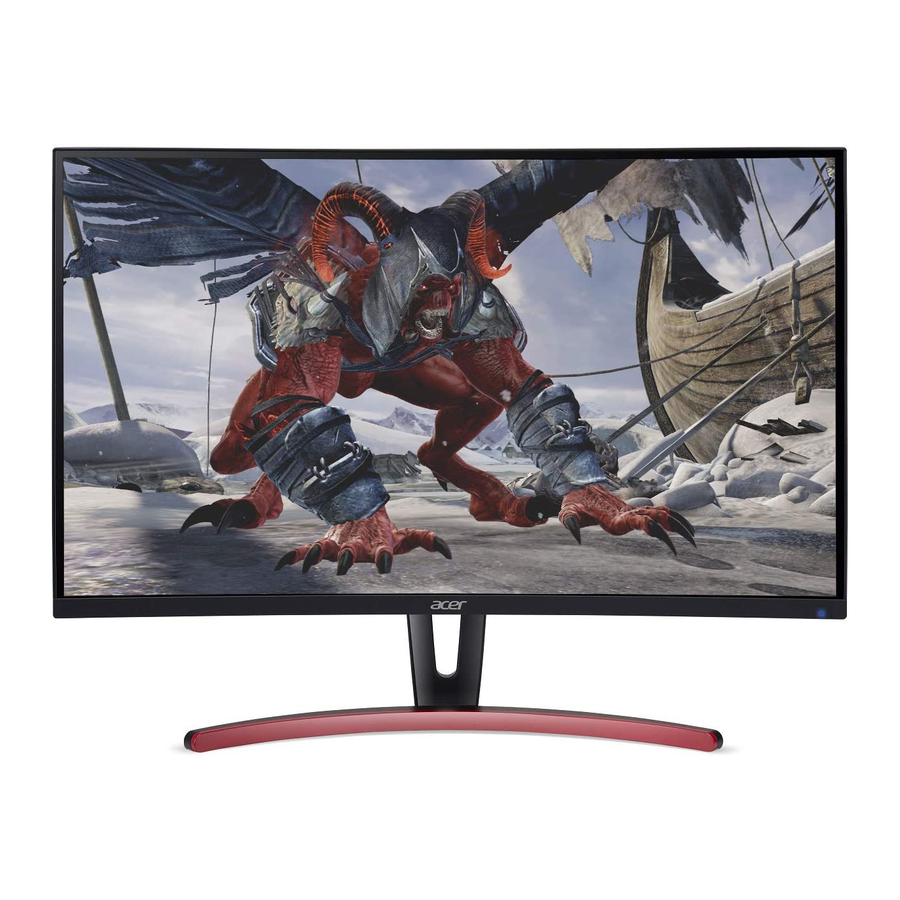

    Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Acer Abidpx ED323QUR Manual

Advertisement

Need help?

Need help?

Do you have a question about the Abidpx ED323QUR and is the answer not in the manual?

Questions and answers

Table of Contents
