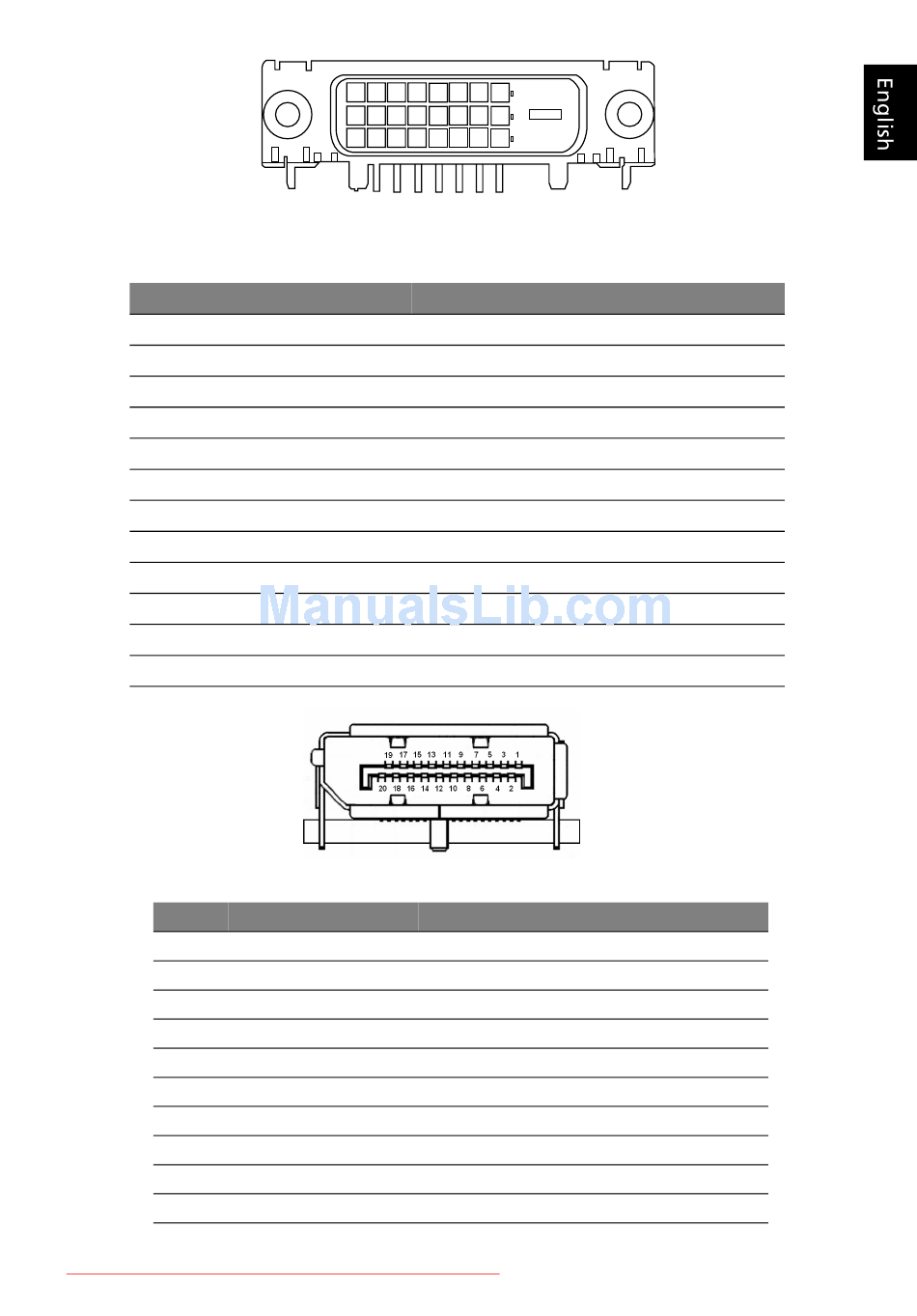

24-pin color display signal cable*
PIN No.
1
TMDS data 2-
2
TMDS data 2+
3
TMDS data 2/4 shield
4
NC
5
NC
6
DDC clock
7
DDC data
8
NC
9
TMDS data 1-
10
TMDS data 1+
11
TMDS data 1/3 shield
12
NC
20-pin color display signal cable*
PIN No.
1
Lane0(p)
2
GND
3
Lane0(n)
4
Lane1(p)
5
GND
6
Lane1(n)
7
Lane2(p)
8
GND
9
Lane3(n)
10
Lane3(p)
* only for certain models
Downloaded from ManualMonitor.com Manuals
Description
PIN No.
Description
PIN No.
Description
13
NC
14
+5 V power
15
GND (return for +5 V hsync.vsync)
16
Hot-plug detection
17
TMDS data 0-
18
TMDS data 0+
19
TMDS data 0/5 shield
20
NC
21
NC
22
TMDS clock shield
23
TMDS clock+
24
DDC TMDS clock-
Description
11
GND
12
Lane3(n)
13
Config1
14
Config2
15
AUX_CH (n)
16
GND
17
AUX_CH (p)
18
Hot Plug Detect
19
DP Power_Return
20
DP Power
7
