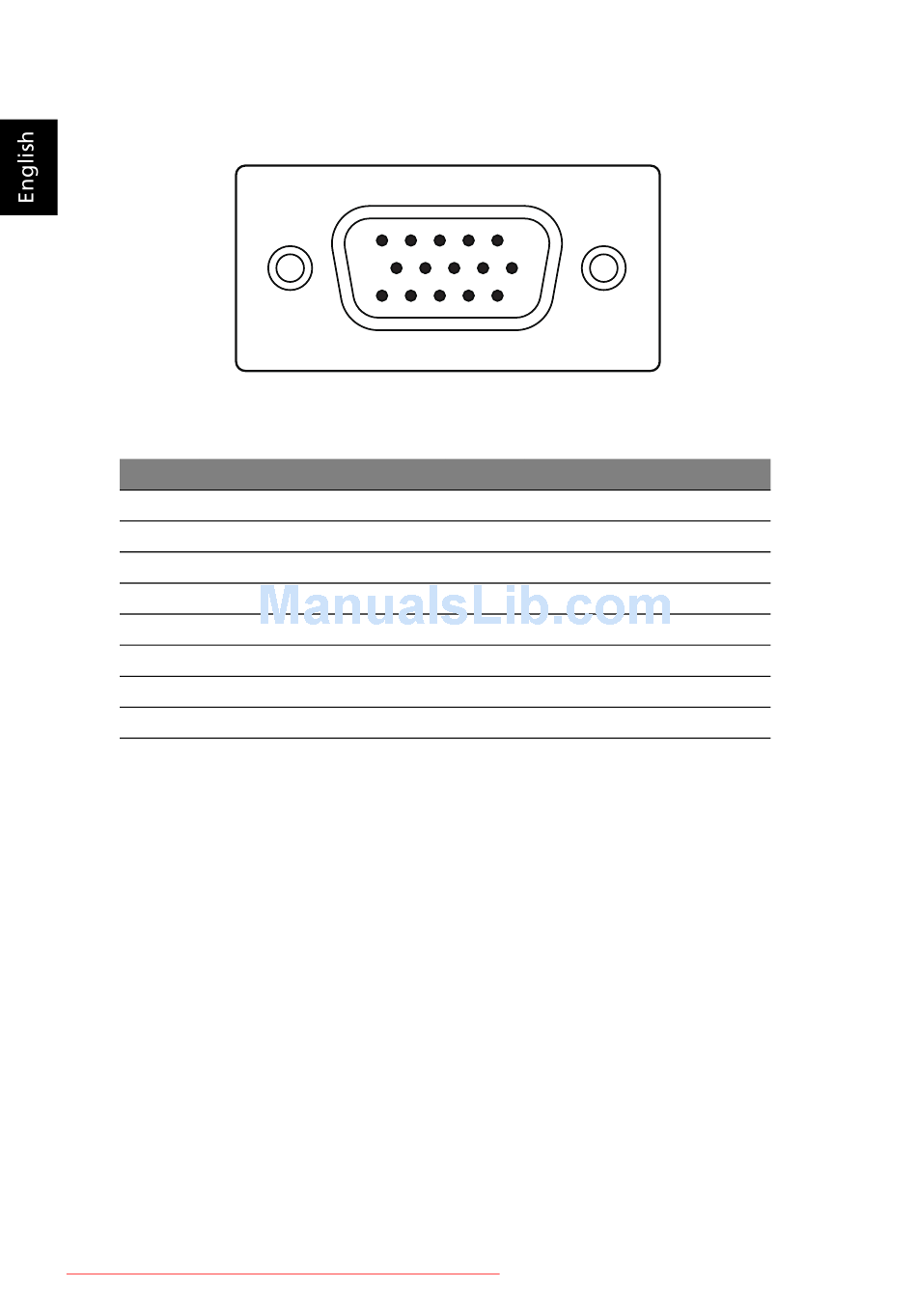

Connector pin assignment

15-pin color display signal cable
PIN No. Description
1
Red
2
Green
3
Blue
4
Monitor ground
5
DDC-return
6
R-ground
7
G-ground
8
B-ground
Downloaded from ManualMonitor.com Manuals
1
5
10
6
11
15
PIN No. Description
9
10
11
12
13
14
15
+5 V
Logic ground
Monitor ground
DDC-serial data
H-sync
V-sync
DDC-serial clock
