Installation Instructions
Installation Instructions
Secure
with
#6-32
Screws
Clear Lexan
Notes:
• The RAM-216 is supplied with NP-386 paper labels for zone identification.
• This annunciator displays initiating circuit status only (no individual circuit troubles).
Indicating and relay circuits are not remotely displayed. For more details, refer to the
manual of the fire alarm control panel that the annunciator will be connected to.
• The RAM-216 has a keyswitch to enable the four slide-switch controls. The key
should be appropriately secured.
Controls and Displays
For precise definitions of control & display operation, refer to the manual of the fire alarm control panel that
the annunciator will be connected to.
System Reset, Signal Silence Switches
Buzzer Silence, Lamp Test Switches
2
Standard Electrical
Box
Paper Labels
Controls
Std
Elec.
Wall
Box

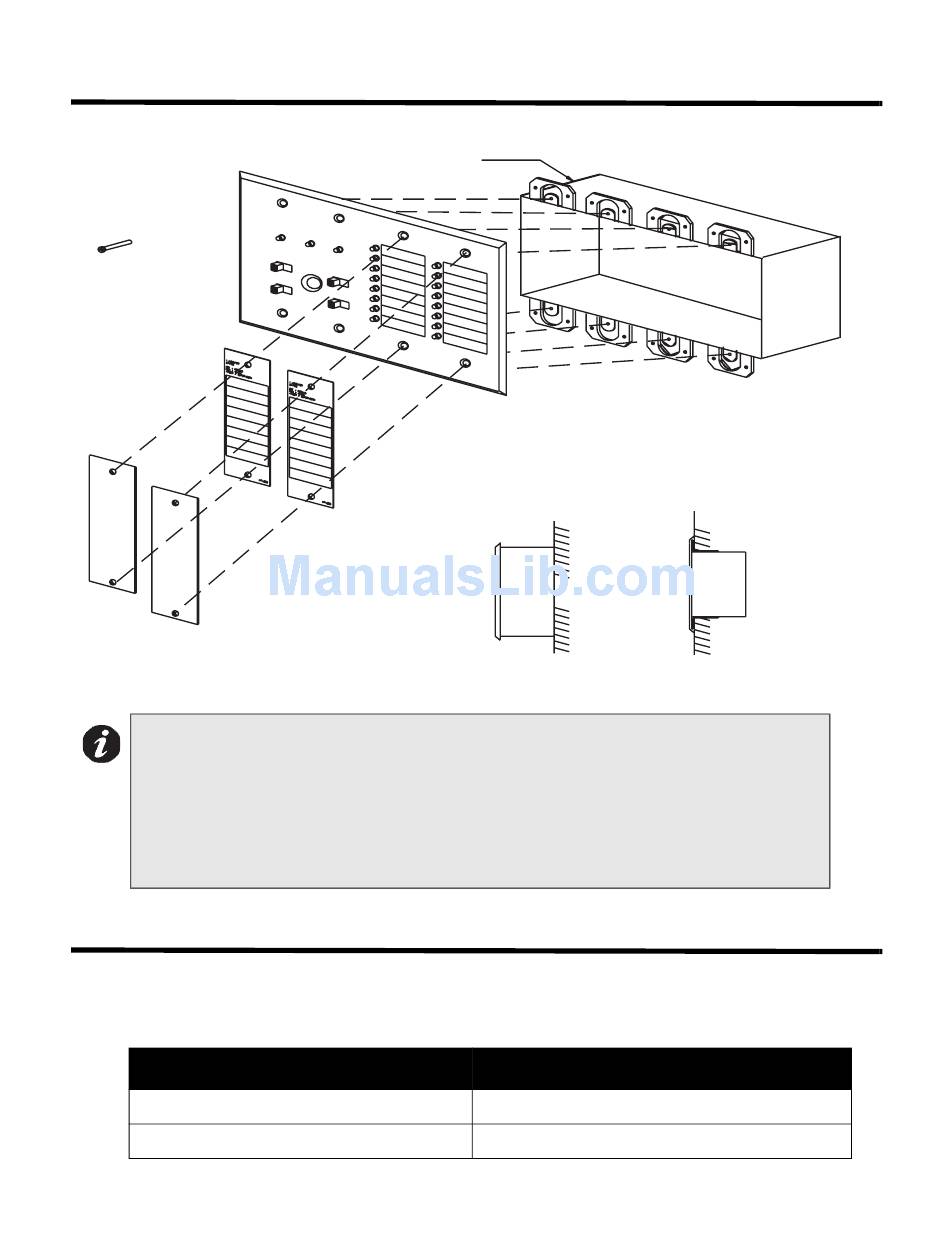

Surface Mount
Displays
AC On, Common Trouble, Signal Silence LEDs
16 circuit status bi-coloured (red/amber) LEDs
Wall
Std
Elec.
Box
Flush Mount
