- Page 1 CABINET PARTS 36" BUILT IN For Model: KSSS36FTX00 REFRIGERATOR (Etched Aluminum) 11−07 Litho In U.S.A. (mat) Part No. W10137914 Rev. B...
-

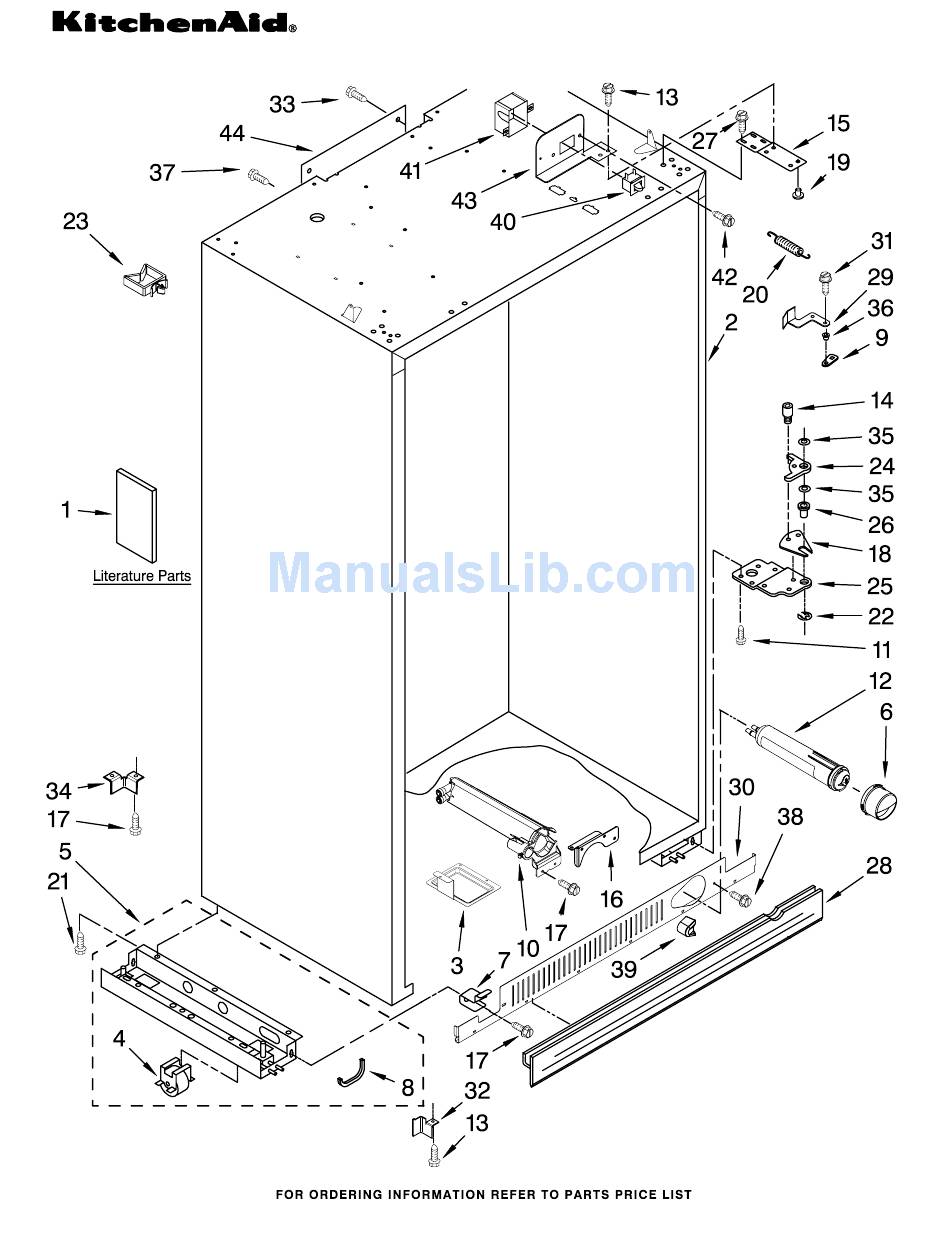

Page 2: Cabinet Parts
2260518B Black 2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer 2260526 Housing, Water Filter CABINET PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 3400525 Screw 4396841 Filter, Water 489399 Screw 3400230 Screw, Door Stop 2257644 Hinge (Top) - Page 3 W10137914 CABINET TRIM PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316686 Cabinet, Trim (Bottom) 486194 Screw 2314016 Cabinet, Trim Top 6 W10132541 Cabinet Trim (Left Side) 7 W10121451 Nutsert (4) 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2302870 Cover, Shelf 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice 2266930 Bucket, Ice... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10137914 For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2307585 Control Box 2310164 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part 2316824S Top Grille Assy 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2317923S Nameplate 489348 Clamp 2003347 Tee Bolt (4)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257581 Trim, Glass Rear 2252411 Crisper Pan (2)
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS36FTX00 Illus. Part 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, 2302816 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #8) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket,...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914... - Page 16 FREEZER DOOR PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Insulation) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222813 Door Gasket, Magnetic 2316844S Handle, Door 2001230 Washer Screw 8281250 Stainless Steel 2005025 Trim−Door, Top...
- Page 17 UPPER UNIT PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914...
- Page 18 2317031 Bracket, Vibration Condenser 1157158 Screw 2307998 Condenser 2309431 Grommet (4) 2317030 Arm, Vibration Condenser 487522 Screw UPPER UNIT PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2155774 Wire Tie 2317982 Drier 2310207 Wire Assembly (Condenser Fan) 2206036 Motor, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assembly 2316683 Cover, Wiring 2316684 Cover, Box 8 W10121370 Tube, Discharge 2306092 Evaporator...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSS36FTX00 (Etched Aluminum) W10137914... - Page 22 2310108 Jumper, Fill Tube Heater 2320559 Support, Valve 2305274 Clamp, Nylon Valve 488937 Clamp Tube 2221240 Heater, Fill Tube ICEMAKER PARTS For Model: KSSS36FTX00 (Etched Aluminum) Illus. Part DESCRIPTION 2221232 Cover 2313990 Shut Off Arm 20 W10122527 Mold & Heater...
