- Page 1 CABINET PARTS 36" BUILT IN For Model: KSSS36FTX02 REFRIGERATOR (Etched Aluminum) 12−07 Litho In U.S.A. (rrm) Part No. W10175719 Rev. A...
-

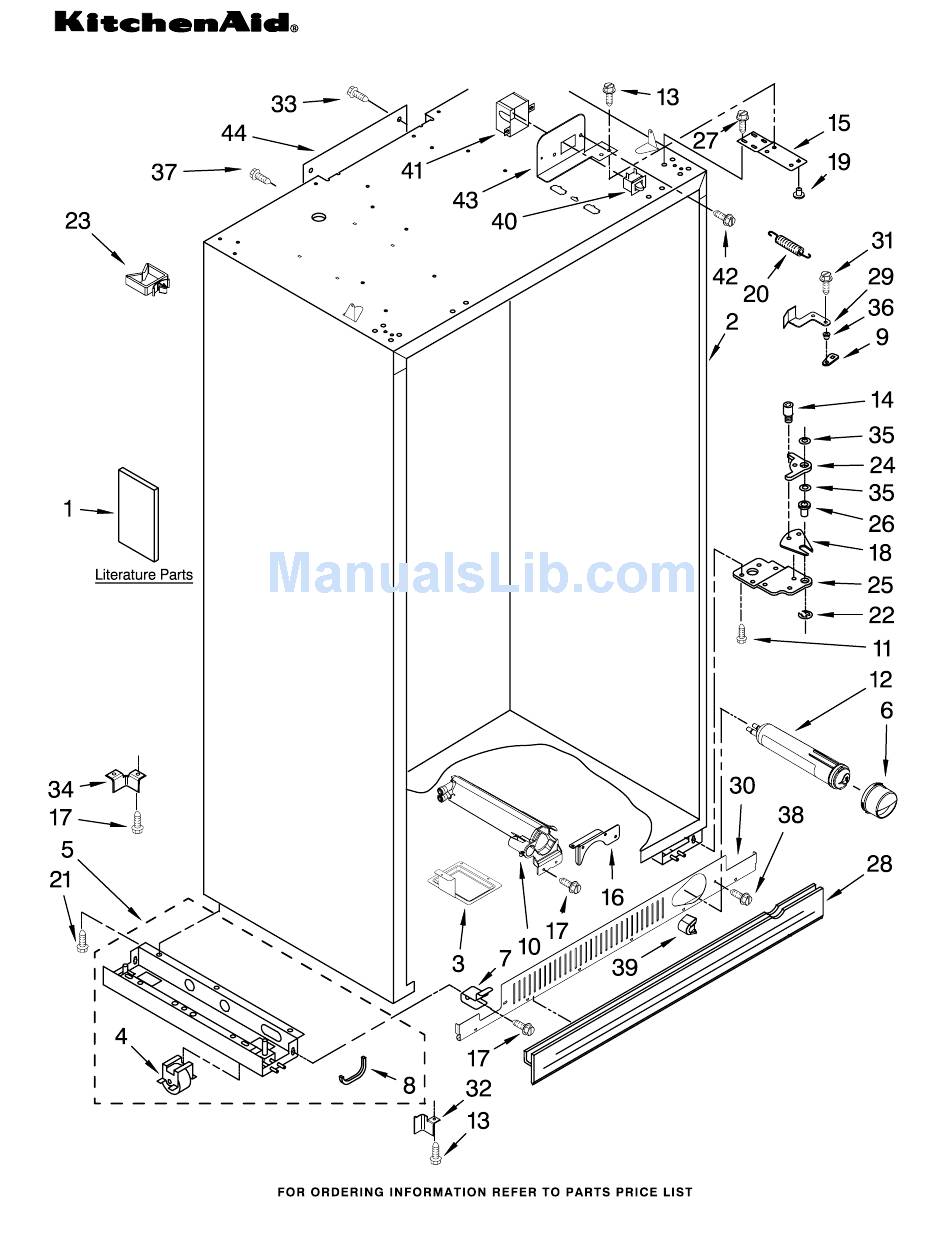

Page 2: Cabinet Parts
2318193 Freezer Side Cap, Water Filter 2260518B Black 2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer CABINET PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2260526 Housing, Water Filter 3400525 Screw 4396841 Filter, Water 489399 Screw... - Page 3 W10175719 CABINET TRIM PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316686 Cabinet, Trim (Bottom) 486194 Screw 2314016 Cabinet, Trim Top 6 W10132541 Cabinet Trim (Left Side) 7 W10121451 Nut−Cert 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Wire, Shelf 2302870 Cover, Shelf 2302882 Shelf, Fixed (2) 2259081 Basket 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice 2266930 Bucket, Ice... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10175719 For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2307588 Control Box 2310164 Wire, Jumper 2324971 Bracket, Control Box 2307594 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part 2316824S Top Grille Assy 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2317923S Nameplate 489348 Clamp...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257581 Trim, Glass Rear 2252411 Crisper Pan (2)
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS36FTX02 Illus. Part 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, 2302816 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item #9) 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Lid 2222981 Gasket, Utility 2222810 Door Gasket,...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719... - Page 16 FREEZER DOOR PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Insulation) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222813 Door Gasket, Magnetic 2316844S Handle, Door 2001230 Washer Screw 8281250 Stainless Steel 2005025 Trim−Door, Top...
- Page 17 UPPER UNIT PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719...
- Page 18 11 W10121049 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 2317031 Bracket, Vibration Condenser 1157158 Screw 2307998 Condenser 2309431 Grommet (4) UPPER UNIT PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 2317030 Arm, Vibration Condenser 487522 Screw 2155774 Wire Tie...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assembly 6 W10151288 Cover, Wiring 7 W10153595 Cover, Box 2307686 Tube, Discharge...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSS36FTX02 (Etched Aluminum) W10175719... - Page 22 489115 Fastener, Snap−In 2221070 Clamp, Tube 2310108 Jumper, Fill Tube Heater 2320559 Support, Valve 2305274 Clamp, Nylon Valve ICEMAKER PARTS For Model: KSSS36FTX02 (Etched Aluminum) Illus. Part DESCRIPTION 488937 Clamp Tube 2221240 Heater, Fill Tube 2257538 Cover 2313990 Shut Off Arm 20 W10122527 Mold &...
