MAVERICK
4 BURNER BBQ KITCHEN
BBQ, SINK MIXER & DRAWER MODULE
Retain manual for future reference
03174 07/14
1

Advertisement

Table of Contents
loading

Related Manuals for Matador Maverick

Summary of Contents for Matador Maverick

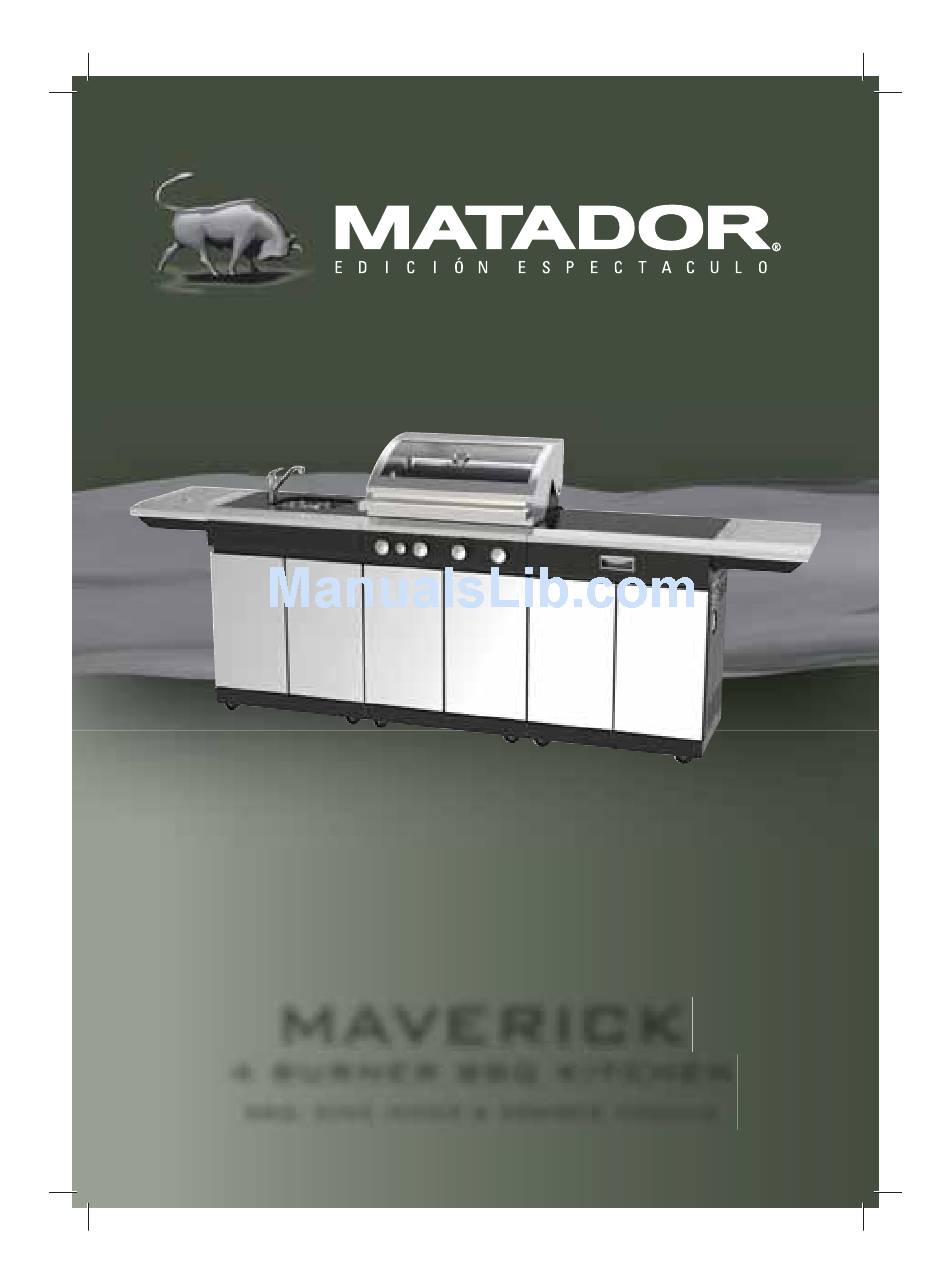

  • Page 1 MAVERICK 4 BURNER BBQ KITCHEN BBQ, SINK MIXER & DRAWER MODULE Retain manual for future reference 03174 07/14...

  • Page 2: General Information

    GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with IMPORTANT the barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to use. A gas regulator adjusted to have an outlet Familiarise yourself with the appliance before pressure of 2.75kPa is supplied for connection to connecting it to it’s gas container.

  • Page 3: Customer Service

    IF THERE IS A LEAK FOR YOUR SAFETY • Turn the cylinder off. • Ventilate the area to disperse gas. • Failure to comply with these instructions • Check all connections. could result in a fire or explosion which • If leak persists, keep the cylinder upright. could cause serious bodily injury, death or Keep skin away from any gas or liquid property damage.
  • Page 4 GENERAL INFORMATION Location of your Barbecue FOR YOUR SAFETY DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The • Do not store or use petrol or other barbecue is not intended to be installed in or on flammable liquids in the vicinity of this or recreational vehicles and/or boats and should...

  • Page 5: Specifications

    CARE & MAINTENANCE As with all appliances, proper care and Care of Cooking Surface maintenance will keep them in top operating Use and care of the cooking surface is condition and prolong their life. Your new gas important. Do not use pans on the cooking barbecue is no exception.
  • Page 6 ASSEMBLY INSTRUCTIONS...
  • Page 7 BBQ MODULE - EXPLODED DIAGRAM...
  • Page 8 SINK MODULE - EXPLODED DIAGRAM...
  • Page 9 DRAWER MODULE - EXPLODED DIAGRAM...
  • Page 10 BBQ MODULE - PARTS LIST 1. Body Assembly 2. Side Burner 3. Side Shelf 4. Base Panel 5. Cabinet Left Assembly Assembly Side Panel 6. Cabinet Right 7. Cabinet 8. Cabinet Horizontal 9. Cabinet Door 10. Cabinet Side Panel Back Panel Beam 2pcs Separation Panel...
  • Page 11 SINK MODULE - PARTS LIST 26. Sink Module 27. Tap Assembly 28. Waste Pipe 29. Cabinet 30. Cabinet Left Top Assembly Assembly Horizontal Beam Side Panel 31. Cabinet Right 32. Cabinet 33. Base Panel 34. Cabinet Door 35. Triangle Side Panel Back Panel 2pcs 2pcs...
  • Page 12 DRAWER MODULE - PARTS LIST 39. Drawer Module 40. Cabinet Horizontal 41. Cabinet Side Panel 42. Cabinet Side Panel Top Assembly Beam Left Right 43. Cabinet Back Panel 44. Cabinet Base Panel 45. Cabinet Door 46. Triangle 2pcs 2pcs 47. Door Hinge 4pcs 48.
  • Page 13 BBQ MODULE - ASSEMBLY INSTRUCTIONS Remove any transit protection material. Tools Required: Phillips Head Screwdriver & Adjustable Spanner. STEP 1 Use M6 x 15 screw (B1) x 16 pcs, M6 flat washer (D1) x 16 pcs and spring washer (E1) x 16 pcs to attach swivel castor with lock (22) x 2 pcs and without lock (23) x 2 pcs to the cabinet base panel (4).
  • Page 14 STEP 3 Use M6 x 15 screw (B1) x 5 pcs to assemble the cabinet back panel (7). Note: Please DO NOT tighten the screws of this step now. STEP 4 Use M6 x 15 (B1) x 4 pcs to attach the cabinet horizontal beam (8) to the side panels.
  • Page 15 STEP 5 Use M4 x 8 screw (F1) x 5 pcs to attach the fat cup box (25) beneath the cabinet separation panel. Then use M4 x 8 (F1) x 3 pcs and M6 x 15 (B1) x 2 pcs to attach cabinet separation panel (10) as shown.
  • Page 16 STEP 7 Place the grease tray (13) as shown on top of the cabinet separation panel. Make sure the hole in the grease tray is in line with the hole in the separation panel. STEP 8 Place the firebox (1) onto the cart and then use M6 x 15 (B1) x 4 pcs, M6 flat washer (D1) x 4 pcs and M6 spring washer (E1) x 4 pcs to fix the...
  • Page 17 STEP 9 Place the flame tamer, cooking grid, hot plate and warming rack as shown. STEP 10 Insert the fat cup into the fat cup box beneath the separation panel. Slide in fully to the end.
  • Page 18 SINK MODULE - ASSEMBLY INSTRUCTIONS Remove any transit protection material. Tools Required: Phillips Head Screwdriver & Adjustable Spanner. STEP 1 Use M6 x 15 screw (B2) x 16 pcs, M6 flat washer (D2) x 16 pcs and spring washer (E2) x 16 pcs to attach swivel castor with lock (37) x 2 pcs and without lock (38) x 2 pcs onto the cabinet base panel (33).
  • Page 19 STEP 3 Use M6 x 15 screw (B2) to attach cabinet back panel (32) as shown. STEP 4 Use M6 x 15 (B2) x 8 pcs to attach triangle (35) x 2 pcs as shown.
  • Page 20 STEP 5 Place the sink module top assy. (26) onto the top of the cart, and then use M6 x 15 (B2) screw x 4 pcs, M6 flat washer (D2) x 4 pcs and M6 spring washer (E2) x 4 pcs to attach it. STEP 6 Use M6 x 15 screw (B2) x 4 pcs to attach side burner assy.
  • Page 21 DRAWER MODULE - ASSEMBLY INSTRUCTIONS Remove any transit protection material. Tools Required: Phillips Head Screwdriver & Adjustable Spanner. STEP 1 Use M6 x 15 screw (B3) x 16 pcs, M6 flat washer (D3) x 16 pcs and spring washer (E3) x 16 pcs to attach the swivel castor with lock (48) x 2 pcs and without lock (49) x 2 pcs onto the cabinet base panel (44).
  • Page 22 STEP 3 Use M6 x 15 screw (B3) x 5 pcs to attach the cabinet back panel (43) as shown. STEP 4 Use M6 x 15 screw (B3) x 8 pcs to attach the triangle (46) x 2 pcs to as shown.
  • Page 23 STEP 5 Use M6 x 15 screw (B3) x 4 pcs to attach the cabinet horizontal beam (40) to the cart. Attach the cushion rubber (A3) x 2 pcs to the beam. STEP 6 Place the drawer module top assy. (39) onto the top of the cart, and then use M6 x 15 screw (B3) x 4 pcs, M6 flat washer (D3) x 4 pcs...
  • Page 24 STEP 7 Use M6 x 15 screw (B3) x 4 pcs to attach side shelf brackets (18 & 19) to the right side of the drawer module. DO NOT tighten the screws now, we may need some adjustment when we assemble the foldable side shelf to ensure the front fascia is in line.
  • Page 25 KITCHEN - ASSEMBLY INSTRUCTIONS STEP 1 Use M6 x 15 screw (B2) x 4 pcs, M6 Flat Washer (D2) x 4 pcs and M6 spring washer (E2) x 4 pcs to connect the BBQ and sink module. Note: Make sure the regulator hose and crimple pipe go through the holes as shown.
  • Page 26 STEP 2 Use M6 x 15 screw (B2) x 4 pcs to fix the cabinet horizontal beam (29) to the cart. Then fix cushion rubber (A2) x 2 pcs to the beam. Note: Fix the M6 x 15 screw (B2) x 4 pcs to the cabinet side panel first (DO NOT tighten them now) and then hang the cabinet horizontal beam (29) to the screws.
  • Page 27 STEP 3 Lift out the side burner trivet. Remove the 2 screws and then take out the side burner head. STEP 4 Attach the side burner orifice onto the bracket as shown under the side burner shelf.
  • Page 28 STEP 5 Replace the side burner to the original position and tighten the 2 screws again. Note: Make sure the side burner venturi pipe is located over the injector as shown. Put back the side burner trivet and then insert the ignition wire as shown in the following picture.
  • Page 29 STEP 7 Use M6 x 15 screw (B3) x 4 pcs, M6 flat washer (D3) x 4 pcs and M6 spring washer (E3) x 4 pcs to connect the BBQ and drawer module.
  • Page 30 STEP 8 Use door hinge x 6 (21, 36 & 47) and M4 x 10 screw x 72 pcs (C1, C2 & C3) to assemble the cabinet door x 6 pcs (9, 34 & 45) as shown in the following picture. Note: There are two adjustable screws on the door hinge, which can help you adjust the gap between the two doors.
  • Page 31 STEP 9 Open the cabinet door, and feed the hose through the cabinet side panel to connect to the cylinder. Connect the water supply and feed the waste pipe through the middle hole on the back panel of the sink module cart.
  • Page 32 GENERAL ASSEMBLY Connecting & Disconnecting to Gas Source LIGHTING PROCEDURE Familiarise yourself with the general information Burner Operation & Ignition System Check and safety guidelines located at the front of this 1. With cylinder valve in ‘OFF’ position push and manual.
  • Page 33 OPERATION Burner Operation & Ignition System Check Problem Possible Reason Solution Valve on gas bottle closed Open valve on gas bottle Control knob is closed Turn knob to high when lighting Burner will not ignite Igniter is faulty Use a long barbecue match. Insert through the hole at side of barbecue Burner has gone out Check that the gas bottle is not empty and...
  • Page 34 NATURAL GAS CONVERSION Installation, Operation & Maintenance SERVICING INSTRUCTIONS Instructions Appliances should be serviced at least annually and servicing must only be carried out by a TO BE INSTALLED ONLY ON OR IN A NON- Licensed Plumber or Authorised Person. COMBUSTIBLE ENCLOSURE Clean the Burner Ports and top with a Soft Note: Recommended clearances must be...
  • Page 35 SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
  • Page 36 Any repair does not extend the warranty period. MONTHS of the date of purchase of the product. To make • Any parts other than original Matador parts will void a claim under the warranty, take the product (with proof of this warranty.
