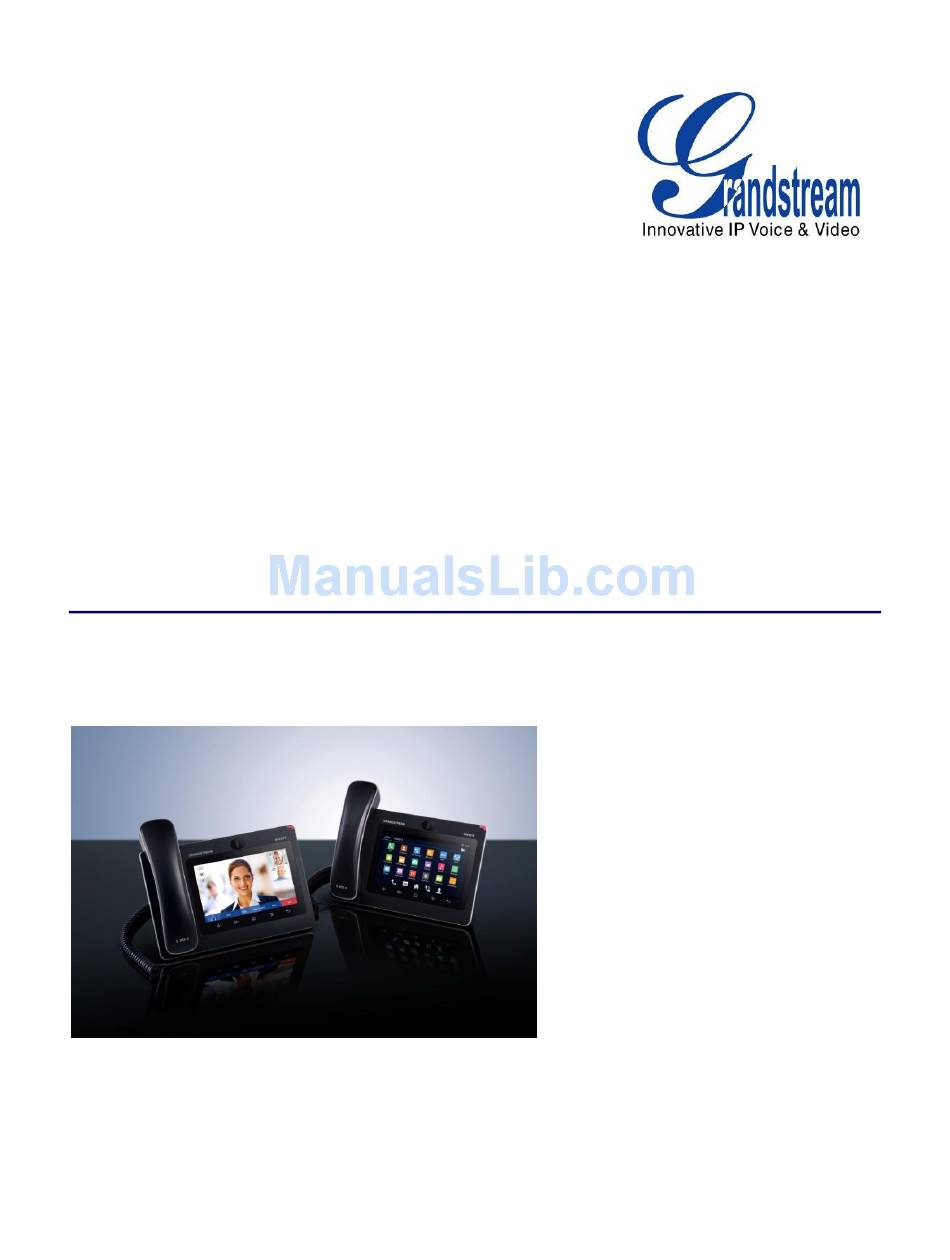

- Page 1 Grandstream Networks, Inc. GXV3275 IP Multimedia Phone for Android LDAP User Guide GXV3275 LDAP User Guide...
-
Page 2: Table Of Contents
ADD LDAP CONTACTS TO LOCAL PHONEBOOK ................16 USE LDAP WITH UCM6100 SERIES IPPBX ..........19 UCM6100 SERIES IPPBX LDAP SERVER ..................19 GXV3275 LDAP CONFIGURATION FOR UCM6100 DEFAULT LDAP PHONEBOOK ...... 20 GXV3275 LDAP User Guide Page 1 of 22... - Page 3 Figure 10: GXV3275 LDAP Book - Search Result ..................16 Figure 11: GXV3275 LDAP Book - Add Single LDAP Contact to Local Phonebook ........17 Figure 12: GXV3275 LDAP Book - Add Multiple LDAP Contacts to Local Phonebook ......18 Figure 13: UCM6100 LDAP Server ......................
-
Page 4: Gxv3275 Ldap User Guide
RFCs (Request for Comments) from IETF (Internet Engineering Task Force). LDAP is a client-server protocol and the GXV3275 can be used as LDAP client to access the directory and search contacts remotely from the LDAP server. This User Guide describes how to use the LDAP directory on the GXV3275 and a sample configuration is provided with the built-in LDAP server on the Grandstream UCM6100 series IPPBX. -
Page 5: Requirement
A properly installed and configured LDAP server The LDAP configuration on the GXV3275 relies on the LDAP server setup in order to retrieve the stored contacts information. Therefore, before starting using the LDAP directory on the GXV3275, please make sure the LDAP server is properly installed and configured. -
Page 6: Ldap Configuration On Gxv3275
DN. The LDAP client needs to be properly configured to access the LDAP server, perform search within the DN and retrieve the result. On the GXV3275, LDAP configurations can be done via web UI, LCD or configuration file provisioning. This section describes how to configure LDAP settings on the GXV3275 via these three methods. - Page 7 - The entered string is used as prefix number and "Mobile" field set. (sipAccount=%) This returns all the records which have the "sipAccount" field starting with the entered searching number. GXV3275 LDAP User Guide Page 6 of 22...
-
Page 8: Figure 1: Gxv3275 Web Ui Ldap Settings
The default setting is Disable Call disabled. ] shows the GXV3275 web UI LDAP settings web page, with all Figure 1: GXV3275 Web UI LDAP Settings the options set to default value. GXV3275 LDAP User Guide Page 7 of 22... -
Page 9: Configure Ldap Via Lcd
Figure 1: GXV3275 Web UI LDAP Settings CONFIGURE LDAP VIA LCD 1. On the GXV3275 idle screen, tap on onscreen menu icon to access the application list. GXV3275 LDAP User Guide Page 8 of 22... -
Page 10: Figure 2: Gxv240 Idle Screen
Figure 2: GXV240 Idle Screen 2. In the menu, tap on "LDAP Book" icon to launch LDAP Book application. GXV3275 LDAP User Guide Page 9 of 22... -
Page 11: Figure 3: Gxv3275 Menu
Figure 3: GXV3275 Menu 3. In the LDAP Book application, tap on the setting icon on the upper right of the screen. LDAP configuration options will display. Figure 4: GXV3275 LDAP Book - Settings GXV3275 LDAP User Guide Page 10 of 22... -
Page 12: Figure 5: Gxv3275 Ldap Settings Via Lcd
Figure 5: GXV3275 LDAP Settings via LCD 4. Select the option and tap on the input field to configure the LDAP settings using the onscreen keyboard (e.g., input server address 192.168.40.44 in the figure below). Please refer to [ Table 1: ] for detailed description an example for each option. -
Page 13: Configure Ldap Via Configuration File
Figure 6: GXV3275 LDAP Settings - Configure Server Address CONFIGURE LDAP VIA CONFIGURATION FILE The following table shows the P parameters for the LDAP configuration options. Assign the proper value for each P parameters in the configure template and provisioning the phone. After successful provisioning, the phone will boot up with LDAP configuration set up and LDAP will be ready to use. - Page 14 LDAP Lookup For Incoming Calls P8035 P8035=0 - for "Disable" (default value) For more details about the GXV3275 configuration template and provisioning, please refer to the configuration tool, templates and documentation in the following link: http://www.grandstream.com/support/tools GXV3275 LDAP User Guide...
-
Page 15: Use Gxv3275 Ldap Book
USE GXV3275 LDAP BOOK SEARCH CONTACTS IN LDAP BOOK Once the LDAP configuration is done, users can start using the LDAP Book application on the GXV3275 to search directory information from the LDAP server. 1. On the GXV3275 idle screen, tap on onscreen menu icon to access the phone's menu. -
Page 16: Figure 8: Gxv3275 Menu
3. Tap on icon and a search bar will be displayed on the top or the LDAP book application. Figure 9: GXV3275 LDAP Book - Search 4. Type number using the keypad, the related contacts information returned from the searching result in the LDAP server will be instantly displayed under the search bar. -
Page 17: Add Ldap Contacts To Local Phonebook
ADD LDAP CONTACTS TO LOCAL PHONEBOOK After the LDAP searching result is returned to the GXV3275 as shown in [Figure 10: GXV3275 LDAP Book - , users can use the following two methods to add the contacts to local phonebook. To add... -
Page 18: Figure 11: Gxv3275 Ldap Book - Add Single Ldap Contact To Local Phonebook
Figure 11: GXV3275 LDAP Book - Add Single LDAP Contact to Local Phonebook Tap on icon on the upper right of the screen, all the searching result will be displayed with a checkbox right next to each result. Tap on the checkbox to select/unselect it. Then tap on "Add"... -
Page 19: Figure 12: Gxv3275 Ldap Book - Add Multiple Ldap Contacts To Local Phonebook
Figure 12: GXV3275 LDAP Book - Add Multiple LDAP Contacts to Local Phonebook GXV3275 LDAP User Guide Page 18 of 22... -
Page 20: Use Ldap With Ucm6100 Series Ippbx
Figure 13: UCM6100 LDAP Server 3. The UCM6100 has a default LDAP Phonebook with phonebook DN "ou=pbx,dc=pbx,dc=com", which contains all the extensions created on the PBX. Tap on icon to check the phonebook entries. GXV3275 LDAP User Guide Page 19 of 22... -
Page 21: Gxv3275 Ldap Configuration For Ucm6100 Default Ldap Phonebook
Figure 15: UCM6100 LDAP Default Phonebook Entries GXV3275 LDAP CONFIGURATION FOR UCM6100 DEFAULT LDAP PHONEBOOK The GXV3275 can be configured as shown in the figure below in order to use the default LDAP phonebook on the UCM6100 LDAP server described in section [... -
Page 22: Figure 16: Configure Gxv3275 Ldap With Ucm6100 Ldap Default Phonebook
Figure 16: Configure GXV3275 LDAP with UCM6100 LDAP Default Phonebook Users could also change the above filters and attributes as preferred according to the LDAP client sample configuration from the UCM6100 web UI->Settings->LDAP Server. GXV3275 LDAP User Guide Page 21 of 22... -
Page 23: Figure 17: Ldap Client Configuration Sample From Ucm6100
Figure 17: LDAP Client Configuration Sample from UCM6100 GXV3275 LDAP User Guide Page 22 of 22...
