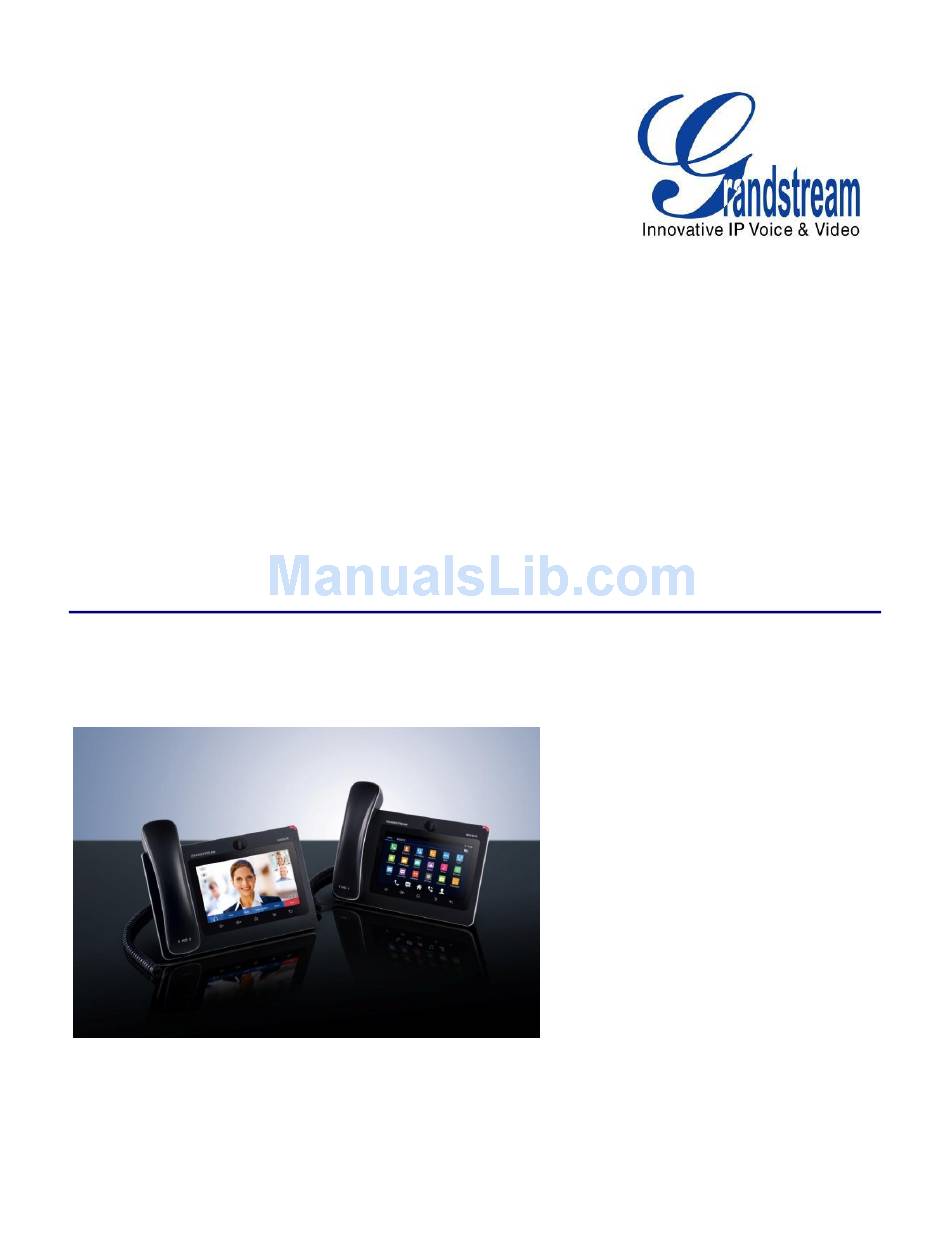

- Page 1 Grandstream Networks, Inc. GXV3275 IP Multimedia Phone for Android Wi-Fi User Guide GXV3275 Wi-Fi User Guide...
-
Page 2: Table Of Contents
GXV3275 Wi-Fi User Guide Index INTRODUCTION ................... 3 CONNECT TO WI-FI ..................4 TURN ON/OFF WI-FI........................... 4 ADD WI-FI NETWORKS ........................6 CONFIGURING WI-FI FROM PROVISIONING ................... 9 WI-FI SETTINGS ..................10 ACCESS WI-FI SETTINGS ....................... 10 SCAN ..............................11 ADD WI-FI NETWORK MANUALLY ....................11 WPS PUSH BUTTON ........................ - Page 3 Figure 18: GXV3275 Any Share Application: One-To-One Share ....Error! Bookmark not defined. Figure 19: GXV3275 Any Share Application: Send or Receive ....Error! Bookmark not defined. Figure 20: GXV3275 Any Share Application: Receive Files ......Error! Bookmark not defined.
-
Page 4: Gxv3275 Wi-Fi User Guide
The GXV3275 has integrated Wi-Fi that supports 802.11b/g/n for network flexibility. This User Guide describes how to use the Wi-Fi function to connect the GXV3275 into your local network. To learn more about GXV3275's basic and advanced features, please visit link http://www.grandstream.com/support... -
Page 5: Connect To Wi-Fi
Wi-Fi is supported and built-in on the GXV3275. GXV3275 can be connected to network if Wi-Fi is available within the area. By default, Wi-Fi is turned off on the GXV3275. Users can turn on Wi-Fi from web UI, LCD settings->system settings or provisioning. -
Page 6: Figure 1: Turn On/Off Wi-Fi From Status Bar
Figure 1: Turn On/Off Wi-Fi From Status Bar To turn on/off Wi-Fi from system settings 1. On the GXV3275 idle screen, tap on the onscreen Menu icon on the bottom of the LCD to bring up the LCD menu. -
Page 7: Add Wi-Fi Networks
ADD WI-FI NETWORKS Add Wi-Fi networks from LCD 1. Once Wi-Fi is turned on, GXV3275 will automatically start the scanning within the range. 2. On GXV3275 idle screen, tap on the onscreen MENU icon on the bottom of the LCD. -
Page 8: Figure 4: Gxv3275 Wi-Fi Settings
6. A list of Wi-Fi networks will be displayed as scanning result. Tap on the SSID and enter the correct password information to connect to the selected Wi-Fi network. Figure 5: GXV3275 Connect to Wi-Fi GXV3275 Wi-Fi User Guide Page 7 of 20... -
Page 9: Figure 6: Gxv3275 Connect To Wi-Fi Via Web Ui
8. Once authenticated, the phone will obtain IP address via DHCP and connect to the Wi-Fi network. 9. After successfully connected, the password will be remembered. When the GXV3275 has Wi-Fi turned on in the future, it will connect to this network automatically if the SSID is within the range. -
Page 10: Configuring Wi-Fi From Provisioning
P7830 This is the WEP default key. The maximum length allowed is 64 characters. For more details about the GXV3275 configuration template and provisioning, please refer to the configuration tool, templates and documentation in the following link: http://www.grandstream.com/support/tools GXV3275 Wi-Fi User Guide... -
Page 11: Wi-Fi Settings
WI-FI SETTINGS ACCESS WI-FI SETTINGS 1. When the GXV3275 is on idle screen, tap on the onscreen MENU icon on the bottom of the LCD. 2. Tap on Settings 3. Tap on Wireless & Networks. 4. Tap on Wi-Fi Settings. A list of available Wi-Fi network within the range will be displayed in "Wi-Fi Settings"... -
Page 12: Scan
If the Wi-Fi network SSID doesn't show up in the scan list, or users would like to set up advanced options for the Wi-Fi network, users could add the Wi-Fi network manually under "Wi-Fi Settings". 1. When the GXV3275 is on idle screen, tap on the onscreen MENU icon on the bottom of the LCD. -
Page 13: Wps Push Button
Under "Wi-Fi Settings" menu, tap on MENU button and select "WPS Push Button" for an easy and secure Wi-Fi network setup. 1. When the GXV3275 is on idle screen, tap on the onscreen MENU icon on the bottom of the LCD. 2. Tap on Settings 3. -
Page 14: Figure 10: Gxv3275 Wps Available Network
Figure 10: GXV3275 WPS available network 5. On the Wi-Fi Settings screen, tap on MENU button and select " WPS Push Button". Figure 11: GXV3275 Wi-Fi WPS Push Button GXV3275 Wi-Fi User Guide Page 13 of 20... -
Page 15: Wps Pin Entry
Under "Wi-Fi Settings" menu, tap on MENU button and select "WPS Pin Entry" for an easy and secure Wi-Fi network setup. 1. When the GXV3275 is on idle screen, tap on the onscreen MENU icon on the bottom of the LCD. 2. Select Settings 3. -
Page 16: Figure 13: Gxv3275 Wi-Fi Wps Pin Entry
7. Users must typt the PIN numbers to the router and make a connection. After for a while, the phone will display the connection to a network. Figure 14: GXV3275 Connected to a Wi-Fi WPS Pin Entry Network GXV3275 Wi-Fi User Guide... -
Page 17: Wi-Fi Direct
Fi Direct, users must download and install sharing applications (3rd party application) to send/receive files. To use Wi-Fi Direct: 1. When the GXV3275 is on idle screen, tap on the onscreen MENU icon on the bottom of the LCD. 2. Select Settings 3. -
Page 18: Advanced Settings
8. After connecting to the peer device, the status of the peer device will be changed to "Connected". Figure 16: GXV3275 Wi-Fi Direct: Connected ADVANCED SETTINGS Under "Wi-Fi Settings" menu, tap on MENU button and select "Advanced". Users will see the following advanced settings related to Wi-Fi connections. - Page 19 Figure 17: GXV3275 Wi-Fi Settings: Advanced Network Notification. If enabled, the phone will show notification on the top status bar indicating an open network is available. By default it's enabled. Avoid Poor Connections. If enabled, Wi-Fi network won't be used unless the connection is good. By default it's disabled.
- Page 20 Figure 18: GXV3275 Wi-Fi Advanced Settings GXV3275 Wi-Fi User Guide Page 19 of 20...
-
Page 21: Portable Hotspot
PORTABLE HOTSPOT The GXV3275 can be served as a Wi-Fi access point for other devices to connect to wireless network if hotspot is turned on. 1. On the GXV3275 idle screen, tap on the onscreen MENU icon on the bottom of the LCD.
