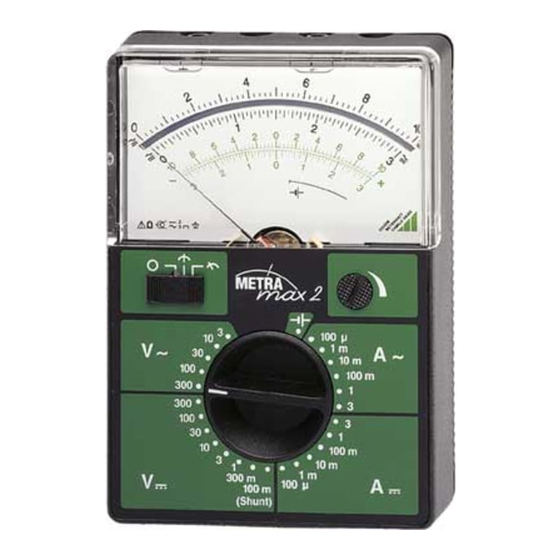

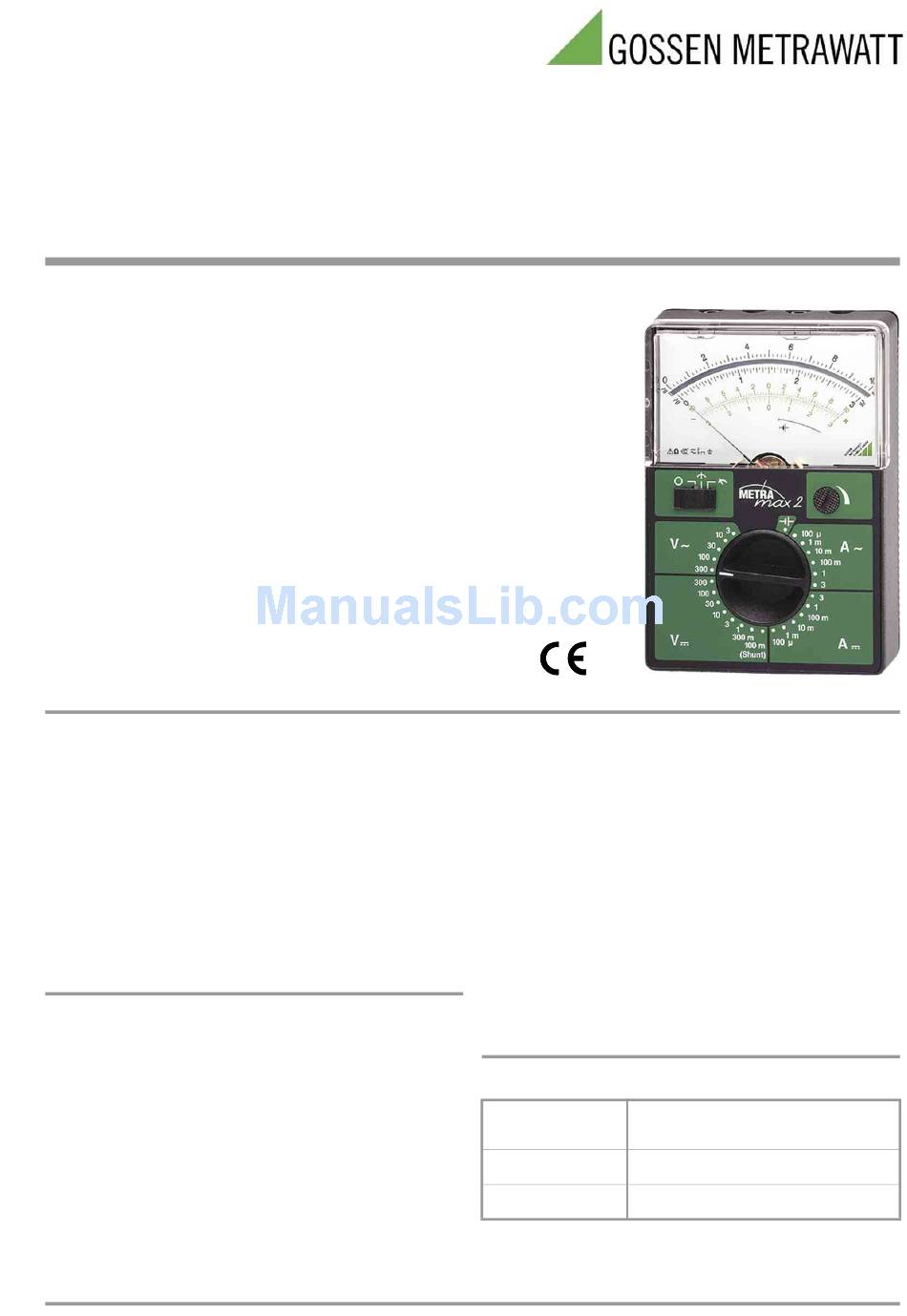

METRAmax 2
Analog Multimeter
• Voltage measurement:
0...100/300 mV/1 V=; 0...3 /10 /30 /100 /300 V=/∼
• Current measurement:
0...100 μA/1/10/100 mA/1 /3 A =/∼
• Zero point: selectable on the left or at mid-scale
Class 2 =/3 ∼
• Accuracy:
Range of Applications
• Schools
• Vocational schools
• Craft shops
The handheld multimeter METRAmax 2 was developed in coop-
eration with a renowned German manufacturer of educational
systems and thus meets the actual demands set in teaching and
vocational training.
Thanks to its excellent overload capacity, optional zero setting
either at mid-scale or left as well as automatic battery shutdown,
the meter is not only suited for students' exercises but also for
balancing tasks and service applications.
Features
Safe handling
The connection sockets and connection plugs of the measure-
ment cables, which are available as accessory equipment, are
protected against accidental contact.
Range selector switch
All measuring ranges and measuring functions can be conve-
niently selected with a clear, central rotary switch.
GMC-I Gossen-Metrawatt GmbH
Rugged housing design
The rugged plastic housing and the spring-loaded bearing jewels
of the moving-coil mechanism protect the meter against damage
in the case of mechanical stress. The protective rubber cover and
the carrying pouch offer special protection under adverse operat-
ing conditions. Both are available as accessories.
Special technical qualities
• „Galvanometer operation"
due to „left" zero position of the pointer, switchable to „mid-
scale"
• High, constant input impedance
during voltage measurement due to electronic amplifier
• Automatic battery shutdown after 45 minutes
• Expansion of the current measuring range to 10 A
by means of accessory shunt
Applicable Standards and Regulations
Safety requirements for electrical equipment for
IEC 61010-1/EN 61010-1/
measurement, control and laboratory use
VDE 0411-1
– General requirements
EN 60529 Test instruments and test methods
VDE 0470 part 1 Degrees of protection provided by enclosures (IP code)
DIN EN 61326 Electrical equipment for measurement, control and
VDE 0843 part 20 laboratory use – EMC requirements
