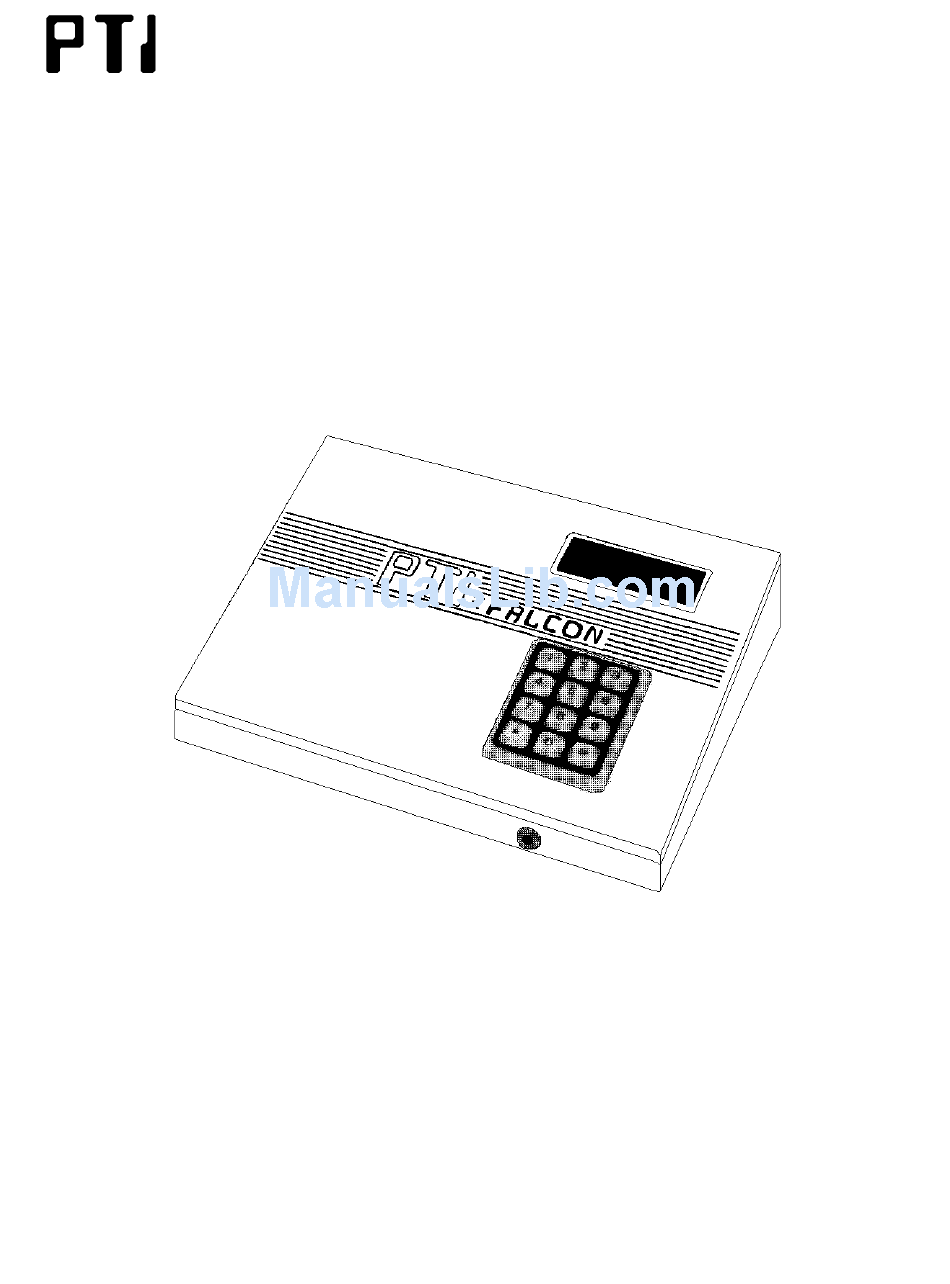

- Page 1 Falcon Access Control System Installation and Operation Manual For 15 and 20 Function type Falcons Includes: single wire and type 1 door alarms...
- Page 2 PREFERRED TECHNOLOGY INC. 8271 East Gelding Drive Scottsdale, AZ. 85260 480-991-1259...
- Page 5 WARNING: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial enviorment.
-
Page 6: Table Of Contents
Contents Introduction ....................... 1 Equipment Overview ....................3 The Base Unit....................3 The Remote Keypad ..................4 Connecting Cables ..................5 Accessories ....................6 Individual Door Alarms - Expandable ............7 Individual Door Alarms - Single Wire ............. 8 Installation ......................... 9 Remote Keypad Installation ................ - Page 7 Specifications ......................49 Base Unit Specifications................49 Remote Keypad Specifications ..............49 Alarm Mux Specifications ................49 WARRANTY ......................51...
-
Page 9: Introduction
Introduction The PTI Falcon SS is a multi-point access control system capable of hosting up to sixteen remote keypads or door alarm controllers. Multiple building groups are supported with multiple units per building. Each unit may be restricted to normal business hours access or given twenty four hour access. -
Page 11: Equipment Overview

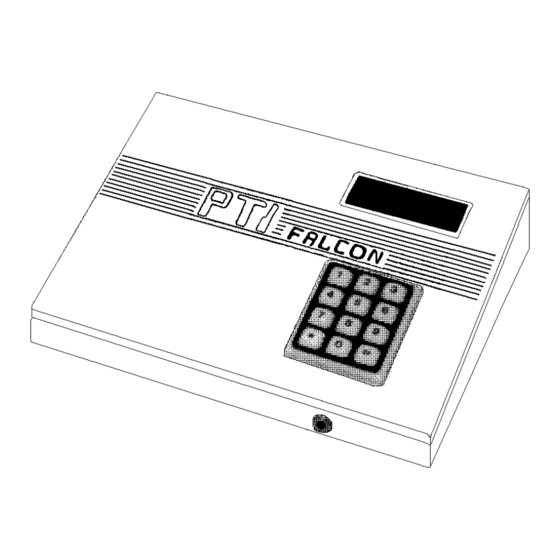

The Base Unit serves as the main pro- gramming console for the PTI Falcon access control system. Figure One illus- trates the front view of the PTI Falcon Base Unit. At the top of the unit there is a two line by sixteen character liquid crystal display. -
Page 12: The Remote Keypad
WARNING: ALWAYS UNPLUG THE POWER CORD FROM THE WALL OUTLET FIRST, BEFORE UNPLUGGING THE CORD FROM THE BACK OF THE PTI FALCON. ALWAYS PLUG THE POWER CORD INTO THE BACK OF THE PTI FALCON BEFORE PLUGGING THE OTHER END INTO A WALL OUTLET. -
Page 13: Connecting Cables
PTI Falcon and the male end will plug into a 120 VAC 60Hz outlet. WARNING: TO AVOID SHOCK... -
Page 14: Accessories
If you have purchased the optional computer interface for the PTI Falcon, you will have a computer interface cable similar to the one pictured in Figure Seven. The PTI Falcon end of the cable will have a nine pin female... -
Page 15: Individual Door Alarms - Expandable
Individual Door Alarms - Expandable The PTI Falcon supports the use of PTI individual door alarms. PTI door alarms require the use of door alarm multiplexer (mux) boxes, such as the one pictured in Figure Nine. A mux box contains a master circuit board capable of multiplexing forty eight doors. -
Page 16: Individual Door Alarms - Single Wire
The PTI Falcon may also utilize PTI single wire door alarms rather than expandable door alarms. The PTI single wire system uses a Door Control Unit (DCU) box at the head end of a three conductor cable which runs from unit to unit. Each unit contains a small Door... -
Page 17: Installation
Installation Remote Keypad Installation Open the Remote keypad by removing the four stainless steel button head machine screws on the sides of the keypad case. The front and back half will now separate. Mount the back plate to the desired keypad location using the three keyed holes. Figure Eleven is a diagram of the circuit board found in the front half of the Remote keypad. - Page 18 TS1, pin 2 - 12 VAC TS1, pin 3 - ground The PTI remote keypad will operate on voltages from 12V to 24V AC or DC, however, 12VAC is recommended for best operation. If you purchased a complete PTI Falcon system, a 12VAC transformer is supplied with the system.
-
Page 19: Keypad Switches
It is possible to set the keypad number to any value from zero to thirty nine. Be aware that the PTI Falcon system reserves remote address zero for its own use, and a keypad set to be unit zero will not communicate with the base unit. - Page 20 set ON. The keypad only reads switch four at power up, so if you must change switch four, momentarily kill power to the keypad after it has been correctly set. Switch eight when ON, places a communication line terminating resistor across the RS485 data leads.
-
Page 21: Testing The Keypad
January 1, 1987 at 12:00 AM should appear on the display after power is applied. The PTI Falcon base unit transmits the correct date and time (the date and time shown on the base unit display) to the remote keypads once a minute, so the base unit may cause the date and time display to change to a different reading. - Page 22 door alarm system. Each building must have its own mux box. Buildings with a large number of doors to alarm may have more than one mux box. Remember that although the mux boxes may look identical on the outside, some boxes may contain expansion boards and are configured to handle more doors than other boxes, so take care to match the correct box to each building.
-
Page 23: Mux Box Switches
(4) Terminate the wires from the door to door wiring cable on the mux board depluggable terminal strips. Figure Fourteen illustrates the board layout. There must be one separate wire from each door switch common wire from all door switches. Terminate the separate wires three... - Page 24 OFF = high comm line impedance; ON = low The PTI Falcon communicates at 1200 baud, so DIP switch Two must be set to the ON position before applying power to the mux box. Switch Three should always be set OFF .
-
Page 25: Individual Door Alarm Installation - Single Wire
Individual Door Alarm Installation - Single Wire (1) Find an appropriate location for the installation of each DCU box required for the door alarm system. Each building should have its own DCU box. Large buildings having more than one hundred units may require more than one DCU box. Although the DCU enclosures are rainproof and the boxes may be mounted outdoors, use indoor mounting if available. -
Page 26: Mux Box Switches
DATA- terminal. The terminal locations are indicated in Figure Seventeen. The RS485 communication cable will connect all keypads and DCU boxes in parallel to the PTI Falcon base unit. Mux Box Switches There are four red rotary switches on the master DCU board. The top two switches are... -
Page 27: Testing The Alarm Wiring
OFF = high comm line impedance; ON = low The PTI Falcon communicates at 1200 baud, so DIP switch Two must be set to the ON position before applying power to the mux box. Switch Three should always be set OFF . - Page 28 The LED light will blink a long blink followed by three groups of blinks with pauses in between each group. A group of blinks represents one digit of a three digit number. For example, the number "257" would appear as follows: long blink signifies start of number pause...
-
Page 29: Testing Mux Box Communications
Remember that this is the number of the position in the terminal strip to which the door is wired, not your actual rental unit number. The PTI Falcon base unit will later translate the wire position number into your actual unit number. Continue testing until proper operation of all door switches has been verified. - Page 30 Do not plug the patch cord into the back of the PTI Falcon until after the AC power has been applied. Plugging the patch cord into the base unit will cause the base unit to be powered from its internal rechargeable batteries.
-
Page 33: Programming
(800) 331-6224 · (803) 875-4994 sticker is unavailable, it is possible to scroll through available function numbers on the PTI Falcon display. This is accomplished as follows: (The display will read "Function? ") Press "*". (The display will move to Function #1) Press "#". -
Page 34: Programming A New Installation
If you scroll through all function numbers without making a selection, the display will read "Setup Done?". To scroll through the functions again, press "*" for NO, or if you are finished, press "#" for YES. Programming a New Installation In order to program a new installation, you must perform the following steps: (1) Set the correct time and date (Function #1) (2) Set the property business hours (Function #2) -
Page 35: Function #1 - Set Time/Date
Function #1 - Set Time/Date? Function #1 - Set Time/Date is used to enter the correct time and date into the PTI Falcon. The date is entered in Month-Day-Year format, with two digits required for each. Even though no punctuation marks (slashes) are entered from the keypad, the PTI Falcon will provided them on the display. -
Page 36: Function #2 - Set Business Hours
Close time. If you specify a Close time which is earlier in the day than the Open time, the PTI Falcon will allow normal access all hours of the day except the time between the Close time and the Open time. -
Page 37: Function #3 - Set Holidays
00/00/00 or to any date which has already passed. Remember that the two digit year for any date in the PTI Falcon refers to the twentieth century if the year is eighty five or higher, and the twenty first century for years... -
Page 38: Function #4 - Set Building Sizes
Function #4 - Set Building Sizes allows you to classify your customers into Building groups. A user of the PTI Falcon is identified by the combination of his Building number and his Unit number. This function allows you to specify the number of units allowed in each building. -
Page 39: Function #5 - Add New Unit
Add New Unit? Function #5 - Add New Unit allows you to add a new unit into the PTI Falcon memory and assign it an access code. If PTI door alarms are in use, you will also specify the physical manner in which the alarm switch from the unit is wired. - Page 40 In this case, the PTI Falcon must be able to recognize all units that belong to a single customer so that when he enters the property, the alarms on all of his units can be disarmed.
-
Page 41: Function #6 - Suspend Unit
Function #6 - Suspend Unit? Function #6 - Suspend Unit is used to temporarily block access for a unit. No data on the unit is lost, but if the user attempts to enter the property, he is denied access. The attempted entry will be logged on the printer as part of the access log. -
Page 42: Function 7 - Release Unit
Function 7 - Release Unit? Function #7 - Release Unit is the opposite of Function Six, that is it allows a unit that has been previously suspended to once again have access to the property. Enter the Building Number of the Unit to released from suspension. -
Page 43: Function 8 - Remove Unit
Function 8 - Remove Unit? Function #8 - Remove Unit is the opposite of Function #5. It performs the complete deletion of all data for a Unit. This function should be used to delete an access code when the customer has permanently left the property and the unit is open for rental by another customer. -
Page 44: Function #9 - Set 24Hr Unit
Function #9 - Set 24hr Unit? Function #9 - Set 24hr Unit allows you to mark individual units to have twenty four hour access to the property. Units with twenty four hour access are allowed to enter the property at any time, regardless of the programmed business hours for the property. Access may still be denied if it has been suspended using Function #6. -
Page 45: Function #10 - Save On Tape
Before storing the tape, it is suggested that you verify the tape contents by loading the tape back to the PTI Falcon using Function #11. The PTI Falcon verifies the integrity of each section of the tape before loading it, so you cannot alter the contents of memory if your tape did not properly record. -
Page 46: Function #11 - Load From Tape
"#" key and miss the first part of the tape. The PTI Falcon must synchronize itself to the tape at the very beginning of the tape or it cannot read any of the tape. -
Page 47: Function #12 - Print Reports
Function #12 - Print Report? Function #12 - Print Reports is used to generate reports on the printer with the PTI Falcon. The report types are: 1: All - a report of all customers and their access codes; twenty four hour codes are marked with a "*";... -
Page 48: Function #13 - Adjust Contrast
Adjust Contrast Function #13 - Adjust Contrast allows you to adjust the contrast of the Liquid Crystal Display (LCD) on the PTI Falcon base unit. You can either darker or lighten the display contrast. After selecting Function #13, the PTI Falcon display will appear as illustrated. -
Page 49: Function #14 - Open Entrance
If you have PTI door alarms in use, you also have a relay installed in the PTI Falcon base unit. This relay is typically used to trigger your alarm siren. This Function also allows you to trigger the relay in the base unit, which can be used to test your siren. -
Page 50: Function #15 - Set Master Code
Function #15 - Set Master Code? Function #15 - Set Master Code is used to enter a master code into the PTI Falcon base unit memory. The master code will not open any entrance and must be unique, it cannot be assigned to a customer as it will not allow access. -
Page 51: Function #16 - Door On/Off
"*" to leave it off. If you select a Building or Unit number that does not exist in the PTI Falcon memory, an " Error - Nonexistent " message will appear for a few seconds and then the display will... -
Page 52: Function #17 - Clear Alarms
Function #17 - Clear Alarms Function #17 - Clear Alarms is available only on systems with PTI door alarms. Whenever a unit enters the alarm condition, the alarm is logged on the printer and the siren relay is triggered. Further alarms for the unit are then disabled until this function is executed to clear the alarm condition. -
Page 53: Function #18 - Read Doors
(opens or closes). When a system is first started, the PTI Falcon base unit assumes that all doors are initially closed. If you wish to force the base unit to read all doors so that it will be aware of doors that start in the open condition, Function #18 can be used. -
Page 54: Function #19 - Unknown Door Print
PTI Falcon will log the unknown door event on the printer as part of the access l o g. Since the unit has not been programmed into the PTI Falcon, it cannot print the unit number that is assigned to the door; it instead prints the remote number and physical wire terminal number for the door. -
Page 55: Function #20 - Set Relay Times
Function #20 - Set Relay Times? Function #20 - Set Relay Times is available only on systems with PTI door alarms. It allows you to set the length of the relay closure time for alarm relays and for entrance and exit keypad relays. -
Page 57: Specifications
Specifications Base Unit Specifications Voltage: 120 VAC, 60 Hz Current: 500 ma Battery: 9 VDC Fuse: 1 amp Remote Connector: Serial Connector: Pin 1: RS485 Data Positive Pin 1: RS232 Carrier Detect Pin 2: Data Ground Pin 2: RS232 Receive Data Pin 3: RS485 Data Negative Pin 3: RS232 Transmit Data Pin 4: Battery Jumper... - Page 59 In case of failure due to defective material or workmanship during the warranty period, components found to be defective upon examination by PTI in its sole discretion, will be repaired or replaced with new or factory rebuilt components at the option of PTI.
