Summary of Contents for KitchenAid KSRS25RSMS03

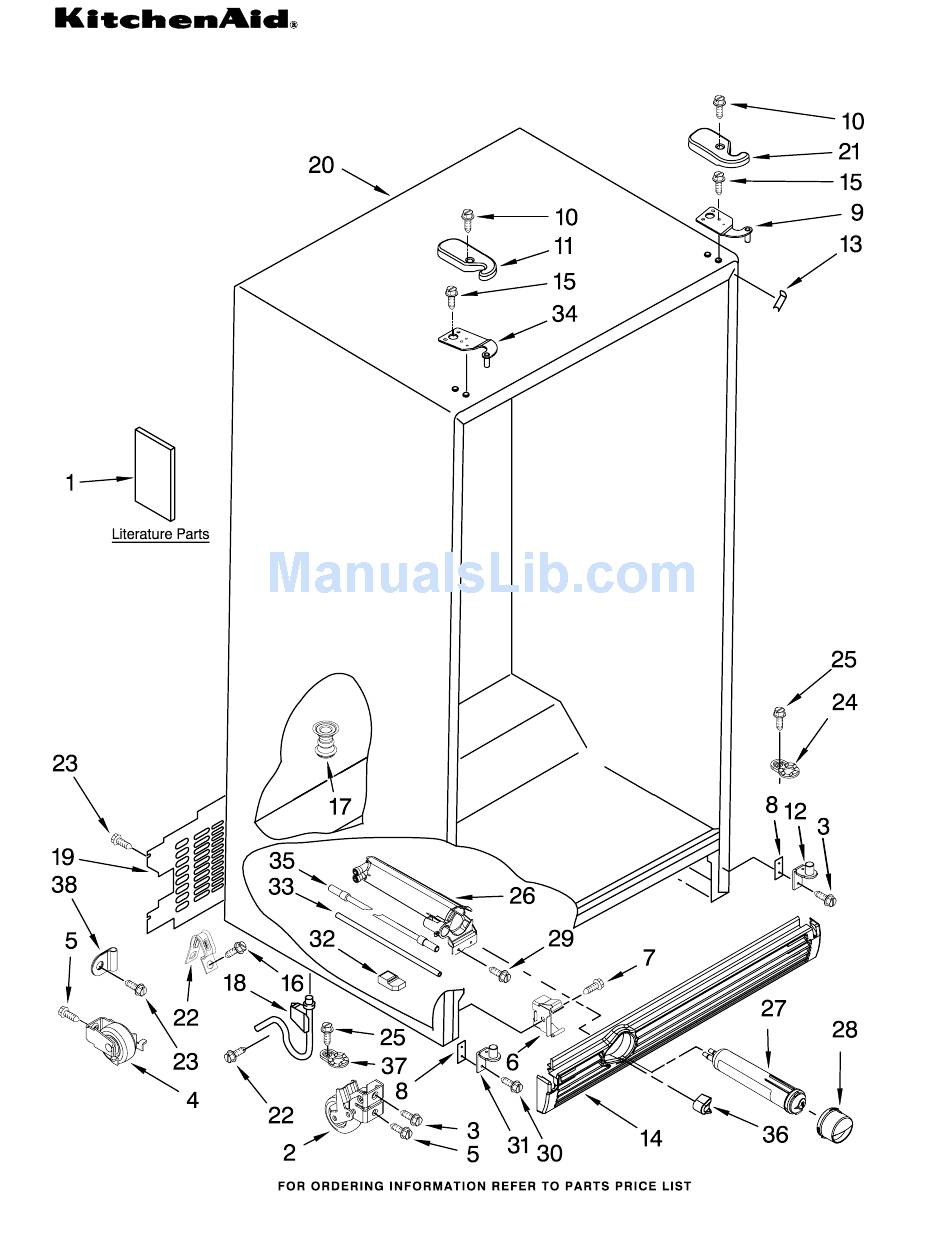

- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRS25RSMS03 (Monochromatic Stainless) Part No. W10210785 Rev. A 06−08 Printed In U.S.A. (jdc)(mek)
- Page 2 CABINET PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12 W10138965 Bottom Hinge (RC) 2260507 Housing, Water Literature Parts Filler, Wrapper Filter W10184694 Energy Guide W10143043 Apollo Gray 4396841 Water Filter W10162438 Use and Care Guide Grille Cap, Water W10152831 Service &...
- Page 3 REFRIGERATOR LINER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2301235 Slide, Door Control 2179404 Wine Rack 2319866 Shelf Ladder 489478 Screw 9 W10004810 Screw 2301234 Housing, Door Control...
-
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION 2301072 Frame Assembly (2) 2301023 Snack Bin Asm (Includes 24 & 25) 2301567 Cover, Crisper (Includes 11, 12, 16, 17, 19 & 20) 2196485 Stud Assembly 3400894 Screw 2301028 Glass, Meat Cover 2301028 Glass, Cover 2301568 Cover, Meat Pan (Includes 16 &... - Page 5 FREEZER LINER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785...
- Page 6 FREEZER LINER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2301139 Basket, Tall 3400893 Screw 2301134K Front, Basket 2205837K Shelf (2) 2301140 Basket, Sloped 8534064 Screw (12) 842534 Clip, Air Duct (2) 2301138 Basket, Top 2198587 Cover, Emitter 2198697 Gasket, Ladder 2198635 Spring...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION 1 W10139383 Ice Bin 2 W10140686 Crusher Bin 3 W10140642 Auger 2258220 Washer 1119007 Spacer, Flat (4) 6 W10139321 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) 2303139SAP Mono Stainless 2301486 Door Compartment (Includes 7) 2223434K Door Bin (4) 3400012 Screw 2219698 Stud, Handle Door Gasket, Magnetic 2326338 Apollo Grey 2159124 Gasket Handle (Includes #13) 2319727S Stainless...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785... - Page 12 FREEZER DOOR PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10149767 Mono Stainless Handle (Includes #15) 2319727S Stainless 2223559K Trivet (3) 2219698 Stud, Handle 2303107 Thimble, Top 488208 Screw Door Gasket, Magnetic 2326339 Apollo Grey 2223752 Door Closer,...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785... - Page 14 DISPENSER FRONT PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2305202 Bracket, Motor 2305242 Connector, Door Bracket 2305262 Motor, Ice Door 2305258 Door, Ice 2305204 Support, Ice Door 4449745 Screw (4) 2305447 Clip, Wiring 9 W10187441 Spigot 2305456 Separator Assembly 2303843 Electronic Control (Core)
- Page 15 AIR FLOW PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2321799 Bi−metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2188819 Thermister 2176759 Fan Grommet (2) 2304241 Gasket, Evaporator Cover (2) 11 W10129817 Harness, Fan...
- Page 16 CONTROL PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8281244 Screw (4) 2162085 Light Socket 1 W10134300 Control Box 940014 Hole Plug 2255743 Light Bulb 2219875 Switch 2216115 Control Box 3196537 Screw (4) 1115374 Clip, Wiring Harness 2216879 Cover, Control Box...
- Page 17 UNIT PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785...
- Page 18 UNIT PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2169104 Insulation, Sound 489478 Screw 20 W10120456 Compressor 2225834 Fan, Blade 2208280 Clip, Wire & Tube (Includes Items 3 W10121484 Condenser Assembly 2320323 Union 11, 19, 22, &...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) W10210785... - Page 20 ICEMAKER PARTS For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part DESCRIPTION 2256096 Fitting and Water Tube 628379 Clip, Fuse 489478 Screw (3) 4 W10159839 Smart Valve 2174358 Cover 488649 Screw 7 W10122527 Mold & Heater Assembly (Also Order 542638 Silicone Grease) 2304969 Cup−Water Fill 627843 Ejector 2198598 Ice Stripper...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRS25RSMS03 (Monochromatic Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY ACCESSORIES PAINT, BULK (1 qt.) (12 oz.) 2217192 Cleaner, Stainless Steel 799340 Black 350942 Primer, White 799344 White 350939 Black 4392900 Biscuit 350930 White TORX SCREW WRENCH...
