- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 9−03 Printed In U.S.A. (kdj) Part No. 8198758...
-

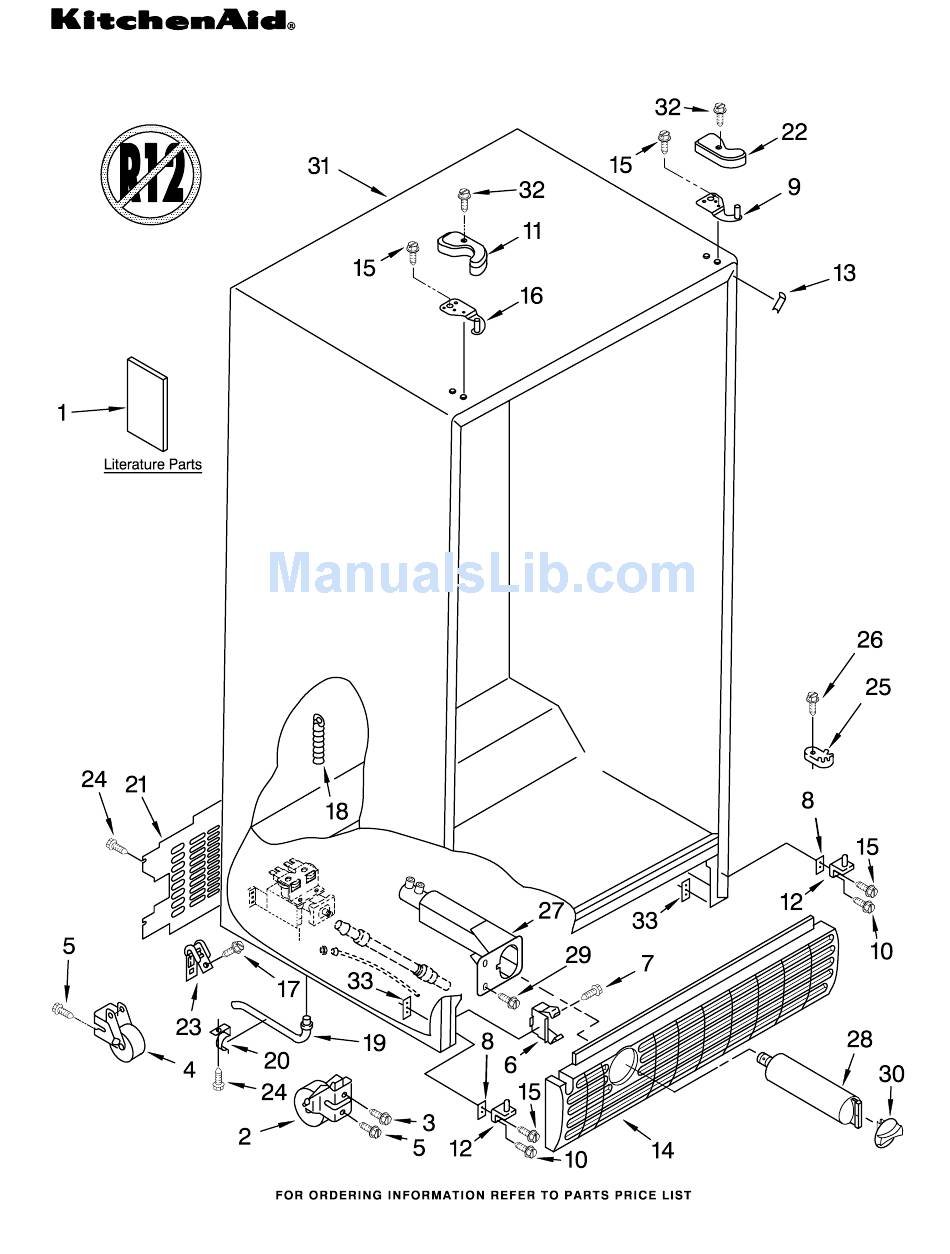

Page 2: Cabinet Parts
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 Illus. Part DESCRIPTION LITERATURE PARTS LIT2254906 Use & Care Guide LIT2255383 Service & Wiring Sheet LIT2261343 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 8198758 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2256035 Bracket, Dual Crisper Light... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part 2195975 Shelf Assembly, 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan 2188669 Snack Pan 2179243 Trim, Handle 2255144 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 6 FREEZER LINER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2198697 Gasket 2223539 Basket, Tall 2223708 Right Side 2223709 Left Side 2211746 Shelf, Slide Out 2171766 Basket, Front 2261449 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2)
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 2219830W White 2219830B Black 2219830T Biscuit 2219830S Stainless Steel 2218122 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2195497 Divider, Bin 2221302 Mist Beige 2221313 Black 2188635W White...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 12 FREEZER DOOR PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 2255407W White 2255407B Black 2255407T Biscuit 2216569S Stainless Steel 2188635W White 2188635B Black 2188635T Biscuit 2188635S Stainless Steel 488208 Screw 3400012 Screw 98654 Set Screw 2171070 Shelf Bin (4)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 14 DISPENSER FRONT PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 3196537 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism 2205686 Mechanism Delay 2206670W White 2206670B Black 2206670T Biscuit 2209718 Water Fitting...
-
Page 15: Air Flow Parts
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal... -
Page 16: Control Parts
For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 Illus. Part DESCRIPTION 2216588 Control Box 2182150 Tube Barrier, Thermostat (RC) 489214 Screw (3) 2149705 Light Switch 2161460 Thermostat (RC) 2213489 Adaptive Defrost Control 489398 Screw (2) 2200096 Cover, Light Lens CONTROL PARTS (White) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 18 For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 Illus. Part DESCRIPTION 486692 Speed Nut 2190685 Fan, Blade 2204484 Condenser Assembly 489464 Screw 2208280 Clip, Wire 2205765 Tube Suction 2161302 Sleeve 4387731 Cover (Service Compressor Only) 4387835 Overload, (Service, includes Relay) 2223314 Clip, Retaining...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) (Biscuit) (Stainless Steel) 8198758... - Page 20 ICEMAKER PARTS For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 (White) (Black) Illus. Part 489084 Screw 2256096 Fitting, Water 2255012 Tube, Filter 2188744 Tube, Filter 628379 Clip, Fuse 2188746 Valve, Solenoid 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold & Heater...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00 Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) Customer Touch−Up Material 350942 Primer, White (12 Oz. Spray Can) 350939 Enamel, Black (12 Oz. Spray Can) 350930 Enamel, White (12 Oz.
