- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Part No. 8199060 Rev. A 5−06 Printed In U.S.A. (kdr)
-

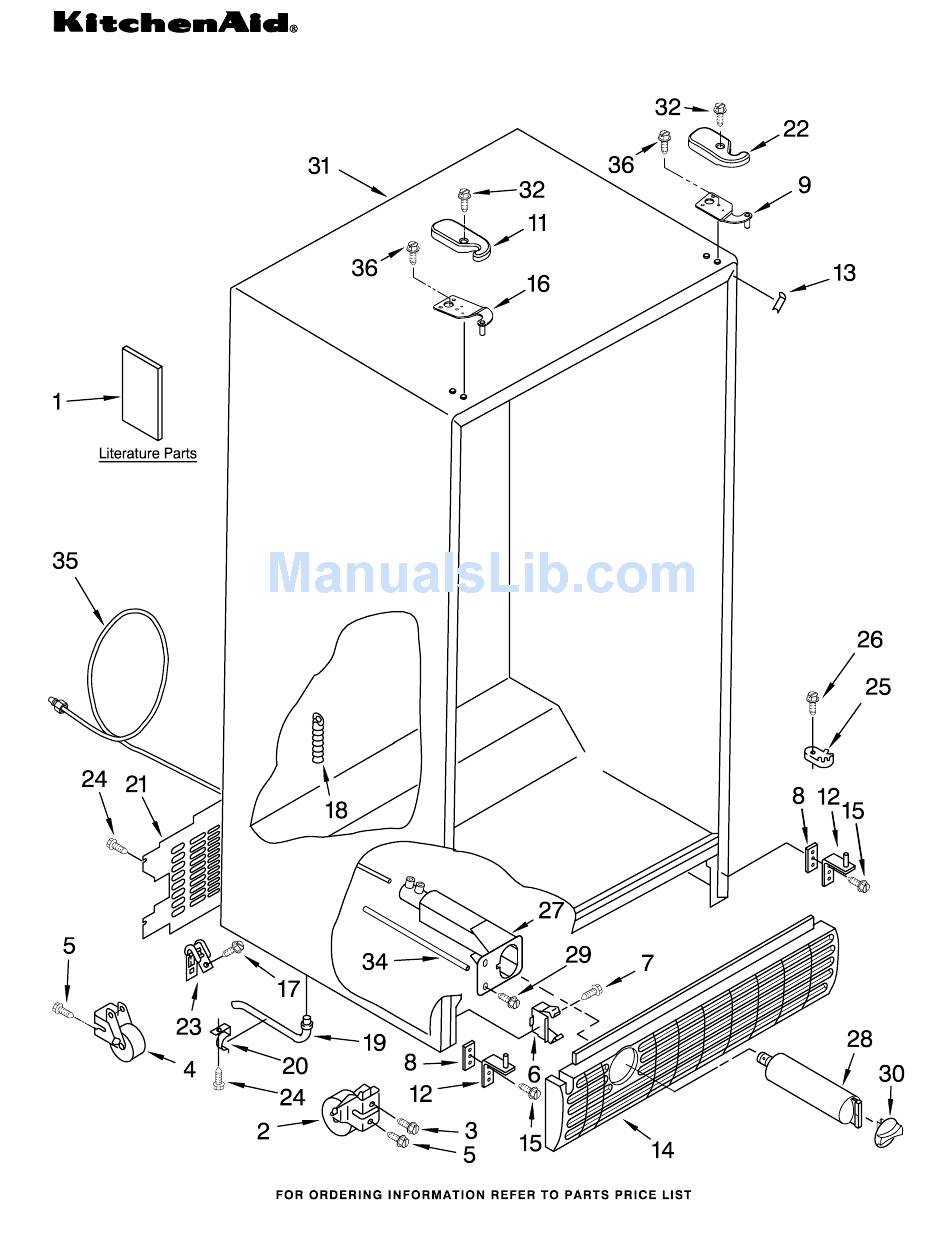

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Literature Parts 2305802 Use & Care Guide 2255385 Service & Wiring Sheet 2305906 Energy Label 2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS 8199060 For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2255612 Escutcheon, Meat Pan Control 2301339 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper 2256037 Wire Harness, Dual Crisper... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION 2195975 Frame Assembly, Cantilever (2) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2305595 Snack Pan... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 6 FREEZER LINER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2301495 Basket, Tall (Includes #12) Track, Basket−Dual 2301293 Right Side 2301294 Left Side 2211746 Shelf, Slide Out...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part 2198573 Ice Bin 2255580 Crusher Bin 2258222 Auger 2258220 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2301184S Stainless Steel 2301184LG Stainless−VCM 2301486 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Handle 2255512S Stainless Steel Door Gasket, Magnetic 2221313 Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 12 FREEZER DOOR PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2301557SB Stainless Steel 2301557LG Stainless−VCM Handle 2255512S Stainless Steel 2219698 Stud, Handle 488208 Screw 3400012 Screw 8533976 Screw 2171070 Shelf Bin (4)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 14 DISPENSER FRONT PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2256199 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black...
-
Page 15: Air Flow Parts
2176759 Fan Grommet (2) 2310111 Harness, Fan Evaporator (Includes #6) 2155789 Gasket Cover 2172840 Wire Tie 2203876 Gasket 2206314 Cover, Evaporator 8281159 Screw 489478 Screw 2203595 Support, R.S 2203596 Support, L.S 8199060 AIR FLOW PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) -
Page 16: Control Parts
2303822 Electronic Control 489398 Screw (2) 2200096 Cover, Light Lens 627068 Screw 2181741 Slide, Air Control CONTROL PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION 2172906 Grommet, Light Bar 2161466 Slide, Thermostat 489084 Screw (2) 2179920 Light Bar (RC) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 18 4387765 Wire, Capacitor (Service Only) Capacitor 999532 Production 1118576 Service 2261599 Tube, Condenser to Heat Loop 2216914 Clip, Condenser UNIT PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION 489478 Screw 2188823 Evaporator 2161324 Clamp 2188874 Fan, Motor...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) 8199060... - Page 20 ICEMAKER PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315534 Filter Valve Asm 2208136 Tube Clamp 2174358 Cover 488649 Screw 2255835 Mold & Heater Assembly (Also Order 542638...
-
Page 21: Optional Parts
4392899 Brush Touch−Up Kit (Biscuit) Important: The spray paint is not to be used where the paint may make contact with the door gaskets. 8199060 OPTIONAL PARTS For Models: KSRG25FKSS16, KSRG25FKST16 (Stainless Steel) (Stainless−VCM) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108")
