- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 11−03 Printed In U.S.A. (kdj) Part No. 8198776...
-

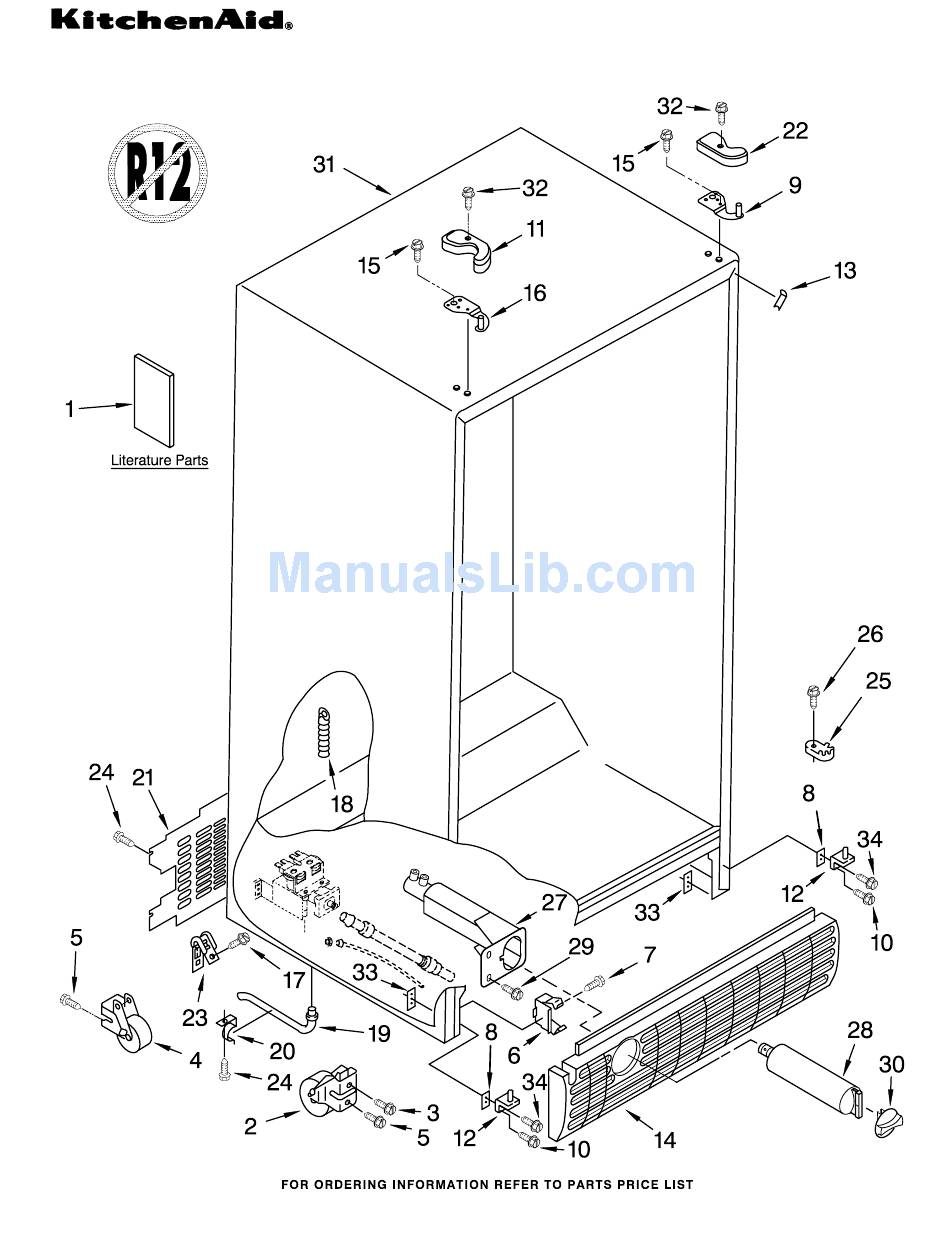

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge Cover, RC Hinge Cover, FC LITERATURE PARTS 2203408W White 2203407W White 2203408B Black 2203407B Black LIT2255706 Use & Care Guide 2203408T Biscuit 2203407T Biscuit LIT2255383 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper Light 2256037 Wire Harness, Dual Crisper Light 2206273 Ladder, Shelf (2) -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2188669 Snack Pan (Includes 7) 2179243 Trim, Handle... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 6 FREEZER LINER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2198697 Gasket 2223539 Basket, Tall Track, Basket−Dual 2223708 Right Side 2223709 Left Side 2211746 Shelf, Slide Out Upper...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830W White 2219830B Black 2219830T Biscuit 2219830S Stainless Steel 2218122 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2195497 Divider, Bin Door Gasket, Magnetic 2221302 Mist Beige...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 12 FREEZER DOOR PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2255407W White 2255407B Black 2255407T Biscuit 2216569S Stainless Steel Handle (Includes #6) 2188635W White 2188635B Black 2188635T Biscuit 2188635S Stainless Steel 488208 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 14 DISPENSER FRONT PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2256199 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670B Black...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2216588 Control Box 2161461 Thermostat (FC) 527949 Light Bulb 2182150 Tube Barrier, 2172940 Window 2216587 Control Box 2172906 Grommet, Light Bar Thermostat (RC) Harness 2161466 Slide, Thermostat... -
Page 17: Unit Parts
UNIT PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 18 UNIT PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 489478 Screw 1127911 Unit Mounting 2190685 Fan, Blade 2209611 Evaporator Rail 2204484 Condenser 8281160 Screw 2161324 Clamp Assembly 2186495 Guard, Fan...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) 8198776... - Page 20 ICEMAKER PARTS For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 2255012 Tube, Filter Outlet 2188744 Tube, Filter Inlet 628379 Clip, Fuse 2188746 Valve, Solenoid 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold &...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRK25XLWH10, KSRK25XLBL10, KSRK25XLBT10, KSRK25XLSS10 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Parts Not Illustrated and Refinishing Material Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt.
