- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 11−03 Printed In U.S.A. (kdj) Part No. 8198361 Rev. A...
-

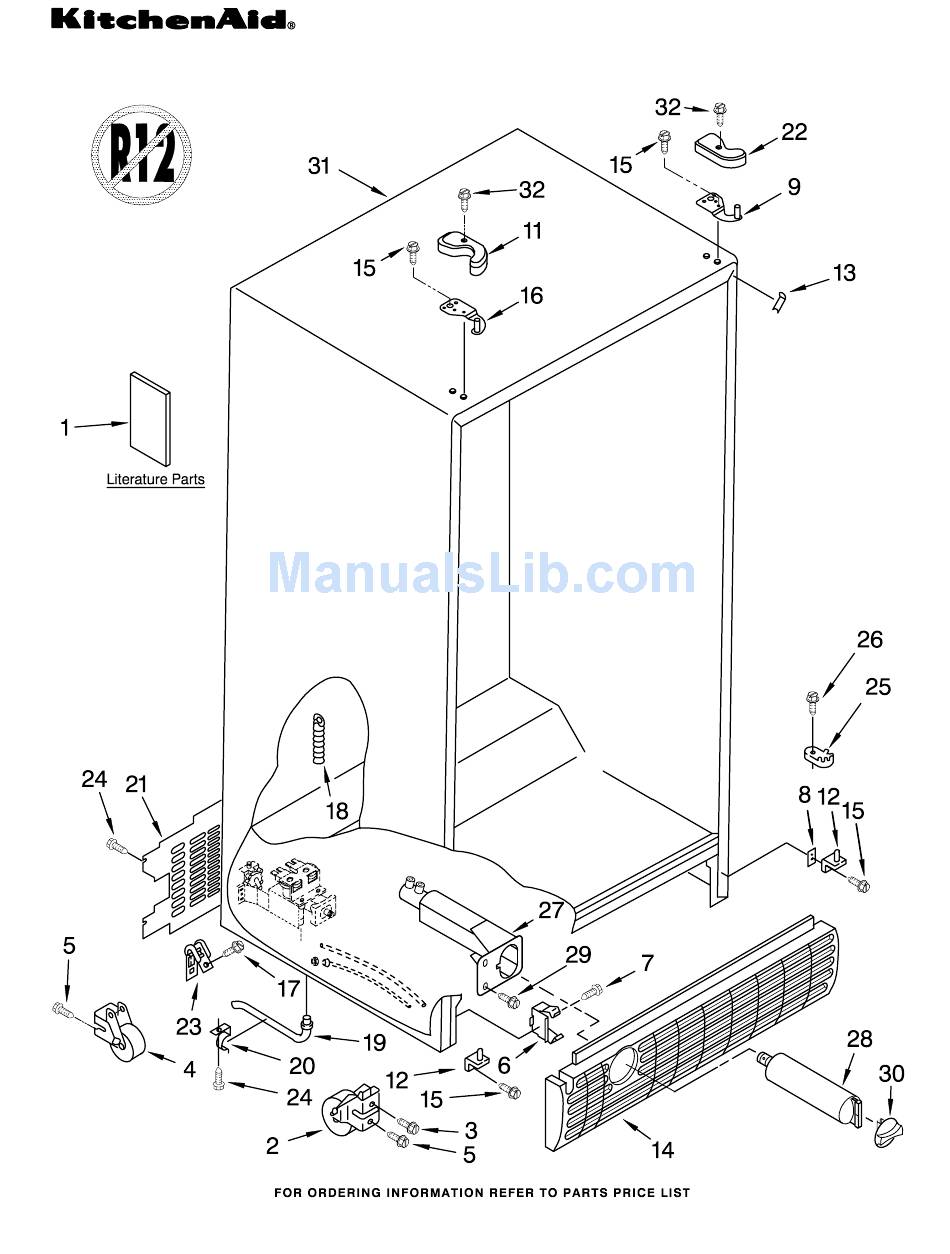

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 549193 Clamp, Service 2217075 Hinge Bottom (2) LITERATURE PARTS Cord Filler, Wrapper 489084 Screw LIT2254906 Use & Care Guide 2196094 White LIT2255383 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2206273 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179404 Rack, Wine &... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2223357 Cover, Meat Pan (Includes Items 13, 14 & 15) 2209677 Snack Pan 2179243 Trim, Handle 2255144 Glass, Cover... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 6 FREEZER LINER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2198697 Gasket 2181765 Basket, Tall Track, Basket−Dual 2216106 Right Side 2216107 Left Side 2211746 Shelf, Slide Out Upper...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830W White 2219830B Black 2219830T Biscuit 2219830S Stainless Steel 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Door Gasket, Magnetic 2221302 Mist Beige 2221313 Black...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 12 FREEZER DOOR PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2255407W White 2255407B Black 2255407T Biscuit 2216569S Stainless Steel Handle (Includes #6) 2188635W White 2188635B Black 2188635T Biscuit 2188635S Stainless Steel 489463 Screw...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 14 DISPENSER FRONT PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489000 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670B Black...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2172940 Window 527949 Light Bulb 2216588 Control Box 2172906 Grommet, Light Bar 2187560 Control Box 2182150 Tube Barrier, 2161466 Slide, Thermostat Harness Thermostat (RC) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 18 UNIT PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2188537 Fan, Motor 486692 Speed Nut 2172840 Strap 1105523 Tray, Evaporator 2190685 Fan, Blade 489427 Screw 2149294 Heat Shield 2204484 Condenser 488649 Screw Assembly...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) 8198361... - Page 20 ICEMAKER PARTS For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part DESCRIPTION 2198677 Connector, Water Tube 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 2200083 Nut, Compression...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRK25ILWH02, KSRK25ILBL02, KSRK25ILBT02, KSRK25ILSS02 (White) (Black) (Biscuit) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous Refinishing Material Parts Not Illustrated and Optional Parts (Not Included) 212643 Sealer, Gum 799340 Enamel, Black (4 Feet) (1 Qt.
