- Page 1 CABINET PARTS REFRIGERATOR For Models: KSRK25ILSS01 (Stainless Steel) 8−03 Printed In U.S.A. (kdj) Part No. 8198364 Rev. A...
-

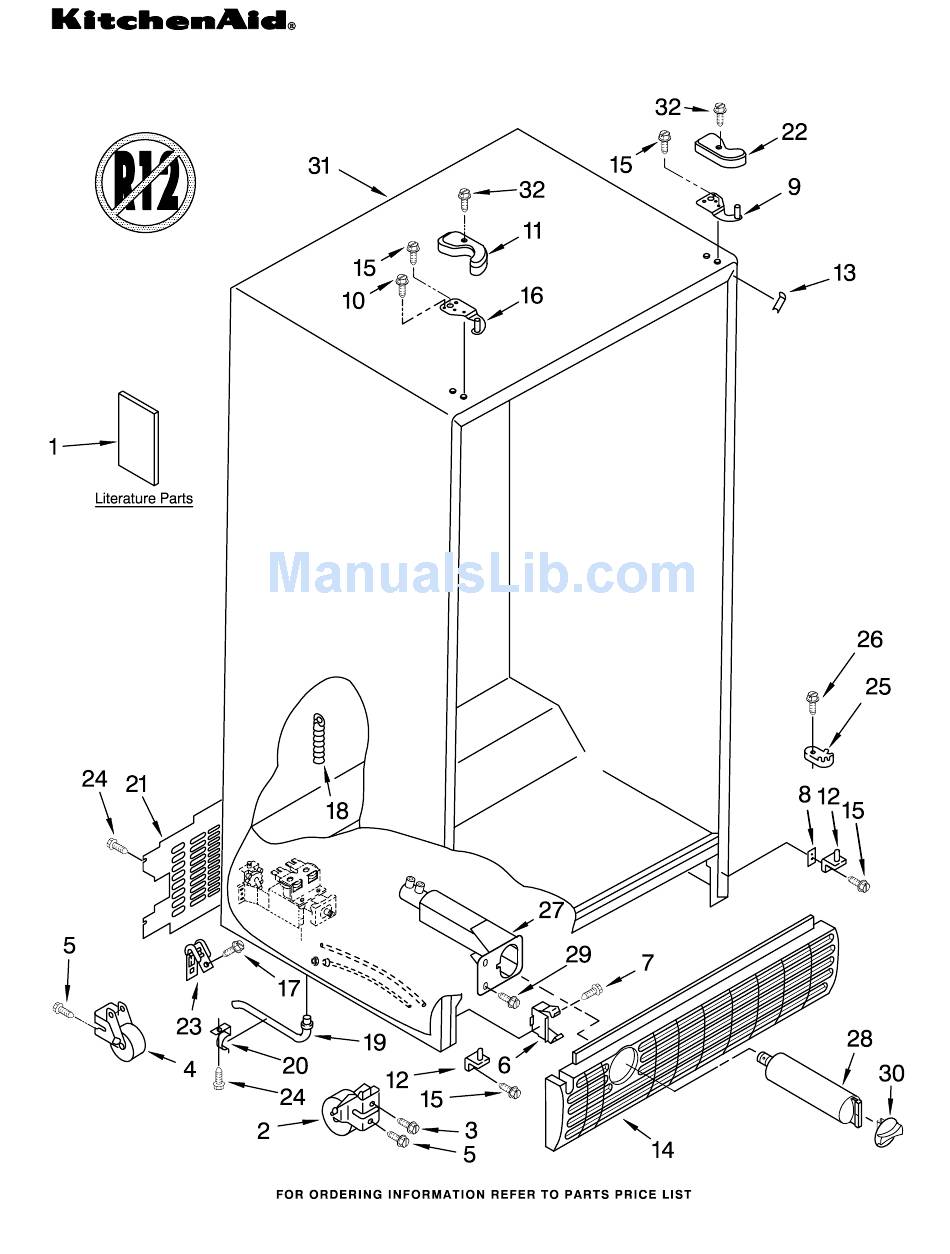

Page 2: Cabinet Parts
CABINET PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION LITERATURE PARTS LIT2254906 Use & Care Guide LIT2220107 Service & Wiring Sheet LIT2220538 Energy Label LIT2220407 Modular Icemaker Service Sheet 2174748 Front Roller (2) 3400517 Screw 2196236 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2206273 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179404 Rack, Wine & Egg 1123919 Bracket Retainer 489290 Screw (2) 2209751 Air Diffuser... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2196163 Snack Pan 2179243 Trim, Handle 2189526 Glass, Cover 2174250 Cover, Crisper (Includes 2,... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 6 FREEZER LINER PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 941839 Hole Plug 3400893 Screw 940014 Hole Plug 2181765 Basket, Tall Track, Basket−Dual 2216106 Right Side 2216107 Left Side 2198697 Gasket, Ladder 2211746 Shelf, Slide Out Upper 2171766 Basket, Front Shelf Track...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION 2198573 Ice Bin 2212367 Crusher Bin 2211590 Auger 2198603 Blade, Stirring 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 1119013 Blade, Rotary 1119005 Spacer, Step (2) 2198601 Blade, Fixed 1119012 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2219830S Stainless Steel 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish Handle 2188635S Stainless Steel Door Gasket, Magnetic 2221313 Black 98654 Screw 2203690 Stud, Handle 488208 Screw 2182178 Door Closer, Upper Cam...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 12 FREEZER DOOR PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2216569S Stainless Steel Handle 2188635S Stainless Steel 2203690 Stud, Handle 488208 Screw 3400012 Screw 98654 Screw 2171070 Shelf Bin (4) Door Gasket, Magnetic 2221314 Black 2219982 Trim, Door Shelf...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 14 DISPENSER FRONT PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196165 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2196195 Pin 2180352 Door, Ice 2206423 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670B Black 2209718 Water Fitting Assembly (Includes Water Tube) Lever, Ice...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2198595 Air Scoop 2212377 Air Duct, Upper 2198580 Air Duct Freezer 2149299 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2206504 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover... -
Page 16: Control Parts
CONTROL PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2216588 Control Box 2161466 Slide, Thermostat 1115375 Clip, Wiring 2182150 Tube Barrier, 489084 Screw (2) 2219879 Escutcheon, Thermostat−RC 2179920 Light Bar (RC) Control Box 489214 Screw (3) 489290 Screw (2) 2179921 Light Bar (FC) -
Page 17: Unit Parts
UNIT PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 18 UNIT PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 2149294 Heat Shield Following Parts Not Illustrated 2190685 Fan, Blade 2199167 Drier and Optional Parts Not Included 2204484 Condenser 2212192 Compressor Assembly (Includes Items 489464 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSRK25ILSS01 (Stainless Steel) 8198364... - Page 20 ICEMAKER PARTS For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part DESCRIPTION 2198677 Connector, Water Tube 2198578 Fitting, Water Tube 2186493 Tube, Filter Outlet 2186492 Tube, Filter Inlet 628379 Clip, Fuse 2200083 Nut, Compression 2211507 Tube, Water 489478 Screw 2205762 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174358 Cover...
- Page 21 PARTS NOT ILLUSTRATED For Models: KSRK25ILSS01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refinishing Material Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 799340 Enamel, Black 212643 Sealer, Gum (1 Qt. Uncut) (4 Feet) 799344 Enamel, White Customer Touch−Up Material 479502 Tape, Vinyl (1 Qt.
