CABINET PARTS
REFRIGERATOR
For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01
(White)
(Black)
(Biscuit)
(Mono Stainless) (Stainless Steel) (Mono Stainless)
10−08 Printed In U.S.A. (jdc) (eeb)
Part No. W10233042 Rev. A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSRK25FVBL01 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSRK25FVBL01

Summary of Contents for KitchenAid KSRK25FVBL01

  • Page 1 CABINET PARTS REFRIGERATOR For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) 10−08 Printed In U.S.A. (jdc) (eeb) Part No. W10233042 Rev. A...

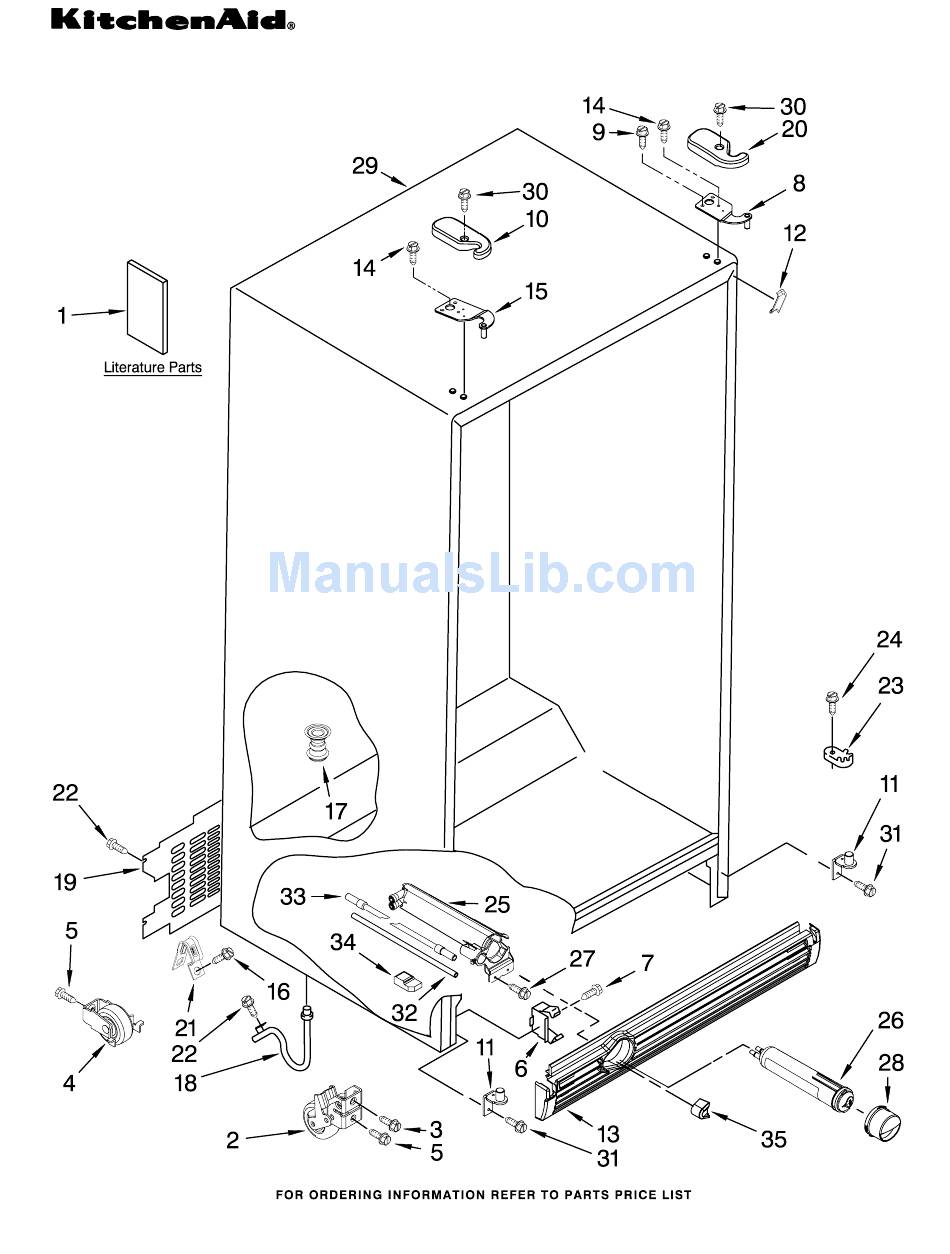

  • Page 2: Cabinet Parts

    For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) Illus. Part DESCRIPTION Literature Parts W10162452 Use & Care Guide W10181781 Service & Wiring Sheet W10194135 Energy Guide 2220407 Modular Icemaker Service Sheet W10206334 Instr Sheet, Door Removal 2174748 Front Roller (2)

  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) W10233042 (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control...

  • Page 4: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION 2195975 Shelf Assembly, Cantilever (3) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2301568 Cover, Meat Pan (Includes Items 13, 14, 15 &...

  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 6 For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) FREEZER LINER PARTS (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 3400893 Screw 2198697 Gasket 2301139 Basket, Tall Track, Basket−Dual 2301293 Right Side...

  • Page 7: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION 2198573 Ice Bin 2317256 Crusher Bin 2317240 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher...

  • Page 9: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 10 REFRIGERATOR DOOR PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) 2313299W White 2313299B Black 2313299T Biscuit 2301184S Stainless Steel 2301184SAP Monochromatic Satina 2301486 Door, Compartment...

  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 12 For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) FREEZER DOOR PARTS (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10149993 White W10149994 Black W10149995 Biscuit W10166663 Stainless Steel...

  • Page 13: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 14 DISPENSER FRONT PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Delay Mechanism Grille, Overflow...

  • Page 15: Air Flow Parts

    For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2313359 Air Duct, Upper 2198580 Air Duct Freezer 2321799 Bi−Metal Defrost 6 W10131845 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2)

  • Page 16: Control Parts

    For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) CONTROL PARTS (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION 2326209 Trim, Light 2326255 Bulb, Light 2223680 Shield, Heat 2223857 Socket, Light 2310527 Wire Assy, Light 489000 Screw (2)

  • Page 17: Unit Parts

    UNIT PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 18 For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) Illus. Part DESCRIPTION 1 W10212584 Ctrl−Elek, Gemini PARTS 12825802 Fan, Blade 3 W10196260 Condenser Assembly 489464 Screw 5 W10221712 Tube, Process 2169104 Insulation−Sound 7 W10177642 Tube Suction 2161302 Sleeve 9 W10210789 Ctrl−Elek, Main...

  • Page 19: Icemaker Parts

    ICEMAKER PARTS For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) W10233042...
  • Page 20 For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) ICEMAKER PARTS (Black) (Biscuit) (Mono Stainless) (Stainless Steel) (Mono Stainless) Illus. Part DESCRIPTION 628379 Clip, Fuse 489084 Screw 2303216 Tube, Water 489478 Screw 2188708 Valve, Solenoid 2208136 Tube Clip 2174358 Cover 488649 Screw 9 W10122527 Mold &...
  • Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSRK25FVWH01, KSRK25FVBL01, KSRK25FVBT01, KSRK25FVMK01, KSRK25FVSS01, KSRK25FVMS01 (White) Illus. Part DESCRIPTION PAINT, PRESSURIZED SPRAY (12 oz.) 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit...
