User's Manual
CyberPower Systems Inc.
www.cpsww.com
BATTERY PACK
BP36V60ART2U
BP72V60ART2U
K01-0000283-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP36V60ART2U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberPower BP36V60ART2U

Summary of Contents for CyberPower BP36V60ART2U

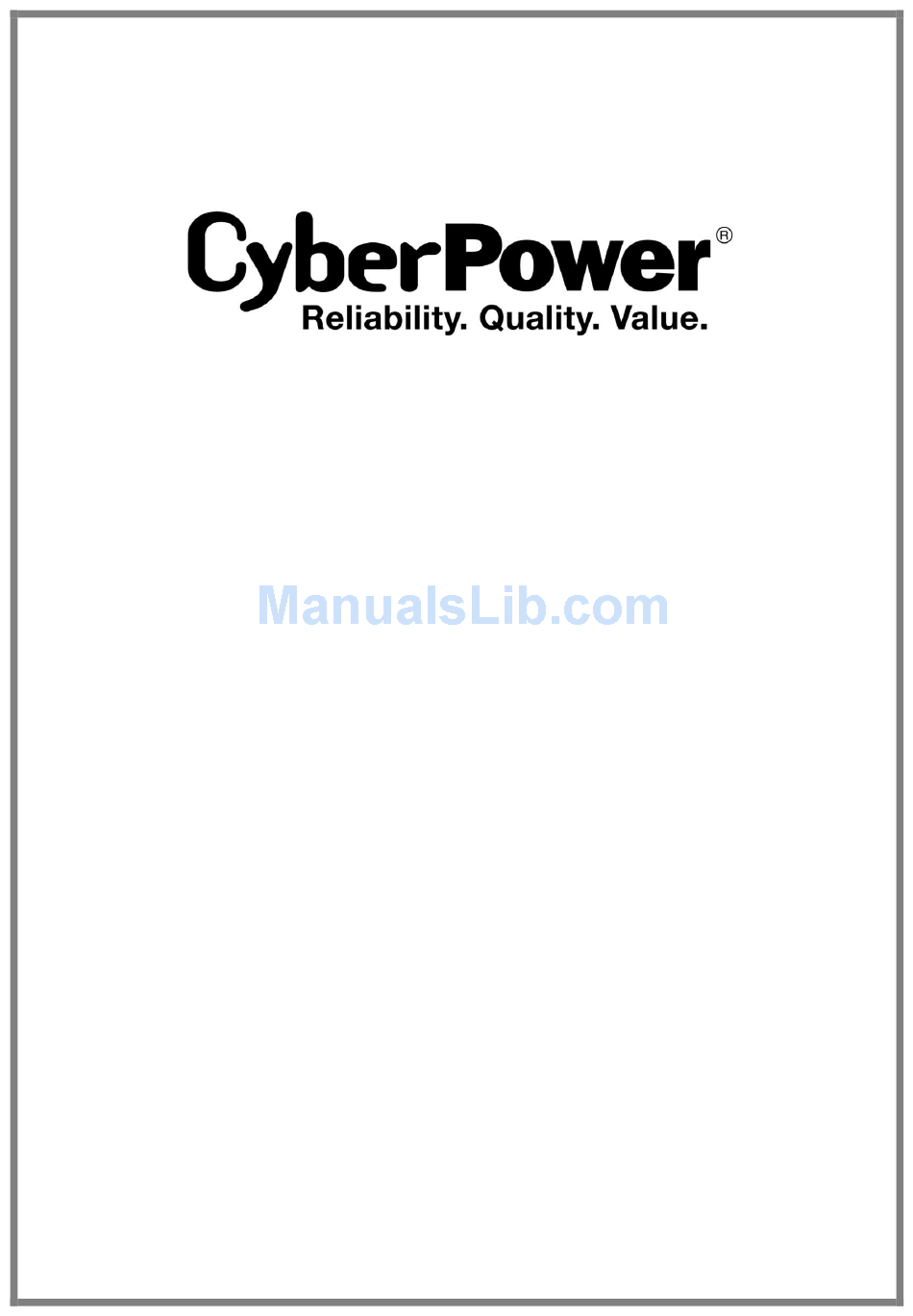

  • Page 1 User’s Manual BATTERY PACK BP36V60ART2U BP72V60ART2U CyberPower Systems Inc. www.cpsww.com K01-0000283-00...
  • Page 2 重要安全警語 本手冊包含重要的操作說明，應遵循安裝並維護 UPS 和電池。請仔細閱讀並遵守所有的安裝指引與 警示。安裝前需仔細閱讀本手冊再進行安裝與操作。 注意！ UPS 須接到具地線的電源插座，並有保險絲或斷路器等過電流保護器。 注意！ 如需關閉連接到 UPS 的設備時，請先關閉 UPS 電源再拔掉插頭。 注意！ 不得使用在醫療或生命維護設備！ CyberPower 並不銷售產品在生命維護或醫療應用上， 任何影響生命維護、醫療應用或病人護理等皆不得使用。 注意！ 在 UPS 電池模式下，電池接頭斷開可以切斷危險的帶電元件。 注意！ 為了防止火災或觸電危險，UPS 需安裝在溫度和濕度合理控制下的室內環境。 （請參閱規格 可接受的溫度和濕度範圍） 。 注意！ 為了減少觸電危險，勿取下上蓋。除電池可替換外，內部無其他可供使用者維修的零件。 注意！ 為了避免觸電危險，在更換電池或作為電腦設備備用電源前，請先關閉 UPS 電源開關。 注意！ 不得使用在水族箱或相關水源設備上！為降低發生火災的風險，任何有潛在水源處皆不得 使用，如壓縮機冷凝水會導致機器短路起火。 注意！ 交流輸出電纜使用長度不得超過 10 米。...
  • Page 3 規格說明 Smart App Online UPS 型號 額定電壓/電流 最大功率 AC 120V(＋6%/－10%), 8.4A MAX, 50/60Hz 輸入 OL1000RTXL2U AC 120V, 8.4A MAX, 50/60Hz 1000VA/900W 輸出 AC 120V (＋6%/－10%), 12.5A MAX, 50/60Hz 輸入 OL1500RTXL2U AC 120V, 12.5A MAX, 50/60Hz 1500VA/1350W 輸出 AC 120V (＋6%/－10%), 18.4A MAX, 50/60Hz 輸入...

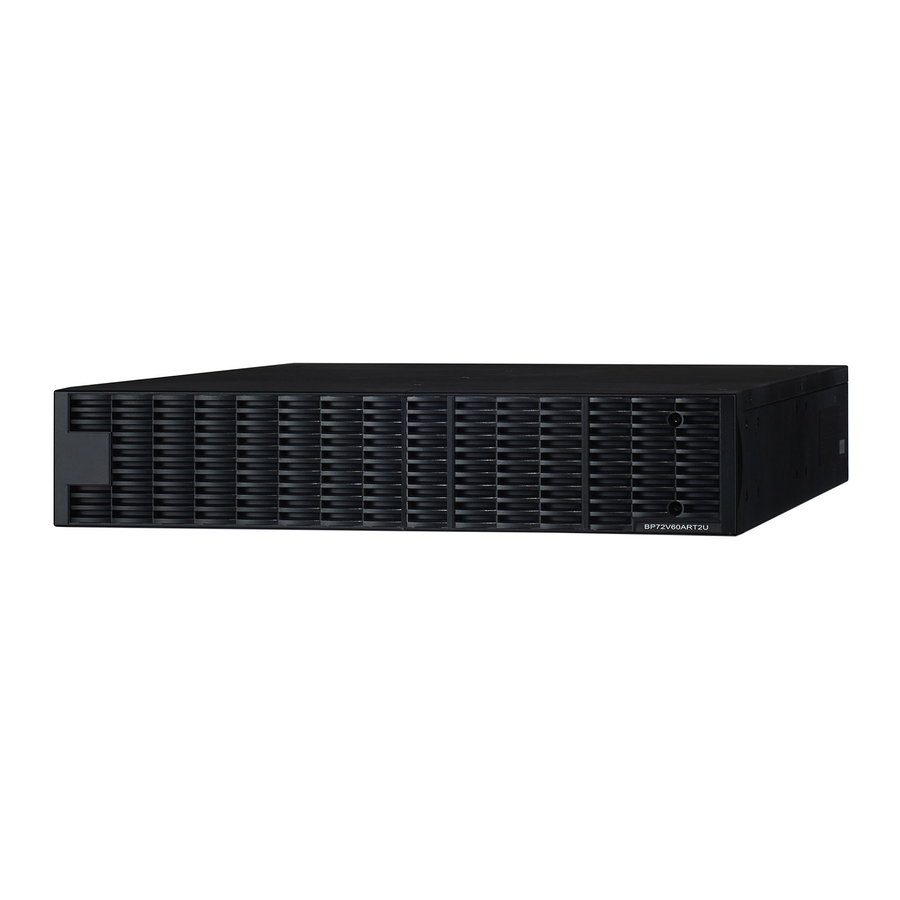

  • Page 4 OVERVIEW The CyberPower Battery packs (BP36V60ART2U / BP72V60ART2U) support 50A polarized plugs, and are designed for variety of CyberPower UPS systems. When combining with the UPS, the Battery pack provides extended runtime with a 36VDC/72VDC external connection. Additional parallel-connected Battery packs provide the UPS for a longer extended runtime operation.

  • Page 5: Hardware Installation

    Battery pack in the rack. The Battery pack takes up position 1 through position 6. Once completed, perform the same steps for the UPS. CAUTION! The Battery pack must be installed below the UPS. Copyright © 2012 CyberPower Systems, Inc.

  • Page 6: Vertical/Tower Installation

    CAUTION! Do not work alone under hazardous conditions. CAUTION! In case of the risk of electric shock, do not remove the top cover. CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected. Copyright © 2012 CyberPower Systems, Inc.

  • Page 7: Basic Operation

    Step 3: Rotate the battery cable retention bracket and tighten the two screws to fix battery cable. Step 4: Use a power cord to plug AC input inlet of the battery pack into a wall receptacle. Copyright © 2012 CyberPower Systems, Inc.
  • Page 8 You may be prompted to save the selection, if so press the “ENTER” button to save the setting. Press the “ESC” button to cancel or return to the previous LCD menu. Configure Submenu Available Settings Default Settings EBM Number = [0] [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] Copyright © 2012 CyberPower Systems, Inc.

  • Page 9: Maintenance

    Only use replacement batteries which are certified by Battery Disposal CyberPower Systems. Use of incorrect battery type is an electrical Batteries are considered hazardous waste and must be disposed of hazard that could lead to explosion, fire, electric shock, or short circuit.

  • Page 10: Conformance Approvals

    2. Contact CyberPower for repair. CyberPower Systems Inc. www.cpsww.com © Entire contents copyright 2012 CyberPower Systems Inc., All rights reserved. Reproduction in whole or in part ® ® without permission is prohibited. PowerPanel Business Edition and PowerPanel Personal Edition are trademarks of CyberPower Systems Inc.
