  • Page 1 User’s Manual EXTENDED BATTERY MODULE (EBM) BPE36V60ART2US BPE72V60ART2US Cyber Power Systems, Inc. www.cyberpower.com K01-0000517-02...

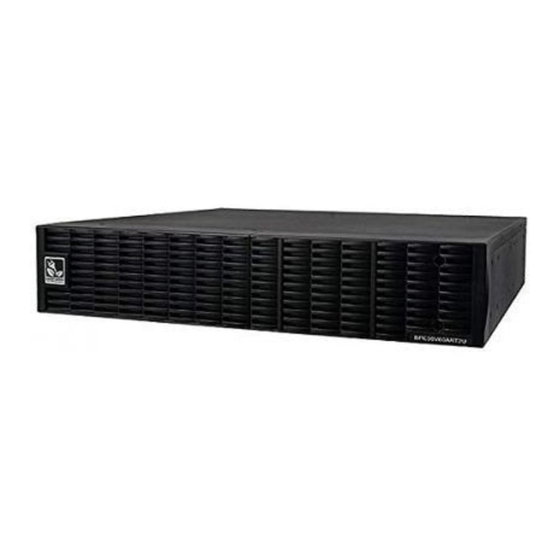

  • Page 2 OVERVIEW The CyberPower extended battery modules (BPE36V60ART2US / BPE72V60ART2US) support 50A polarized plugs, and are designed for variety of CyberPower UPS systems. When combining with the UPS, the EBM provides extended runtime with a 36VDC/72VDC external connection. Additional parallel-connected EBM provide the UPS for a longer extended runtime operation.
  • Page 3: Hardware Installation

    HARDWARE INSTALLATION Step 3: Rackmount rail Installation HARDWARE INSTALLATION The rails adjust to mount in 48-cm (19-inch) wide racks from 52 to These versatile EBM can be mounted in a rackmount or vertical tower 91.5cm (20.5 to 36 inches) deep. Select the proper holes in the rack for orientation.
  • Page 4 HARDWARE INSTALLATION How to slide the EBM out from the rack The EBM will be secured by a safety locking mechanism midway of pulling it out of the rack. Use both hands to hold the EBM and press the safety locking tab to pull the EBM out. Step 5: Place and secure the EBM on the rails Slide the hanging brackets on the EBM into the rails mounted in the rack with the front of the unit facing toward you.
  • Page 5: Vertical/Tower Installation

    HARDWARE INSTALLATION VERTICAL/TOWER INSTALLATION Adhere the protective rubber feet on the bottom side of base stands Unscrew the upper panel of the UPS. Separate the upper panel from the (rackmount ears) UPS system and EBM. UPS. Gently lift the LCD module out. Rotate it to the tower orientation. Reinstall it for a tower configuration.
  • Page 6: Basic Operation

    3. Output Cable Use this output cable to connect the EBM to the UPS or to the next EBM. BPE36V60ART2US / BPE72V60ART2US CONNECTION #1 : POWER MODULE WITH ONE BATTERY MODULE Step 1: Loosen the two screws to remove the battery cable retention bracket of the power module.
  • Page 7 BASIC OPERATION CONNECTION #2 : UPS WITH MULTIPLE EXTENDED BATTERY MODULES Step 1: Connect the 1 EBM to the UPS using the instructions above. Step 2: Loosen the two screws to remove the battery cable retention bracket of the 1 EBM.
  • Page 8 BASIC OPERATION EXTENDED BATTERY MODULES CONFIGURATION The UPS can be configured to reflect the correct estimated run-times for the number of EBM installed by using the LCD Control Panel to select the number of EBM installed. Press the “ENTER” button to activate the “MAIN MENU”. Press the “▲”...
  • Page 9: Maintenance

    Only use replacement batteries which are certified by proper disposal and recycling of batteries. Do not dispose of batteries CyberPower Systems. Use of incorrect battery type is an electrical in fire. hazard that could lead to explosion, fire, electric shock, or short circuit.
  • Page 10: Technical Specifications

    Over Charge Battery is overcharged. charger voltage. Charger Failure Charger has failed. 2. Contact CyberPower for repair. Cyber Power Systems, Inc. www.cyberpower.com Entire contents copyright 2021 Cyber Power Systems, Inc., All rights reserved. Reproduction in whole or in part ©...
