Installation manual for BCA series
BCA40N125
K01-0000774-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CyberPower BCA Series

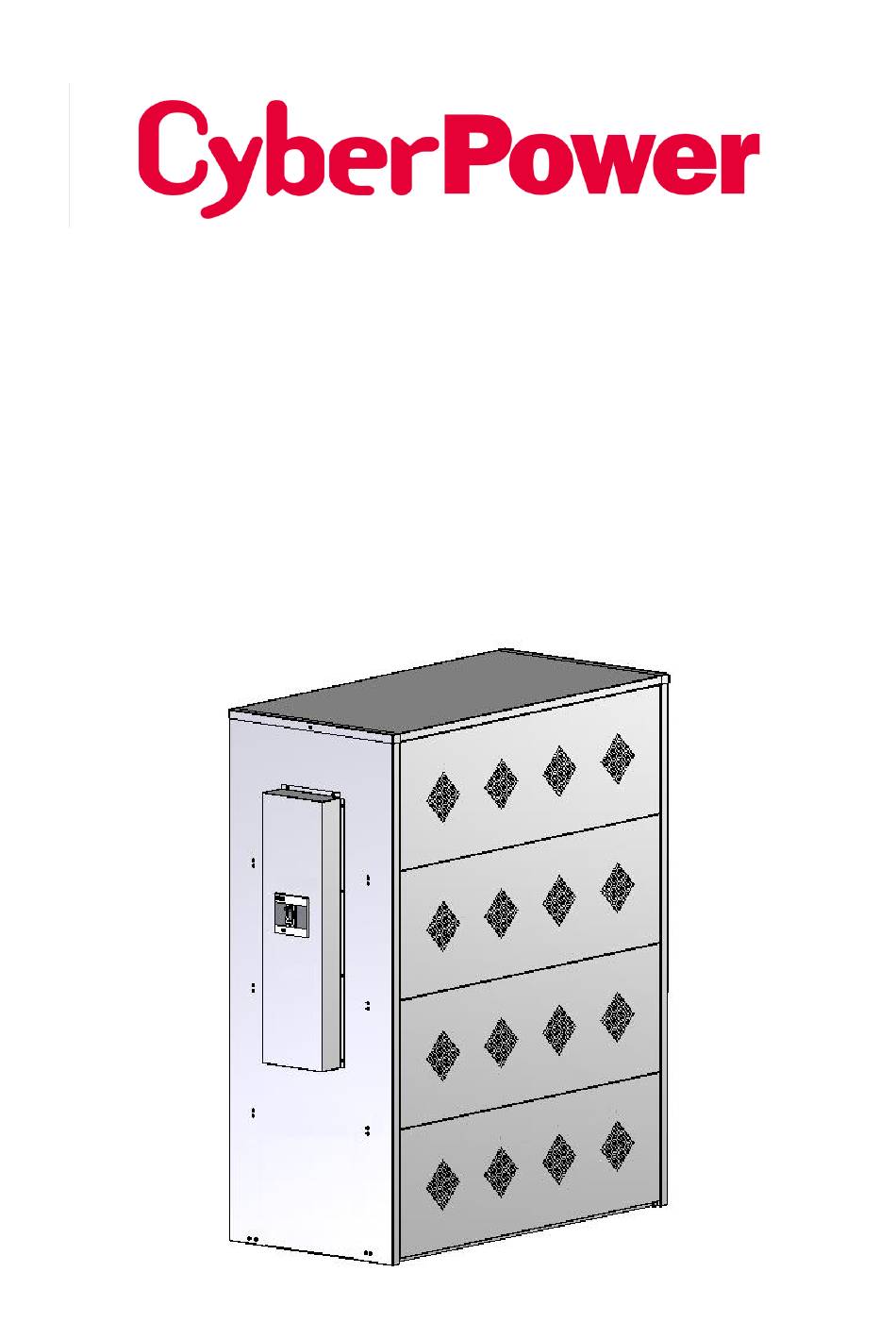

  • Page 1 Installation manual for BCA series BCA40N125 K01-0000774-00...
  • Page 2 - 690mm 1 pcs 125A breaker 1 set Breaker Screw 4 pcs Screw M3/M5 14 pcs/1 pcs Label Ground / Breaker / Name 1 pcs of each Snap bushing 3 pcs Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
  • Page 3 Procedure Step 1. Buckle the first bracket between the front and rear panels. Step 2. Fixed the breaker on the rear panel (M4 screw*4pcs). Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
  • Page 4 Step 4. Put the batteries on the bracket and connect the cables (let the terminals had a little angle that could easy to install). (Battery*10pcs/Cable: L1*1pcs/ L2*5pcs/L3*4pcs) L1: From breaker(+) to battery2(+) Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
  • Page 5 L4: From battery20(+) to battery9(-) Step 6. Install the third bracket and put the batteries then connect the cables (Battery*10pcs/Cable: L1*1pcs/ L2*5pcs/L3*4pcs) L5: From battery22(+) to battery11(-) L6: From breaker (N) to battery22(+) Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
  • Page 6 Step 7. Install the fourth bracket and put the batteries then connect the cables (Battery*10pcs/Cable: L1*1pcs/ L2*5pcs/L3*4pcs) L4: From battery40(+) to battery29(-) L7: From breaker(-) to battery31(-) Step 8. Put on the side panels (from bottom to top). Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
  • Page 7 Step 9. Put on the top panel and tighten the screw(M3 screw*1pcs). Please let the cables connect with breaker when you want to connect battery cabinet from UPS. Step 10. Fixed the breaker cover (M3 screw*12pcs). Copyright © Cyber Power Systems, Inc. All rights reserved. WWW.CYBERPOWER.COM...
