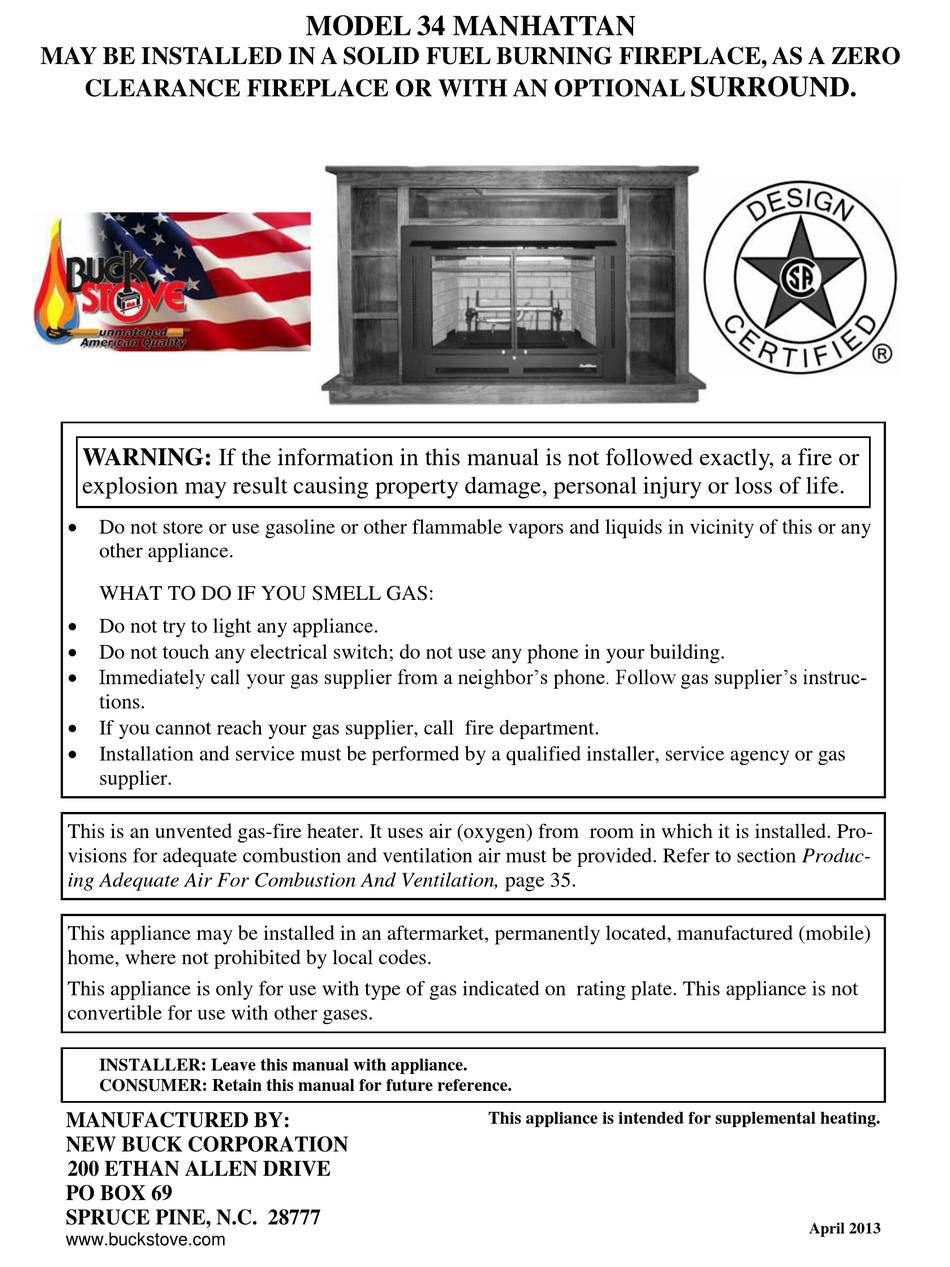

New Buck Corporation 34 Manhattan Installation Instructions Manual

Hide thumbs Also See for 34 Manhattan:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A ZERO
CLEARANCE FIREPLACE OR WITH AN OPTIONAL
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
 Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone. Follow gas supplier's instruc-
tions.
 If you cannot reach your gas supplier, call fire department.
 Installation and service must be performed by a qualified installer, service agency or gas
supplier.
This is an unvented gas-fire heater. It uses air (oxygen) from room in which it is installed. Pro-
visions for adequate combustion and ventilation air must be provided. Refer to section Produc-
ing Adequate Air For Combustion And Ventilation, page 35.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with type of gas indicated on rating plate. This appliance is not
convertible for use with other gases.
INSTALLER: Leave this manual with appliance.
CONSUMER: Retain this manual for future reference.
MANUFACTURED BY:
NEW BUCK CORPORATION
200 ETHAN ALLEN DRIVE
PO BOX 69
SPRUCE PINE, N.C. 28777
www.buckstove.com

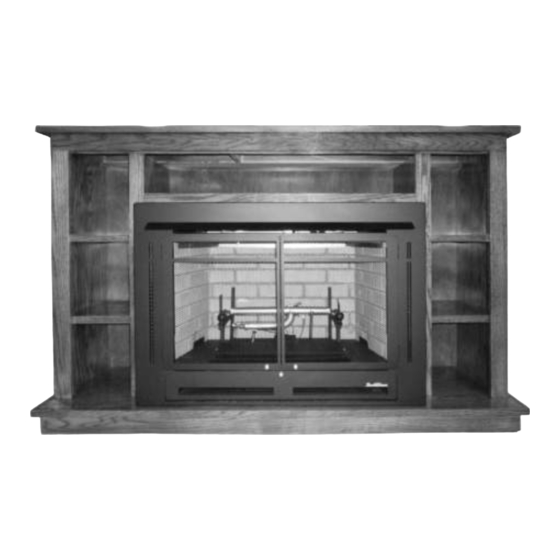

MODEL 34 MANHATTAN
This appliance is intended for supplemental heating.
SURROUND.
April 2013

Advertisement

Table of Contents
loading

Related Manuals for New Buck Corporation 34 Manhattan

Summary of Contents for New Buck Corporation 34 Manhattan

  • Page 1 MODEL 34 MANHATTAN MAY BE INSTALLED IN A SOLID FUEL BURNING FIREPLACE, AS A ZERO SURROUND. CLEARANCE FIREPLACE OR WITH AN OPTIONAL WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS MODEL 34 MANHATTEN SECTION I: Safety Information ....................3 SECTION II: Fireplace Preparation/Solid Fuel Burning Fireplace (FP) ........6 Fireplace Clearances(FP) ........................ 7 Gas Connection ..........................7 Placement of Logs ........................... 8 Gas Pressure Check ......................... 9 Lighting Instructions - SIT Millivolt Valve ..................

  • Page 4: Section I: Safety Information

    SECTION I SAFETY INFORMATION WARNINGS READ THIS OWNER’S MANUAL CAREFULLY AND COMPLETELY IMPORTANT: BEFORE TRYING TO ASSEMBLE, OPERATE, OR SERVICE APPLIANCE. IMPROPER USE OF THESE LOGS CAN CAUSE SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION AND CARBON MONOXIDE POISONING. NOTE: When burning any unit or appliance that combusts fuel for heat, such as coal, oil, wood or natural and (L.P.) liquid petroleum gas, we highly recommend use of smoke and carbon monoxide detectors in your home.
  • Page 5 5. If this heater is used with propane gas, do not place propane supply tank(s) inside any structure. 6. What To Do IF You Smell Gas: - Shut off gas supply. - Do not try to light any appliance. - Do not touch any electrical switch; do not use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone.
  • Page 6 21. All heater screens must be kept closed when operating gas logs. 22. WARNING: Failure to keep primary air opening (s) of the burner (s) clean may result in soot and property damage. 23. Do not use this heater for burning trash or cooking. Never place matches, paper, garbage or any other material on top of logs or into the flames.

  • Page 7: Section Ii: Fireplace Preparation/Solid Fuel Burning Fireplace (Fp)

    SECTION II FIREPLACE PREPARATION The fireplace needs to be prepared before installing heater. A. Turn off the gas supply to fireplace. WARNING: BEFORE INSTALLING IN A SOLID-FUEL BURNING FIREPLACE, CHIMNEY FLUE AND FIREBOX MUST BE CLEANED OF SOOT, CREOSOTE, ASHES AND LOOSE PAINT BY A QUALIFIED CHIMNEY CLEANER.

  • Page 8: Fireplace Clearances(Fp)

    INSTALLATION AND CLEARANCES To ensure a safe installation into a masonry or factory built fireplace, following instructions must be carefully followed: (1) Sidewall Clearances: Clearance from side of fireplace opening to any adjacent combustible wall should not be less than: right side 7", left side 7". (2) Ceiling Clearances: The ceiling height should not be less than 24"...

  • Page 9: Placement Of Logs

    E.S.B. LOG SET PLACEMENT FOR MODEL 34 MANHATTAN “MILLIVOLT ONLY” WARNING: Failure to position parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. WARNING: POSITIONING OF LOGS IS VERY CRITICAL (SEE DIAGRAM ABOVE).

  • Page 10: Gas Pressure Check

    GAS PRESSURE CHECK Check inlet pressure to burner to ensure that it is as shown in table below. NOTE:The pressure check point is located on the right side of valve facing burner, for SIT Millivolt, and left side for SIT Modulating. Appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5kPa).

  • Page 11: Lighting Instructions Sit-Millivolt Valve

    LIGHTING INSTRUCTIONS SIT-MILLIVOLT VALVE FOR YOUR SAFETY READ BEFORE LIGHTING OPERATING INSTRUCTIONS Before operating this appliance, proceed through following checklist. 1. Read and understand these instructions before operating this appliance. 2. Check that there are no gas leaks. If you smell gas do not attempt to light this appliance. 3.
  • Page 12 LIGHTING INSTRUCTIONS 1. STOP! Read the safety information on reverse side of this label (page 19). 2. Make sure manual shutoff valve is fully closed. If equipped with thermostat, set to lowest setting. 3. Turn off all electrical power to appliance. 4.

  • Page 13: To Turn Off Gas To Appliance

    to “ON”. 11. Turn control knob counterclockwise 12. If using unit without wall thermostat place Auto/Off/Manual switch to manual position. If using wall thermostat place Auto/Off /Manual switch to auto position and place thermostat to a setting higher than room temperature. 13.

  • Page 14: Manual Lighting Procedure

    MANUAL LIGHTING PROCEDURE 1. If pilot cannot be lit with piezo, it can be manually lit with the use of a paper match and a lighter rod. 2. Open access panel door located at bottom front of appliance. 3. Place match in holder and light. With left hand, turn control knob counterclockwise to “PILOT”position.

  • Page 15: Flame Check

    FLAME CHECK A periodic check of the flames should be made. The pilot flame should always be present when gas logs are in operation. See Figure 4. Back Flames: The flames at back or at either side of top log should be very similar, yellow in color, and should be about 3"...

  • Page 16: Section Iii: Solid Fuel Burning Fireplace Installation (Fp)

    INSTALLATION MODEL 34 MANHATTAN IN SOLID FUEL BURNING FIREPLACES (1) Model 34 Manhattan may be installed in a masonry fireplace. The minimum fireplace dimension must be 24" high, 29-1/2" wide, and 12" deep. (2) For minimum dimensions for the sidewall and mantel, see Figure 5.
  • Page 17 3. Place top panel onto front top of unit and over ends of side panels, top panel should be flat against side panels. Hold in place and mark holes through holes in top panel onto top of front of unit. Set panel aside. Drill three (3) holes with supplied self drilling screws through marks.

  • Page 18: Section Iv: Wooden Surround Installation (Ws)

    SECTION IV INSTALLATION OF MODEL 34 MANHATTAN (WS) OPTIONAL WOODEN SURROUND (KIT#PAKDFP34MAN) (1) When choosing right location for your heater and surround (mantel) keep the following in mind: NOTE: Due to high temperatures, this heater should be located out of traffic areas and away from furniture and draperies.

  • Page 19: Section V: Zero Clearance (Zc)

    SECTION V MODEL 34 MANHATTAN (ZC) ZERO CLEARANCE INSTALLATION The installation must conform with local codes or in the absence of local codes, with National Fuel Gas Code, ANSI Z223.1/NFPA54. This appliance may be installed in an After-Market Manufactured (Mobile) Home, where not prohibited by state or local codes.

  • Page 20: Gas Line

    GAS LINE 3-1/4" 4-1/4" WARNING: Installation and repairs should be performed by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
  • Page 21 FIREPLACE CLEARANCES (ZC) Combustible materials must not be installed over or Fireplace may be placed directly on a combustible floor, against a combustible wall at marked touch any black painted surface. Do not block heat clearances or on a raised wooden platform. circulating air outlets.
  • Page 22 FINISHING YOUR FIREPLACE (ZC) There is a wide variety of finishing material coverings such as paneling or wall board may available for your fireplace from formal wall not overlap black face of fireplace. Space treatments with marble and mantels, to rustic between wall covering and fireplace should wood paneling, stone or brick.

  • Page 23: Section Vi: Installation-After Market Mobile Home

    SECTION VI AFTER MARKET MOBILE HOME INSTALLATION NOTE: See “Producing Adequate Air For Combustion And Ventilation” page 23. THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET*, PERMANENTLY LOCATED, MANUFACTURED (MOBILE) HOME, WHERE NOT PROHIBITED BY LOCAL CODES. *(After Market: Completion of sale, not for purpose of resale from manufacturer.) THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON RATING PLATE.

  • Page 24: Section Vii: Producing Adequate Air For Combustion And Ventilation

    PRODUCING ADEQUATE AIR FOR COMBUSTION AND VENTILATION This section is for residential or manufactured (mobile) installation This heater shall not be installed in unusually tight construction unless provisions are adequate for combustion and ventilation air. NOTE: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method in National Fuel Gas Code, ANSIZ223.1/NFPA 54, the International Fuel Gas Code, or applicable codes.
  • Page 25 1. Determine the volume of the space (length x width x height). Length x Width x Height = cu.ft.(volume of space) EXAMPLE: 20 ft.(Length) x 16 ft.(Width) x 8 ft.(ceiling Height)= 2560 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

  • Page 26: Air For Combustion And Ventilation Inside Building

    AIR FOR COMBUSTION AND VENTILATION INSIDE BUILDING This fresh air would come from an adjoining unconfined space. When venting to an adjoining space, you must provide two permanent openings: one within 12" of ceiling and one within 12" of floor, on wall connecting two spaces. (See Options 1 and 2, Figure 13.) You can also remove door into adjoining room.

  • Page 27: Air For Combustion And Ventilation Outdoors

    WARNING THIS APPLIANCE MUST HAVE ADEQUATE AMOUNT OF AIR FOR PROPER OPERATION. IF NOT, POOR FUEL COMBUSTION COULD RESULT. READ FOLLOWING INSTRUCTIONS TO ENSURE PROPER AMOUNT OF AIR FOR THIS AND OTHER FUEL-BURNING APPLIANCES IN YOUR HOME. AIR FOR COMBUSTION AND VENTILATION OUTDOORS Provide extra fresh air by using ventilation grills or ducts.

  • Page 28: Important Safeguards

    IMPORTANT SAFEGUARDS Although your gas logs are very realistic in appearance, it is not a real burning fireplace and must not be used for burning rejected material.  To avoid irreparable damage to heater or personal injury, matches, paper, garbage or any other material must not be placed or thrown on top of logs or into flames.

  • Page 29: Wiring Diagram

    WIRING DIAGRAM THERMOSTAT JUMPER MOTOR JUMPER JUMPER WHITE GREEN BLACK RHEOSTAT BLACK POWER CORD WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO HAZARDS OF HIGH SURFACE TEMPERATURES AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN SAME ROOM WITH APPLIANCE WARNING:...
  • Page 30 EQUIPPED WITH A THREE-PRONG PLUG FOR YOUR PROTECTION AGAINST SHOCK HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. NOTE: #PESBRO84 Blower may be used with Model 34 Manhattan. Rating: 120 volts/60HZ/1.1 Amps. See Figure 17, page 34 for wiring diagram. NOTE: For convenience, allow licensed electrician to install properly grounded 3-plug receptacle near unit.

  • Page 31: Maintenance

    MAINTENANCE CLEANING BOTTOM COMPARTMENT - MOTOR AND MOTOR REPLACEMENT 1. Unplug power cord. 2. Open access door at front bottom facing unit to access bottom compartment. 3. Using vacuum cleaner, remove all dust, fuzz, dirt and foreign materials from bottom of stove. Also vacuum the fan blade on motor.

  • Page 32: Troubleshooting

    TROUBLESHOOTING WARNING TURN OFF, UNPLUG HEATER AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR HEATER. CAUTION NEVER USE A WIRE, NEEDLE OR SIMILAR OBJECT TO CLEAN ODS/PILOT. THIS CAN DAMAGE ODS/PILOT. OBSERVED POSSIBLE PROBLEM CAUSE SOLUTION Igniter button is pressed...
  • Page 33 OBSERVED POSSIBLE PROBLEM CAUSE SOLUTION Igniter button is pressed Air in gas lines when installed Continue to hold down Spark at ODS/Pilot control knob. Repeat igniting No Ignition (continued) operation until air is removed. Depleted gas supply Contact local propane gas company ODS/Pilot is clogged Clean ODS/Pilot or replace...
  • Page 34 OBSERVED POSSIBLE PROBLEM CAUSE SOLUTION Burner does not light after Burner orifice is clogged Clean burner (see Cleaning ODS/Pilot is lit and Maintenance) or replace burner orifice Inlet gas pressure is too low Contact local propane gas company Delayed ignition of burner Manifold pressure is too low Contact local propane gas company...
  • Page 35 WARNING IF YOU SMELL GAS: * SHUT OFF GAS SUPPLY * DO NOT TRY TO LIGHT APPLIANCE * DO NOT TOUCH ANY ELECTRICAL SWITCH. DO NOT USE ANY PHONE IN YOUR BUILDING * IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S PHONE.

  • Page 36: Service And Repair Parts

    A parts list with exploded view follows. Always include correct name, part number and model number of heater when ordering service parts. Please contact your local dealer or distributor when ordering . If one is not available, you may contact. New Buck Corporation 200 Ethan Allen Drive PO Box 69...

  • Page 37: Replacement Parts

    REPLACEMENT PARTS SIT MILLIVOLT VALVE ESB BASE (Picture on page 53) A parts list with exploded view follows. Always include correct name, part number and model number of the heater when ordering service parts. KEY# PART DESCRIPTION PART NUMBER 1. O.D.S. Pilot O.P. Assembly (LP) PE 8404C 1.
  • Page 38 SIT MILLIVOLT VALVE ESB BASE Page 36...
  • Page 39 NEW BUCK CORPORATION We reserve right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We offer no other warranty, expressed or implied. LIMITED WARRANTY VENT-FREE GAS LOG HEATER New Buck warrants this product to be free from defects in materials and components for two (2) years from date of first purchase, provided that product has been properly installed, operated and maintained in accordance with all applicable instructions.

  • Page 40: Warranty/Owner Registration

    OWNER REGISTRATION The attached owner registration card must be completed in its entirety and mailed within 30 days from date of installation in order for warranty coverage to begin to: New Buck Corporation P.O. Box 69 Spruce Pine, NC 28777 Email: info@buckstove.com...
