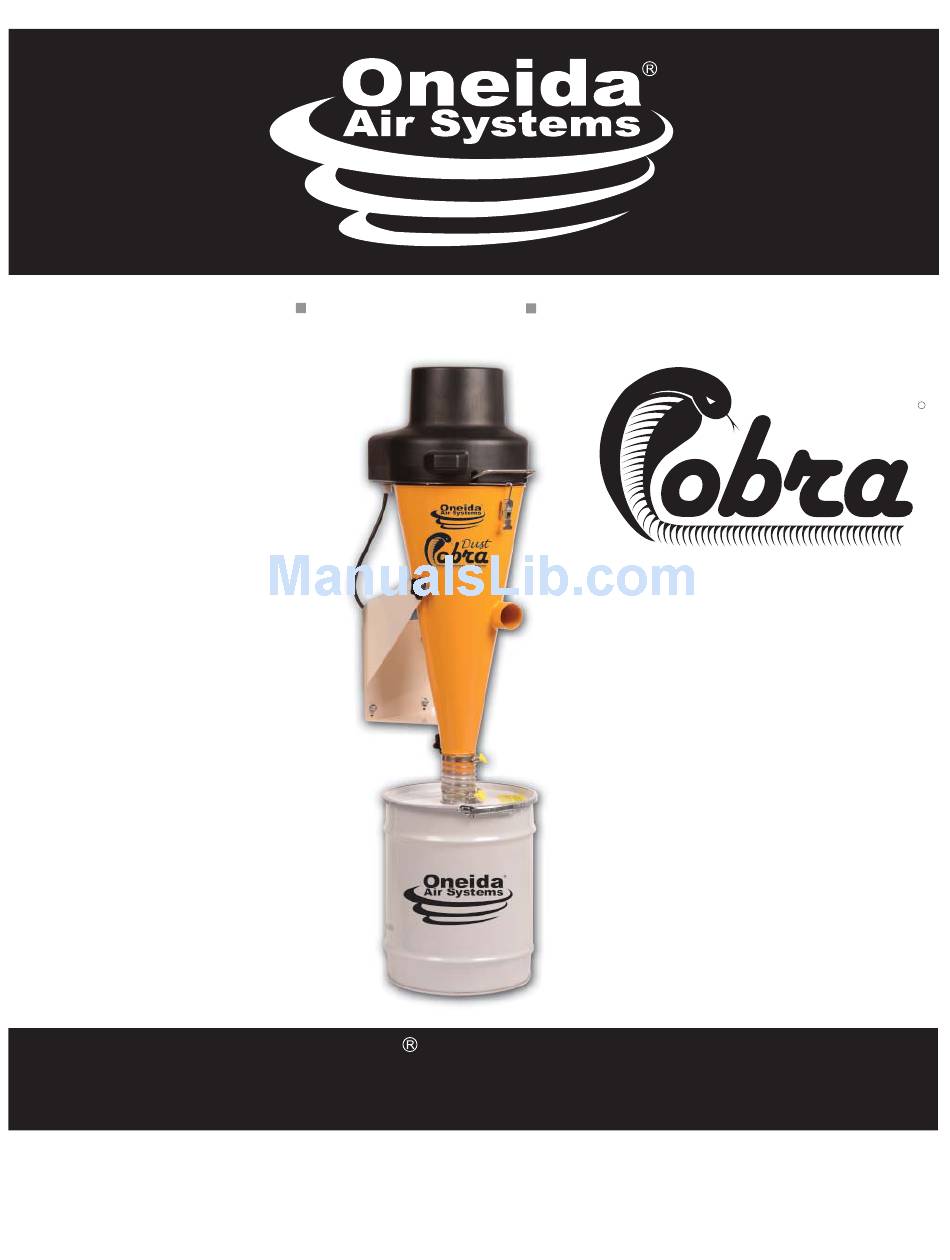

Powerful Economical Made in the USA
The Dust Cobra - XCK010000 / XCK010099
1.800.732.4065
Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art
dust collection systems and material handling ductwork to woodworking shops. OAS
designs and manufactures industrial grade dust collection systems that create a prac-
tical, safe and healthy work place environment.
Owner's Manual
Dust
Certifi ed Full Unit HEPA
Vacuum - Meets EPA RRP
Requirements Including
Lead.
- Certifi cate included with every unit.
www.oneida-air.com
ZBM000025
9_11
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dust Cobra - XCK010000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oneida Air Systems Dust Cobra - XCK010000

Summary of Contents for Oneida Air Systems Dust Cobra - XCK010000

  • Page 1 Owner’s Manual 1.800.732.4065 www.oneida-air.com Oneida Air Systems, Inc. was founded in 1993 to bring cost effective, state-of-the-art dust collection systems and material handling ductwork to woodworking shops. OAS designs and manufactures industrial grade dust collection systems that create a prac-...

  • Page 2: Table Of Contents

    Thank You for Choosing an Oneida Air Systems Product! OAS manufactures and sells dust collection equipment only. Our qualifi ed technicians and sales staff are available 8:30am -5:00pm EST Mon. - Fri. to answer any questions concerning OAS products and dust collection. Call for ductwork design and ductwork quotes, including system pricing and shipping cost.

  • Page 3: System Start-Up Information

    I. System Start-Up Information Safety Instructions to be Strictly Followed. Read the installation and maintenance instructions as well as the recommended safety practices in this manual before assembling and using the Dust Cobra. Caution Caution The Dust Cobra is heavy! Handling and assembly should always be performed by experienced and trained personnel who have experience with assembling equipment.

  • Page 4: General Specifi Cations

    II. General Specifi cations Part # Description Dust Cobra® - Standard Motor XCK010000 Dust Cobra® - Brushless Industrial Motor XCK010099 90” W/C Max. Suction - 260 CFM Max. Air Flow System Vacuum Motor Voltage: 110V / 11 Amps Performance Developes 3 psi. 7x more than a dust collector. 73 dBA @ 10’...

  • Page 5: Dimensions

    III. Dimensions 58” Minimum mounting height - 34” with 10 gal. drum 35” Depth - 16” All dimensions are approximate. 18” 16” Dust Cobra Owner’s Manual O.A.S. 2010...

  • Page 6: General Assembly

    IV. Parts AFS156150 AFT00001 RGZ025050 BXI001205C/1206C AFW180516 SMS001200A AFW380125 ACB000000 AFT901032 AFL000003 SCX001205B AFS103275 BBS025050 SYSTEM: DHF030000 SEX100300 SMS001200A - Wall Bracket (1) SES100000 ZBM000025 - Owner’s Manual (1) SEX100300 - Drum Lid Steel 3” Inlet 10 Gal. (1) BXI001205C/1206C - Cobra Motor Assembly (1) SCX001205B - Cone (1) AFT00001 DGP025000...

  • Page 7: General Assembly Instructions

    V. General Assembly Instructions If you are mounting the Dust Cobra to the optional mobile cart, go to pg. 9. 4. Attach cone to wall bracket by putting 1. Attach bracket to wall using supplied hex bolts appropriate hardware for the sur- through side and bot- face.
  • Page 8 V. General Assembly Instructions Supplied Filter Bracket / Bolt and Nut 5. Two of the four bolts holding the motor plate on are purposely left loose and raised so 8. Put open end of fi lter over Filter Bracket and put bolt you can attach the fi...
  • Page 9 V. General Assembly Instructions 10. You must adjust the Hook Clamp so that it holds the motor housing tightly down when the clamp is closed. 13. Attach hose cuff to inlet and then plastic blast gate to the hose cuff with the gate opening at the bottom as shown in picture.
  • Page 10 V. General Assembly Instructions Mounting Instructions for Optional Cart 1. Put self-sticking gasket around inside rim on top of cyclone as shown in photos. Be sure ends meet evenly and there is no gap for air leakage. Axle Cap 4. Put wheels on axle by gently tapping with a hammer and pushing and turning wheel down axle.

  • Page 11: Filter Maintenance

    VI. Filter Maintenance & Cleaning How to Use the Filter Pulse Cleaning Bar 1. Push bottom of blast gate 2. Sharply push bar down and 3. Pull gate back down to When you replace filter, up to seal the vacuum. hold for 5 seconds then open suction to hose.

  • Page 12: Emptying Dust Drum

    - Check for clogs or large debris inside cyclone, on the inside or outside of the vortex tube. Excessive Vibration Caused By: Loose mounting bolts. Note: If you continue to experience diffi culty with your collector, call Oneida Air Systems at 1.800.732.4065 for assistance. Dust Cobra Owner’s Manual O.A.S. 2010...

  • Page 13: Fire Hazards

    IX. Fire Hazards - Read Before Installing and Operating Oneida Collectors are designed for DUST only!! Wood shaping and cutting processes generate wood chips, shavings, and dust. These materials are considered combustible. Air borne wood dust below 420 microns in size (.017 of an inch) in certain concentration ranges when Aluminum dust, fl...

  • Page 14: Terms And Conditions

    Returned Goods Policy Buyer must inform Oneida Air Systems of any shortage or damage, by so noting in writing, on the freight delivery bill prior to signing to indicate receipt of shipment. All claims covered under the limited warranty, are subject to inspection and investigation by Oneida Air Systems. Oneida Air Systems reserves the right to inspect and investigate all returned products before Buyer’s claim is settled.

  • Page 15: Gal. Drum Assembly / Bag Hold-Down

    Optional 17 Gal. Drum - RXP000017 Assembling 17 Gal. Drum Plate 1. Slide plate edging onto plate as shown with gripper tab towards the bottom of the plate. Trim excess edging. Plate Edging Plate Gripper Tab 2. Then line up back of plate with back of cart bottom plate evenly.

  • Page 16: Certifi Cate Of Compliance

    Certifi cate of Compliance Certificate of Compliance Dust Cobra™ HEPA Vacuum Unit Oneida Air Systems 1001 West Fayette St Syracuse, NY 13204 On this Date: 31 Jan 2012 Testing conducted in accordance with IES RP-CC002.3 & Following guidelines within Reference Standard; IES-RP-CC0034.3 Conducted by: ENV Services, Inc.
