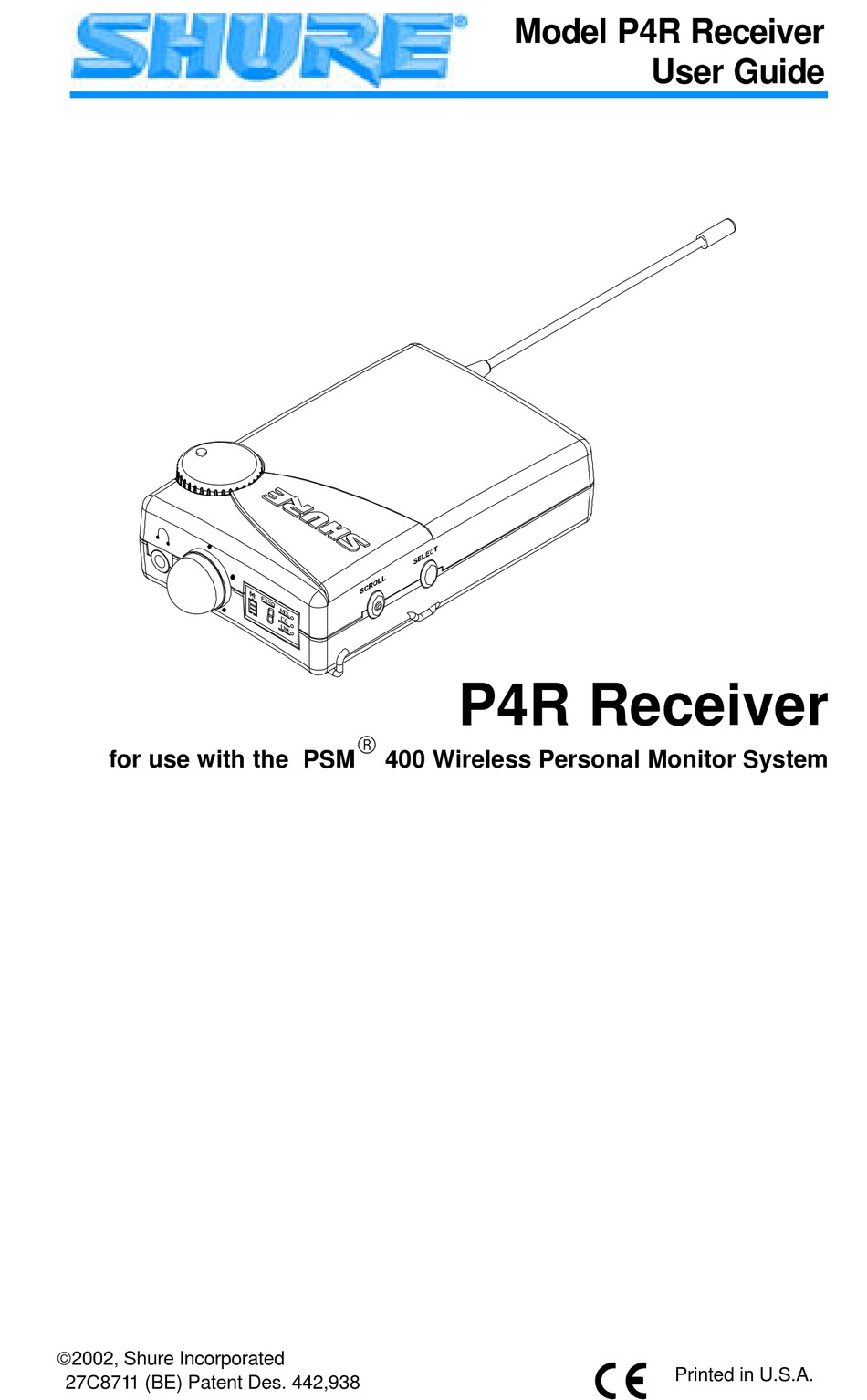

Model P4R Receiver

User Guide

P4R Receiver
R
for use with the PSM
400 Wireless Personal Monitor System
2002, Shure Incorporated
Printed in U.S.A.
27C8711 (BE) Patent Des. 442,938

Advertisement

Table of Contents
loading

Related Manuals for Shure P4R

Summary of Contents for Shure P4R

  • Page 1: User Guide

    Model P4R Receiver User Guide P4R Receiver for use with the PSM 400 Wireless Personal Monitor System 2002, Shure Incorporated Printed in U.S.A. 27C8711 (BE) Patent Des. 442,938...
  • Page 2 ENGLISH WARNING! USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. In order to use this system safely, avoid prolonged listening at excessive sound pres- sure levels. Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.

  • Page 3: Quick Setup

    ENGLISH Thank you for buying the P4R Receiver. The P4R is a component in the PSM 400 family of wireless personal monitors. When used with a P4T Transmitter, it provides the many advantages of a wireless, in-ear monitoring system, including:...

  • Page 4: Battery Installation

    SCROLL and SELECT pushbuttons (see Pushbutton Con- trols on page 6). FREQ FIGURE 3 RF: Indicates the P4R receiver is receiv- RECEPTION CHANNEL (FREQ): ing a transmission. Always check for RF The P4R receiver features 16 preset, reception prior to inserting earphones user-selectable channels (0–9 and...
  • Page 5 MixMode combines these two signals into one monitor mix and allows you to control this mix during the performance with the P4R receiver. For example, if the band overpowers the vocals in the mix, increase the level of the vocals and decrease the level of the...

  • Page 6: Pushbutton Controls

    Push the SCROLL pushbutton to confirm changes. LOCKING OUT THE LCD SCREEN Once the P4R’s functions are set for use, lock out the LCD screen and pushbuttons to prevent unwanted changes during or between performances. Use the following instructions to lock out the front panel: Set all functions to desired settings.

  • Page 7: Specifications

    LICENSING 60 dB typical Squelch Threshold Changes or modifications not expressly ap- 4.5 µV typical proved by Shure Incorporated could void your Antenna authority to operate the equipment. Licensing attached whip of Shure wireless microphone equipment is the user’s responsibility, and licensability de- Power Requirements ...

  • Page 8: Declaration Of Conformity

    Model: P4R Name: P4R Receiver was tested and found to comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter- ference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 9 SHURE Incorporated Web Address: http://www.shure.com 222 Hartrey Avenue, Evanston, IL 60202–3696, U.S.A. Phone: 847-866–2200 Fax: 847-866-2279 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 Elsewhere, Phone: 847-866–2200 Fax: 847-866-2585...
