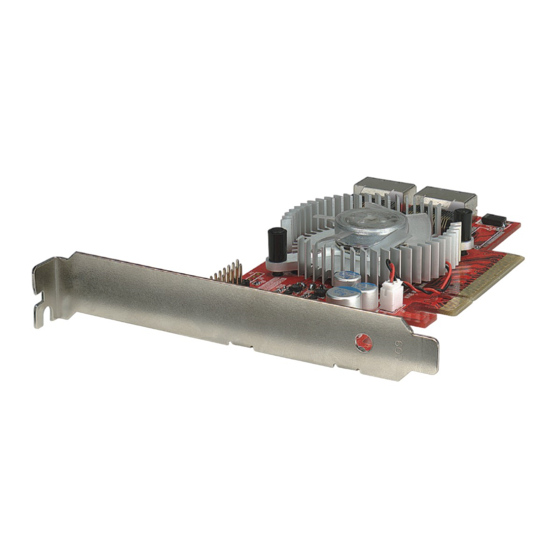

Manhattan 151009 User Manual

Sas pci express card
Hide thumbs Also See for 151009:

Advertisement

Table of Contents

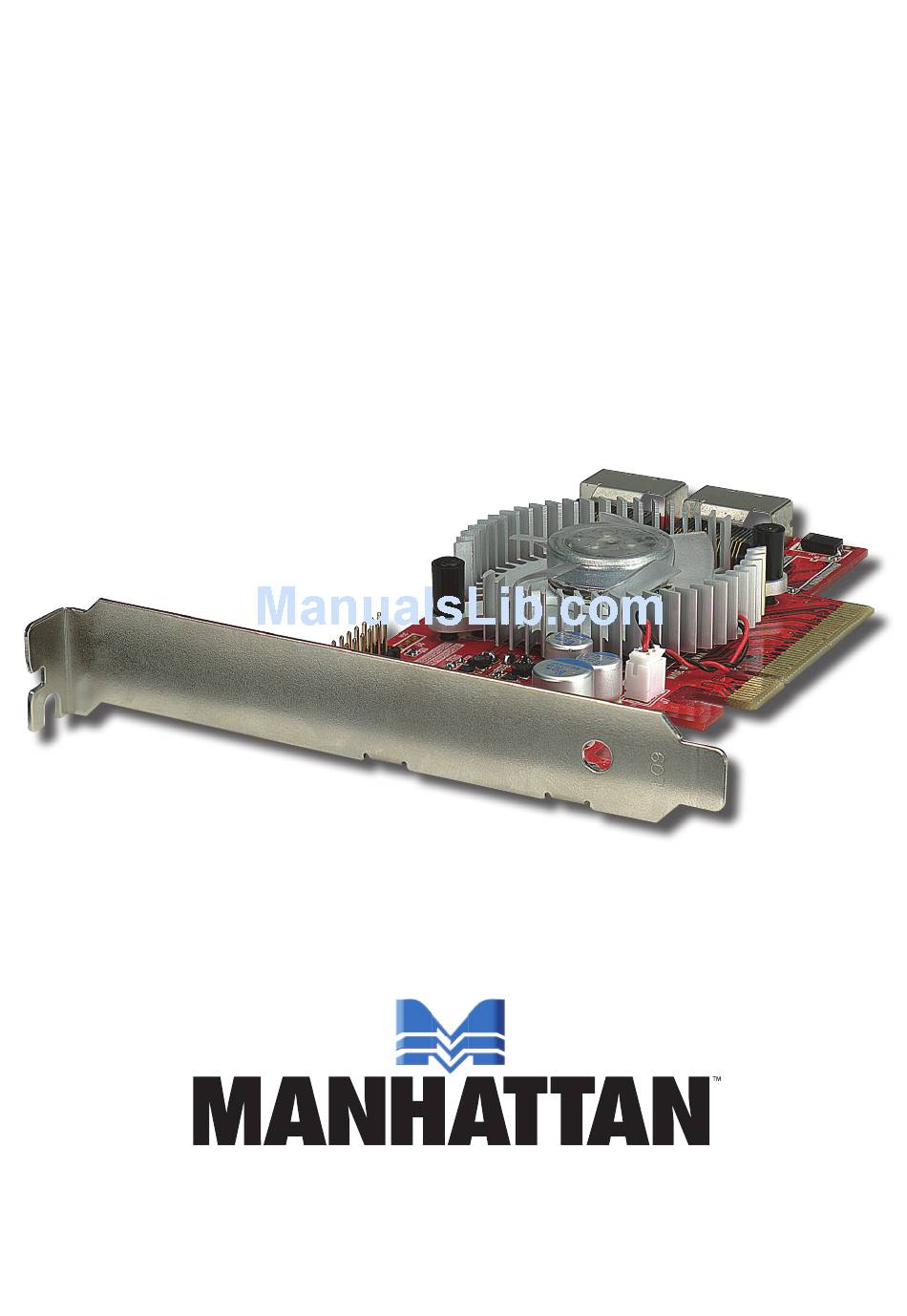

SAS PCI
EXPRESS
CARD
USER
MANUAL
MODEL 151009
MAN-151009-UM-0211-01-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 151009 and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan 151009

Summary of Contents for Manhattan 151009

  • Page 1 SAS PCI EXPRESS CARD USER MANUAL MODEL 151009 MAN-151009-UM-0211-01-0...
  • Page 2 INTRODUCTION Thank you for purchasing the MANHATTAN SAS PCI Express Card, Model 151009. ® Easily installed, this card adds eight internal SAS+SATA ports for tiered, enterprise- class storage solutions that optimize high-performance SAS and high-capacity SATA drives. It’s ideal for workstation and entry-server solutions that demand...
  • Page 3 INSTALLATION Adding the Card to an Existing Windows OS 1. Turn off the system. Insert the card into an available x8 or x16 PCIe slot. Turn the system back on. 2. During system bootup, Windows will display “Found New Hardware Wizard” (in XP), “Windows needs to install..”(in Vista) or “Device driver software was not successfully installed” (in Win7). In each case, click “Cancel” to continue. 3. Right-click “My Computer,” select “Manage,” then select “Device Manager.” Go to “SCSI and RAID Controller” (XP) or “Other Devices/RAID Controller” (Windows 7/Vista) to start the manual driver installation — first “Found New Hardware Wizard,” then “Hardware Update Wizard.” 4. Place the included driver CD in the CD-ROM drive. Depending on the operating system, select “SAS\Marvel\M9485\Windows” and either “i386” (32-bit) or “amd64” (64-bit), then click “Next.” 5. For Windows XP, select “Marvell 94XX SAS/SATA RAID Controller” and “Marvell RAID Virtual Device” and click “Install.” For Windows 7/Vista, select “Marvell Storage Controller” and “Marvell 94XX SAS/SATA RAID Controller” and click “Install.” 6. If prompted, restart the computer; otherwise, follow the instructions until you can click “Finish.” Fresh (Initial) Windows Installation 1.
  • Page 4 select your choices for disk partitioning and other setup operations. 8. After setup examines your disks, it will copy files from the Windows OS Setup CD to the hard drive and restart the system. The setup program will continue and finish the Windows 7/Vista installation after the restart. Verifying Installation with Windows 1. Right-click on “My Computer,” then click “Manage” and “Device Manager.” 2. Double-click “SCSI and RAID Controllers.” If no exclamation points (!) or question marks (?) display in front of “Marvell 94XX SAS/SATA RAID Controller,” the installation was successful. If either does appear, go back to Step 4 above.

  • Page 5: Specifications

    SPECIFICATIONS Standards and Certifications • FCC • CE • SAS 2.0 • SATA 3.0 • PCIe 2.0 • RoHS • WEEE Port Specifications • 2 SFF-8087 (internal) L-type • Transfer rate: 6 Gbps • Supports 2 independent channels General • Supports main board PCI Express 2.0 x8 and x16 host slot • Auto-detection of SAS or native SATA device • PCIe power management: D0, D1, D3_cold, D3_hot • Supports 6Gb/s, 3Gb/s and 1.5Gb/s SAS or SATA devices • Supports SAS multiplexing • Supports SSC with independent control of each PHY • Supports wide SAS ports • Supports SAS Protocol (SSP), initiator and target mode • Supports SAS Management Protocol (SMP), initiator mode • Supports SATA Tunneling Protocol (STP), initiator mode including non-zero offset and non-sequential data delivery, ATA and ATAPI commands and native command queuing (NCQ) • Supports Port Multiplier • Supports host mode and device mode of operation • Hot-plug capability...

  • Page 6: Warranty Information

    WARRANTY INFORMATION ENGLISH: For warranty information, go to www.manhattan-products.com/warranty. DEUTSCH: Garantieinformationen finden Sie unter www.manhattan-products.com/warranty. ESPAÑOL: Si desea obtener información sobre la garantía, visite www.manhattan-products. com/warranty. FRANÇAIS: Pour consulter les informations sur la garantie, visitez www.manhattan-products. com/warranty. POLSKI: Informacje dotyczące gwarancji znajdują się na stronie www.manhattan-products. com/warranty. ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Poliza de Garantia MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.

  • Page 7: Regulatory Statements

    REGULATORY STATEMENTS FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.
  • Page 8 Copyright © MANHATTAN...
