Summary of Contents for Manhattan 158046

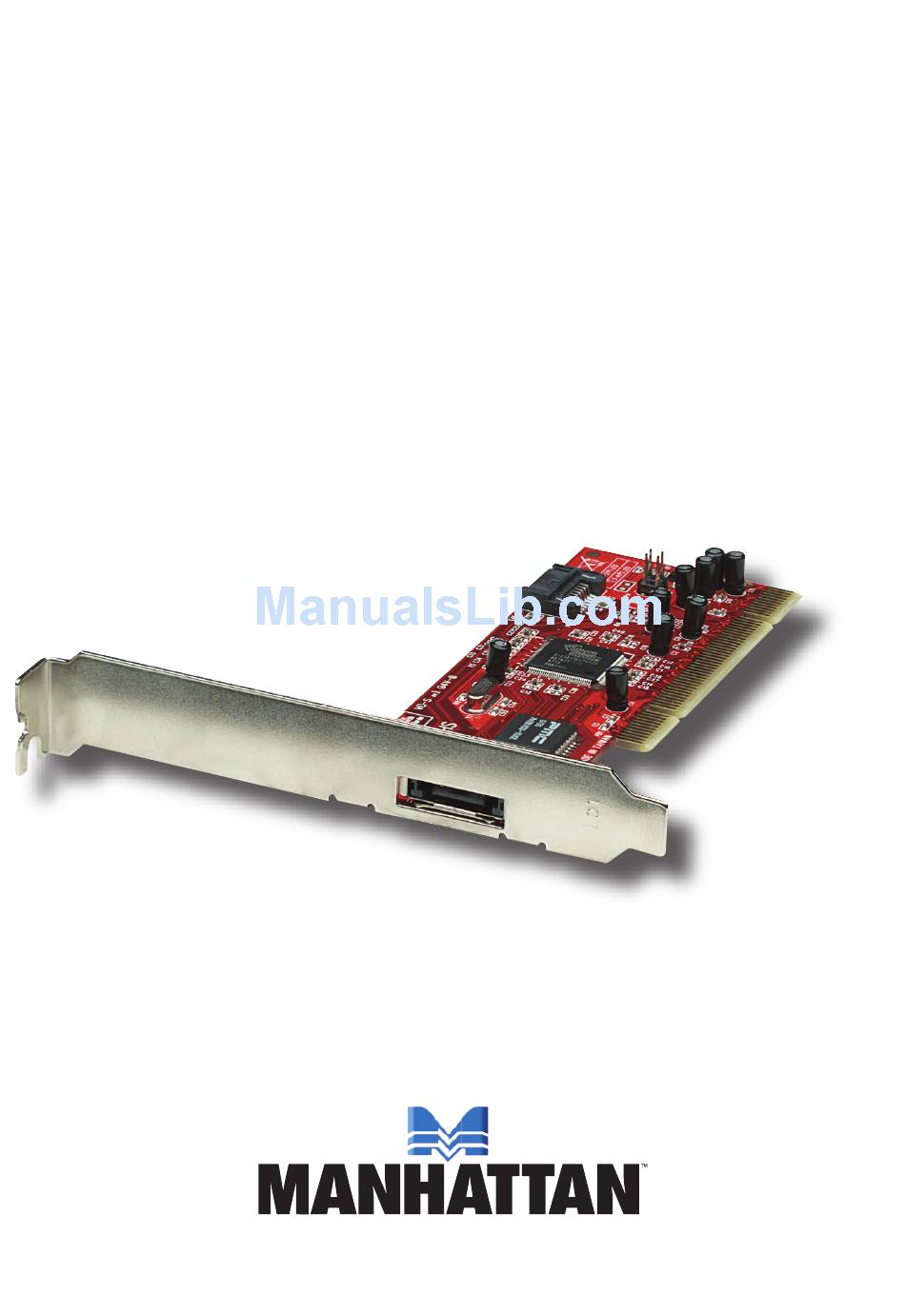

- Page 1 SATA 150 ConTroller PCI CArd uSer mAnuAl Model 158046 MAN-158046-UM-0508-01...
-
Page 2: System Requirements
Thank you for purchasing this MANHATTAN SATA 150 Controller PCI ® Card, Model 158046. Compatible with eSATA and SATA 150/300 drives — including CD, DVD and HDD — it supports data transfer rates of up to 1.5 Gbps and drives above 137 GB. -
Page 3: Hardware Installation
hArdwAre InSTAllATIon 1. Turn off your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCI slot. 4. To install the card, carefully align the card’s bus connector with the selected PCI slot on the motherboard. - Page 4 the instructions in Verifying Controller Installation to confirm that the controller has been installed correctly. With Initial Installation of Windows Vista 1. Insert your Windows Vista DVD into the DVD-ROM drive. 2. When Vista starts from the DVD, change the displayed language and keyboard preferences as needed and click “Next”;...
- Page 5 6. The wizard will now copy the required files to the system and start the driver. After starting the driver, the wizard will display a completion message. Click “Finish” to exit the wizard. 7. Follow the instructions in Verifying Controller Installation to confirm that the controller has been installed correctly.
- Page 6 Updating the Driver on Windows XP 1. Right-click on My Computer and go to Properties. In System Properties, go to Hardware, then Device Manager. Select “SCSI and RAID Controllers”; then right-click “Silicon Image SiI 3x12 SATALink Controller” and go to Properties (on the context menu). 2.
-
Page 7: Specifications
Verifying Controller Installation for Windows 2000/XP 1. Right-click on My Computer and go to Properties, then Hardware, then Device Manager. 2. Double-click “SCSI and RAID Controllers.” If no yellow exclamation point (!) or question mark (?) appears to the left of “Silicon Image SiI 3x12 SATALink Controller,”... - Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
