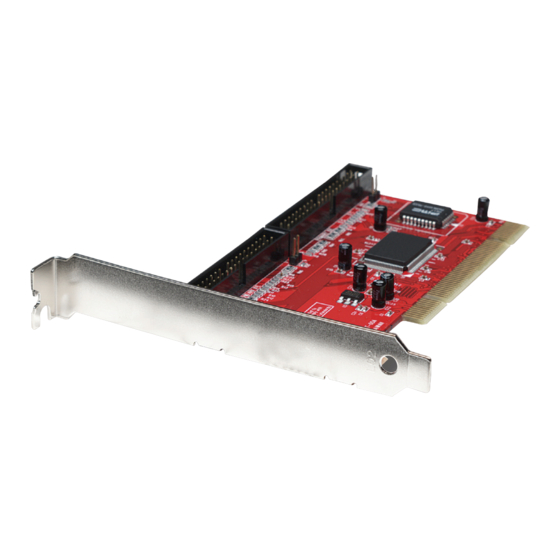

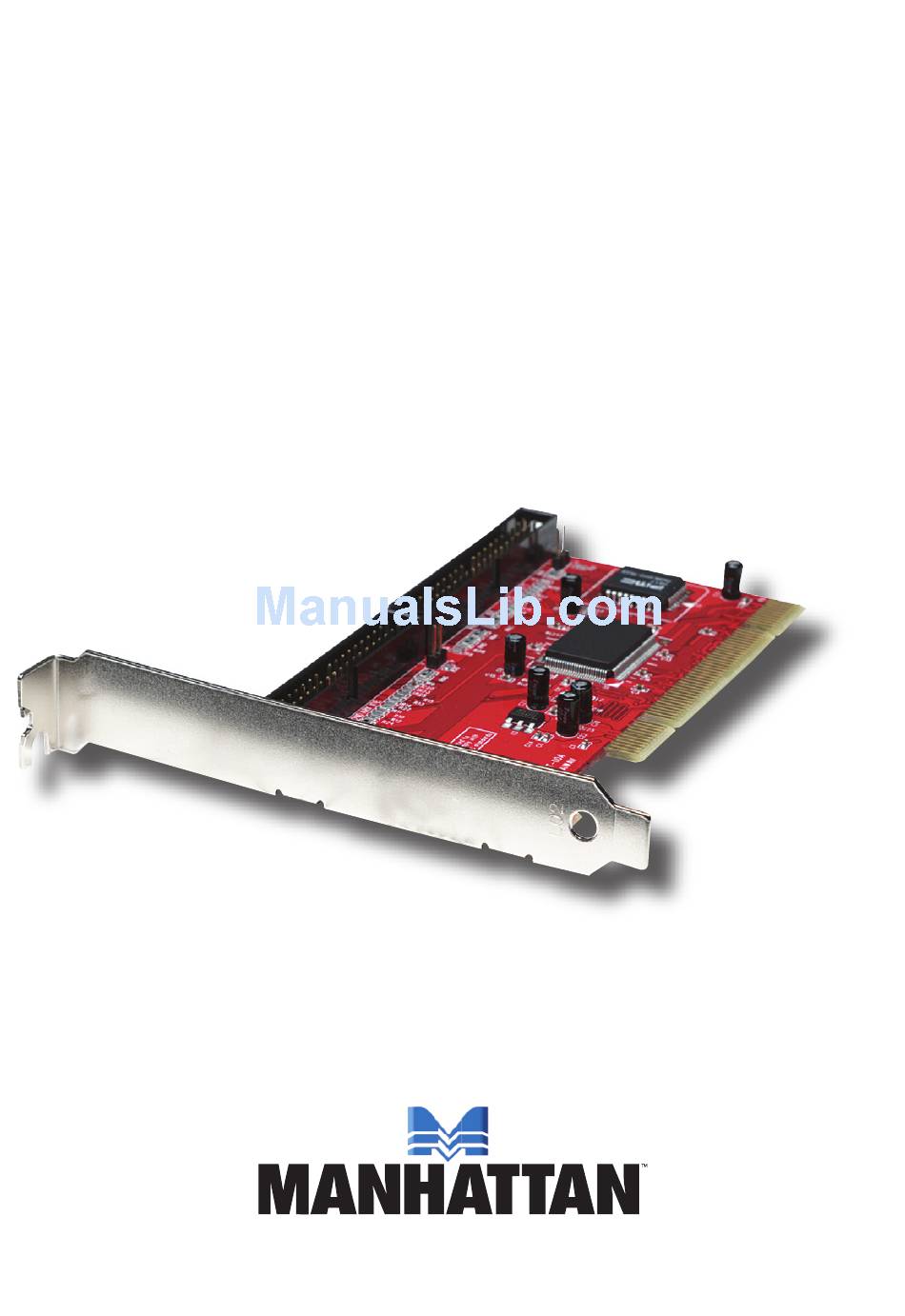

- Page 1 Ultra ata/133 Controller PCI Card User manUal Model 158039 MAN-158039-UM-0508-02...
-
Page 2: System Requirements
Thank you for purchasing this MANHATTAN Ultra ATA/133 Controller ® PCI Card, Model 158039. Compatible with IDE and ATAPI drives — including CD, DVD and HDD — its two channels supports up to four devices with full-speed burst transfers, and it supports data transfer rates of up to 133 MBps and drives above 137... -
Page 3: Hardware Installation
hardware InstallatIon 1. Turn off your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCI slot. 4. To install the card, carefully align the card’s bus connector with the selected PCI slot on the motherboard. - Page 4 the instructions in Verifying Controller Installation to confirm that the controller has been installed correctly. With Initial Installation of Windows Vista 1. Insert your Windows Vista DVD into the DVD-ROM drive and insert the Ultra ATA/133 Controller PCI Card driver CD in the CD_ROM drive. 2.
- Page 5 continue installing the driver. 6. The wizard will now copy the required files to the system and start the driver. After starting the driver, the wizard will display a completion message. Click “Finish” to exit the wizard. 7. Follow the instructions in Verifying Controller Installation to confirm that the controller has been installed correctly.
- Page 6 Updating the Driver on Windows XP 1. Right-click on My Computer and go to Properties. In System Properties, go to Hardware, then Device Manager. Select “SCSI and RAID Controllers”; then right-click “ITE ATA/133 Controller” and go to Properties (on the context menu). 2.
-
Page 7: Specifications
Verifying Controller Installation for Windows 2000/XP 1. Right-click on My Computer and go to Properties, then Hardware, then Device Manager. 2. Double-click “SCSI and RAID Controllers.” If no yellow exclamation point (!) or question mark (?) appears to the left of “ITE ATA/133 Controller,”... - Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
