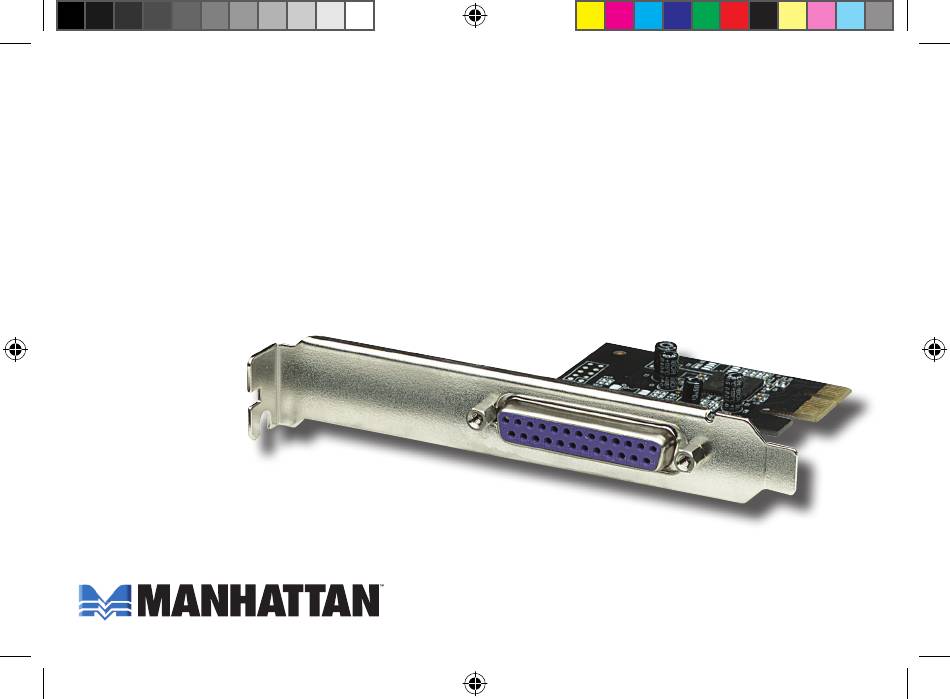

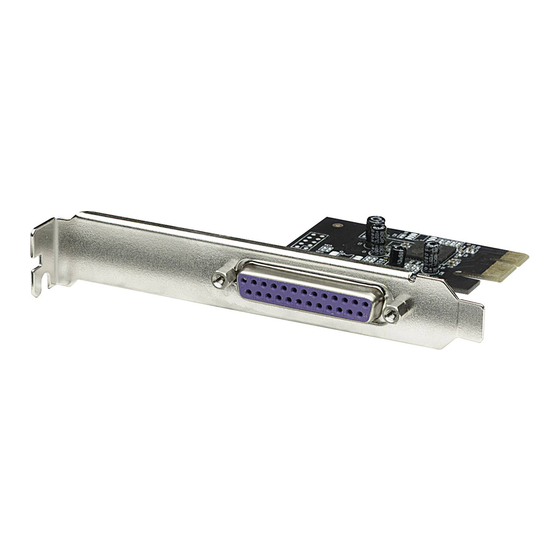

- Page 1 Parallel PCI exPress Card User MaNUal MODEL 158176 MAN-158176-UM-0109-02 158176_02_manual.indd 1 2/10/09 1:58:45 PM...
- Page 2 Thank you for purchasing the MANHATTAN Parallel PCI Express Card, Model 158176. ® Compliant with PCI Express 1.0a specifications, this card can be configured to achieve data transfer rates of up to 2.5 Mbps in order to take advantage of PCI Express data transfer speeds of up to 2.5 Gbps.
- Page 3 hardware INstallatIoN 1. Turn off the power to the computer system. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCIe slot. 4. Carefully align the card’s bus connector with the selected PCIe slot on the motherboard. Push the board down firmly.
- Page 4 For Windows 2000 1. On the initial Found New Hardware Wizard screen, click "Next." 2. When the Install Hardware Device Drivers screen displays, select "Search for a suitable driver for my device (recommended)," and click "Next." 3. Select "CD-RM drives," de-select the other options, then click "Next." 4.
- Page 5 3. When the Add New Hardware Wizard screen displays the prompt "Would you like to install this device software?" click "Install" to continue the setup. 4. Click "Close" to complete the installation. Verifying Windows Driver Installation 1. In the Control Panel, go to System Properties. 2.
- Page 6 sPeCIfICatIoNs Standards and Certifications • PCI Express 1.1 • PCI Power Management 1.2 • CE • FCC Ports • (1) DB25 male port • Data transfer rate: up to 2.5 Mbps • Oxford serial chipset • Single 3.3 V operation •...
- Page 7 Physical • Dimensions (with regular bracket): 12 x 6.8 x 2 cm (4.7 x 2.6 x 0.8 in.) • Weight (with regular bracket): 42.5 g (1.5 oz.) System Requirements • Windows 2000/XP/Server 2003/Vista • PCI Express-enabled system with an available PCI Express slot •...
- Page 8 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners. 158176_02_manual.indd 8 2/10/09 1:58:50 PM...
