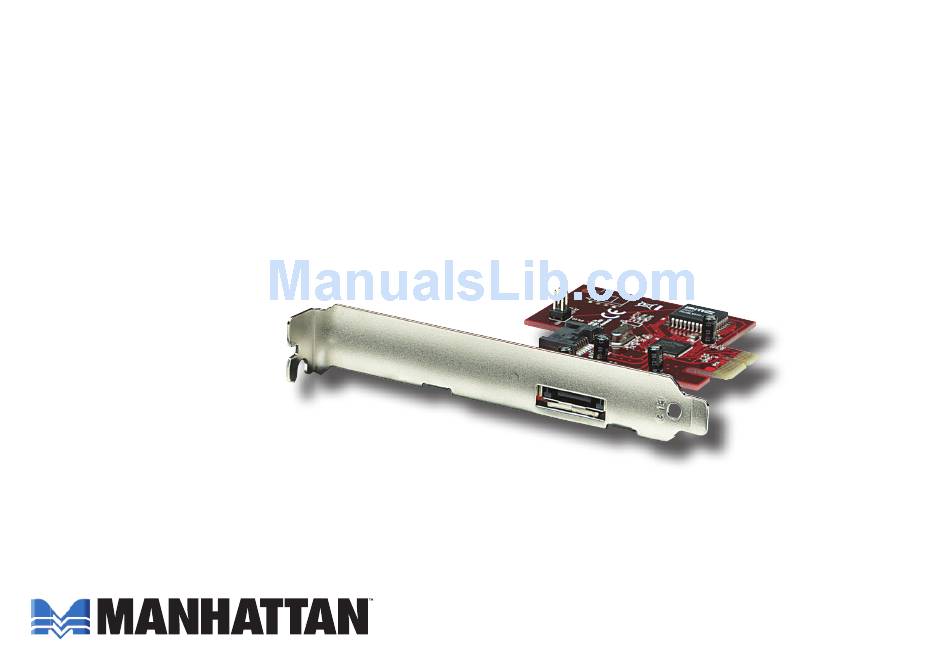

- Page 1 SATA 300 PCI ExPrESS CArd USEr MANUAL MODEL 150040 MAN-150040-UM-1106-03...

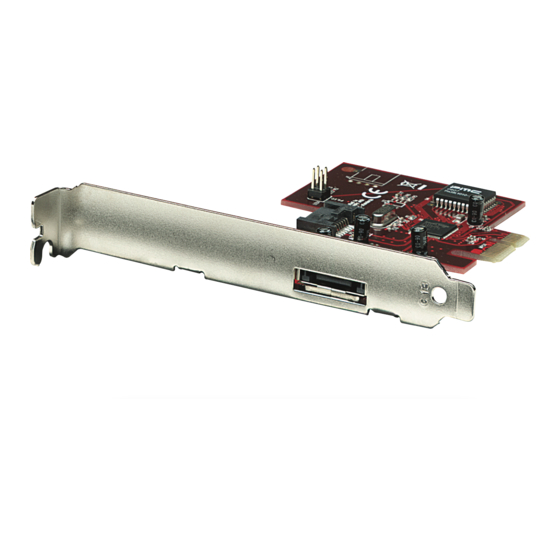

- Page 2 Thank you for purchasing the MANHATTAN SATA 300 PCI Express Card, Model 150040. ® With the following features, this card allows you to easily upgrade desktop computers with two SATA 300 channels to access external and internal SATA and eSATA storage devices.
-
Page 3: Software Installation
SofTwArE INSTALLATIoN Windows 2000, XP, Server 2003 Fresh Installation Follow the instructions in this section if you’re performing a new installation of Windows 2000, XP or Server 2003 and you wish to boot from a device attached to the SATA port. NOTE: With Windows 2000, you must first edit the txtsetup.oem file on the driver installation disk and delete the line from the [Config.Si3132] section that reads: value=Parameters\PnpInterface, "5", REG_DWORD, 1... - Page 4 7 . Once the operating system installation is completed, you can follow the Verifying Installation instructions to confirm that the controller was installed correctly. Windows Vista Fresh Installation Follow the instructions in this section if you are performing a new installation of Windows Vista and you wish to boot from a device attached to the SATA port.
- Page 5 9. The drive installed in Step 1 should be displayed. Click "Drive options (advanced)." 10. Ensure that the unallocated space of the drive installed in Step 1 is highlighted, then click "New." From the size box that appears, specify the size of the partition to be created to contain the Vista OS installation, then click "Apply."...
- Page 6 6. Specify a location: Example — E:\SATA Express_2Port\Sil3132\WinXP_2000_2003. Click “Open,” then “OK.” 7 . When the wizard indicates that it found a driver for the device, click "Next." 8. If the "Hardware Installation" prompt appears, click "Continue Anyway." 9. The wizard will now copy the required files to the system and start the driver. After starting the driver, the wizard will display a completion prompt.
- Page 7 Image Sil 3132 SATALink Controller" should display under the "Device" and "Driver" tab. 2. To view information about the devices attached to the controller, use the SilCfg utility and click on the device from the list. Updating a New Driver For Windows 2000, XP or Server 2003 1.
- Page 8 4. Select the "Drivers" tab and click "Add." 5. Click "Have Disk." 6. Insert the driver CD in your CD-ROM/DVD drive and press "Enter." 7 . Specify a location: Example — E:\SATA Express_2Port\Sil3132\, then select the folder for Vista. Click "OK." 8.
-
Page 9: Specifications
SPECIfICATIoNS Standards and Certifications • FCC • CE • SATA 1.0 Ports • 1 SATA (internal) L-type • 1 E-SATA (extermal) I-type • Transfer rate: 3.0 Gbps General • Supports 2 independent SATA channels • 48-bit LBA for support of HDD larger than 137 GB •... -
Page 10: System Requirements
• Supports non-zero offsets NCQ • Supports out-of-order data delivery NCQ • Supports FIS-based switching with port multipliers • 31 commands and scatter/gather tables per port System Requirements • Windows 2000/XP/2003/Vista • Available PCI Express Card slot • CD-ROM drive Package Contents •... - Page 12 PC Components, Peripherals, Cables ® and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
