Summary of Contents for Manhattan 158251

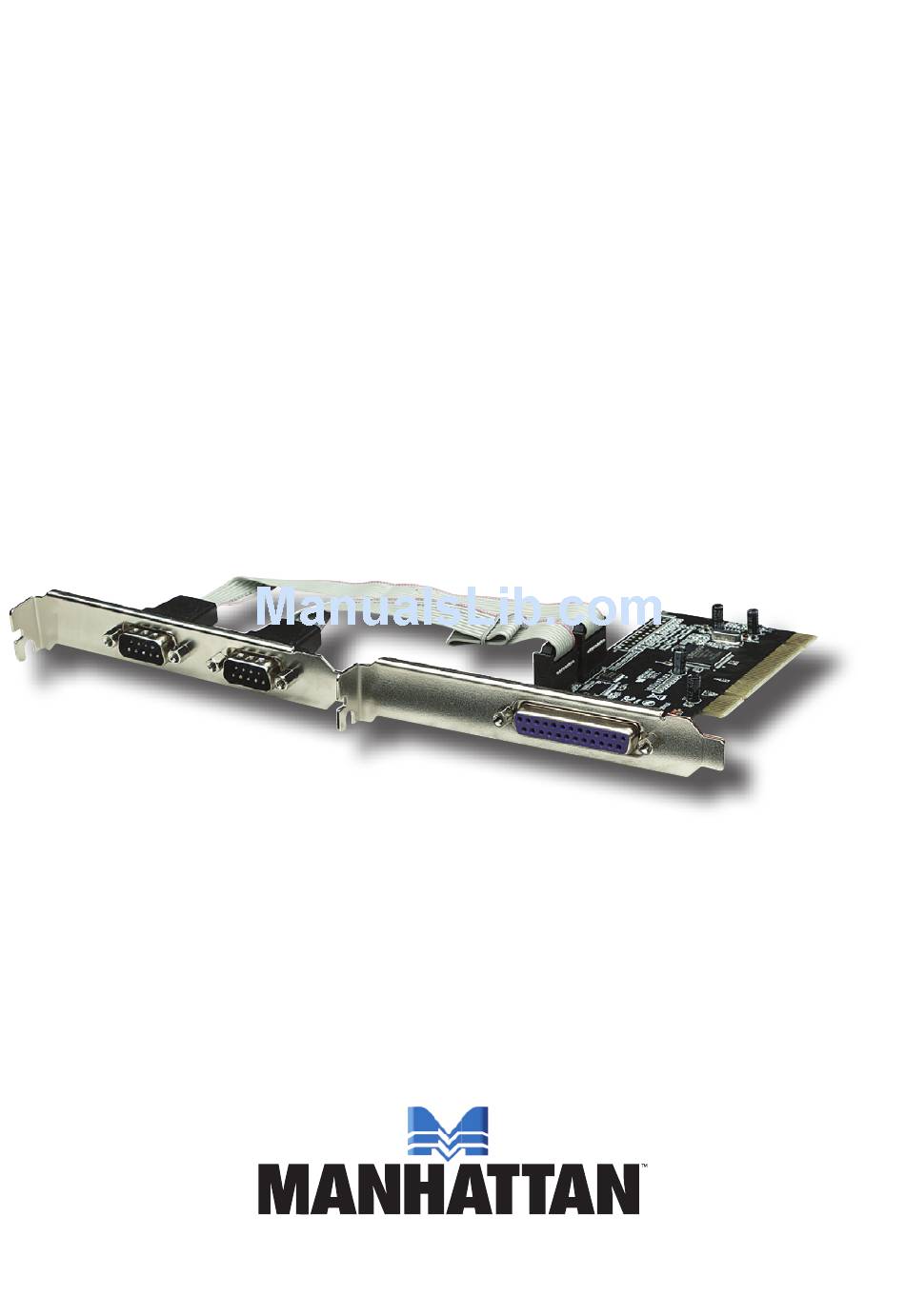

- Page 1 Serial/ Parallel Combo PCi Card uSer manual Model 158251 MAN-158251-UM-0409-02...

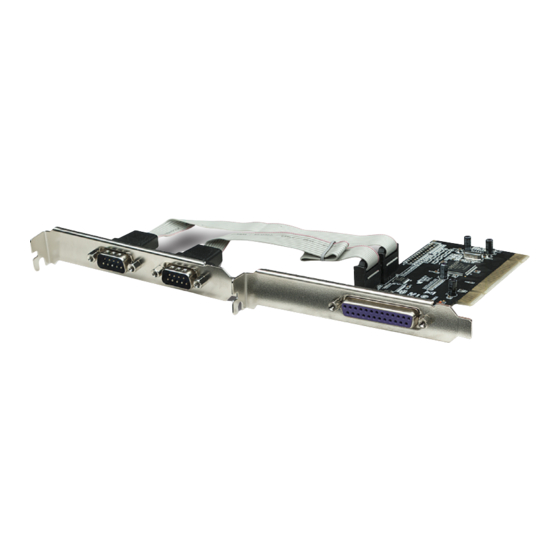

- Page 3 Thank you for purchasing this MANHATTAN Serial/Parallel Combo ® PCI Card, Model 158251. Compatible with most RS-232 peripherals, this card with two external serial DB9 ports is an ideal solution for attaching two serial devices — modems, barcode scanners, printers and more — and a parallel DB25 port through a single PCI card and two open rear expansion slots.
-
Page 4: Driver Installation
driver inStallation IMPORTANT: Make sure that you’ve completed the driver installation before proceeding with the hardware installation. Windows 2000 / XP / Server 2003 1. Insert the included driver CD in the PC’s CD-ROM drive. 2. On the desktop, click “Start,” then click “Run.” 3. -
Page 5: Hardware Installation
Windows Vista-x64 1. Insert the included driver CD in the PC’s CD-ROM drive. 2. Enter “D:\PCI_IO\MCS9865\Vista64\PCISetup.exe,” then click “OK.” 3. Click “Install” to install the drivers. 4. Click “Exit” to complete the driver installation. 5. Shut down the PC. 6. Place the PCI card into PCI slot (see Hardware Installation below), then power on the system. -
Page 6: Specifications
SPeCifiCationS Standards and Certifications • CE • FCC • RS-232c • PCI 2.3 • WEEE General • 2 serial DB9 male connections; maximum 115.2 kbps throughput on each port (256 byte FIFO) • 1 parallel DB25 female connection; maximum 1.5 MBps throughput (256 byte FIFO) •... - Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
