Manhattan 158213 User Manual

Manhattan 158213 User Manual

Serial pci card

Advertisement

Serial
PCi Card
uSer
manual
Model 158213
MAN-158213-UM-0409-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 158213 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan 158213

  • Page 1 Serial PCi Card uSer manual Model 158213 MAN-158213-UM-0409-02...

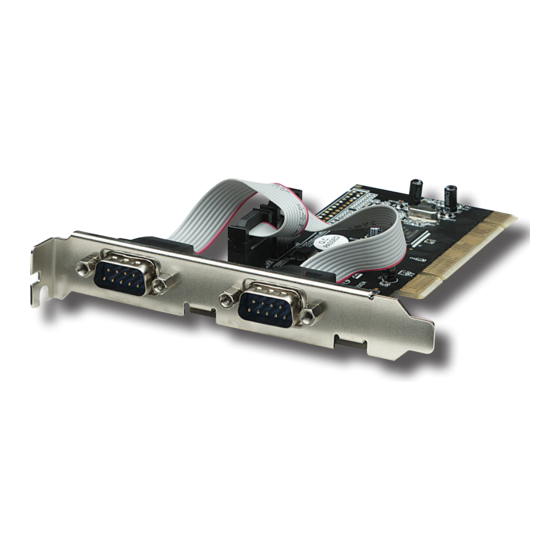

  • Page 3 Serial PCI Card, Model ® 158213. Compatible with most RS-232 peripherals, the MANHATTAN Serial PCI Card with two external DB9 ports is an ideal solution for attaching a serial device — modems, barcode scanners, printers and more — through a single PCI card. Its high-speed 16C550/16C450 UART serial...
  • Page 4: Driver Installation

    driver inStallation IMPORTANT: Make sure that you’ve completed the driver installation before proceeding with the hardware installation. Windows 2000 / XP / Server 2003 1. Insert the included driver CD in the PC’s CD-ROM drive. 2. On the desktop, click “Start,” then click “Run.” 3.
  • Page 5: Hardware Installation

    Windows Vista-x64 1. Insert the included driver CD in the PC’s CD-ROM drive. 2. Enter “D:\PCI_IO\MCS9865\Vista64\PCISetup.exe,” then click “OK.” 3. Click “Install” to install the drivers. 4. Click “Exit” to complete the driver installation. 5. Shut down the PC. 6. Place the PCI card into PCI slot (see Hardware Installation below), then power on the system.
  • Page 6: Specifications

    SPeCifiCationS Standards and Certifications • CE • FCC • RS-232c • PCI 2.3 General • 2 serial DB9 male connections • Maximum 115.2 kbps throughput • MosChip 9865 chipset • Requires available punch-out expansion and PCI slots • Windows 2000/XP/Server 2003/Vista 32/64-bit compatible •...
  • Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
