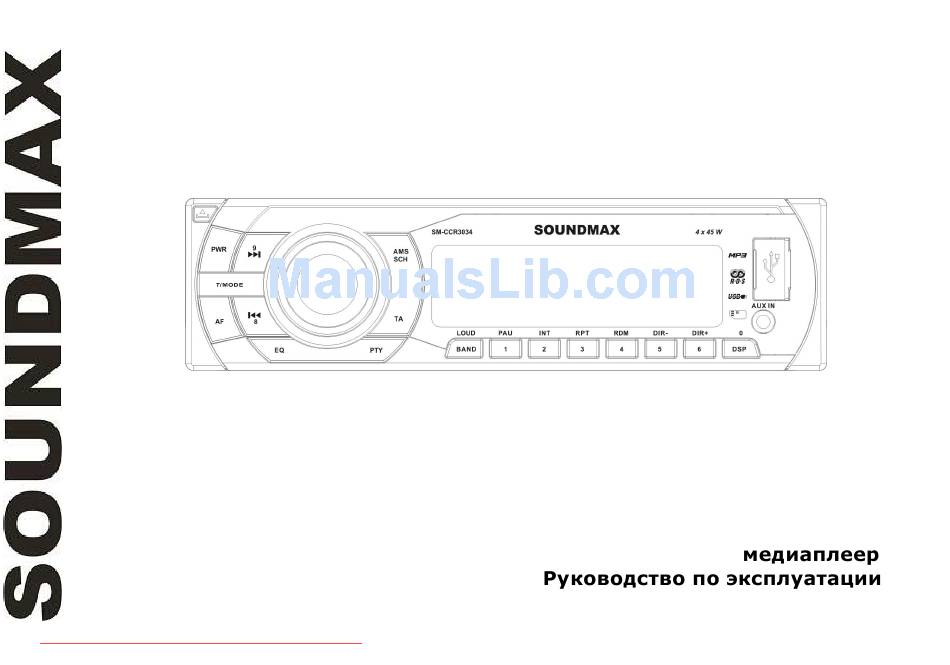

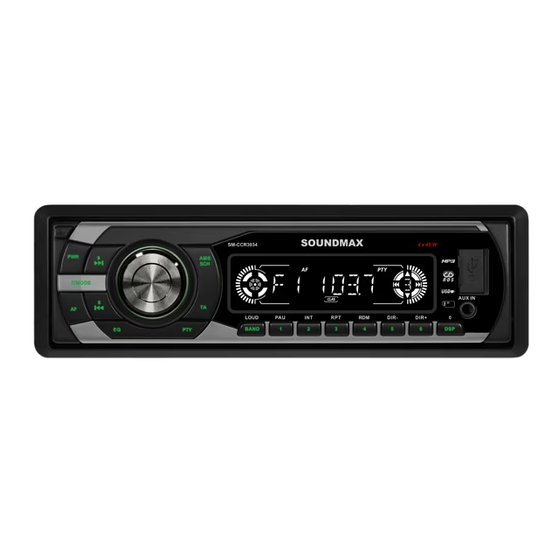

- Page 1 SM-CCR3034 USB/SD media player USB/SD- Instruction manual Downloaded from Caradio-Manual.com Manuals...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS............................. -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage. -
Page 4: Accessories
Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc Connector 2 pcs Mounting parts: Hexagon nut 1 pc Mounting sleeve 1 pc Release keys 2 pcs Metal bar 1 pc Outer trim frame 1 pc Plain washer 1 pc Spring washer 1 pc... -
Page 5: Installation/Connection
Installation/Connection General notes Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Page 6 Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.
- Page 7 Installing the front panel Insert the right side of the panel then, and insert the left side. Lift the upper part of the panel and press it until a click to close the panel. Press OPEN button to detach the panel. When the front panel is flipped-down, lift it to a little angle from horizontal position, then push the panel leftwards to release the right part.
- Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. It is prohibited making the conductors of auto antenna and ground touch with each other. Downloaded from Caradio-Manual.com Manuals...
- Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.
-
Page 10: Control Elements
Control elements Front panel 1. OPEN button 2. PWR button 3. 9/NEXT button 4. 7/MODE button 5. SELECT button/ VOLUME regulator 6. AMS/SCH button 7. TA button 8. Display 9. AF button 10. 8/PREVIOUS button 11. EQ button 12. PTY button 13. -
Page 11: Lcd Layout
Inner panel Press OPEN button on the front panel to detach it. 1. RESET button (hole) 2. SD card slot Pressing RESET hole will erase the clock setting and stored stations. LCD layout 1. Playback indicator 2. Not active 3. USB playback indicator 4. -
Page 12: General Operations
General operations Power button Press PWR button on the panel to switch the unit on. Press this button to switch the unit off. Volume control Rotate VOLUME regulator to adjust volume level. Audio settings adjustment Press SELECT button shortly and repeatedly to select an option: BAS (bass) => TRE (treble) => BAL (balance) =>... - Page 13 Loudness control Press and hold LOUD/BAND button until LOUD ON is displayed. LOUD function is to emphasize the bass output. Press and hold this button again to switch loudness off. Equalizer setting Press repeatedly EQ button to choose between sound effects: FLAT => POP => ROCK => CLASSICS => EQ OFF. Information display Press DSP button repeatedly to display various information on the screen in following consequence: In case of receiving a RDS station...
-
Page 14: Radio Operations
Radio operations Band selection Press repeatedly LOUD/BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). Each band can store up to 6 preset stations, for the total of 36 preset memory stations. - Page 15 Local radio station Press repeatedly SELECT button until the display shows LOC ON (OFF). Rotate VOLUME regulator to select between LOC ON or OFF. LOC ON means that only local stations are received; LOC OFF means that both local and distant stations with weak and strong signal are received. Radio Data System RDS (Radio Data System) service availability varies with areas.
- Page 16 previous mode and volume level. To interrupt traffic announcement press TA button shortly; it will not switch off the TA mode. PTY (Program Type) This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.
-
Page 17: Usb/Sd Operations
USB/SD operations SD card slot Detach the front panel. Carefully insert the SD card into the card slot on the inner panel. Attach the panel. Unit starts playback automatically. To disconnect the memory card, press it until a click, and then carefully pull it out from the slot. - Page 18 Repeat playback When RPT/3 button is pressed, playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT/3 button again. Random When RDM/4 button is pressed, each track on the storage is played in random instead of normal order. To cancel Random mode, press RDM/4 button again.
-
Page 19: Troubleshooting Guide
Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution... -
Page 20: Specification
Specification General Power supply 12 V DC Current consumption <10 A Maximum power output 4 x 45 W Dimensions/Net weight 188 x 59 x 134 mm/0.53 kg FM stereo radio Frequency range 65 – 74 MHz / 87.5 - 108.0 MHz I.F. - Page 21 ................................21 ..........................22 ............................23 ..........................24 ............................29 ..........................30 ..............................31 ............................... 33 USB/ SD......................36 ................. 38 ........................39 Downloaded from Caradio-Manual.com Manuals...
- Page 22 Downloaded from Caradio-Manual.com Manuals...
- Page 23 Downloaded from Caradio-Manual.com Manuals...
- Page 24 « » ( Downloaded from Caradio-Manual.com Manuals...
- Page 25 « » ( – – – Downloaded from Caradio-Manual.com Manuals...
- Page 26 OPEN, Downloaded from Caradio-Manual.com Manuals...
- Page 27 Downloaded from Caradio-Manual.com Manuals...
- Page 28 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)--- Downloaded from Caradio-Manual.com Manuals...
- Page 29 OPEN 9/NEXT 7/MODE SELECT/ VOLUME AMS/SCH 8/PREVIOUS LOUD/BAND 1/PAU 2/INT 3/RPT 4/RDM 5/DIR- 6/DIR+ 0/DSP 22. USB- Downloaded from Caradio-Manual.com Manuals...
- Page 30 OPEN, ) RESET RESET Rock Classic Downloaded from Caradio-Manual.com Manuals...
- Page 31 VOLUME, SELECT : BAS ( ) => TRB ) => BAL ( ) => FAD ( ) => TAVOL => REG ON/OFF => LOC ON/OFF => STEREO/MONO => VOL VOLUME, SEL, DSP OFF (DSP ON). VOL+/VOL- : POP M => ROCK M => CLASSICS => FLAT => DSP OFF ( MODE, =>...
- Page 32 ERR (« »). PREVIOUS NEXT, PREVIOUS NEXT, DSP, SEL, LOUD ON (OFF). VOL+/VOL- LOUD ON OFF ( RDS- => => PTY => PS USB/SD: => => => PTY (“NO PTY” PTY) => PS => => ‘NO PTY’ USB/SD: => => =>...
- Page 33 LOUD/BAND, : FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). PREVIOUS NEXT; PREVIOUS NEXT. PREVIOUS NEXT MANUAL. PREVIOUS/NEXT AMS/SCH; AMS/SCH, SELECT STEREO (MONO). VOLUME, (STEREO) (MONO). Downloaded from Caradio-Manual.com Manuals...
- Page 34 SELECT LOC ON (OFF). VOLUME, LOC ON ( LOC OFF ( RDS ( AF ( RDS. REGION SELECT REG ON (OFF). VOLUME REG ON or OFF. REG ON ( , PI- REG OFF ( ): PI- Downloaded from Caradio-Manual.com Manuals...
- Page 35 TA ( PTY ( RDS, PTY, 1-6, 1-6, Downloaded from Caradio-Manual.com Manuals...
- Page 36 USB/ USB- USB- USB/SD USB: USB 2.0. . SD: FAT32. USB- ID3- MP3- . ID3- NEXT PREVIOUS, PAUSE/1, Downloaded from Caradio-Manual.com Manuals...
- Page 37 INT/2, RPT/3, RDM/4, DIR-/5 DIR+/6 AMS/SCH ***. (0~9) SELECT Downloaded from Caradio-Manual.com Manuals...
- Page 38 “ ”. Downloaded from Caradio-Manual.com Manuals...
- Page 39 188 x 59 x 134 /0,53 65 – 74 / 87,5 – 108,0 10,7 522 – 1620 USB/SD – 18 >55 RCA (2 2010 – 2019) (2011) R31982101-01792 Downloaded from Caradio-Manual.com Manuals...
