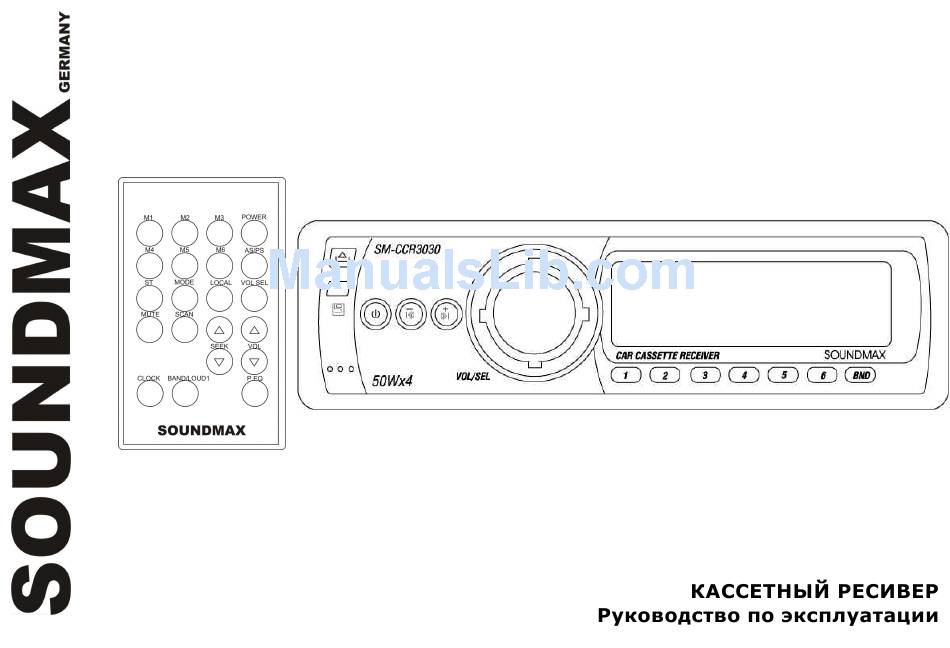

- Page 1 SM-CCR3030 CASSETTE RECEIVER Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ....................................2 Important safeguards ...................................3 Installation/ Connections ..................................4 Panel controls ......................................7... -
Page 3: Important Safeguards
Important safeguards - Read carefully through this manual to familiarize yourself with this high-quality sound system. - Use only in a 12-volt DC negative-ground electrical system. - Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. - When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/ Connections
Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. -
Page 5: Detaching The Front Panel
Detaching the front panel 1. Press the OPEN button on the front panel. The panel will go down (pic. 1). 2. Push the panel to the right and then pull it towards you (pic. Pic. 2 Pic. 1 Attaching the control panel 1. -
Page 6: Speaker Connection
Speaker connection R (Red) L (White) R (Red) L (White) Notes: - In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. - Prohibit to make the conductors of auto antenna and ground touch with each other. -
Page 7: Panel Controls
Panel controls Front panel 1. OPEN BUTTON Press it to flip down the front panel to insert or eject the cassette. 2. VOL knob/ SEL button Rotate VOL knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. Press the VOL/SEL button shortly to show the time on display. - Page 8 4. POWER BUTTON Press the POWER or any other button to turn the power on. Press the POWER button to turn the power off. 5. << -/ >> + BUTTONS Tune down/ up / Track down/ up buttons. 6. PRESET STATION [1-6] BUTTONS 7.
-
Page 9: Remote Control
Remote control 1. Digit area 2. ST button 3. MODE button 4. MUTE button 5. SCAN button 6. CLOCK button 7. BAND LOUD button 8. POWER button 9. AS/PS button 10. LOCAL button 11. VOL SEL button 12. SEEK +/- buttons: use these buttons to enter the manual tuning mode/ seek tuning mode. -
Page 10: Function Of Controls
Function of controls General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button and remove the panel, then press the RESET button to restore the unit to the original factory settings. -
Page 11: Radio Operations
Radio operations Band select Press the BND/ MODE button on the front panel or BAND LOUD button or RC repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2. Auto/ Manual tuning - Automatic tuning: Press the << -/ >> + buttons or SEEK buttons on the RC shortly, the automatic search will start. -
Page 12: Cleaning
Cassette operations Loading a cassette Turn the power on. Press the OPEN button on the panel. Insert the cassette with the exposed tape side facing right into the slot. The playback will start automatically. Play direction reverse Press both the REWIND and FAST FORWARD buttons on the back of the front panel at the same time to reverse the play direction of the tape while it is still playing. -
Page 13: Troubleshooting Guide
Troubleshooting guide No power or no Car's engine switch is not on. Turn your car's key to ACC or ON. sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. If above solutions cannot help, press the RESET button. -
Page 14: Specification
Specification General. Power supply: 12 V DC (12 V - 15 V), negative ground Maximum power output: 50 Wx4 channels Fuse: 15 A Suitable speaker impedance: 4 - 8 ohm Output wiring: 4 speakers only RCA line out: RCA low-level outputs 500 mV Dimensions (W x H x D)/Weight: 192 x 178 x 50 mm/ 1.75 kg... - Page 15 ..........................15 ......................16 ......................17 ........................20 .......................23 ..........................26 .................27 .......................28...
- Page 16 12 .
- Page 17 0,75 (AWG18),...
- Page 18 OPEN . 1). . 2). .3). . 4).
- Page 20 OPEN. EJECT VOL/SEL, << - , >> + , VOL/SEL,...
- Page 21 POWER POWER POWER << -/ >> + (1-6) BND/ MODE : Cassette ( ) => Radio ( ) => CD changer (CD EJECT RESET...
- Page 22 MODE. MUTE. SCAN CLOCK BAND LOUD: RADIO. POWER. AS/PS LOCAL SEL - VOL+/-. P.EQ (CR 2025 3V),...
- Page 23 RESET ( OPEN. RESET, POWER VOL/SEL CLOCK << >> + , VOL/SEL CLOCK, BND/ MODE MODE : Cassette ( ) => Radio ( ) => CDC ( VOL+/- : VOLUME ( ) => BASS ( ) => TRE LE ( ) =>...
- Page 24 : POP, CLASSIC, ROCK, FLAT, BND/ MODE BAND LOUD : FM1, FM2, FM3, AM1, AM2. << - >> + << - >> + MANUAL. << -/ >> + << -/ >> + 1~6, 1~6.
- Page 25 · AS/PS AS/PS. 1-6. · AS/PS 1~6. AS/PS. SCAN OPEN, EJECT...
- Page 26 20-30...
- Page 27 30 ,...
- Page 28 12 , RCA: / 1,75 87,5 108,0 = 60 522-1620 / 20 4,75 -60) - 12 /Cross talk > 40 / > 45 < 0.35 % WRMS...
