SoundMax SM-CCR3050F Instruction Manual

Usb/sd media player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CCR3050F
USB/SD media player
USB/SD-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CCR3050F and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-CCR3050F

Summary of Contents for SoundMax SM-CCR3050F

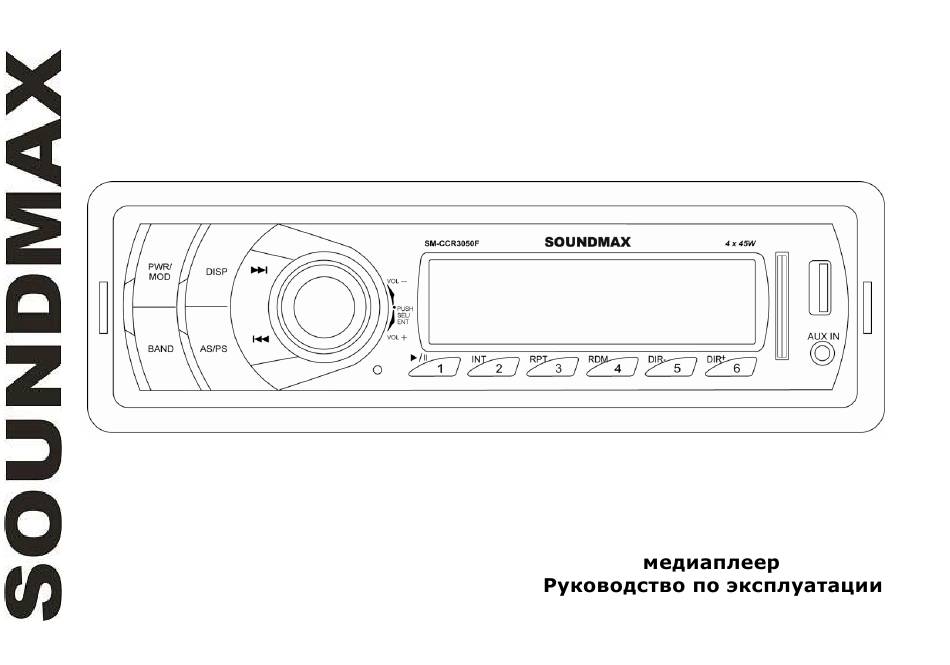

  • Page 1 SM-CCR3050F USB/SD media player USB/SD- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ..............................2 IMPORTANT SAFEGUARDS ............................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Mounting parts: Hexagon nut 1 pc Mounting sleeve 1 pc Release keys 2 pcs Metal bar 1 pc Plain washer 1 pc Spring washer 1 pc Self-tapping screw 1 pc Screw 4 pc ISO-connector 2 pcs Consumer information 1 pc Warranty card...

  • Page 5: Installation/Connection

    Installation/Connection General notes Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 4. Make the necessary wire connections. Ensure the connections are correct. 5. Install the unit into the sleeve until the side locks are fixed. Dismantling the unit 1. Make sure the ignition is turned off, then disconnect the cable from the -) terminal.
  • Page 7 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. It is prohibited making the conductors of auto antenna and ground touch with each other.
  • Page 8 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the table below for speaker and power cable connections.

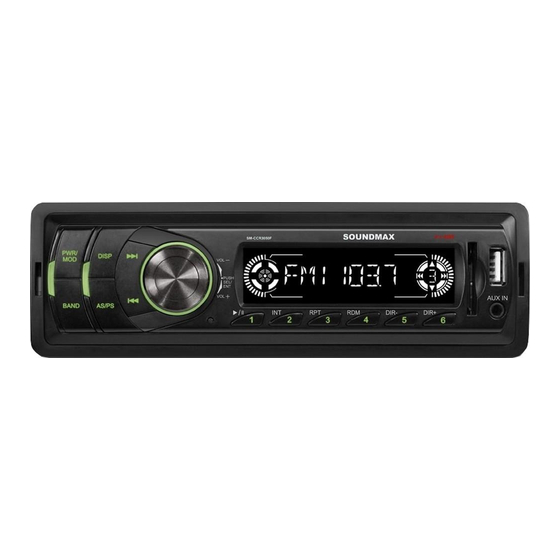

  • Page 9: Control Elements

    Control elements Front panel 1. PWR/MOD button 2. DISP button button 4. SEL/ENT/VOL regulator 5. LCD display 6. SD card slot 7. USB port 8. AUX IN jack 9. 6 DIR+ button 10. 5 DIR- button 11. 4 RDM button 12.

  • Page 10: General Operations

    General operations Turning the unit on/off Press the PWR button to turn the unit on. Press and hold the button again to turn the unit off. Reset the unit When first using the device or after replacing the car battery, you must reset the unit. Press the RESET button (hole) with a pointed object (such as a ballpoint pen) to set the unit to its initial state.
  • Page 11 When equalizer is in any mode except OFF, bass and treble are not adjustable. Loudness Activating this feature will enhance bass and treble frequencies when listening to music at low volumes. AUX input AUX-in jack is intended for connecting an external audio equipment to amplify the sound. If connection is made correctly, the audio signal from the external source will be transmitted through the acoustics of the head unit.

  • Page 12: Radio Operations

    Radio operations Band select In Radio mode press the BAND button to select a radio band: FM1 => FM2 => FM3. Manual/automatic tuning button. AUTO will be displayed on the screen. The radio will automatically search for the next frequency with a strong and clear signal. button, the unit will go to manual tuning mode, MANUAL will be displayed.

  • Page 13: Usb/Sd Operations

    USB/SD operations SD card slot Carefully insert the SD card into the card slot on the front panel. Unit starts playback automatically. To disconnect the memory card, press it until a click, and then carefully pull it out from the slot. USB port Carefully connect a USB driver to the USB jack on the front panel.
  • Page 14 Random When 4 RDM button is pressed, each track on the storage is played in random instead of normal order. RDM indicator will be displayed. To cancel Random mode, press 4 RDM button again. Folder selection Press 5 DIR- button to select previous folder. Press 6 DIR+ button to select next folder. Track selection by number Press AS/PS to go to track search mode.

  • Page 15: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 16: Specification

    Specification General Maximum power output 4 x 45 W Required speaker impedance 4 Ohm Fuse Unit dimensions 178 x 50 x 97 mm Net weight 0.36 kg FM stereo radio Frequency range 87.5 - 108.0 MHz Preset stations Stereo separation >25 dB Player Supported storages...
  • Page 17 ..................................17 ............................18 ..............................19 ............................20 ............................. 24 ................................. 25 ..............................26 SD ......................28 ..................30 ..........................31...
  • Page 19 3. ISO-...
  • Page 23 (+)/--- (-)/--- (+)/--- (-)--- (+)--- (-)--- (+)--- (-)---...
  • Page 24 PWR/MOD DISP SEL/ENT/VOL 7. USB- AUX IN 6 DIR+ 5 DIR- 4 RDM 3 RPT 2 INT 1 PLAY/PAUSE RESET AS/PS BAND...
  • Page 25 PWR, ) RESET RESET PWR, , AUX, USB SEL/ENT/VOL. SELECT : BAS (bass - ) => TRE (treble - ) => BAL (balance - ) => FAD (fader - ) => LOUD ( ) => EQ ( ) =>...
  • Page 26 DX(distance- )/LOC(local- ) => STEREO => VOL(volume- SEL/ENT/VOL, -10 ( +10 ( -10 ( +10 ( POP/CLASS/ROCK OFF ( MP3- BAND, : FM1 => FM2 => FM3.
  • Page 27 AUTO. MANUAL. AS/PS 1-6.
  • Page 28 USB/ USB- . SD FAT/FAT32. USB- 1 PLAY/PAUSE INT.
  • Page 29 RPT. RDM. 5 DIR- 6 DIR+ AS/PS TRKSCH ***. (0~9), VOLUME, SELECT...
  • Page 31 178 x 50 x 97 0,36 87,5 >25 USB/SD SM-CCR3050F_IM_01...
