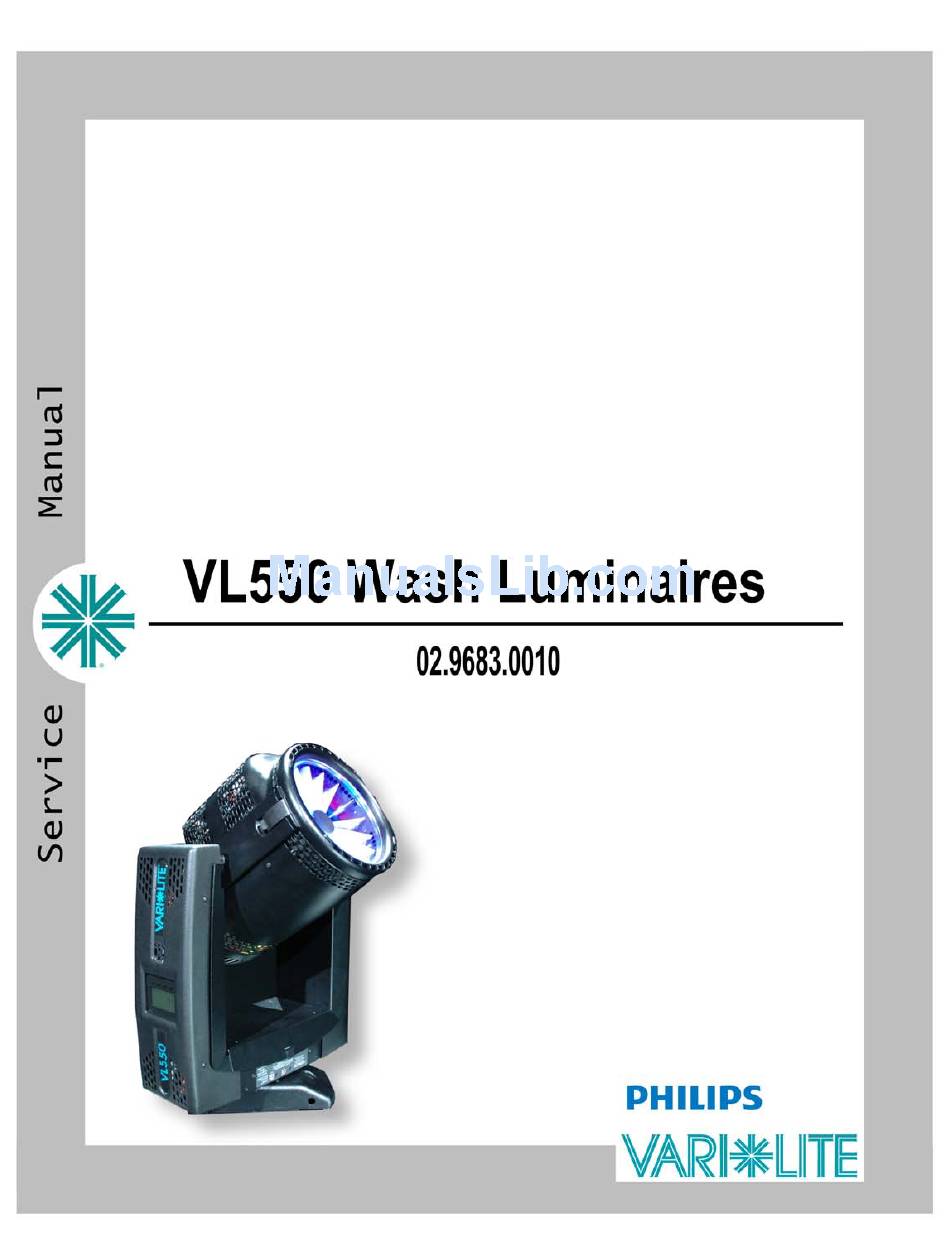

Vari Lite VL550 Service Manual

Wash luminaires
Hide thumbs Also See for VL550:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL550 and is the answer not in the manual?

Questions and answers

Related Manuals for Vari Lite VL550

Summary of Contents for Vari Lite VL550

  • Page 2 ©2003 - 2011, Vari-Lite, a Philips group company. All Rights Reserved. Note: VL550 wash luminaires share many components / parts of the VL500 wash luminaires. This manual (02.9683.0010 0) covers maintenance procedures, information, and drawings specific to VL550 wash luminaires only. Please refer to the current service manual (02.9685.0010) for maintenance procedures, information, and drawings for VL500 wash...
  • Page 3 BTAIN ARRANTY ERVICE How To Obtain Warranty Service A copy of the Vari-Lite Limited Warranty was included in the shipping package for this VARI❋LITE product. To obtain warranty service, please contact customer service at 1.214.647.7880 or 1.877.VARI-LITE (1.877.827.4548) or entertainment.service@philips.com request a Return Material Authorization (RMA) for warranty service.
  • Page 4 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.

  • Page 5: Safety Notice

    AFETY OTICE Safety Notice It is extremely important to read ALL safety information and instructions provided in this manual and any accompanying documentation before installing and operating the products described herein. Heed all cautions and warnings during installation and use of this product.
  • Page 6 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI❋LITE luminaires use an HID type lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 ICHERHEITSHINWEISE Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein. Folgende Sicherheitssymbole werden in diesem Handbuch verwendet: VORSICHT - weist auf möglichen Produktschaden hin.
  • Page 8 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z. B. Sprünge oder Schrammen) eingeschränkt ist. WARNUNG: HINWEISE ZUM SCHUTZ GEGEN KÖRPERVERLETZUNGEN 1.
  • Page 9 OTES DE SÉCURITÉ Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
  • Page 10 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL 2. L’utilisation des luminaires sans lentille ou blindage pose des risques. Tous blindages, lentilles ou écrans ultraviolet visiblement endommagés au point que leur efficacité en est affectée doivent être remplacés, par exemple s’il y a des fissures ou de profondes rayures.
  • Page 11 VISO SOBRE EGURIDAD Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto.
  • Page 12 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL 2. Es peligroso operar luminarias sin lentes o protectores. Debe cambiar los protectores, lentes o pantallas ultravioletas si se aprecia que han sido dañadas, y que su efectividad pudiera estar deteriorada. Por ejemplo, si tuvieran rajaduras o raspaduras profundas.
  • Page 13 AFETY OTICE APANESE 02.96 83.001 0 0 2 5 Marc h 2 011 xiii...
  • Page 14 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 15: Table Of Contents

    Dimmer Models ......................10 Principles of Operation VL550 Incandescent Luminaires ................11 VL550 Incandescent Block Diagram - Without On-Board IGBT Dimmer (120V or 230V)........................11 VL550D Incandescent Luminaires ................12 VL550D Incandescent Block Diagram - With On-Board IGBT Dimmer (120V or 230V)........................
  • Page 16 Generic Luminaire Assembly ..................64 Head Assembly VL550 Generic Head Assembly .................67 Heatsink Assembly .....................69 VL550 Magenta/Blue (Standard) Color Assembly ............ 71 VL550 Magenta/Blue (Pastel) Color Assembly ............72 VL550 Amber/Diffuser Color Assembly ..............73 Magenta/Blue Color Assembly ..................74 Magenta/Blue (Pastel) Color Assembly ..............75 Amber/Diffuser Color Assembly ................76...
  • Page 17 Yoke Lamp Jumper Cable Assembly ..............108 Backcap Ground Cable Assembly ................109 VL550 Main Cable Assembly ................. 110 Appendix A. Technical Bulletins and Notices VL550 Wash Luminaire Technical Bulletins and Notices........111 02.96 83.001 0 0 2 5 Marc h 2 011 xvii...
  • Page 18 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL xviii 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 19: Disclosure

    This manual provides descriptions, repair procedures, and illustrated parts breakdowns for all configurations of the VL550 Wash Luminaires. The manual is intended for use by Vari-Lite personnel and by Authorized Vari-Lite Dealers and Service Centers only. This manual covers the following models:...

  • Page 20: Additional Documentation

    A support web page for VL500 series luminaires is available at www.vari-lite.com (follow the Support link). A user’s manual is available for installation and operation of the VL550 wash luminaire. This manual is available in electronic (PDF) format. VL550 Wash Luminaires User’s Manual (02.9683.0001).

  • Page 21: Chapter 1. Description

    HAPTER Description This chapter provides an overview of VL550 (all versions as described in “About This Manual” on page 1) luminaire features, components, and operations. • Features • Component Descriptions • Principles of Operation Note: VL550 wash luminaires share many components / parts of the VL500 wash luminaires.

  • Page 22: Features

    Pastel (Dichroic Glass) Option: As an option, all versions of the VL550 wash luminaires are available with “pastel” or lighter colored magenta and blue color filters. VL550 wash luminaires fitted with pastel-colored dichroic glass maintain the electrical specifications of the standard version of the VL550.

  • Page 23: Model Specific Features

    ESCRIPTION Model Specific Features Each individual configuration has the following specific features: Tungsten Models without on-board IGBT dimmer: VL550 Wash Luminaire (20.9683.0001) • 120V (or 230V), 1200W (or 1000W) Tungsten Halogen lamp source. • Standard color dichroic glass DICHRO❋TUNE color system.

  • Page 24: Component Descriptions

    Input Panel Connections Lamp Power Data Thru 3-Pole Neutrik Input Cable* Data In Locking Connector for AC Input *VL550 only (without on-board dimmer) Input Panel Base Provides DMX In and Provides hook mounting Thru, and AC Power holes and safety cable connections.

  • Page 25: Luminaire Internal Head Components

    ESCRIPTION Luminaire Internal Head Components The following illustration shows the major sub-assemblies that are located in the luminaire head assembly. Note: Yoke assembly not shown for clarity. Magenta/Blue Assembly Amber/Diffuser Assembly DICHRO❋TUNE color bulkhead - 16-radially DICHRO❋TUNE color bulkhead - 16-radially mounted diffuser panels mounted magenta and blue dichroic glass for for beam control and amber dichroic glass for color mixing.

  • Page 26: Luminaire Yoke Components

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Luminaire Yoke Components The following illustration shows the major sub-assemblies that are located in the luminaire yoke assembly. Note: Head assembly not shown for clarity. Yoke Arm Cover Luminaire Base (Power Supply Side*)
  • Page 27 ESCRIPTION Luminaire Yoke Components (continued) The following illustrations show additional model variations for the power supply side of the luminaire yoke assembly. VL550 Models (120V or 230V) Pan Mechanism 120W Power Supply Supplies power to electronic and motor components. VL550D Models (120V or 230V)

  • Page 28: Dimmer Models

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Dimmer Models An on-board dimmer is included with VL550D dimmer models. The dimmer heatsink is visible on the power-side yoke leg as shown in this illustration. On-Board Dimmer VL550D Models - Internal lamp power dimmer configured for either 120V or 230V operation depending on model.

  • Page 29: Principles Of Operation

    ESCRIPTION Principles of Operation VL550 Incandescent Luminaires VL550 Incandescent Block Diagram - Without On-Board IGBT Dimmer (120V or 230V) Tilt Motor Motor Tilt Encoder Encoder VL550 Main Control Board (MCB) Magenta Motor Thermal Display Blue Switch Motor Remote Conn. Amber...

  • Page 30: Vl550D Incandescent Luminaires

    ERVICE ANUAL VL550D Incandescent Luminaires VL550D Incandescent Block Diagram - With On-Board IGBT Dimmer (120V or 230V) Tilt Motor Motor Tilt Encoder Encoder VL550 Main Control Board (MCB) Magenta Motor Thermal Display Blue Switch Motor Remote Conn. Amber Thru In...

  • Page 31: Chapter 2. Maintenance

    • Equipment Handling • Maintenance Procedures Note: VL550 wash luminaires share many components / parts of the VL500 wash luminaires. This manual (02.9683.0010 0) covers maintenance procedures, information, and drawings specific to VL550 wash luminaires only. Please refer to the current service manual (02.9685.0010) for maintenance procedures, information, and drawings...

  • Page 32: Testing

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Testing Running Parameter Tests The luminaire is capable of running self tests by using the TEST menu functions. For “Diagnostic Tests” on page 16 complete details and values for each test refer to When running tests on multiple luminaires, a DMX termination connector is required at the last luminaire in the chain.
  • Page 33 AINTENANCE Movement Disable The Movement option allows pan and tilt to be disabled so that the luminaire can be placed in any position for testing without movement occurring. In order to regain full control of the luminaire, Movement will need to be enabled after testing. Note: When using the Movement option, pan and tilt will be disabled for all the luminaires that are linked.

  • Page 34: Diagnostic Tests

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Diagnostic Tests The following diagnostic tests are available in the test menu. Test Descriptions All Seq....Tests all functions in sequential order. Pan/Tilt ....Tests different pan and tilt movements. Pan...... Tests different pan movements.

  • Page 35: Test Menu System Chart

    AINTENANCE Test Menu System Chart The following table shows all the tests that can be performed by accessing the tests via the luminaire’s on-board tech display. Table 2-1: VL550 Test Menu System Chart 1st Level 2nd Level 3rd Level 4th Level...

  • Page 36: Equipment Handling

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Equipment Handling Below are some basic tips and information on handling VL550 luminaires and their associated components. Locations/Use ❋ VARI LITE luminaires are designed for dry locations only. Exposure to rain or moisture (including, but not limited to, fog machines, misters, etc.) may damage luminaires.

  • Page 37: Solid State Electronics

    AINTENANCE • When the lamp is struck, the luminaire should be maintained in a horizontal position when not in use. • For arc lamp luminaires, heads should be tilted horizontal before starting lamps. Lamps generate light by an electrical discharge arc, whereby the electrons from two electrodes excite the fill components to give off light.

  • Page 38: Maintenance Procedures

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Maintenance Procedures Lamp Replacement - Incandescent Parts: 71.2529.0120 1 EA 1200 WATT TUNGSTEN HALOGEN LAMP, 120 VAC (VL550 AND VL550D MODELS) 71.2526.0230 1 EA 1000 WATT TUNGSTEN HALOGEN LAMP, 230 VAC (VL550 AND VL550D MODELS) Tools: •...
  • Page 39 Step 9. Disengage service tilt lock to allow luminaire head to move freely. Note: For an updated list of approved lamps for all versions of the VL550 luminaire, please refer to Vari-Lite Technical Notice TN-248 (current version) on the Vari-Lite web site at www.vari-lite.com.

  • Page 40: Front Glass Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Front Glass Replacement Parts: As needed: 42.9685.0201 1 EA GLASS, FRONT, CLEAR 42.9685.0207 1 EA GLASS, FRONT, STIPPLE 42.9685.0203 1 EA GLASS, FRONT, MED. FLOOD 8-ROW LENT. 42.9685.0206 1 EA GLASS, FRONT, MED. FLOOD 10-ROW LENT.
  • Page 41 Remove lens. WARNING: In tungsten fixtures (VL550 and VL550D), Clear and Stipple lenses may be installed curve in (concave) and all Lenticular (8-Row, 10-Row, and 12-Row) and Buxom lenses MUST be installed curve out (convex).

  • Page 42: Magenta/Blue Dichro*Tune Rear Bulkhead Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Magenta/Blue DICHRO*TUNE Rear Bulkhead Replacement Parts: 21.9685.0170 1 EA ASSY, MAGENTA/BLUE (STANDARD DICHRO*TUNE COLORS - INCANDESCENT) 21.9685.0174 1 EA ASSY, MAGENTA/BLUE (PASTEL DICHRO*TUNE COLORS - INCANDESCENT) Tools: • #2 Phillips Screwdriver To remove and replace Magenta/Blue bulkhead assembly: Step 1.
  • Page 43 AINTENANCE Magenta/Blue DICHRO*TUNE Rear Bulkhead Replacement (continued) Step 5. At top cover, remove two (or four, depending on production date) 6-32x1/4" PPB SEMS screws. Step 6. Remove top cover. Step 7. Disconnect wiring at two linear actuators on Magenta/Blue DICHRO*TUNE Bulkhead.

  • Page 44: Amber/Diffuser Dichro*Tune Front Bulkhead Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Amber/Diffuser DICHRO*TUNE Front Bulkhead Replacement Parts: 21.9685.0171 1 EA ASSY, AMBER/DIFFUSER (INCANDESCENT MODELS) Tools: • #2 Phillips Screwdriver To remove and replace Amber/Diffuser bulkhead assembly: Step 1. CLOSE ALL GLASS IN BULKHEADS - Power up unit and allow all DICHRO*TUNE glass to calibrate.
  • Page 45 AINTENANCE Amber/Diffuser DICHRO*TUNE Front Bulkhead Replacement (continued) Step 7. Disconnect wiring at two linear actuators on Amber/Diffuser (or Dimmer) DICHRO*TUNE Front Bulkhead. Figure 7 Step 8. As shown in , at side rails from top, remove four 6-32x3/8" LG PPZ SEMS screws.

  • Page 46: Color Filter And Diffuser Panel Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Color Filter and Diffuser Panel Replacement Parts: 22.9685.0122 16 EA ASSY, FILTER, MAGENTA, DICHRO*TUNE (STD) 22.9685.0123 16 EA ASSY, FILTER, BLUE, DICHRO*TUNE (STD) 22.9685.0120 16 EA ASSY, FILTER, MAGENTA, DICHRO*TUNE (PASTEL) 22.9685.0121 16 EA ASSY, FILTER, BLUE, DICHRO*TUNE (PASTEL) 22.9685.0124...
  • Page 47 AINTENANCE Color Filter and Diffuser Panel Removal (contin- ued) Step 6. Disconnect actuator screw from Swivel Coupler using tweaker screwdriver by carefully prying apart from Drive Ring Link. Color Filter/ Pad Lip Diffuser Panel Silicone Pad Insert Filter Carrier Pin Center Hub Filter Carrier Carrier Arch...

  • Page 48: Linear Actuator Motor Replacement (Magenta/Blue Bulkhead)

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Linear Actuator Motor Replacement (Magenta/ Blue Bulkhead) Parts: 44.9685.0230 2 EA MOTOR, LINEAR, 0.002"/STEP Tools: • #1 Phillips Screwdriver • #2 Phillips Screwdriver • #2 Slotted Screwdriver WARNING: Remove power from luminaire before performing maintenance.
  • Page 49 AINTENANCE Step 5. At linear actuator motor to be replaced on Magenta/Blue assembly, disconnect wiring at both motors. Step 6. Remove linear actuator motor assembly as follows: a. At linear actuator motor assembly, using #1 Phillips screwdriver, remove three 4-40x1/4" PPZ screws and three #4 lock washers securing motor mount to luminaire head.

  • Page 50: Linear Actuator Motor Replacement (Amber/Diffuser Bulkhead)

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Linear Actuator Motor Replacement (Amber/Dif- fuser Bulkhead) Parts: 44.9685.0230 2 EA MOTOR, LINEAR, 0.002"/STEP Tools: • #1 Phillips Screwdriver • #2 Phillips Screwdriver • #2 Slotted Screwdriver WARNING: Remove power from luminaire before performing maintenance.
  • Page 51 AINTENANCE Step 5. At linear actuator motor to be replaced on Amber/Diffuser assembly, disconnect wiring at both motors. Step 6. Remove linear actuator motor assembly as follows: a. At linear actuator motor assembly, using #1 Phillips screwdriver, remove three 4-40x1/4" PPZ screws and three #4 lock washers securing motor mount to luminaire head.

  • Page 52: Incandescent Lamp Socket Assembly Replacement

    Heatsink Latch Some components not shown for clarity. Lamp Figure 13: Accessing the Lamp Socket in VL550 and VL550D Fixtures Step 5. At top cover, remove four 6-32x1/4" PPB SEMS screws. Step 6. Remove top cover. Step 7. Remove Magenta/Blue Bulkhead Assembly as described in “Magenta/Blue...
  • Page 53 AINTENANCE Figure 14 Step 9. As indicated in , at light baffle, remove three 6-32x1/8" PPB screws. Backcap Light Leak Foam Lamp Socket Reflector Light Baffle 6-32x1/4" PPZ Screws (x2) 8-32x1/2" PPZ SEM Screws (x4) Reflector Clips (x3) 1/4" Hex Standoff (x3) 6-32x1/8"...

  • Page 54: Display Pcb Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Display PCB Replacement Parts: 24.9685.0826 1 EA ASSY, VL500 DISPLAY PCB Tools: • 1/4" Hex Nutdriver • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. To remove and replace display PCB assembly: Step 1.

  • Page 55: Main Control Pcb/Fan Assembly Replacement

    3-position connector (Dimmer communications - See note below) Note: Dimmer communications is for VL550D models only (with on-board IGBT dimmers). On VL550 models (without on-board IGBT dimmer) this connector is present and wiring harness should be connected to MCB. d. 10-position AMP connector (Display Communications) e.
  • Page 56 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Main Control PCB/Fan Assembly Replacement (continued) Menu Display 6-32x1/4" PPB (x4) Yoke Arm Cover 1/4" Hex (9/32" Long) Standoff (x4) Display PCB 1/4" Hex (13/16" Long) Standoff (x4) Main Control PCB Main Control PCB NOTE: Some components not shown for clarity.

  • Page 57: Low Voltage Supply (Lvs) Replacement

    AINTENANCE Low Voltage Supply (LVS) Replacement Parts: 69.3178.0121 1 EA POWER SUPPLY, 120W, 24VDC Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. WARNING: With power applied, LIVE AC is present at heatsink. Do not touch when unit is powered.

  • Page 58: Low Voltage Supply (Lvs) Temperature Pcb Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Low Voltage Supply (LVS) Temperature PCB Replacement Parts: 24.9685.0740 1 EA TEMPERATURE BOARD, LVS Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. WARNING: With power applied, LIVE AC is present at heatsink. Do not touch when unit is powered.

  • Page 59: Tilt Motor Assembly Replacement

    AINTENANCE Tilt Motor Assembly Replacement Parts: 21.9685.0540 1 EA ASSY, PAN/TILT MOTOR Tools: • #2 Phillips Screwdriver • Diagonal Cutters WARNING: Remove power from luminaire before performing maintenance. To remove and replace tilt motor assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2.
  • Page 60 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Step 8. Press motor towards spring to loosen belt tension. Step 9. Remove belt from both drive pulley and driven pulley. Step 10. Remove four 8-32x7/16" PPZ screws that mount Tilt Motor Slide Plate to yoke and remove ENTIRE assembly.

  • Page 61: Pan Motor Assembly Replacement

    AINTENANCE Pan Motor Assembly Replacement Parts: 21.9685.0540 1 EA ASSY, PAN/TILT MOTOR Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. To remove and replace pan motor assembly: Step 1. Disconnect luminaire AC input cable from power source. Step 2.

  • Page 62: Pan/Tilt Encoder Pcb Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Pan/Tilt Encoder PCB Replacement Parts: 24.9685.7735 1 EA BOARD ASSY, PAN/TILT ENCODER Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. To remove and replace pan/tilt encoder PCB: Step 1. Disconnect luminaire AC input cable from power source.

  • Page 63: Igbt Dimmer Replacement - Vl550D Only

    AINTENANCE IGBT Dimmer Replacement - VL550D Only Parts: 69.3173.0115 1 EA DIMMER, IGBT, 1200W 120V REV PHASE CONT (VL550D 120V MODELS ONLY) 69.3173.0240 1 EA DIMMER, IGBT, 1200W 230V REV PHASE CONT (VL550D 230V MODELS ONLY) Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance.
  • Page 64 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL IGBT Dimmer Replacement - VL550D Only (con- tinued) NOTE: Some components not shown for clarity. 6-32x3/8" PTB Screws (x4) Yoke Arm Cover (Dimmer Side) 6-32x3/8" PPZ Screws (x4) IGBT Dimmer Figure 22: IGBT Dimmer Replacement (VL550D Only) Step 7.

  • Page 65: Ac Input (Powercon) Connector Replacement

    AINTENANCE AC Input (PowerCon) Connector Replacement Parts: 25.9685.0756 1 EA CONNECTOR, AC INPUT (POWERCON) Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. To remove and replace AC input (PowerCon) connector: Step 1. Remove power from luminaire. Step 2.

  • Page 66: Dmx Pcb Assembly Replacement

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL DMX PCB Assembly Replacement Parts: 24.9664.4895 1 EA ASSY, DMX INPUT PCB Tools: • #2 Phillips Screwdriver WARNING: Remove power from luminaire before performing maintenance. To remove and replace DMX PCB assembly: Step 1. Remove power from luminaire.

  • Page 67: Cleaning Optical Lenses And Filters

    AINTENANCE Cleaning Optical Lenses and Filters WARNING: Remove power from luminaire before performing maintenance. WARNING: Acetone is a harsh cleaning agent and solvent. Acetone is very flammable. Please handle acetone according to manufacturer’s safety instructions and precautions. The front lens, optics/color filters, and reflector may require cleaning after extended use. •...
  • Page 68 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Notes 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 69: Chapter 3. Illustrated Parts Breakdown

    VL550D VL550D Incandescent Luminaire with IGBT On-Board Dimmer (120V or 230V) Note: VL550 wash luminaires share many components / parts of the VL500 wash luminaires. This manual (02.9683.0010 0) covers maintenance procedures, information, and drawings specific to VL550 wash luminaires only. Please refer to the current service manual (02.9685.0010) for maintenance procedures, information, and drawings...

  • Page 70: Drawing Trees

    DMX Input PCB Assembly Assembly 21.9685.0150 Rev C 24.9664.4895 Rev A 21.9685.0281 Rev A Drive Ring Assembly 21.9685.0251 Rev D continued next page Figure 3-1: VL550 Incandescent Luminaires Drawing Tree (Part 1) 2 5 Marc h 2 011 02 .9 683.00 10 0...
  • Page 71 AC Input Cable Assembly 25.9685.0756 Rev B Display (Remote) Cable Assembly 25.9685.0770 Rev B VL550 Main Cable Assembly 25.9685.0790 Rev J (VL550 and VL550D) Figure 3-2: VL550 Incandescent Luminaires Drawing Tree (Part 2) 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 72: Vl550D Incandescent (With Dimmer) Luminaires

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550D Incandescent (with Dimmer) Lumi- naires VL550D (with 120V IGBT Dimmer) Luminaire or VL550D (with 230V IGBT Dimmer) Luminaire Versions 20.9683.0002 Rev B (Standard DICHRO*TUNE Colors) 20.9683.0012 Rev B (Pastel DICHRO*TUNE Colors) 20.9683.0003 Rev B (Standard DICHRO*TUNE Colors) 20.9683.0013 Rev B (Pastel DICHRO*TUNE Colors)
  • Page 73 VL550 Amber/Diffuser Color Assembly continued from previous page 21.9685.0171 Rev G VL550 Yoke Assembly Amber/Diffuser Color Motor Amber/Diffuser Color 21.9685.0520 Rev X (VL550 Only) Assembly Assembly 21.9685.0281 Rev A 21.9685.0161 Rev F VL550 Extra Hardware Kit Top Bulkhead Assembly 28.9685.0999 Rev 0 21.9685.0151 Rev C...

  • Page 74: Top Assembly

    230V/1000W TUNGSTEN HALOGEN LAMP, (VL550D, 230V ONLY) 71.2529.0120 120V/1200W TUNGSTEN HALOGEN LAMP, (VL550D, 120V ONLY) Note: VL550 wash luminaires (without on-board dimmer), lamp type is specified by customer at time of ordering the fixture (either 120V or 230V lamp). 2 5 Marc h 2 011...
  • Page 75 LLUSTRATED ARTS REAKDOWN Included Items Kit (continued) Figure 3-5: Included Items Kit 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 76: Vl550 (120V Or 230V) Luminaire

    HEAD COVER, BOTTOM 25.9685.0753 CABLE ASSY, VL550 MOTOR (NOT SHOWN) 25.9685.0760 CABLE ASSY, HEAD GROUNDING (NOT SHOWN) 28.9683.0001 INCLUDED ITEMS KIT, VL550 INCANDESCENT - STANDARD ONLY (NOT SHOWN) 28.9683.0011 INCLUDED ITEMS KIT, VL550 INCANDESCENT - PASTEL ONLY (NOT SHOWN) 42.9685.0207 LENS, PAR 64 NSP (STIPPLE) 53.6523.0013...
  • Page 77 LLUSTRATED ARTS REAKDOWN VL550 (120V or 230V) Luminaire (continued) (x2) (x8) (x8) (x8) (x8) Figure 3-6: VL550 (120V or 230V) Luminaire 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 78: Vl550D (With 120V Igbt Dimmer) Luminaire

    25.9685.0753 CABLE ASSY, VL550 MOTOR (NOT SHOWN) 25.9685.0760 CABLE ASSY, HEAD GROUNDING (NOT SHOWN) 28.9683.0002 INCLUDED ITEMS KIT, VL550 INCANDESCENT - VL550D 120V STANDARD ONLY (NOT SHOWN) 28.9683.0012 INCLUDED ITEMS KIT, VL550 INCANDESCENT - VL550D 120V PASTEL ONLY (NOT SHOWN) 42.9685.0207...
  • Page 79 LLUSTRATED ARTS REAKDOWN VL550D (with 120V IGBT Dimmer) Luminaire (continued) (x2) (x8) (x8) (x8) (x8) (x2) (x8) Figure 3-7: VL550D (with 120V IGBT Dimmer) Luminaire 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 80: Vl550D (With 230V Igbt Dimmer) Luminaire

    25.9685.0753 CABLE ASSY, VL550 MOTOR (NOT SHOWN) 25.9685.0760 CABLE ASSY, HEAD GROUNDING (NOT SHOWN) 28.9683.0003 INCLUDED ITEMS KIT, VL550 INCANDESCENT - VL550D 230V STANDARD ONLY (NOT SHOWN) 28.9683.0013 INCLUDED ITEMS KIT, VL550 INCANDESCENT - VL550D 230V PASTEL ONLY (NOT SHOWN) 42.9685.0207...
  • Page 81 LLUSTRATED ARTS REAKDOWN VL550D (with 230V IGBT Dimmer) Luminaire (continued) (x8) (x2) (x8) (x8) (x2) (x8) (x8) Figure 3-8: VL550D (with 230V IGBT Dimmer) Luminaire 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 82: Generic Luminaire Assembly

    ASSY, YOKE, BASE, INTERNAL IGBT DIMMER (VL550D ONLY) 21.9685.0731 ASSY, MCB / FAN 24.9685.4826 ASSY, VL500 DISPLAY BOARD 25.9685.0776 YOKE LAMP JUMPER WIRES (VL550 ONLY) (NOT SHOWN) 53.2001.0003 NUT, 10-32 HEX NYLON INSERT 53.2019.0004 NUT, 3/8-16X7/32" THK HEX JAM G 53.6539.0001 WASHER, 3/8"...
  • Page 83 Item Qty. Description 54.2066.0001 BELT, TIMING, S2M, 396 GRV, 9MM WIDE 55.2178.0001 CABLE SADDLE, #6 MOUNTING HOLE (VL550 ONLY - NOT SHOWN) 55.2287.0001 STANDOFF, MF 6-32 X 9/32" LG, 1/4" HEX 55.2288.0001 STANDOFF, MF 6-32 X 13/16" LG, 1/4" HEX 55.3301.0010...
  • Page 84 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Generic Luminaire Assembly (continued) (VL500D Only) (x4) (x4) (x4) (x4) (x2) (x2) (x2) (x2) (x2) (x8) (x2) 27(x2) Figure 3-9: Generic Luminaire Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 85: Head Assembly

    LLUSTRATED ARTS REAKDOWN Head Assembly VL550 Generic Head Assembly 21.9685.0310 Rev K Refer to Figure 3-10. Item Qty. Description 10.9634.0162 GASKET, LENS, FRONT CASTING 10.9685.0340 SUPPORT, RIB 10.9685.0344 COVER, LAMP WIRE 12.9685.1331 SIDE RAIL, HINGE, MACHINED CASTING 12.9685.0333 SIDE RAIL, LATCH, MACHINED CASTING 12.9685.0388...
  • Page 86 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550 Generic Head Assembly (continued) (x2) (x4) (x2) (x2) (x4) Figure 3-10: VL550 Generic Head Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 87: Heatsink Assembly

    LLUSTRATED ARTS REAKDOWN Heatsink Assembly 21.9685.0320 Rev J Refer to Figure 3-11. Item Qty. Description 10.9634.0103 PAD, REFLECTOR MOUNT 10.9685.0343 CLIP, REFLECTOR 10.9685.0360 FOAM, HEATSINK LIGHT LEAK 12.9685.0335 HEATSINK, MACHINED CASTING 12.9685.0337 BACKCAP, INCANDESCENT, MACHINED CASTING 22.9685.0215 LIGHT BAFFLE, REFLECTOR 23.9685.0780 ASSY, VL500 LAMP SOCKET, HIGH TEMP 25.9685.0777...
  • Page 88 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550 Heatsink Assembly (continued) (x3) (x2) (x2) (x4) (x3) (x3) (x3) Figure 3-11: VL550 Heatsink Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 89: Vl550 Magenta/Blue (Standard) Color Assembly

    ASSY, MAGENTA/BLUE, STANDARD, DICHRO❋TUNE 21.9685.0280 MOTOR ASSY, MAG/BLUE 53.6592.0250 SCREW, 4-40 X 1/4" PPB SEMS 55.6704.0015 STANDOFF, 5/16" HEX, 6-32 X 0.593" LG (x4) (x4) Figure 3-12: VL550 Magenta/Blue (Standard) Color Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 90: Vl550 Magenta/Blue (Pastel) Color Assembly

    ASSY, MAGENTA/BLUE, PASTEL, DICHRO❋TUNE 21.9685.0280 MOTOR ASSY, MAG/BLUE 53.6592.0250 SCREW, 4-40 X 1/4" PPB SEMS 55.6704.0015 STANDOFF, 5/16" HEX, 6-32 X 0.593" LG (x4) (x4) Figure 3-13: VL550 Magenta/Blue (Pastel) Color Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 91: Vl550 Amber/Diffuser Color Assembly

    ASSY, AMBER/DIFFUSER, DICHRO❋TUNE 21.9685.0281 MOTOR ASSY, AMBER/DIFFUSER 53.6592.0250 SCREW, 4-40 X 1/4" PPB SEMS 55.6704.0015 STANDOFF, 5/16" HEX, 6-32 X 0.593" LG (x4) (x4) Figure 3-14: VL550 Amber/Diffuser Color Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 92: Magenta/Blue Color Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Magenta/Blue Color Assembly 21.9685.0160 Rev E (Standard DICHRO*TUNE Colors) Refer to Figure 3-15. Item Qty. Description 10.9634.0034 SPRING, DRIVE ARM, FILTER 10.9634.0035 LINK, DRIVE ARM 10.9634.0166 CARRIER, FILTER, METAL INJ MOLD 21.9685.0150 ASSY, BOTTOM BULKHEAD 22.9685.0122...

  • Page 93: Magenta/Blue (Pastel) Color Assembly

    LLUSTRATED ARTS REAKDOWN Magenta/Blue (Pastel) Color Assembly 21.9685.0164 Rev 0 (Pastel DICHRO*TUNE Colors) Refer to Figure 3-16. Item Qty. Description 10.9634.0034 SPRING, DRIVE ARM, FILTER 10.9634.0035 LINK, DRIVE ARM 10.9634.0166 CARRIER, FILTER, METAL INJ MOLD 21.9685.0150 ASSY, BOTTOM BULKHEAD 22.9685.0120 ASSY, FILTER, MAGENTA, PASTEL, DICHRO❋TUNE 22.9685.0121 ASSY, FILTER, BLUE, PASTEL, DICHRO❋TUNE...

  • Page 94: Amber/Diffuser Color Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Amber/Diffuser Color Assembly 21.9685.0161 Rev F Refer to Figure 3-17. Item Qty. Description 10.9634.0034 SPRING, DRIVE ARM, FILTER 10.9634.0035 LINK, DRIVE ARM 10.9634.0166 CARRIER, FILTER, METAL INJ MOLD 21.9685.0151 ASSY, BULKHEAD, TOP 22.9685.0124 ASSY, FILTER, AMBER, DICHRO❋TUNE...

  • Page 95: Bottom Bulkhead Assembly

    LLUSTRATED ARTS REAKDOWN Bottom Bulkhead Assembly 21.9685.0150 Rev C Refer to Figure 3-18. Item Qty. Description 10.9661.0315 SUPPORT, BULKHEAD 21.9685.0251 ASSY, DRIVE RING 22.9634.0119 ASSY, CENTER HUB 22.9685.0201 ASSY, GENERIC BULKHEAD 53.6682.0002 SCREW, 4-40 X 1/4" PPZ SEMS 55.6612.0008 PIN, 1/8" OD X 3/8" LG AL DRIV-LOX 55.6669.0009 STANDOFF, 1/4"...
  • Page 96 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Bottom Bulkhead Assembly (continued) (x4) (x10) (x8) (x4) (x4) Figure 3-18: Bottom Bulkhead Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 97: Top Bulkhead Assembly

    LLUSTRATED ARTS REAKDOWN Top Bulkhead Assembly 21.9685.0151 Rev C Refer to Figure 3-19. Item Qty. Description 10.9661.0315 SUPPORT, BULKHEAD 10.9685.0219 AUX RING, COLOR BULKHEAD 21.9685.0251 ASSY, DRIVE RING 22.9634.0120 ASSY, LIGHT BAFFLE 22.9685.0201 ASSY, GENERIC BULKHEAD 53.6682.0002 SCREW, 4-40 X 1/4" PPZ SEMS 55.6612.0008 PIN, 1/8"...
  • Page 98 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Top Bulkhead Assembly (continued) (x4) (x2) (x4) (x8) (x10) (x4) (x4) Figure 3-19: Top Bulkhead Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 99: Drive Ring Assembly

    LLUSTRATED ARTS REAKDOWN Drive Ring Assembly 21.9685.0251 Rev D Refer to Figure 3-21. Item Qty. Description 10.9634.0105 LINK, SWIVEL 10.9685.7240 ROLLER, DRIVE RING 22.9685.0238 RING, DRIVE, WITH PINS 53.5554.0875 SCREW, 4-40 X 7/8" SET SS FLAT POINT 53.6659.0013 SCREW, 2-56 X 1/8" PPB 55.6603.0001 SPRING, SS 4.6#/IN EXTENSION 55.6612.0004...

  • Page 100: Magenta/Blue Color Motor Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Magenta/Blue Color Motor Assembly 21.9685.0280 Rev A Refer to Figure 3-21. Item Qty. Description 10.9634.0061 ACTUATOR MOUNT, VL500 10.9634.0075 HEAT SHIELD, MAGENTA/BLUE 44.9685.0230 MOTOR, LINEAR, 0.002"/STEP 53.6520.0001 SCREW, 4-40 X 3/8" PPZ 53.6682.0002 SCREW, 4-40 X 1/4"...

  • Page 101: Amber/Diffuser Color Motor Assembly

    LLUSTRATED ARTS REAKDOWN Amber/Diffuser Color Motor Assembly 21.9685.0281 Rev A Refer to Figure 3-21. Item Qty. Description 10.9634.0061 ACTUATOR MOUNT, VL500 10.9634.0074 HEAT SHIELD, AMBER/DIFFUSER 44.9685.0230 MOTOR, LINEAR, 0.002"/STEP 53.6520.0001 SCREW, 4-40 X 3/8" PPZ 53.6682.0002 SCREW, 4-40 X 1/4" PPZ SEMS 54.1217.0004 LINK, VL500 ACTUATOR-DRIVE RING (x3)
  • Page 102 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Notes 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 103: Yoke Assembly

    Figure 3-23 Figure 3-24. Item Qty. Description 10.9685.0534 COVER, PAN TUBE 10.9685.0537 PLATE, MOUNTING, LAMP POWER PIGTAIL (VL550 ONLY) 10.9685.0538 BEZEL, LAMP POWER PIGTAIL (VL550 ONLY) 10.9685.1560 YOKE LEG, TILT SIDE 10.9685.1561 YOKE LEG, DIMMER SIDE 10.9685.0562 PLATE, TILT MOTOR, SLIDE 10.9685.0596...
  • Page 104 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Item Qty. Description 53.6546.0003 SCREW, 8-32X7/16" PPZ 53.6552.0002 SCREW, 8-32X1/2" PFB 53.6559.0002 SCREW, 4-40X1/4" PFB 53.6606.0001 SCREW, 4-40X1/2" PFB 53.6608.0750 SCREW, 6-32X3/8" PFB 53.6624.0001 SCREW, 10-32X1/2" PFB 53.6596.0001 SCREW, 4-40X5/16" PPZ 54.2065.0001 BELT, TIMING, S2M 252 GROOVE 55.2166.0250...
  • Page 105 LLUSTRATED ARTS REAKDOWN VL550 Yoke Assembly (continued) (x6) (x2) (x2) (x4) (VL550D) (x4) (x4) (x2) (x2) (x2) (x4) Figure 3-23: VL550 Yoke Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...
  • Page 106 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550 Yoke Assembly (continued) (x4) (x4) (x3) (x6) (x4) (x3) (x3) (x12) (x6) Figure 3-24: VL550 Yoke Assembly 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 107: Vl550 Extra Hardware Kit

    SCREW, 6-32 X 3/8" PPZ 53.6558.0009 SCREW, 6-32 X 3/8" PPZ SEMS 53.6558.0010 SCREW, 6-32 X 1/4" PPZ SEMS (x4) (x4) (x4) (x4) (x4) Figure 3-25: VL550 US Extra Hardware Kit 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 108: Vl550 Pan/Tilt Motor Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550 Pan/Tilt Motor Assembly 21.9685.0540 Rev C Refer to Figure 3-26. Item Qty. Description 10.9685.0541 PLATE, TENSION ADJUSTMENT, PAN/TILT 21.9685.0545 ASSY, DRIVE PULLEY - 2a 10.9685.0524 PULLEY, DRIVE - PAN/TILT, 2MM GT 18 TOOTH - 2b 10.9678.8720...
  • Page 109 If you order a replacement motor (Item 4), also order the pulley (Item 2). Contact Vari-Lite Customer Service for installation information. Figure 3-26: VL550 Pan/Tilt Motor Assembly 02.96 83.001 0 0...

  • Page 110: Mcb/Fan Assembly

    SCREW, 4-40 X 3/4" PPZ 53.6592.0001 SCREW, 4-40 X 1/2" PPB 55.6537.0001 WASHER, #4 LOCK INTERNAL TOOTH (x3) (x2) (x2) Figure 3-27: VL550 MCB/Fan Assembly (VL550 and VL550D Only) 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 111: Mcb-Fan Assembly

    LLUSTRATED ARTS REAKDOWN MCB-Fan Assembly 23.9685.0782 Rev 0 Refer to Figure 3-26. Item Qty. Description 40.7113.0007 FAN, 12VDC, 30X10 MM, 3.3CFM 52.6450.0002 CONNECTOR, MTA 100 IDC 2-POS, 28 AWG Pin 2 (Black) Pin 1 (Red) 6-inch leads Figure 3-28: MCB-Fan Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 112: Yoke Crossmember Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Yoke Crossmember Assembly 21.9685.0515 Rev E Refer to Figure 3-29. Item Qty. Description 10.9685.0547 BUSHING, WIRE PROTECTION, 0.95" OD 10.9685.7590 TOGGLE STOP, PAN 10.9685.7591 TOGGLE, PAN 21.9685.0512 ASSY, LOWER CROSSMEMBER 21.9685.0513 ASSY, UPPER CROSSMEMBER 21.9685.0535...
  • Page 113 LLUSTRATED ARTS REAKDOWN Yoke Crossmember Assembly (continued) (x4) (x4) (x2) Figure 3-29: Yoke Crossmember Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 114: Lower Crossmember Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Lower Crossmember Assembly 21.9685.0512 Rev K Refer to Figure 3-30. Item Qty. Description 10.9685.1509 LOWER CROSSMEMBER 10.9685.0522 PLATE, PAN LOCK 10.9685.0527 WASHER, CENTERING, STEP 10.9685.0533 LANYARD, SAFETY 53.2001.0003 NUT, 10-32 NYLON INSERT 53.2019.0004 NUT, 3/8-16 HEX 53.2020.0001...
  • Page 115 LLUSTRATED ARTS REAKDOWN Lower Crossmember Assembly (continued) (x2) (x2) (x2) (x2), (x2) (x2) (x2) (x2) Figure 3-30: Lower Crossmember Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 116: Upper Crossmember Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Upper Crossmember Assembly 21.9685.0513 Rev H Refer to Figure 3-30. Item Qty. Description 10.9685.1510 UPPER CROSSMEMBER 10.9685.0527 WASHER, CENTERING, STEP 53.2020.0001 NUT, 1/4-20 HEX STL ZINC PLTD 54.1255.0001 ASSY, BEARING/HOUSING 55.6549.0001 WASHER, 1/4" SPLIT LOCK...

  • Page 117: Pan Tube Assembly

    LLUSTRATED ARTS REAKDOWN Pan Tube Assembly 21.9685.0535 Rev D Refer to Figure 3-32. Item Qty. Description 10.9685.0521 PULLEY, DRIVEN, PAN/TILT 10.9685.0531 PAN TUBE 10.9685.0532 PAN PULLEY SPACER 53.2200.0006 NUT, 6-32 KEPS SS 53.6608.0750 SCREW, 6-32 X 3/4" PFB (x2) (x4) Figure 3-32: Pan Tube Assembly 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 118: Input Panel Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Input Panel Assembly 21.9665.1550 Rev D Refer to Figure 3-33. Item Qty. Description 10.9665.1512 PANEL, INPUT 25.9684.2020 CABLE ASSY, AC INPUT (NOT SHOWN) 52.6541.0003 CONN, CHASSIS PWR 3 POLE, LOCKING 53.2200.0004 NUT, 4-40 KEPS SS 53.6606.0001...

  • Page 119: Dmx Input Pcb Assembly

    LLUSTRATED ARTS REAKDOWN DMX Input PCB Assembly 24.9664.4895 Rev A Refer to Figure 3-34. Item Qty. Description 17.9663.3895 PCB, DMX INPUT 52.6259.0006 HEADER, 5POS MTA FRCT LOK STRT 52.6625.0006 CONN, RECEPT XLR 5PIN FEMALE 52.6626.0006 CONN, RECEPT XLR 5PIN MALE 62.3039.0102 CAP, 1000PF 250V RAD CER DISC 20% X-Y Figure 3-34: DMX Input PCB Assembly...
  • Page 120 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Notes 2 5 Marc h 2 011 02 .9 683.00 10 0...

  • Page 121: This Section Is For Reference Only

    Refer to Figure 3-35. GRN/YEL Figure 3-35: Incandescent Power Input Cable Assembly (VL550 Only) Note: Cables are available as complete assemblies only. The information contained in this section is for reference only. 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 122: Vl550 Motor Cable Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL VL550 Motor Cable Assembly 25.9685.0753 Rev B Refer to Figure 3-36. Figure 3-36: VL550CD Motor Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only.

  • Page 123: Ac Input Cable Assembly

    LLUSTRATED ARTS REAKDOWN AC Input Cable Assembly 25.9685.0756 Rev B Refer to Figure 3-37. Figure 3-37: AC Input Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only. 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 124: Head Grounding Cable Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Head Grounding Cable Assembly 25.9685.0760 Rev C Refer to Figure 3-38. Figure 3-38: Head Earthing Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only.

  • Page 125: Display (Remote) Cable Assembly

    LLUSTRATED ARTS REAKDOWN Display (Remote) Cable Assembly 25.9685.0770 Rev B Refer to Figure 3-39. Figure 3-39: Display (Remote) Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only. 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 126: Yoke Lamp Jumper Cable Assembly

    VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Yoke Lamp Jumper Cable Assembly 25.9685.0776 Rev A Refer to Figure 3-40. Figure 3-40: Yoke Lamp Jumper Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only.

  • Page 127: Backcap Ground Cable Assembly

    LLUSTRATED ARTS REAKDOWN Backcap Ground Cable Assembly 25.9685.0777 Rev A Refer to Figure 3-41. Figure 3-41: VL500 Backcap Ground Cable Assembly Note: Cables are available as complete assemblies only. The information contained in this section is for reference only. 02.96 83.001 0 0 2 5 Marc h 2 011...

  • Page 128: Vl550 Main Cable Assembly

    25.9685.0790 Rev J (VL550 and VL550D) Refer to Figure 3-41. Figure 3-42: VL550 Main Cable Assembly (VL550 and VL550D) Note: Cables are available as complete assemblies only. The information contained in this section is for reference only. 2 5 Marc h 2 011...

  • Page 129: Appendix A. Technical Bulletins And Notices

    Technical Bulletins and Notices VL550 Wash Luminaire Technical Bulletins and Notices The following table identifies the current technical bulletins and notices associated with the VL550 wash luminaire. If applicable, these improvements have been incorporated into this manual. Technical Bulletin Description...
  • Page 130 VARI❋LITE - VL550 W UMINAIRES ERVICE ANUAL Notes 2 5 Marc h 2 011 02 .9 683.00 10 0...
  • Page 132 Vari-Lite 10911 Petal Street Dallas, Texas 75238 USA ❋ 1.877.VARI-LITE Fax 1.214.647.8038 www.vari-lite.com Date: 25 March 2011 Manual Part Number: 02.9683.0010 0 ©2003-2011 Vari-Lite, a Philips group company. All rights reserved.

Table of Contents
