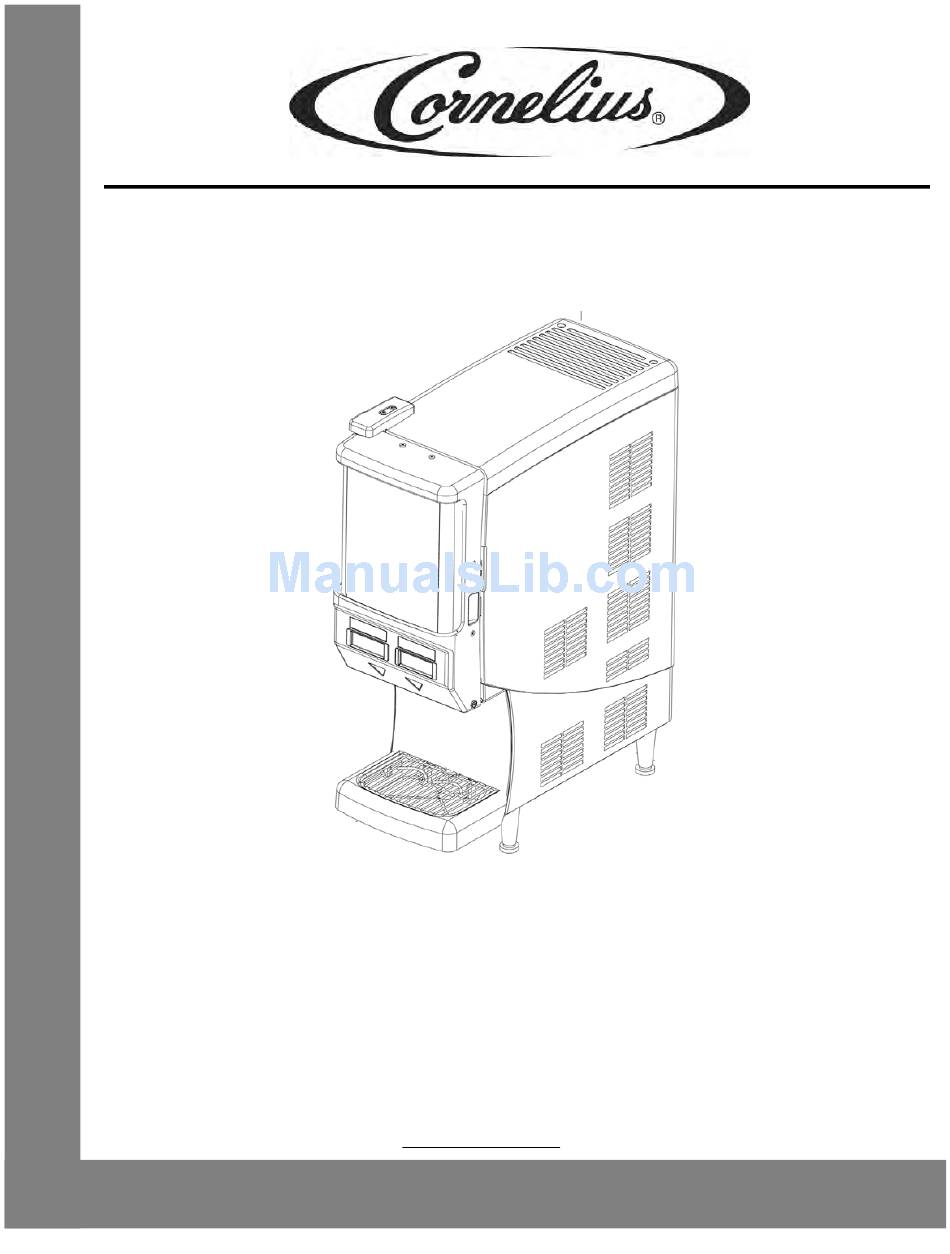

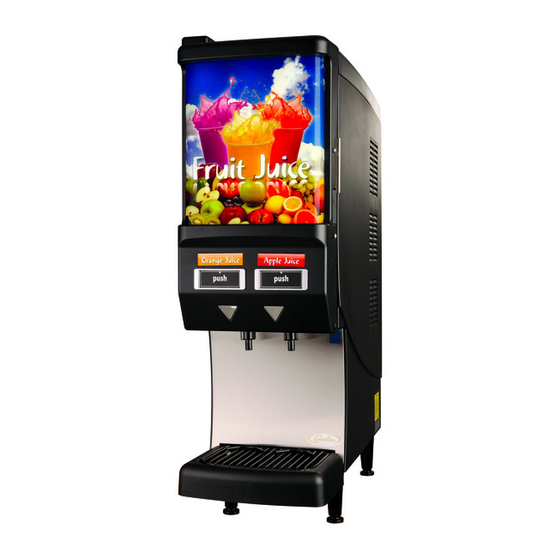

- Page 1 QUEST ELITE 2000 NSTALLATION ANUAL Release Date: December 9, 2010 Publication Number: 620048922INS Revision Date: May 5, 2012 Revision: D Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
-
Page 2: Contact Information
Commercial Warranty. Cornelius will not be responsible for any repair, replacement or other service required by or loss or damage resulting from any of the following occurrences, including but not limited to, (1) other than normal and proper use and normal... -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Instructions ..............1 Read and Follow ALL Safety Instructions . -
Page 5: Safety Instructions
Quest Elite 2000 Installation Manual SAFETY INSTRUCTIONS ALL S EAD AND OLLOW AFETY NSTRUCTIONS Safety Overview • Read and follow ALL SAFETY INSTRUCTIONS in this manual and any warning/ caution labels on the unit (decals, labels or laminated cards). •... -
Page 6: Qualified Service Personnel
Quest Elite 2000 Installation Manual UALIFIED ERVICE ERSONNEL WARNING: Only trained and certified electrical, plumbing and refrigeration technicians should service this unit. ALL WIRING AND PLUMBING MUST CONFORM TO NATIONAL AND LOCAL CODES. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY, DEATH OR EQUIPMENT DAMAGE. -
Page 7: Mounting In Or On A Counter
Quest Elite 2000 Installation Manual MOUNTING IN OR ON A COUNTER WARNING: When installing the unit in or on a counter top, the counter must be able to support a weight in excess of 140 lbs. (63.5 kg.) to insure adequate support for the unit. -
Page 8: Requirements
134a refrigerant. Test press: High side 400 psi (2757.9 kilopascals), (27.6 bar). Low side 88 psi (606.7 kilopascals), (6.1 bar). Model Quest ELITE 2000, 230 VAC, 2 amps, 1 phase 50 hertz, 6.00 oz. (170g) R- 134a refrigerant. Test press: High side 400 psi (2757.9 kilopascals) (27.6 bar). Low side 88 psi (606.7 kilopascals), (6.1 bar). -
Page 9: Recommended Clearance
Quest Elite 2000 Installation Manual Recommended Clearance 12” (30.48 cm) on top and 4” (10.16 cm) required in back for air circulation and 4” at the sides of the unit. Electrical Connection 6 ft. long (1.83 m) power cord with 3-prong plug attached to dispenser. Export models are shipped with a European plug. -
Page 10: Water Supply Requirements
Quest Elite 2000 Installation Manual Water Supply Requirements 60 psi (413.7 kilopascals) (4.1 bar) maximum static pressure. 30 psi (206.8 kilopascals) (2.1 bar) minimum dynamic pressure; i.e., flowing pressure measured at dispenser water inlet with 3.0 (88.7 ml) per second water flow. Optimum recommended pressure 50 psi (344.7 kilopascals) (3.5 bar) dynamic pressure. -
Page 11: Applications
Quest Elite 2000 Installation Manual APPLICATIONS This appliance is intended to be used in household and similar applications such as the following: • Staff kitchen areas in shops, offices and other working environments. • Farm houses and by clients in hotels, motels and other residential type envi- ronments •... -
Page 12: Receiving
Quest Elite 2000 Installation Manual RECEIVING Each unit is completely tested and inspected before shipment. At the time of shipment, the carrier accepts the unit and any claim for damage must be made with the carrier. Upon receiving the unit(s) from the carrier, inspect the carton for visible damage. -
Page 13: Counter Location
Quest Elite 2000 Installation Manual COUNTER LOCATION Select a location in a well ventilated area, close to a grounded electrical outlet. If possible do not place the unit close to hot and/or steaming machines. The minimum airflow clearance is: 4” (10.16 cm) in back and 12” (30.48 cm) on top and open to the front. -
Page 14: Filling The Ice Bath
Quest Elite 2000 Installation Manual FILLING THE ICE BATH The ice bath holds approximately 1.62 gallons (6.2 liters) of water. The fill tube is located behind the front splash plate and capped with a 0.5” plug. 1. Remove the 0.5” plug and attach the tube to any one of the dispense noz- zles. - Page 15 Quest Elite 2000 Installation Manual 3. Close the door, press and hold the dispense button (push), shown in Figure 6, until the tank is filled and water trickles from the overflow. Figure 6. Dispense Buttons 4. Once the ice bath is full, store the fill tube in the vertically recessed holder.
-
Page 16: Connecting Water Supply
Quest Elite 2000 Installation Manual CONNECTING WATER SUPPLY The Quest Elite series Juice Dispenser is designed to dispense juice at a high flow rate. It is very important that the incoming water line be dedicated for use by the dispenser only and does not have other machines connected which could cause a water surge, (i.e., a dishwasher, coffee maker, etc.). -
Page 17: Electrical
Quest Elite 2000 Installation Manual ELECTRICAL A minimum of 15 amps electrical service is needed for 120VAC power supply. A minimum of 20 amps electrical service is needed for 230VAC power supply. © 2010-2012, IMI Cornelius Inc. - 13 -... -
Page 18: Priming/Flushing Water System
Quest Elite 2000 Installation Manual PRIMING/FLUSHING WATER SYSTEM To properly prime the unit with water and remove air pockets in the system, open the cabinet door and make sure that all the valve levers are in the Dispense position. Close the door and press the dispense button for a few seconds. Repeat until a steady flow of water is observed from all dispense valves. -
Page 19: Programming The Portion Control
Quest Elite 2000 Installation Manual PROGRAMMING THE PORTION CONTROL If the dispenser has optional portion controls, they have been pre-programmed from the factory to pour 7, 12, and 16 ounce drinks. The “extra large” (pitcher icon) size has also been pre-programmed to pour 16 ounces. To change the pour sizes, please perform the following procedure. - Page 20 Quest Elite 2000 Installation Manual Publication Number: 620048922INS - 16 - © 2010-2012, IMI Cornelius Inc.
