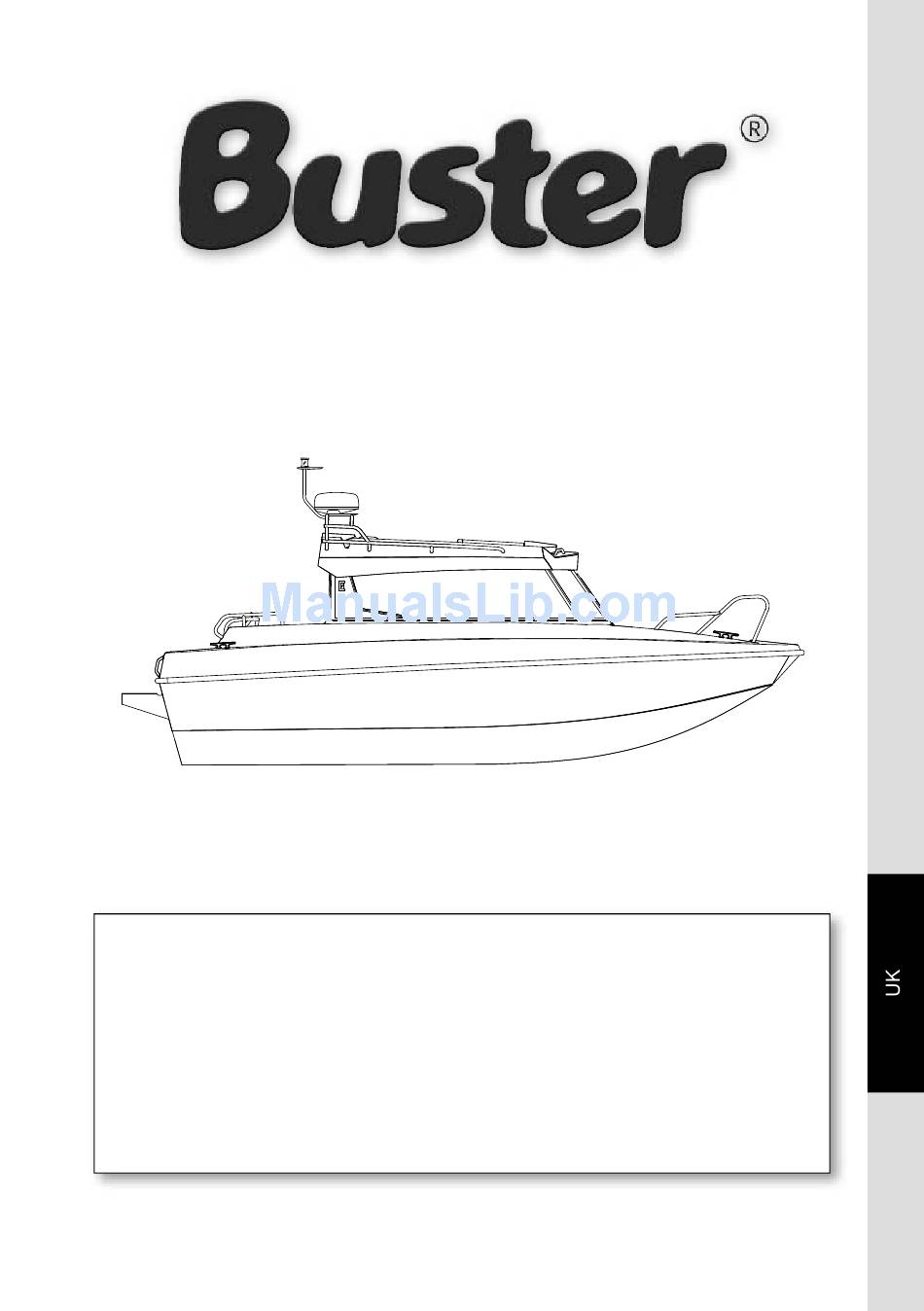

OWNER'S HANDBOOK
BUSTER XXL Cabin
2011
Fiskars Boats, Inha Works Ltd
Saarikyläntie 21
FIN-63700 Ähtäri
Finland
Your authorised Buster dealer:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUSTER XXL Cabin 2011 and is the answer not in the manual?

Questions and answers

Related Manuals for buster BUSTER XXL Cabin 2011

Summary of Contents for buster BUSTER XXL Cabin 2011

  • Page 1 OWNER’S HANDBOOK BUSTER XXL Cabin 2011 Fiskars Boats, Inha Works Ltd Saarikyläntie 21 FIN-63700 Ähtäri Finland Your authorised Buster dealer:...
  • Page 2 PREFACE Dear Buster owner, thank you for choosing a Finnish Buster boat! We hope you will have many enjoyable experiences on board. This handbook aims to help you use your boat safely and with peace of mind. It includes details of the boat itself, the equipment and systems installed in it, and information about how to operate and maintain it.
  • Page 3 etc.) appropriate to the boat type, weather conditions, etc. In some countries such equipment is mandatory. The crew must be familiar with the operations of all safety equipment and emergency manoeuvres (rescuing a man overboard, towing, etc.). Rescue exercises are regularly organised by boating schools and clubs. Every person on board should use an appropriate fl...

  • Page 4: Table Of Contents

    Contents General......................7 Defi nitions......................7 Warranty......................7 Before launching....................8 Registration................... 8 Insurance....................8 Training....................8 Boat characteristics and operation..............8 General....................8 Basic information about the boat............9 Recommended max.
  • Page 5 I Owner First name: Last name: Municipality of residence: Year of purchase: II Owner First name: Last name: Municipality of residence: Year of purchase: III Owner First name: Last name: Municipality of residence: Year of purchase: IV Owner First name: Last name: Municipality of residence: Year of purchase:...

  • Page 6: Before Departure

    BEFORE DEPARTURE... Read this Owner’s Handbook thoroughly and before departure always check: • Prevailing weather conditions and the weather forecast Assess the wind conditions, the state of the sea and visibility. Is your boat’s de- sign class, size, and on-board equipment, together with the skills of the helmsman and crew, suffi...

  • Page 7: General

    1 General This Owner‘s Handbook will help you to familiarise yourself with the characteristics of your new boat. Instruction manuals for equipment fi tted to the boat are also in- cluded and are frequently referred to. You can, of course, add to this handbook by obtaining the instruction books for all other equipment.

  • Page 8: Before Launching

    4 Before launching 4.1 Registration Some countries may require boats such as the Buster XXL Cabin to be registered, and drivers may be subject to competence and/or age restrictions. Before taking the boat into use, fi nd out the applicable requirements and restrictions from the appro- priate local authorities.

  • Page 9: Basic Information About The Boat

    5.2 Basic information about the boat The basic information of the boat is as follows: Boat model: Buster XXL Cabin Design category: C (coastal waters) See also paragraph 5.4 Loading. Design category C is defi ned as follows: The boat is designed to operate in conditions up to a maximum wind velocity of 6 on the Beaufort scale (approx.

  • Page 10: Recommended Max. Number Of People

    5.3 Recommended max. number of people The recommended maximum number of people to have on board the boat is seven. The designated seating arrangements are shown in Diagram 1. WARNING! Never exceed the maximum recommended number of people on board. Irrespective of the number of people on board, the total weight of people and equipment must never exceed the recom- mended maximum load (see paragraph 5.4 Loading).

  • Page 11: Engine And Propeller

    5.5 Engine and propeller The recommended maximum engine capacity for the Buster XXL Cabin is 111 kW (150 hp). When fi tting the engine and choosing a propeller, comply with the engine manufac- turer’s instructions. 5.6 Preventing water from getting on board and stability 5.6.1 Hull and deck openings The location of deck openings and their respective plugs are shown in Diagram 2.

  • Page 12: Bilge Pumps And Drainage

    5.6.2 Bilge pumps and drainage The Buster XXL Cabin is equipped with an electrically-operated, automatic bilge pump, the location of which is shown in Diagram 2. It discharges water that has ac- cumulated in the bilge whenever the surface sensor detects the presence of water in the bilge.

  • Page 13: Prevention Of Fi Re And Explosions

    be compromised if any additional weight is placed too high in the boat. Therefore, loading the roof of the boat is strictly prohibited. All changes resulting from position- ing bulky objects can signifi cantly infl uence the stability, trim, and performance of your boat.

  • Page 14: Fire Extinguishing And Fi Re Prevention

    5.7.2 Fire extinguishing and fi re prevention The Buster XXL Cabin is equipped with a 2-kg hand-held powder extinguisher with a fi re rating of 13A89BC (Diagram 3). The extinguisher is located in the front left side of the steering cabin. Diagram 3.

  • Page 15: Electrical System

    5.8 Electrical system The circuit diagram for the electrical systems of the boat is shown in Appendix 3. The Buster XXL Cabin is equipped with an electrical system that includes either one or two batteries. In dual battery systems, one of the batteries functions primarily as a starter battery, while the other is the auxiliary battery, which is used when power is unavailable from other sources.
  • Page 16 Switches for control and electrical devices are located as shown in Diagram 4. Diagram 4. Location of electrical devices: 1) Battery box 2) Main power switch 3) Bilge pump 4) Mast light (on the Targa arch), white 360° 5) Navigation lights, with colour sectors; 6) Switch panel (see Diagram 5.);...
  • Page 17 Diagram 5. Switch panel: 1) Navigation light switch, 2) Interior light switch, 3) Aft deck light switch, 4) Bilge pump switch and 5) Windscreen wiper switch The fuses for the circuits are located in a separate fuse panel inside the battery box located on the left side of the aft cock- pit.

  • Page 18: Control Characteristics

    When you connect or disconnect the battery, take care not to simultaneously touch both terminals of the battery with a metal tool such as, for example, a spanner. Charge the batteries only with the engine or with a battery charger. Charging with too high a current can lead to an explosion.

  • Page 19: Dead-Man's Grip

    At high speeds, adjust the power trim with care, as it radically WARNING! changes the behaviour of the boat. Do not drive with the bow too low as the boat can suddenly deviate from its path. Rapid turns can lead to loss of control. Reduce speed before WARNING! sharp turns.

  • Page 20: Visibility From The Steering Position

    5.9.3 Visibility from the steering position In beautiful and calm weather, driving is simple, provided that you keep a sharp lookout, which also complies with the requirements of COLREG. Always take care to have the best possible visibility from the steering position: •...

  • Page 21: Securing Loose Equipment

    5.10.2 Securing loose equipment Secure all weighty items, such as the anchor, in place before departure. Bear in mind that wind and turbulence can easily snatch away lighter objects. 5.10.3 Respect for the environment Shorelines everywhere (sea and lakes alike in all countries where Buster boats are sold) are a precious natural resource and their preservation is a matter of honour for all sailors.
  • Page 22 When mooring your boat, always bear in mind wind change, tidal N.B.! effects, backwash from other boats, etc. Further information can be obtained, for example, from your insurance company. When towing another boat, use a suffi ciently strong, fl oating tow rope. Initiate the towing procedure carefully, avoid jerks and do not overload the engine.

  • Page 23: Trailer Towing

    5.10.5 Trailer towing The boat weight with the engine and accumulator is 1350-1,400 kg. This does not include fuel and equipment load. Before lifting your Buster boat onto a trailer, make sure the trailer is appropriate for the boat, the support is adequate to minimise the load at each individual point, the bow stop assembly is in a suitable position in rela- tion to the trailer‘s axle and that the trailer’s carrying capacity is suffi...

  • Page 24: Service, Repairs And Winter Storage

    6 Service, repairs and winter storage Information about maintenance, winter storage, service and repairs can be found on the Internet at www.buster.fi or provided by your nearest Buster dealer. Major damage to the aluminium surface or other surfaces should always be re- paired by an authorised Buster dealer.
  • Page 25 Appendices APPENDIX 1: TECHNICAL SPECIFICATIONS The boat has a consecutive serial number, or CIN code (Craft Identifi cation Number). The code is shown on the hull of the vessel on the right-hand side of the stern, on the exterior of the transom next to the moulding strip. For your own infor- mation, record the CIN code in the following table.
  • Page 26 BOAT‘S TECHNICAL INFORMATION Buster XXL Cabin MAIN DIMENSIONS Length overall, m 6.57 Hull length, m 6.18 Max. beam, m 2.45 Draught at max. load, m 0.49 Max. height from water surface, m 2.62 Dry weight (no engine or load), kg 1,100 Unloaded weight (engine and battery), kg 1,350...
  • Page 27 APPENDIX 2: BUSTER XXL CABIN OVERALL ARRANGEMENT The overall arrangements of the diagrams are not to scale. Due to continuous prod- uct development, the manufacturer assumes no responsibility for any possible vari- ations. Buster XXL Cabin overall arrangement 1) Mast navigation light; visible all-round, white, output 10W 11) Breather valve 2) a) Battery housing, b) fuse box and c) main power switch(es) 12) Cockpit drain opening...
  • Page 28 APPENDIX 3: CIRCUIT DIAGRAMS FOR ELECTRICAL SYSTEM Circuit diagram for Buster XXL Cabin, single battery system. V15AS00C V15AS00C V15AS00C NAV. L. CE NAV. L. BB COMP. L. NAV. L. SB CABIN L. CABIN L. CABIN L.
  • Page 29 APPENDIX 3: CIRCUIT DIAGRAMS FOR ELECTRICAL SYSTEM Circuit diagram for Buster XXL Cabin, single battery system. /3.A2 INPUT+ V15AS00C VEBAS00C FRIDGE DECK L. DECK L. AS212 HEATER DECK L. 12V DC WIPER 1.5 GREY FUEL_G FUEL SENSOR FUEL GAUGE INPUT /3.A7 /1.D7 INPUT...
  • Page 30 APPENDIX 3: CIRCUIT DIAGRAMS FOR ELECTRICAL SYSTEM Circuit diagram for Buster XXL Cabin, single battery system. PLOTTER TRIM BOW L. BOW L.
  • Page 31 APPENDIX 4: DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY Recreational Craft Directive 94/25/EC and 2003/44/EC Appendix I MANUFACTURER Manufacturer’s name: Fiskars Boats, Inha Works Ltd Address: Saarikyläntie 21 Postal code: FI-63700 City/Town: Ähtäri Country (written out): Finland Module adopted: AUTHORITY NOTIFIED...
  • Page 32 General requirements Basic information EN ISO 8666:2002 A2.1 Hull markings ISO 10087:1996 / A1:2000 A2.2 Manufacturer’s plate RCD annex I, 2.2 A2.5 Owner’s handbook EN ISO 10240:2004 Arrangements and equipment A2.3 Prevention of falling overboard EN ISO 15085:2003 A3.7 Stowing life raft RSG Guidelines A3.8 Emergency exit...
