Installation Manual
SK-910RB2Q
SK-910RB2-4Q (433.92MHz)

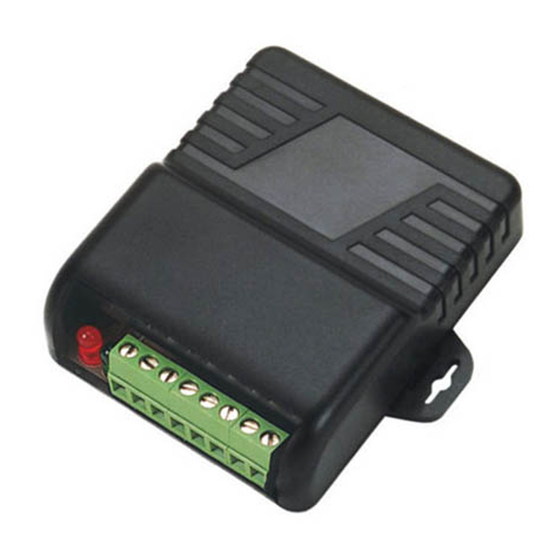

Two-Channel RF Receiver
Flexible operating voltage: 11~24 VAC/VDC
Up to 500ft (152m) range
Independently programmable channels
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Also Available from SECO-LARM:
SK-910RQ .................................................................. One-channel receiver, 315MHz
SK-910RLQ ........................................... Low-voltage, one-channel receiver, 315MHz
SK-910RVQ ......................................................... Low-voltage, one-channel receiver,
SK-910R-4Q ......................................................... One-channel receiver, 433.92MHz
SK-910RL-4Q ................................... Low-voltage, one-channel receiver, 433.92MHz
SK-910RV-4Q ...................................................... Low-voltage, one-channel receiver,
This manual covers only two-channel receivers. For information on one- and four- channel receivers, please contact SECO-LARM.
*Operates on 11~24 VAC/VDC.
Introduction:
The SK-910RB2Q is a two-channel receiver that meets the growing demand for a multichannel receiver with multiple and
independently controlled output modes. This RF receiver is compatible with both code hopping and fixed code transmitters
(see page 4 of this manual for a list of compatible transmitters). The receiver can be used to control a variety of home
automation devices such as garage door openers, lights, motorized gates, lifts, or other devices remotely.
Installation Notes:
1. Mount the receiver out of sight in a location where it is not exposed to the weather or moisture, and where it is not
surrounded by metal. Metal will block the RF signal, resulting in a reduced range.
2. For best range, pull the antenna wire as long and straight as possible. If the receiver receives interference from local RF
activity (e.g., an airport or military base), the antenna wire can be folded. DO NOT CUT THE ANTENNA WIRE.
(315MHz)
transistor ground output 315MHZ
transistor ground output, 433.92MHz
*
*
