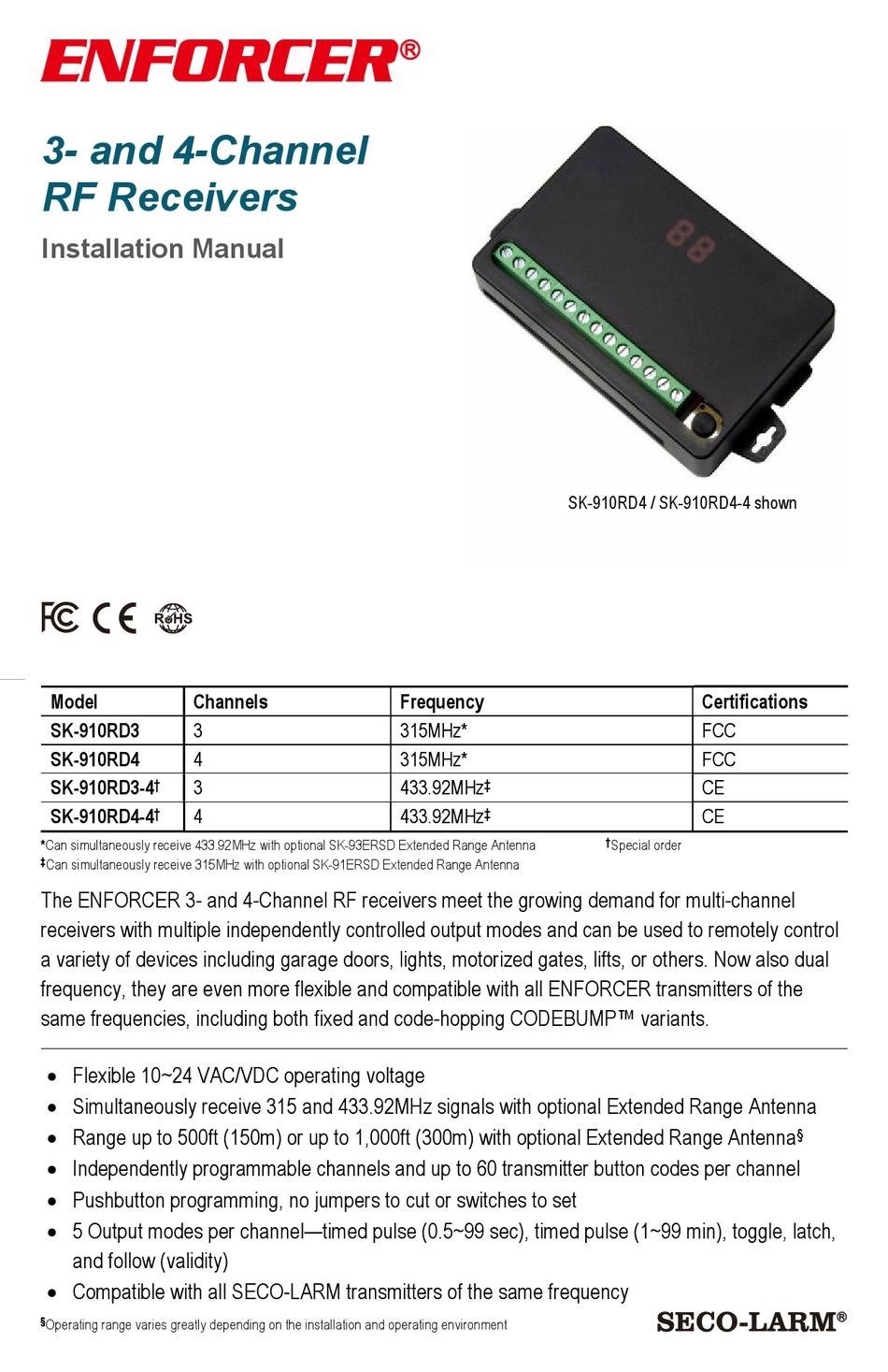

3- and 4-Channel
RF Receivers
Installation Manual
Model
Channels
SK-910RD3
3
SK-910RD4
4
SK-910RD3-4
3
†
SK-910RD4-4
4
†
*Can simultaneously receive 433.92MHz with optional SK-93ERSD Extended Range Antenna
‡
Can simultaneously receive 315MHz with optional SK-91ERSD Extended Range Antenna
The ENFORCER 3- and 4-Channel RF receivers meet the growing demand for multi-channel
receivers with multiple independently controlled output modes and can be used to remotely control
a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual
frequency, they are even more flexible and compatible with all ENFORCER transmitters of the
same frequencies, including both fixed and code-hopping CODEBUMP™ variants.
Flexible 10~24 VAC/VDC operating voltage
Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna
Independently programmable channels and up to 60 transmitter button codes per channel
Pushbutton programming, no jumpers to cut or switches to set
5 Output modes per channel—timed pulse (0.5~99 sec), timed pulse (1~99 min), toggle, latch,
and follow (validity)
Compatible with all SECO-LARM transmitters of the same frequency
§
Operating range varies greatly depending on the installation and operating environment
Frequency
315MHz*
315MHz*
433.92MHz
‡
433.92MHz
‡

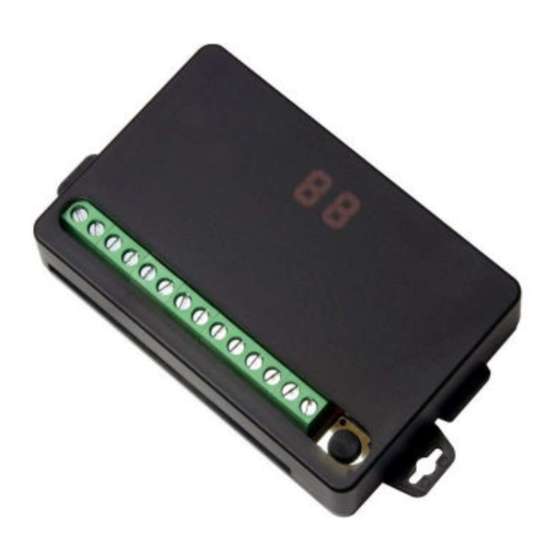

SK-910RD4 / SK-910RD4-4 shown
Certifications
FCC
FCC
CE
CE
†
Special order
§
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SK-910RD4
Summary of Contents for ENFORCER SK-910RD4
- Page 1 Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.
- Page 2 Parts List LED Display (hidden until lit) 1x Receiver Selector Button Shows (see LED Display below for details) 1x Manual (SK-910RD4 and General status –left dot flashes every N.O. Output 4 SK-910RD4-4 only) N.C. 3~5s when operating. RF signal received –right dot lights N.O.
- Page 3 Receiver Extended Range Antenna Result SK-93ERSD (433.92MHz) Receiver can also receive 433.92MHz transmitter signals SK-910RD3 or SK-910RD4 (315MHz) SK-91ERSD (315MHz) Extends the range to up to 1,000ft (300m)* SK-91ERSD (315MHz) Receiver can also receive 315MHz transmitter signals SK-910RD3-4 or SK-910RD4-4 (433.92MHz)
- Page 4 3- and 4-Channel RF Receivers Programming (Continued) Displaying a Channel's Number of Codes Learned In programming mode, select the channel. The LED will flash the channel's number of codes stored (15sec). Programming a Channel's Relay Output Mode Each channel relay can be independently programmed to one of five output modes for any transmitter button. ...
