4 Channels
4 Channel relay outputs
1 Auxiliary relay output (12VDC)
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
SK-910RC4Q
Central Receiver
Manual
4 Relay output modes
4 Programmable alert tones
Up to 500' (152m) range

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENFORCER SK-910RC4Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER ENFORCER SK-910RC4Q

Summary of Contents for ENFORCER ENFORCER SK-910RC4Q

  • Page 1 SK-910RC4Q Central Receiver Manual 4 Channels 4 Relay output modes 4 Channel relay outputs 4 Programmable alert tones 1 Auxiliary relay output (12VDC) Up to 500’ (152m) range Note: Model numbers that end with “Q” or that have a round green “Q” sticker signify RoHS-compliant products.

  • Page 2: Table Of Contents

    ENFORCER SK-910RC4Q Central Receiver Table of Contents: Introduction ............. 2 Alert Tones ............. 4 Specifications ..........2 Programming Each Channel Output ....5 Dimensions ............. 2 Setting the Timed Output ........ 6 Overview ............3 Setting the Auxiliary Relay ......6 Installation Notes ..........

  • Page 3: Overview

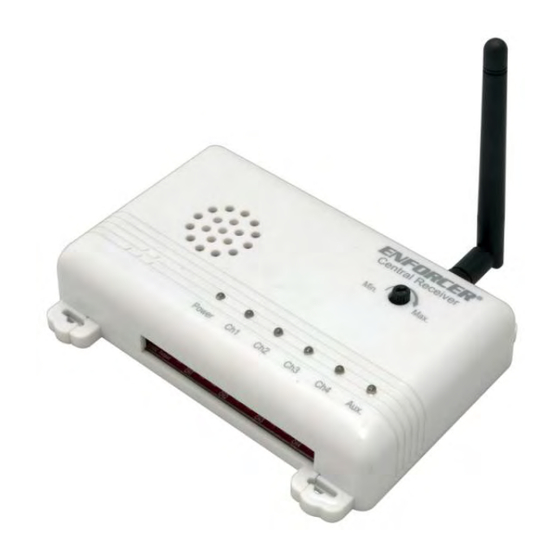

    ENFORCER SK-910RC4Q Central Receiver Overview: Power Input Programming buttons Mode button (12VDC) Top: To antenna Timer switches Front: Antenna Volume adjustment knob Speaker Status LEDs Bottom: Auxiliary relay output Main relay outputs (12VDC) Installation Notes: 1. Mount in a convenient location where alert tones and LED indicators will be audible/visible.

  • Page 4: Code Learning A New Transmitter

    ENFORCER SK-910RC4Q Central Receiver Code Learning a New Transmitter: Each receiver channel can learn the codes of up to 15 different transmitters. Transmitters are learned on a first-in, first-out basis. (For example, if 15 transmitter codes have been learned, when a new transmitter is learned the first of the 15 codes that were learned before will be deleted.)

  • Page 5: Programming Each Channel Output

    ENFORCER SK-910RC4Q Central Receiver Programming Each Channel Output: 1. Each channel output can be separately programmed for one of four different modes: Timed Output: When the channel receives a signal, the relay will turn ON for 1~60 seconds, depending on the output time set.

  • Page 6: Setting The Timed Output

    ENFORCER SK-910RC4Q Central Receiver Setting the Timed Output: When a channel is set to Timed Output, triggering the channel will activate the relay for a set period of time. Factory default is 1 second. 1. The time can be set from 1~60 seconds using the Timer switches on the top of the receiver.

  • Page 7: Setting The Power Led

    ENFORCER SK-910RC4Q Central Receiver Setting the Power LED: The power LED can be set to Bright, Dim, or OFF using the power LED jumper. Locate the jumper on the PCB as shown below. Place the jumper on the middle and right pins for Dim, and on the middle and left pins for Bright.

  • Page 8: Troubleshooting

    ENFORCER SK-910RC4Q Central Receiver Troubleshooting: The SK-910RC4Q will not read a Check that the transmitter is operating within the receiver’s range. transmitter it has already learned. Check number of transmitters learned. Learning more than 15 will cause the first transmitter learned to be deleted.
