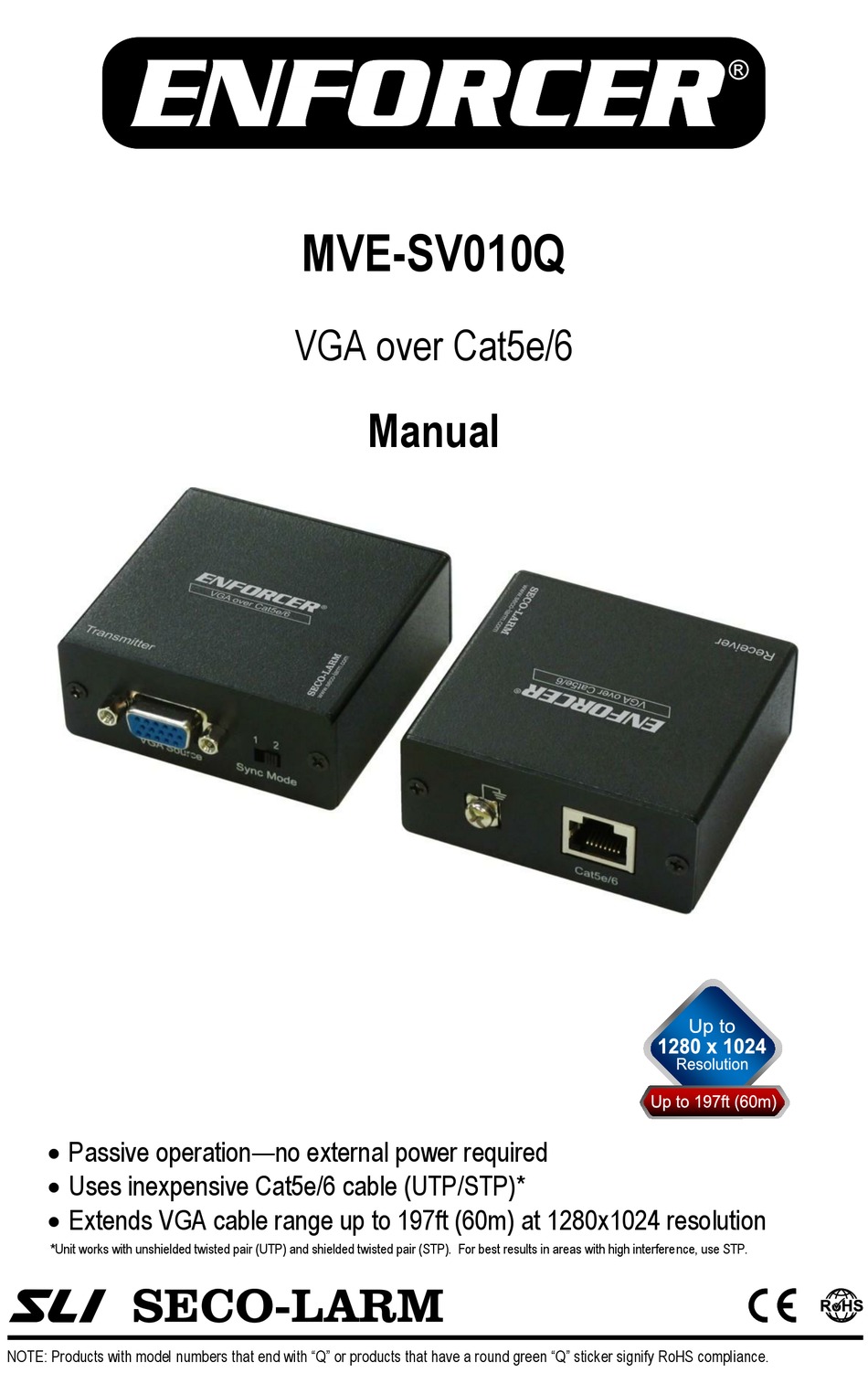

MVE-SV010Q
VGA over Cat5e/6
Manual
 Passive operation—no external power required
 Uses inexpensive Cat5e/6 cable (UTP/STP)*
 Extends VGA cable range up to 197ft (60m) at 1280x1024 resolution
*Unit works with unshielded twisted pair (UTP) and shielded twisted pair (STP). For best results in areas with high interference, use STP.
NOTE: Products with model numbers that end with "Q" or products that have a round green "Q" sticker signify RoHS compliance.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVE-SV010Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENFORCER MVE-SV010Q

Summary of Contents for ENFORCER MVE-SV010Q

  • Page 1 MVE-SV010Q VGA over Cat5e/6 Manual  Passive operation—no external power required  Uses inexpensive Cat5e/6 cable (UTP/STP)*  Extends VGA cable range up to 197ft (60m) at 1280x1024 resolution *Unit works with unshielded twisted pair (UTP) and shielded twisted pair (STP). For best results in areas with high interference, use STP.

  • Page 2: Specifications

    ENFORCER Passive VGA Balun Introduction: The ENFORCER Passive VGA Baluns extend VGA video signals up to 443ft (135m) using low-cost Cat5e/6 cable. These units make it possible for CCTV video sources such as DVRs and computers to be secured in one room while running VGA signals to a monitor or projector in another room.
  • Page 3 ENFORCER Passive VGA Balun Overview: Transmitter: VGA Input Cat5e/6 Sync mode switch Ground screw Receiver: Cat5e/6 VGA Output Sync balancing Ground screw DIP switch Installation: 1. Determine the location where the VGA over Cat5e/6 units will be placed as well as how much Cat5e/6 cable will be necessary.

  • Page 4: Troubleshooting

    ENFORCER Passive VGA Balun Troubleshooting  Use shielded twisted pair (STP) cable.  Check the sync mode switch.  Check the sync balancing DIP switch.  Check that the cable length is within the given limits of the resolution Image is weak, faded, or blank.
