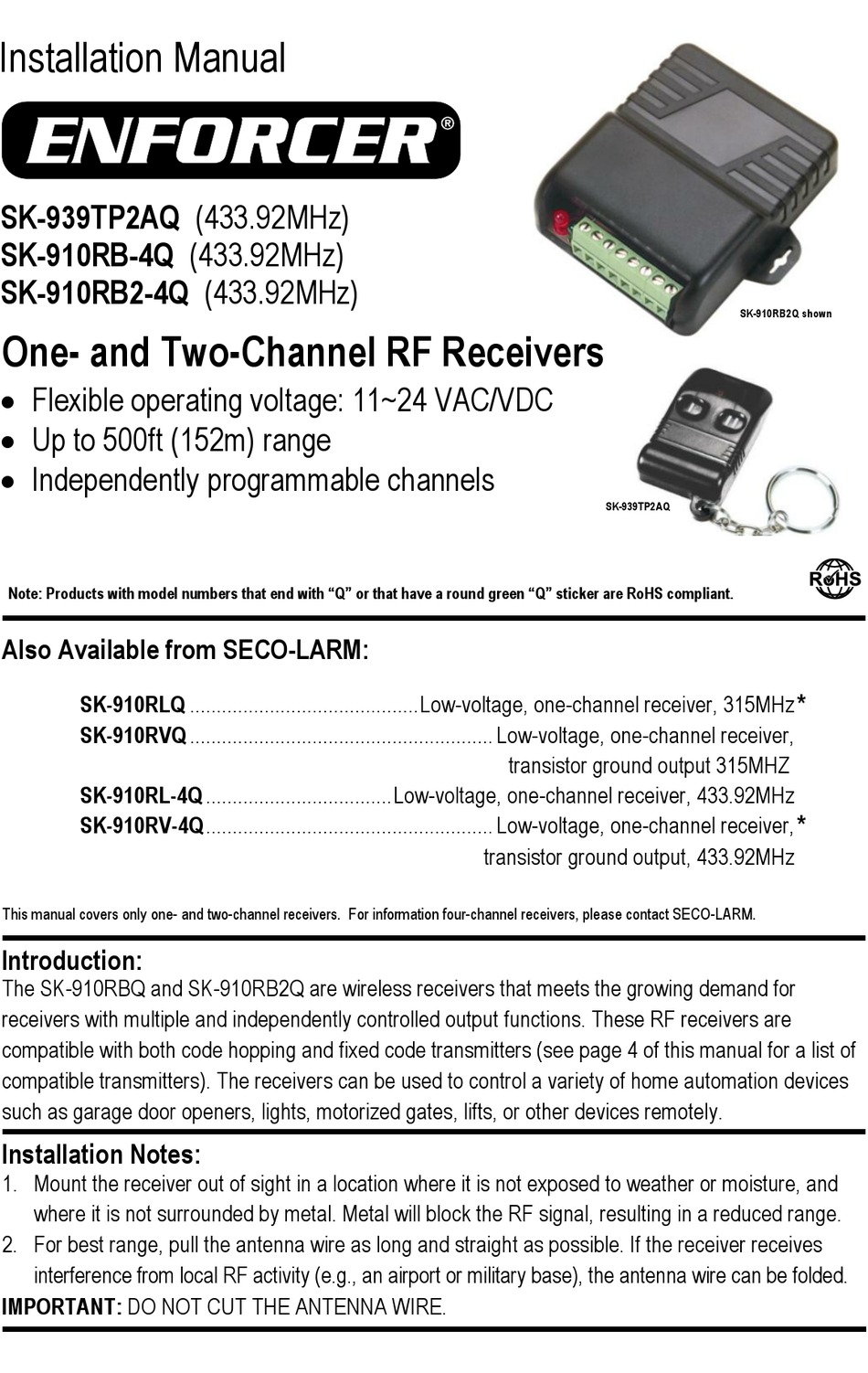

Installation Manual
SK-939TP2AQ (433.92MHz)
SK-910RB-4Q (433.92MHz)
SK-910RB2-4Q (433.92MHz)
One- and Two-Channel RF Receivers
 Flexible operating voltage: 11~24 VAC/VDC
 Up to 500ft (152m) range
 Independently programmable channels
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Also Available from SECO-LARM:
SK-910RLQ ........................................... Low-voltage, one-channel receiver, 315MHz
SK-910RVQ ......................................................... Low-voltage, one-channel receiver,
SK-910RL-4Q ................................... Low-voltage, one-channel receiver, 433.92MHz
SK-910RV-4Q ...................................................... Low-voltage, one-channel receiver,
This manual covers only one- and two-channel receivers. For information four-channel receivers, please contact SECO-LARM.

Introduction:

The SK-910RBQ and SK-910RB2Q are wireless receivers that meets the growing demand for
receivers with multiple and independently controlled output functions. These RF receivers are
compatible with both code hopping and fixed code transmitters (see page 4 of this manual for a list of
Compatible Transmitters). The receivers can be used to control a variety of home automation devices
such as garage door openers, lights, motorized gates, lifts, or other devices remotely.

Installation Notes:

1. Mount the receiver out of sight in a location where it is not exposed to weather or moisture, and
where it is not surrounded by metal. Metal will block the RF signal, resulting in a reduced range.
2. For best range, pull the antenna wire as long and straight as possible. If the receiver receives
interference from local RF activity (e.g., an airport or military base), the antenna wire can be folded.
IMPORTANT: DO NOT CUT THE ANTENNA WIRE.
SK-939TP2AQ
transistor ground output 315MHZ
transistor ground output, 433.92MHz

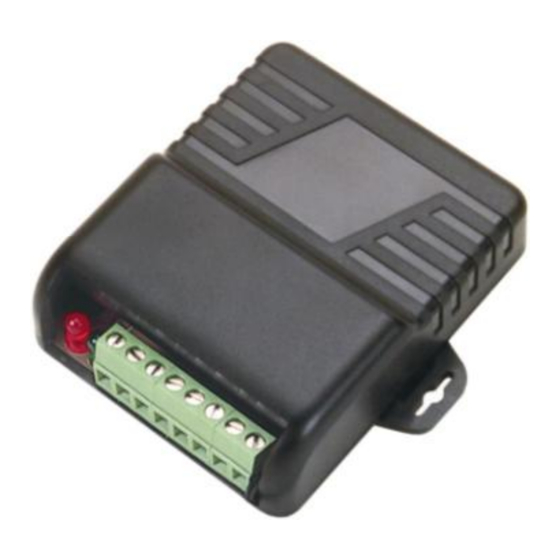

SK-910RB2Q shown
*
*
