Installation Manual
ENFORCER
SK
SK
-910RA
-910RA
SK -910RA
-910RA Q SERIES
SK
SK
-910RA
Miniature RF
Miniature RF
Miniature RF
Miniature RF
Miniature RF
R R R R R eceivers
eceivers
eceivers
eceivers
eceivers
Up to 500 ft. range
●
Operate on 11-24VAC/DC
●
Code learning
●
FCC compliant
●
Fixed code or CODEBUMP
●
Introduction
These mini RF receivers are compatible with both code hopping and fixed-code transmitters (see page 4 of this manual
for a list of compatible transmitters). They can be used for a variety of applications, such as allowing the same transmitter to
arm/disarm a vehicle alarm and open/close a garage door opener. The receivers come in one- or two-channel versions.
Each channel can learn the codes of up to 15 different transmitter buttons on a first-in, first-out basis.
Installation Notes
1. Mount out of sight in a location where it is not surrounded by metal, and where it is not exposed to the weather or
moisture. Metal will block the RF signal, resulting in a reduced range.
2. For best range, pull the antenna wire as straight and high as possible. If the receiver receives interference from local
RF activity (eg., airport or military base), the antenna wire can be folded. DO NOT CUT THE ANTENNA WIRE.
Models Available
SK-910RAQ .......... 1-channel mini-receiver, 3A Form "C" relay, 315MHz
SK-910RAVQ ........ 1-channel mini-receiver, 5A transistor ground output, 315MHz
SK-910RAV2Q ...... 2-channel mini-receiver, 3A transistor ground outputs, 315MHz
SK-910RA-4Q ....... 1-channel mini-receiver, 3A Form "C" relay, 433.92MHz
SK-910RAV-4Q ..... 1-channel mini-receiver, 5A transistor ground output, 433.92MHz
SK-910RAV2-4Q .. 2-channel mini-receiver, 3A transistor ground outputs, 433.92MHz
More RF receivers are available (1 to 4 channels). Contact SECO-LARM for details.
Q SERIES
Q SERIES
Q SERIES
Q SERIES
All models work on 11-24VAC/DC, except for the low voltage versions.
1
®
®

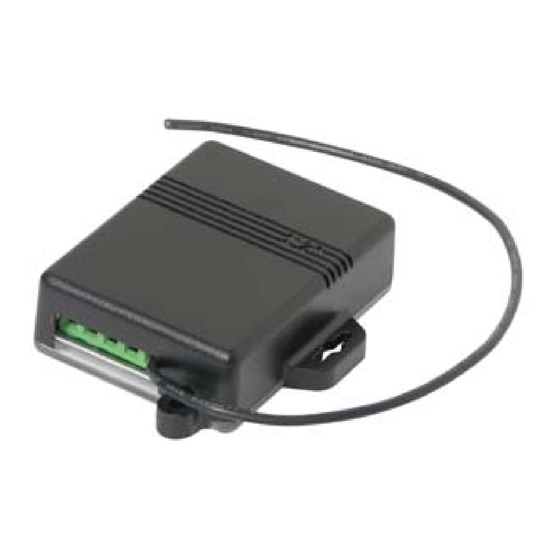

SK-910RAQ Shown
1
code-hopping
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SK-910RAQ
Summary of Contents for ENFORCER SK-910RAQ
-

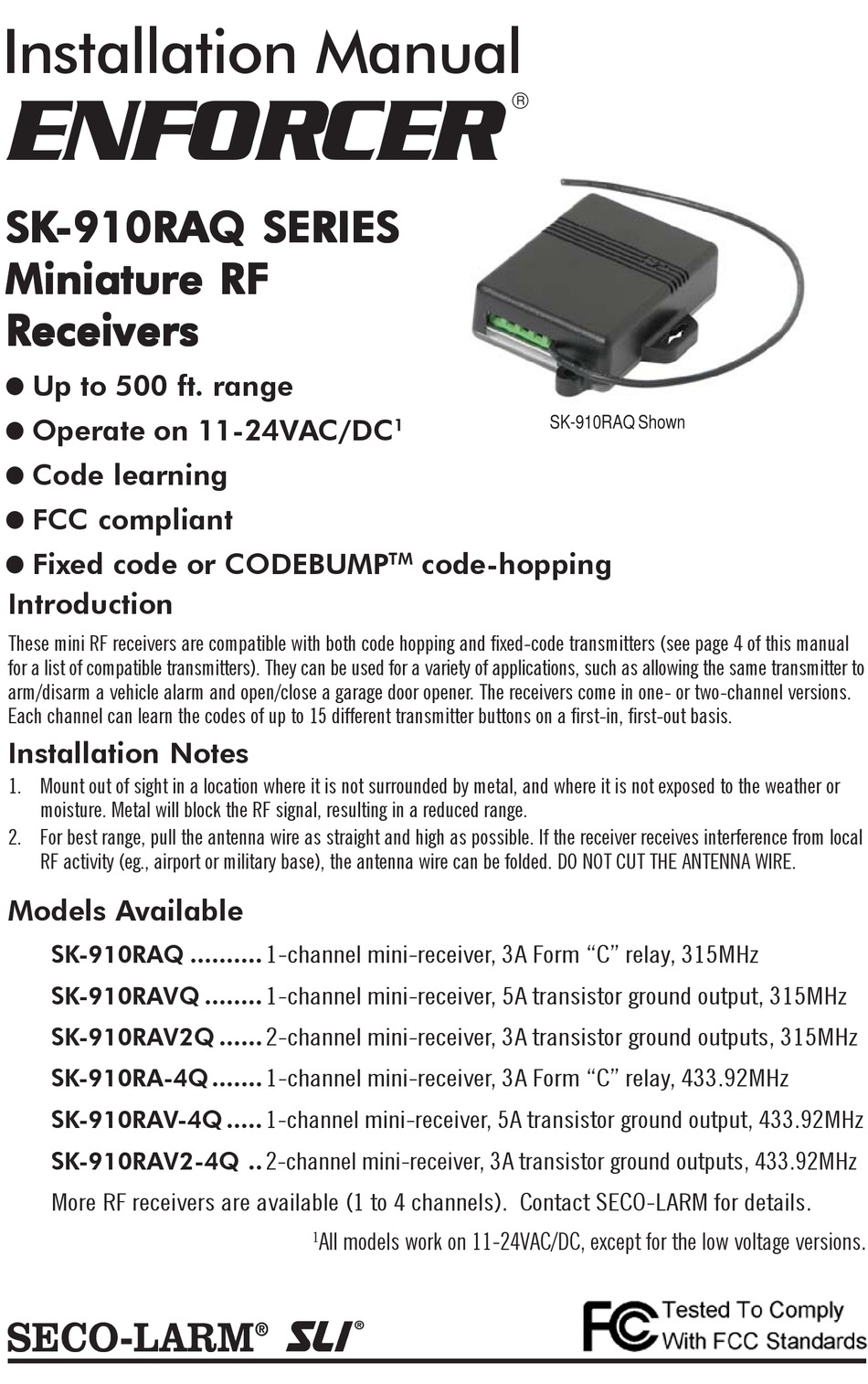

Page 1: Installation Manual
RF activity (eg., airport or military base), the antenna wire can be folded. DO NOT CUT THE ANTENNA WIRE. Models Available SK-910RAQ ..1-channel mini-receiver, 3A Form “C” relay, 315MHz SK-910RAVQ ..1-channel mini-receiver, 5A transistor ground output, 315MHz SK-910RAV2Q ..2-channel mini-receiver, 3A transistor ground outputs, 315MHz SK-910RA-4Q .. - Page 2 ENFORCER RF R ECEIVERS Learning a New Button Code (channel 1) 1. Press the mode switch which is located at the top of the receiver case for three seconds. The green LED will start to flash quickly. 2. While the green LED is flashing quickly, press a button on a compatible transmitter. The green LED will flash once and then turn off to show that button was learned.
-
Page 3: Typical Applications
The antenna comes with a 9’ cable which easily plugs into the 3-pin antenna port located on the RF receiver motherboard (see the illustration above). IMPORTANT: If an extended range antenna is used with the SK-91ERSD SK-910RAQ, the receiver PC board loop marked “LP3” must be cut. Page 3... -
Page 4: Specifications
Belt clip holster for hand-held remotes WARRANTY: These ENFORCER RF receivers are warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original customer. Our obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.
