KitchenAid 3187359 Installation Instructions page 4

Electric built-in 30” thermal convection double oven
Hide thumbs

Advertisement

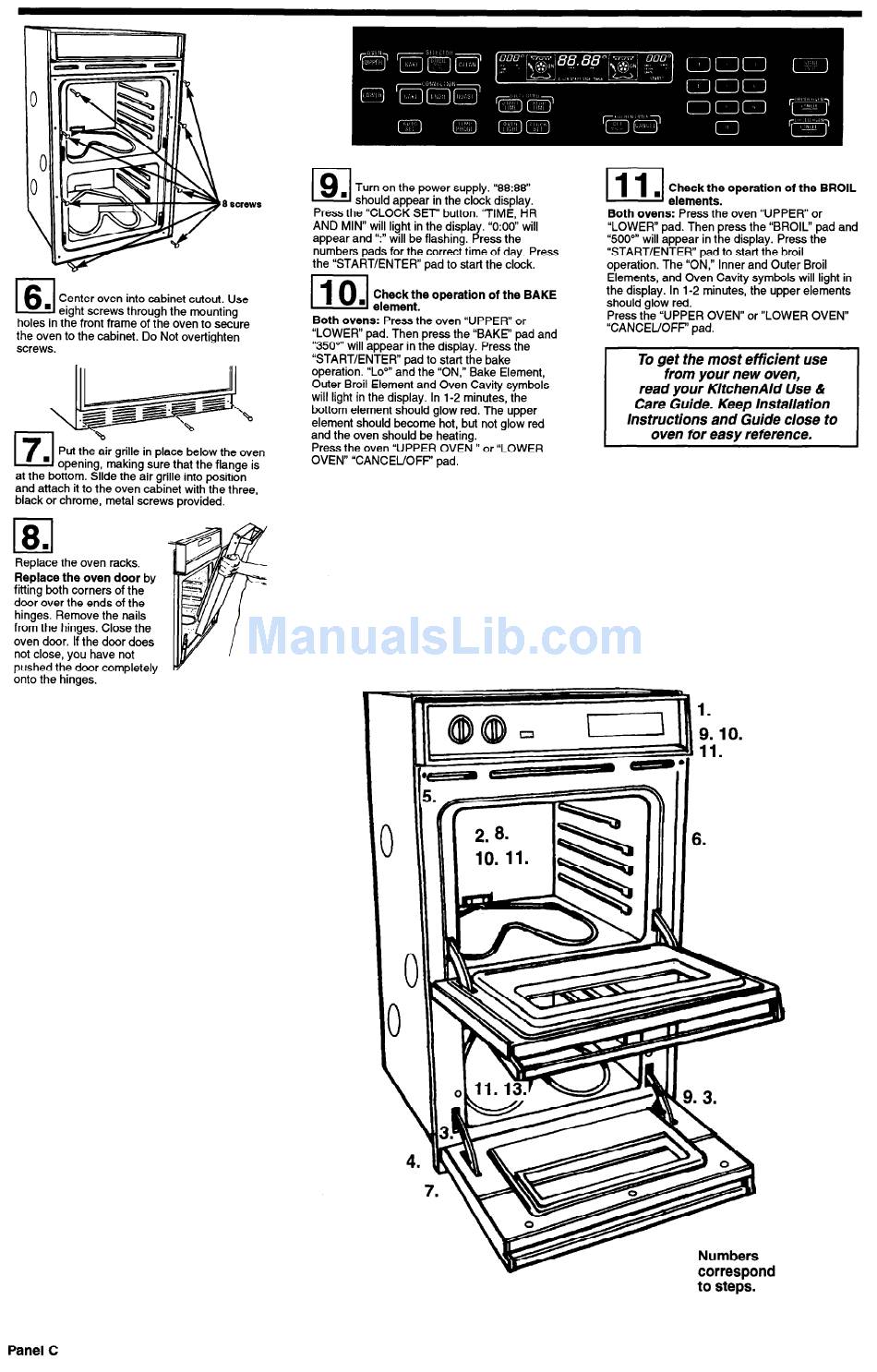

8 screws
16.(
Center oven into cabinet cutout. Use
eight screws through the mounting
holes in the front frame of the oven to secure
the oven to the cabinet. Do Not overtighten
screws.
Put the air grille in place below the oven
opening, n-raking sure that the flanae is
at the bottom. Slide the air grille into posit&
and attach it to the oven cabinet with the three,
black or chrome, metal screws provided.
18.1
(91
Turn on the power supply. "88:88"
H should appear in the clock display.
ml
. Check the operation of the BROIL
elements.
Press the "CLOCK SET" button. "TIME, HR
AND MIN" will light in the display. "0:OO" will
appear and I':" will be flashing. Press the
numbers pads for the correct time of day. Press
the "START/ENTER"
pad to start the clock.
1101
Check the operation of the BAKE
H element.
Both ovens:
Press the oven "UPPER" or
"LOWER" pad. Then press the "BAKE" pad and
"350"" will appear in the display. Press the
"START/ENTER"
pad to start the bake
operation. "Lo@ and the "ON," Bake Element,
Outer Broil Element and Oven Cavity symbols
will light in the display. In 1-2 minutes, the
bottom element should glow red. The upper
element should become hot, but not glow red
and the oven should be heating.
Press the oven "UPPER OVEN " or "LOWER
OVEN" "CANCEUOFF'
pad.
Both ovens:
Press the oven "UPPER" or
"LOWER" pad. Then press the "BROIL" pad and
"500"" will appear in the display. Press the
'START/ENTER"
pad to start the broil
operation. The "ON," Inner and Outer Broil
Elements, and Oven Cavity symbols will light in
the display. In l-2 minutes, the upper elements
should glow red.
Press the "UPPER OVEN" or "LOWER OVEN"
"CANCEL/OFF"
pad.
I
To get the most efficient use
from your new oven,
read your KitchenAid Use &
Care Guide. Keep Installation
Instructions
and Guide close to
oven for easy reference.
Replace the oven racks.
Replace the oven door
by
fitting both corners of the
door over the ends of the
hinges. Remove the nails
from the hinges. Close the
oven door. If the door does
not close, you have not
pushed the door completely
onto the hinges.
6.
to steps.
Panel C
