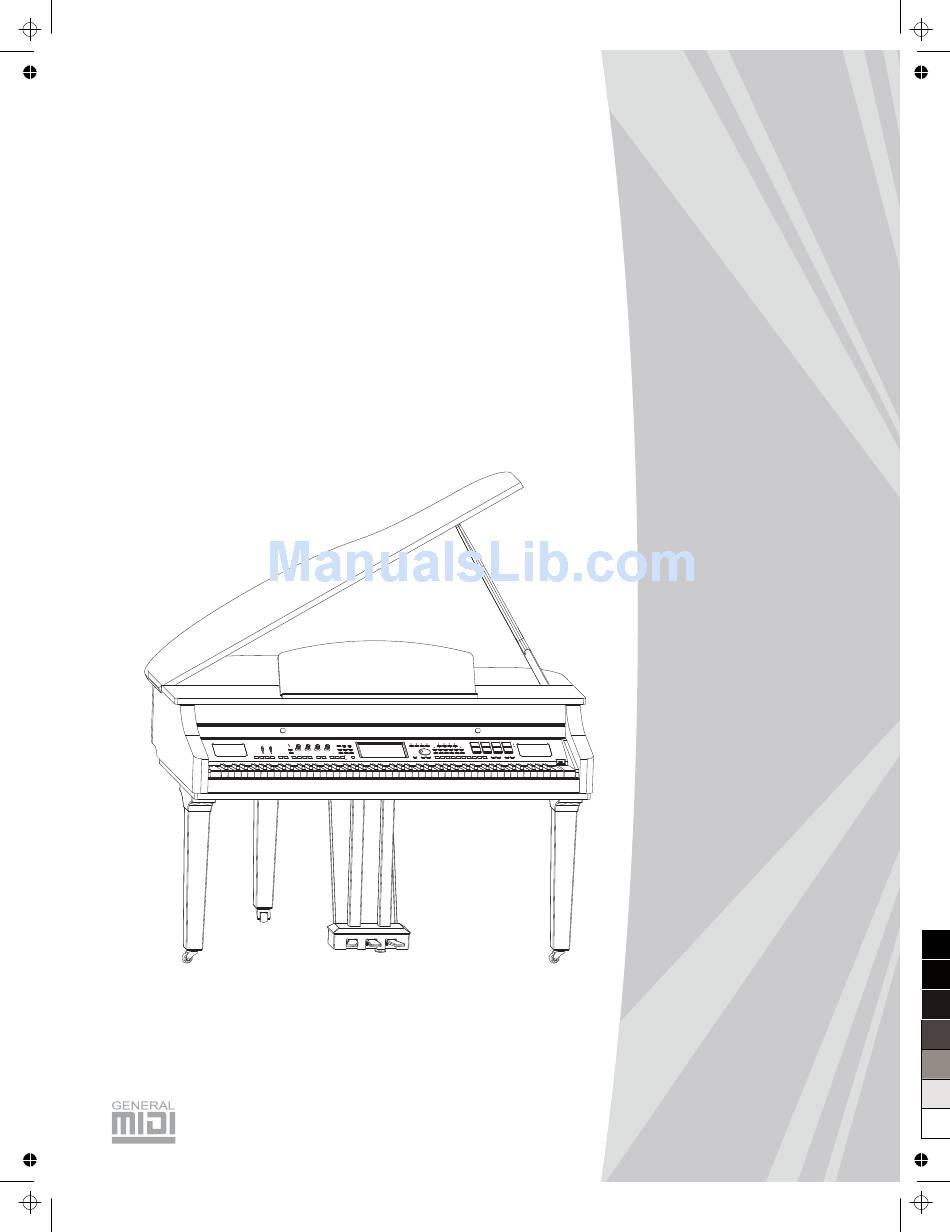

Page 1: Quick Start Guide
DIGITAL GRAND PIANO Quick Start Guide aw_GRAND1000_QuickStartGuide_G06_120912Part1 2012 17:09:34... - Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Introduction Appendices Troubleshooting ..........24 Panel & Display Description Front Panel............4 Specification ..........24 Rear Panel............5 Main Display............6 Appendices Voice List............25 Style List............31 Setup Song List............33 Part List...............7 Demo List............33 Setup Guide............8 Chord List............34 MIDI Implementation List........35 Connections Power Supply............12 Connecting a pair of Headphones.....12 Connecting an Audio Equipment.......12 Connecting an MP3/CD Player......12... -
Page 4: Panel & Display Description
Panel & Display Description Front Panel MASTER MUSIC VOLUME VOLUME REVERB CHORUS VOLUME SONG STYLE SCORE SELECT SELECT ATTACK RELEASE CUTOFF RESONANCE ASSIGN 1 ASSIGN 2 ASSIGN 3 ASSIGN 4 TEMPO TEMPO SELECT RECORD RECORD EFFECT ON / OFF METRO. SONG AUDIO NEW SONG... -
Page 5: Rear Panel
Panel & Display Description PART ON/OFF VOICE PIANO GLOBAL MODE MODE SETTING DISK LEFT RIGHT 1 IGHT IGHT 26 27 28 DEMO ACCORDION & GUITAR & STRINGS & VOICE PIANO E.PIANO ORGAN HARMONICA BASS ENSEMBLE BRASS & FLUTE & LEAD & FX &... -
Page 6: Main Display
Panel & Display Description Main Display Voice Chord Display voice name and octave data of each part. Display the chord name and related information. (Right1, Right2, Right3, Left) A. Chord Name How to select the voice for each part? B. Chord Mode For example: C. -
Page 7: Setup
Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Part List Before you proceeding to assemble the stand, get a Philip's Pedal component screwdriver (not supplied). Right leg component Make sure you have the following parts, which are supplied into Left leg component... -
Page 8: Setup Guide
Setup Setup Guide A. Please reverse the carton to upside down and place it in the horizontal before you initial assembly the piano. Make sure the bottom surface of carton is up. Then open the box, take off the foams which used for protected piano body. aw_GRAND1000_QuickStartGuide_G06_120912Part1 2012 17:09:39... - Page 9 Setup B. Put the left leg component(C) on the left of piano body. Find the sunken hole on the leg component and correspond the hole on the piano body. Then place a washer into this sunken hole, Use Wrench (J) to tighten 4 pieces of hexagonal bolt (2 on each side) by clockwise turn.
- Page 10 Setup C. Use screws(H) to tighten the two copper poles (I) onto the back of Pedal component(A).Make sure the direction of the placement is correct before screwing. D. Then reserved the Pedal component with two copper poles(I), and use the hexagonal bolt(G) to tightly settled it with the piano body according finished assembly in left leg component, fix the other side of copper Pole onto the piano body (E).
- Page 11 Setup E. Reverse the piano after finished assembly. Please carefully reverse the piano avoid touched floor cause damaged or broke any leg components or pedal component. Then moved the carton box and all package goods. You can enjoy play the piano now. carefully reverse the piano avoid damaged or broke any legs...
-
Page 12: Connections
Connections Power Supply Connect the AC power cable to AC power inlet on the underside of the piano body. Plug the AC power cable into an AC outlet. Turn the power ON. The LCD on the panel will light up Note: When the keyboard is not in use or in the time of thunderstorm, please disconnect the power for safety purpose. -
Page 13: Connecting A Microphone
Connections Connecting a Microphone AUX.IN AUX. OUT You can connect an external microphone to MIC IN jack. MIC VOL L/MONO Adjust the input volume of the microphone by using MIC VOLUME knob. Note: Turn the volume switch counter-clockwise to reach the minimum volume level when connecting or disconnecting a microphone. -
Page 14: Basic Operations
Basic Operations Selection Operation There are some selection interfaces: voice selection, style selection, song selection, performance selection, etc. How to select the file in these selection interfaces? For example: Location of data Preset: Location where pre-programmed (preset) data is stored. User: Location where recorded or edited data is saved. -
Page 15: Setting Operation
Basic Operations Setting Operation There are three types on parameter setting. ON/OFF as in the picture: On/Off Press this “ON/OFF” button to switch the keyboard touch response ON (orange font display) or OFF (gray font display). LIST (as in the picture: Curve Normal Press this “Normal”... -
Page 16: Playing The Demos
Playing the Demos The instrument features 9 wonderful demos. Please refer to DEMO LIST. VOICE PIANO MODE MODE Press the [VOICE MODE] and [PIANO MODE] buttons DEMO simultaneously to start playing the demo. Select your desired demo Press the Demo name on LCD or use the DATA DIAL, the [+] or the [-] button to select your desired demo. -
Page 17: Playing Voices
Playing Voices The instrument features exceptionally realistic 672 voices, including piano, guitar, strings, brass and many more. Please refer to Voice List. Turn the R1 PART on PART ON/OFF Press the PART ON/OFF [RIGHT 1] button to turn the R1 part on. LEFT RIGHT 1 IGHT... -
Page 18: Playing With A Style
Playing with a Style The instrument features 240 styles in a variety of different musical genres. Try selecting some of the different styles (Refer to Style List) and play with the auto accompaniment. Select a style STYLE SELECT There are 2 methods to call up the Style Selection display. Press the [STYLE SELECT] button. -
Page 19: Playing Songs
Playing Songs The instrument features 10 songs. Select a Song SONG SELECT There are 2 methods to call up the Song Selection display. Press the [SONG SELECT] button. Press Song Name on the Main Display. Press the song NAME to select the desired song on the current page display. -
Page 20: Recording Your Performance To Midi
Record Your Performance to MIDI Press the [METRO] and [RECORD SONG] buttons RECORD simultaneously to call up the Recording Display. A blank song METRO. SONG (“New Song”) is called up for recording. The LED of [RECORD NEW SONG SONG] is flashing that means it is in the recording standby mode. Press the [PLAY/STOP] button or play the keyboard to start recording. -
Page 21: Recording Your Performance As Audio
Recording Your Performance as Audio You can record your performance as CD quality audio file to a USB RECORD RECORD device. AUDIO AUDIO Please connect your USB storage device drive to the keyboard. Press the [RECORD AUDIO] button to start recording your performance. -
Page 22: Using A Usb Storage Device
Using a USB Storage Device By connecting a USB storage device to your instrument, you can save data you’ve created to the connected device, as well as read data from the connected device. Compatible USB device Recommended Brand: KINGSTON, SANDISK, SONY, LEXAR, TRANSCEND Format: FAT 16/32 Capacity: 1G,2G,4G,8G,16G,32G... -
Page 23: Downloading Data From The Computer
Downloading Data from the Computer Connect a standard USB cable between the rear-panel of the USB jack MIDI of the instrument and the USB jack on your computer. THRU Power on the instrument first, and then open the GrandSuit software in your computer. -
Page 24: Troubleshooting
Troubleshooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm the power is turned ON or OFF. The R1/R2/R3/L voice volume (Mixer) settings could be set to low. Make No sound when the keyboard is played. -
Page 25: Voice List
Voice List Name LCD Name Warm EP 1 Warm EP 1 Choir EP 1 Choir EP 1 PIANO Acoustic Grand Piano Wah EP 1 Grand Piano Wah EP 1 Acoustic Grand Piano (wide) Grand Piano/Wide EP & Strings 1 EP&Strings 1 Acoustic Grand Piano (dark) Grand Piano/Dark Tremolo EP 2... - Page 26 Voice List Tango Accordion 2 Tango Accordion 2 Slap Bass 2 Slap Bass 2 Synth Bass 1 Synth Bass 1 Guitar & Bass Acoustic Guitar (nylon) Synth Bass 2 Nylon Guitar Synth Bass 2 Ukulele Ukulele Acoustic Bass 2 Acoustic Bass 2 Acoustic Guitar (nylon + key off) NylonGtr/KeyOff Acoustic Bass 3...
- Page 27 Voice List Choir Aahs Choir Aahs Octave Orchestra Hit Octave OrchHit Choir Aahs 2 Choir Aahs 2 Brass & Saxophone Voice Oohs Voice Oohs Trumpet Trumpet Humming Dark Trumpet Soft Humming DarkTrump Soft Anlong Voice Anlong Voice Trombone Trombone Synth Voice Synth Voice Trombone 2 Trombone 2...
- Page 28 Voice List Sweet Soprano Sax Sweet Soprano Sax Pad 2a (sine pad) Sine pad Alto Sax 2 Alto Sax 2 Pad 3 (polysynth) Poly Synth Soft Alto Sax Pad 4 (choir) Soft Alto Sax Choir Pad Super Alto Sax Super Alto Sax Pad 4a (itopia) Itopia Pad Sax Band...
- Page 29 Voice List Rising Rising Train Train Congregate Congregate Jetplane Jetplane Starship FX & Effects Starship FX 1 (rain) FX 1 Rain Burst Noise Burst Noise FX 2 (soundtrack) FX 2 SoundTrack Applause Applause Prelude Prelude Laughing Laughing FX 3 (crystal) FX 3 Crystal Screaming Screaming...
- Page 30 Voice List Church Organ & Choir Marimba & Vibraphone ChurchOrg&Choir Marimba&Vibra Church Organ & Strings ChurchOrg&Str Wood Drum Wood Drum Harmonica & Acoustic Guitar Harmonica&AcGtr Xylophone Xylophone Harmonica & Strings Harmonica&Str Xylophone 2 Xylophone 2 Acoustic Guitar & Flute AcGtr&Flute Tubular Bells Tubular Bells Acoustic Guitar &...
-
Page 31: Style List
Style List Name LCD Name R&B Ballad 1 R&BBld1 Techno 2 Techno2 Guitar Ballad GtBallad Progressive Progress 8BEAT & 16BEAT 8Beat Ballad 8BtBld Ballad Rock BalladRk Rap 1 Rap1 8Beat Piano 8BtPiano Piano Pop 1 PianoPop Rap 2 Rap2 8Beat 1 8Beat1 Soft Ballad SoftBald... - Page 32 Style List Country Pop 2 CntyPop2 New Age NewAge Waltz & Traditional Bluegrass 2 Bluegrs2 Waltz Waltz Tarantella Tarantel 2/4 Country 2/4Cntry Old Waltz OldWaltz Scottish Scottish Country Quick Steps QuickStp English Waltz EngWaltz Norteno Norteno Country Folk CntyFolk German Waltz GemWaltz Pianist Country Shuffle...
-
Page 33: Song List
Song List Song Name Mazurka Tchaikovsky Waltz Salut d' Amour French Suites Neapolitan Song Minuet Prelude Barcarole Sonata K.331 Brahms Waltz Demo List Demo Name Short Name Ballad Ballad Funk Funk Modern R&B ModernR&B Bossa Nova BosaNov Electric Electric Fusion Fusion Piano Piano... -
Page 34: Chord List
Chord List Chord Name Abbreviation Normal Voicing Display for Root "C" Major 1+3+5 Sixth 1+(3)+5+6 Major seventh 1+3+(5)+7 Major seventh add sharp eleventh M7(#11) 1+(2)+3+#4+5+7 CM7(#11) Add ninth 1+2+3+5 C(9) Major seventh ninth M7(9) 1+2+3+(5)+7 CM7(9) Sixth ninth 6(9) 1+2+3+(5)+6 C6(9) Augmented 1+3+#5... -
Page 35: Midi Implementation List
MIDI Implementation List aw_GRAND1000_QuickStartGuide_G06_120912Part3 2012 17:11:55... - Page 36 Grand1000_QuickStartGuide_G06 aw_GRAND1000_QuickStartGuide_G06_120912Part3 2012 17:11:55...
