MAX 25 PoE
illuminators installation guide
This installation guide provides instructions for installing the RAYMAX 25 PoE
series illuminators.
Installation Steps
Overview
1. Mount Illuminator
2. Connect Power
Set Up Steps
1. Optional night set-up for optimum
image performance
2. Adjust vertical angle
3. Tighten all fixings
Package Contents
1. Illuminator with Integrated PSU
RAYMAX 25 PoE illuminator
Integrated PSU
(back of illuminator)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raytec Raymax 25 PoE series
Summary of Contents for Raytec Raymax 25 PoE series
-
Page 1: Package Contents

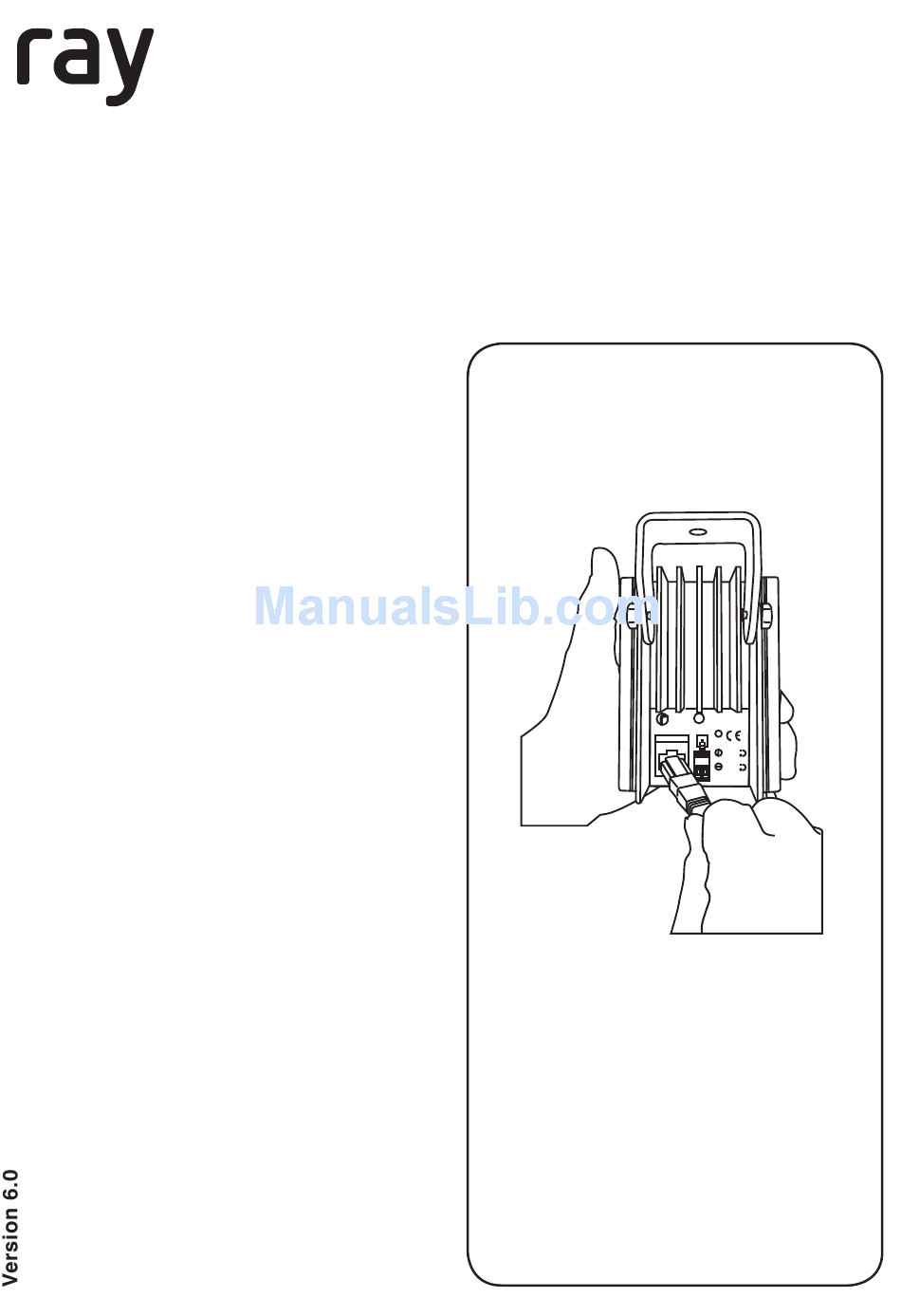

MAX 25 PoE illuminators installation guide This installation guide provides instructions for installing the RAYMAX 25 PoE series illuminators. Installation Steps Overview 1. Mount Illuminator 2. Connect Power Set Up Steps 1. Optional night set-up for optimum image performance 2. Adjust vertical angle 3. - Page 2 Standard U Bracket LED illuminator Telemetry Control Power Indicator - telemetry input requires zero volt latched input, non Power On polarity sensitive Power PoE Input adjust P-cell 12V DC adjust 24V AC/DC (Optional input instead of PoE) 1.5m Install Install in a well Do not continually internally only ventilated area...
-
Page 3: Installation
Installation InTERnAL USE OnLY Mount illuminator Connect Power Set Up TARGET 1 Optional night set-up for optimum image performance Adjust vertical angle Tighten all fixings Use wall bracket if you require horizontal adjustment. Match illumination to camera field of view Camera Camera Light... -
Page 4: Technical Drawings
Technical Drawings (not to scale) Standard Bracketry Optional Bracketry 8.5mm (0.3”) 48mm (1.9”) 25mm 23.5mm (1”) (0.9”) 47mm (1.9”) Wall Mount RM 25 PoE Specifications InfRA-RED Series Adjustable Dimensions Input Output Photocell Weight Power L x W x D IEEE802.3af PoE or Compliant Interface Integrated... -
Page 5: Troubleshooting
• Model and serial number of illuminator • Camera make and model • Lens make and model If the Raytec lamp is still not delivering the required performance, please contact us for further assistance: tel +44 (0)1670 520055... - Page 6 UK / Europe T: +44 (0) 1670 520055 F: +44 (0) 1670 819760 sales@rayteccctv.com Americas (Toll Free) T: +1 888 505 8335 ussales@rayteccctv.com PoE/13/6.1 www.rayteccctv.com...
