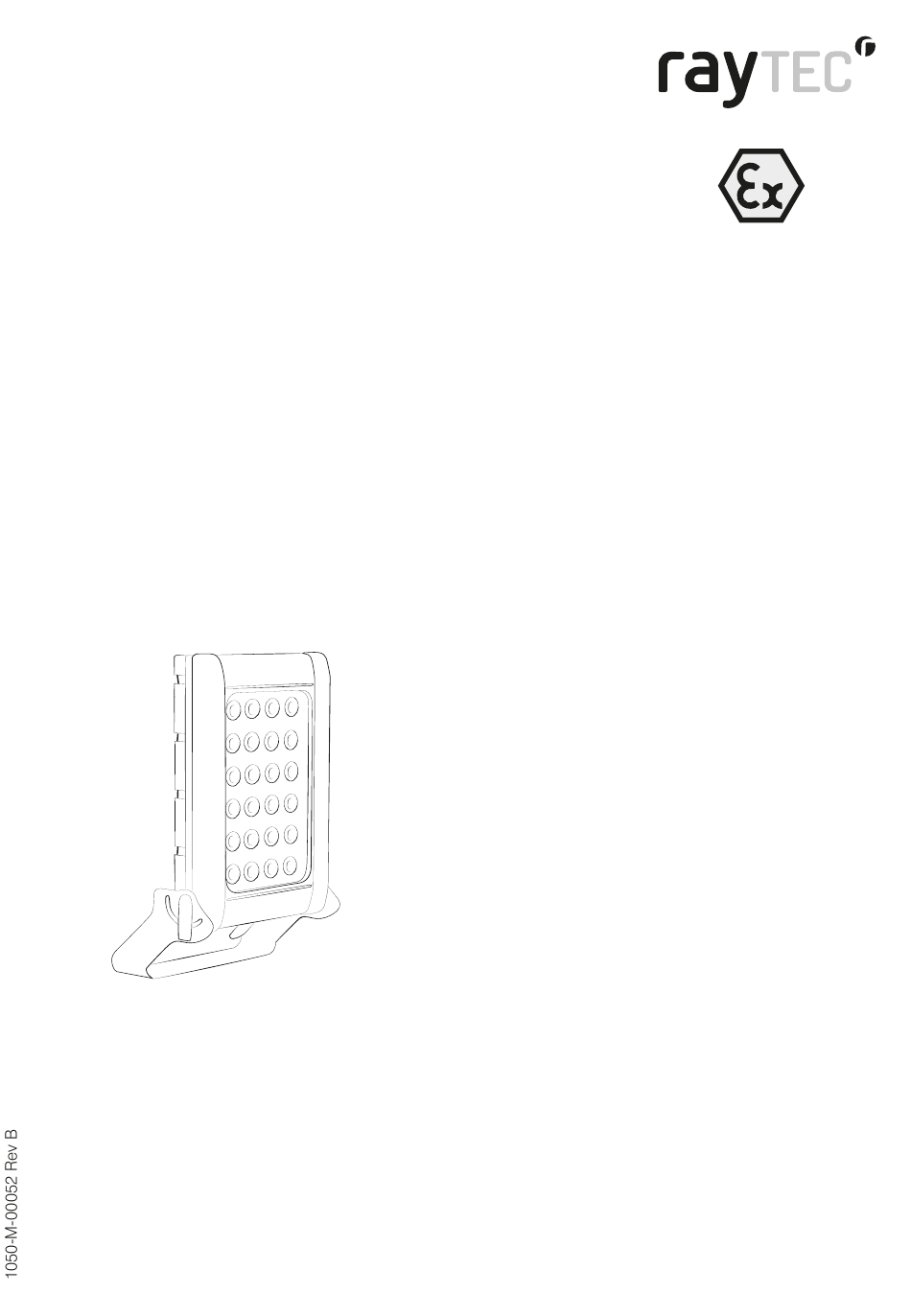

SPX/SPZ
High Power Luminaire Range -
Installation Guide
Zone 1 and 21 Variant CML 17ATEX1148 & IEC Ex CML17.0074
Zone 2 and 22 Variant CML 17ATEX4149 & IEC Ex CML17.0074
Zone 21 Dust only Variant CML 18ATEX3161 & IEC Ex CML18.0087
This installation guide provides instructions for installing the SPARTAN HP Highbay/ Flood-
light series of explosion protected floodlights.
Overview
Important information
The SPARTAN HP series of explosion protected floodlights/highbay are specialist devices,
certified for use in specific operating environments.
The units must be installed in accordance with these instructions, must be correctly certified
for the specific operating environment and must be installed by suitably qualified personnel.
If you have any queries about the installation or the certification of the unit – please contact
Raytec for immediate assistance and advice.
SPARTAN
1
Safety Instructions
2
Installation
3
Maintenance
4
Technical Specification
5
Trouble Shooting
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raytec SPARTAN SPX-HP15K
Summary of Contents for Raytec SPARTAN SPX-HP15K
- Page 1 The units must be installed in accordance with these instructions, must be correctly certified for the specific operating environment and must be installed by suitably qualified personnel. If you have any queries about the installation or the certification of the unit – please contact Raytec for immediate assistance and advice.
-
Page 2: Safety Instructions
‘T’ rating are suitable for the environment the unit is being installed in. 3. If the SPARTAN unit is to be installed in areas of high vibration, please consult with Raytec. 4. The SPARTAN unit housing is constructed from marine grade aluminium and toughened glass, gaskets are silicone sponge, black encapsulant and o rings are silicone rubber, inner domes on LEDs are polycarbonate. -
Page 3: Installation
2. Installation Mounting SPARTAN Unit 1. To meet the requirements of certification a MINIMUM of 2 fixing points must be used, the fixing points must be suitable for the conditions of use. 2. The line diagrams below are for guidance only – units may be mounted in any orientation Mounting HP SPARTAN Unit –... - Page 4 Mounting SPARTAN Unit – Highbay Application 422 (16.6") 353 (13.9") 33 (1.3") www.raytecled.com UK / Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
- Page 5 Typical wiring diagram E: Earth N: Neutral L1: Live Wire the Mains cable into the terminal block. Provision has been made for this and identified as the E (Earth), L (Live), Ls (Live switched) and N (Neutral) terminals. There are two pairs of contacts for each of these to facilitate a mains cable that can be looped in and out of the unit.
-
Page 6: Maintenance
3. Maintenance It is essential that all SPARTAN units are maintained in accordance with the requirements of the EN60079-17 standard: (Electrical apparatus for explosive gas atmospheres – other than mines). IMPORTANT. No modifications are permitted to the unit, all spare parts must be purchased from the manufacturer, unauthorized modifications or spare parts will invalidate certification and make the equipment dangerous. -
Page 7: Technical Specification
4. Technical Specification 150W version 300W version 150-264V AC/DC or 110-264V AC/DC Input Voltage see certification nameplate on product Input Current (230Vac, full load) 0.7A 1.4A Consumption 150W 300W Power Factor (230Vac, full load) >0.97 Mains Frequency 50/60Hz Inrush Current (I @50%) 53A, ∆t <... - Page 8 Max number of fittings allowed per MCB SPZ/SPX-HP10K SPZ/SPX-HP15K SPZ/SPX-HP20K SPZ/SPX-HP25K MCB Type Rating (120W Version) (180W Version) (240W Version) (300W Version) www.raytecled.com UK / Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...
-
Page 9: Troubleshooting
4.1 DALI Wiring Instructions Maximum cable length L in m Cross section in mm 25°C 50°C 75°C 0.14 0.50 0.75 1.00 1.50 2.00 2.50 5. Troubleshooting Ensure the two LED boards are correctly wired to terminal block. Red to Red : Black to Black –... -
Page 10: Declaration Of Conformity
Declaration Of Conformity With The Atex Directive 2014/34/EU Raytec Ltd. declares under our sole responsibility that the product(s) listed below conform with the relevant provisions of directive 2014/34/EU of 20 April 2016 Manufacturer Raytec Ltd Unit 15, Wansbeck Business Park... - Page 11 Compliance with the Essential Health and Safety Requirements has been assessed by reference to the following standards - IEC 60079-0 : 2012 IEC 60079-7 : 2015 IEC 60079-1 : 2014 IEC 60079-18 : 2015 IEC 60079-25 : 2015 IEC 60079-31 : 2014 IEC 60079-15 : 2010 And also 2014/30/EU - EMC Directive.
- Page 12 UK / Europe T: +44 (0) 01670 520055 hazsales@raytecled.com Americas T: +1 613 270 9990 ushazsales@raytecled.com www.raytecled.com...
