www.follettice.com

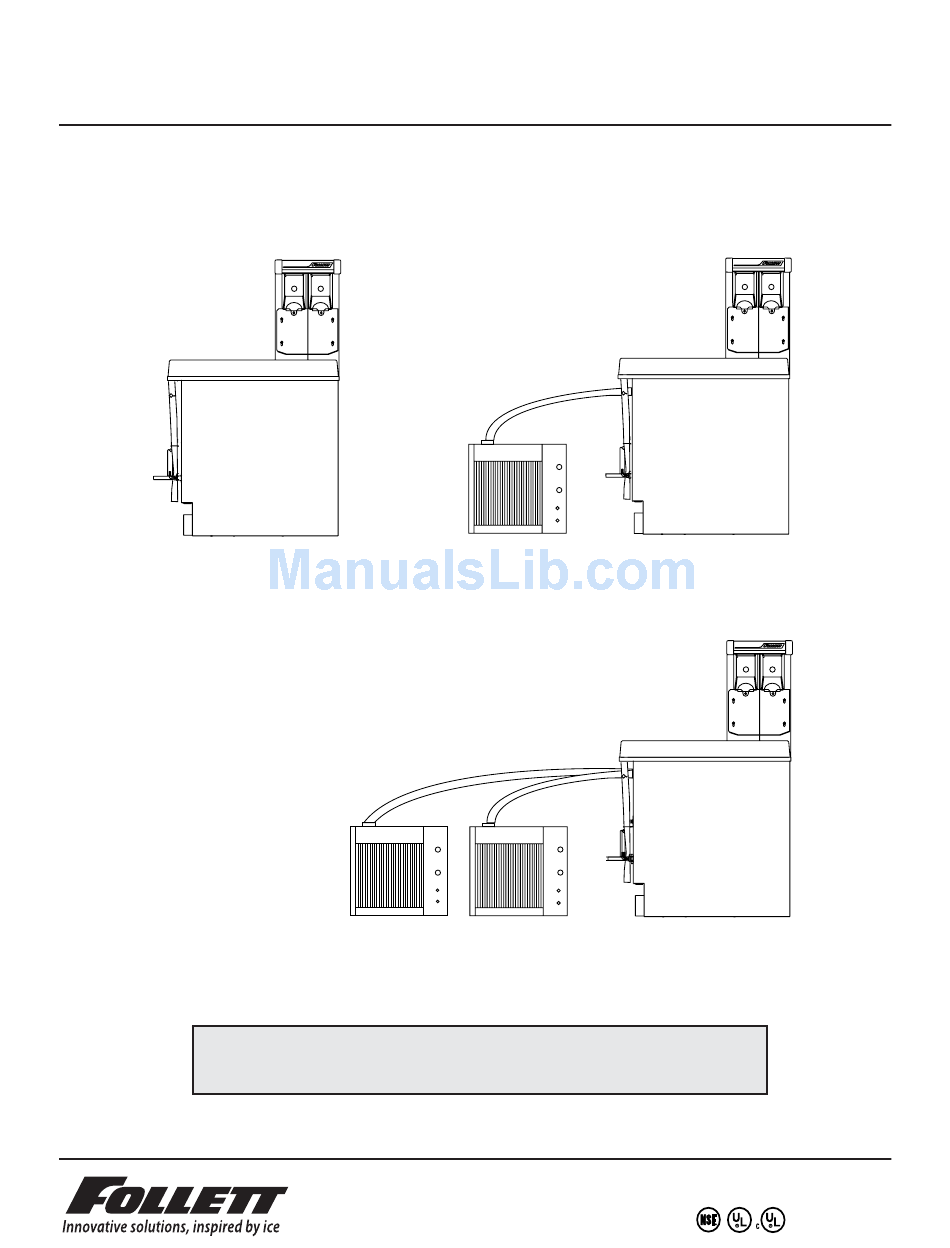

Manual load units
Installation, Operation and Service Manual
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Ice and Water Dispensers
Automatic load units
with one icemaker
Automatic load units
with two icemakers
U155N Series
208599R01
Advertisement
Table of Contents
Related Manuals for Follett U155N Series
Summary of Contents for Follett U155N Series
- Page 1 U155N Series Ice and Water Dispensers Order parts online Installation, Operation and Service Manual www.follettice.com Manual load units Automatic load units with one icemaker Automatic load units with two icemakers Following installation, please forward this manual to the appropriate operations person.
-
Page 2: Table Of Contents
Welcome to Follett........ -
Page 3: Welcome To Follett
• After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary. - Page 4 Plumbing Dispenser 3/4" PVC slip joint for hopper drain 3/4" PVC pipe nipple for beverage drain pan 3/8" ID red line tubing for water in Note: Drains should be hard piped and insulated. Maintain at least 1/4" per foot (6mm per 304mm run) slope on drain line run.
- Page 5 Electrical hookup information Model Electrical Connection Circuit(s) required U155N 115V, 60Hz, 1 phase • Hard-wiring of dispenser Max. fuse dispenser – 15 amps. required. U155NR400A/W 115V, 60Hz, 1 phase (2) circuits required • Dispenser power – hard wiring • Dispenser – 15 amps max. fuse required.
-
Page 6: Field Wiring Diagrams
Field wiring diagrams Manual load units Electric power source Standard electrical - 115V, 1 Ph, 60Hz, max. fuse size 15 amps IMPORTANT (115 volts) Field wiring diagram is intended to aid electrician or technician in understanding how equipment works. All field wiring must be installed in accordance with NEC and local electrical codes. -
Page 7: Installation Procedures
Installation Installing U155 dispenser in counter All U155 dispensers must be installed level in both directions and supported from below with 6" - 9" (153 – 229mm) adjustable leg accessory provided, or channels installed on site. DO NOT hang dispenser on flange. 1. -
Page 8: Installing Remote Icemaker
Installing remote icemaker (automatic load units only) Correct installation of remote icemaker(s) is critical to proper performance of icemaker and dispenser. Check to make sure bin signal on icemaker control board is switched to 24 volt connection. Refer to installation manual packed with icemaker for important details on ice transport tube run, ventilation requirements and other installation requirements. -
Page 9: Start-Up
Note: If additional start-up information is needed, call Follett Corporation at (800) 523-9361. User information How the dispenser works Follett’s U155N series ice and water dispensers are available in manual load configurations (using ice from another source) or automatic load configurations, fed from one or two Follett 400 lb (181kg)/day remote icemakers. - Page 10 Cleaning bin before use 1. Wipe storage area with Solution A. 2. Rinse thoroughly with clear, potable water. 3. Wipe with Solution B to sanitize. Periodic cleaning of dispenser Recommended daily cleaning of drain pan DO NOT run plastic parts (drain pan, dispense chute cover, dispense wheel) through a dishwasher.
-
Page 11: Disassembly For Cleaning
Disassembly instructions for periodic cleaning Fig. 1 Dispense chute cover removal 1. Remove top cover. Front View 2. Push chute cover up vertically to slip off right-hand unit holding tab. 3. After clearing tab, pull chute cover forward top cover to remove. -
Page 12: Service Information
Fig. 3 Front view auger motor (side view) auger dispense wheel auger tube stationary agitator rotating agitator wheel motor plain water auger bearing hook-up plate baffle chilled water coil plate wheel motor mounting plate Service Disassembly instructions for service requirements only – NOT required for any cleaning procedure Dispense wheel motor removal (Fig. -
Page 13: Wiring Diagrams
Wiring diagrams... -
Page 14: Dispenser Troubleshooting Guide
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off, auger does not operate, even though the solenoids do. 4. Check that all drains are clear. Note: For units equipped with Follett compressed nugget icemaker, see Icemaker Operation and Service Manual for service and troubleshooting information. Dispenser troubleshooting guide... -
Page 15: Replacement Parts
Front view Top view right hand (RH) tower unit with right hand (RH) tower (push-button dispensing) WATER Reference # Description Part # Label, “Follett” 502438 Top cover (includes label) 502606 Drain pan 502446 Grille, drain pan 502450 Cover, electrical components... -
Page 16: Dispense Assembly
Dispense assembly Dispense assembly side view (RH unit shown) Top view Reference # Description Part # Gate, dispense 502455 Linkage pin, gate/solenoid 502456 Pin, quick release, 5.53" (141mm), dispense gate 502102 Solenoid (includes linkage pin) 00126607 Dispense mechanism assembly, right hand unit 502458 Not shown Dispense mechanism assembly, left hand unit... -
Page 17: Hopper
Hopper Side view left-hand unit shown Reference # Description Part # Auger, LH unit (black, stamped with “1”) 502491 Not shown Auger, RH unit (gray, stamped with “2”) 502492 Plate, auger bearing 501696 Not shown Tube, auger, right hand unit 502487 Not shown Tube, auger, left hand unit... -
Page 18: Auger Motor
Auger motor Top view Side view Reference # Description Part # Auger motor/drive assembly, vertical (includes all items below) 502493 Motor, vertical auger (includes gearbox and capacitor) 502476 Chain, auger drive #35, 40p 502477 Sprocket 35#, 22T 5/8 bore 502478 Sprocket 35#, 12T 5/8 bore 502479 Drive shaft... -
Page 19: Electrical Components
Electrical components 12,16,19 12,17,18 Reference # Description Part # Transformer, 24V 502058 Relay, dispense 501826 Relay, auto fill 501826 Timer, auto fill (automatic fill units) 502471 Strip, terminal 502472 Tube, water dispense, stainless steel 502356 Bracket, water solenoid 502611 Fitting, outlet, 1/8 MPT x 3/8, compression 502562 Valve, solenoid, water 502243... - Page 20 801 Church Lane • Easton, PA 18040, USA 208599R01 Toll free (800) 523-9361 • (610) 252-7301 02/06 Fax (610) 250-0696 • www.follettice.com...
