SM 3 • Setup Guide (Continued)
ATTENTION:
Use the appropriate mounting screws. The screw heads must not protrude more than .074" (1.9 mm)
above the screw holes in the mounting plate (see the fi gure below left). If the screw head protrudes too far above the
mounting plate surface, damage to the speaker may occur when the speaker is attached (see the fi gure below right).

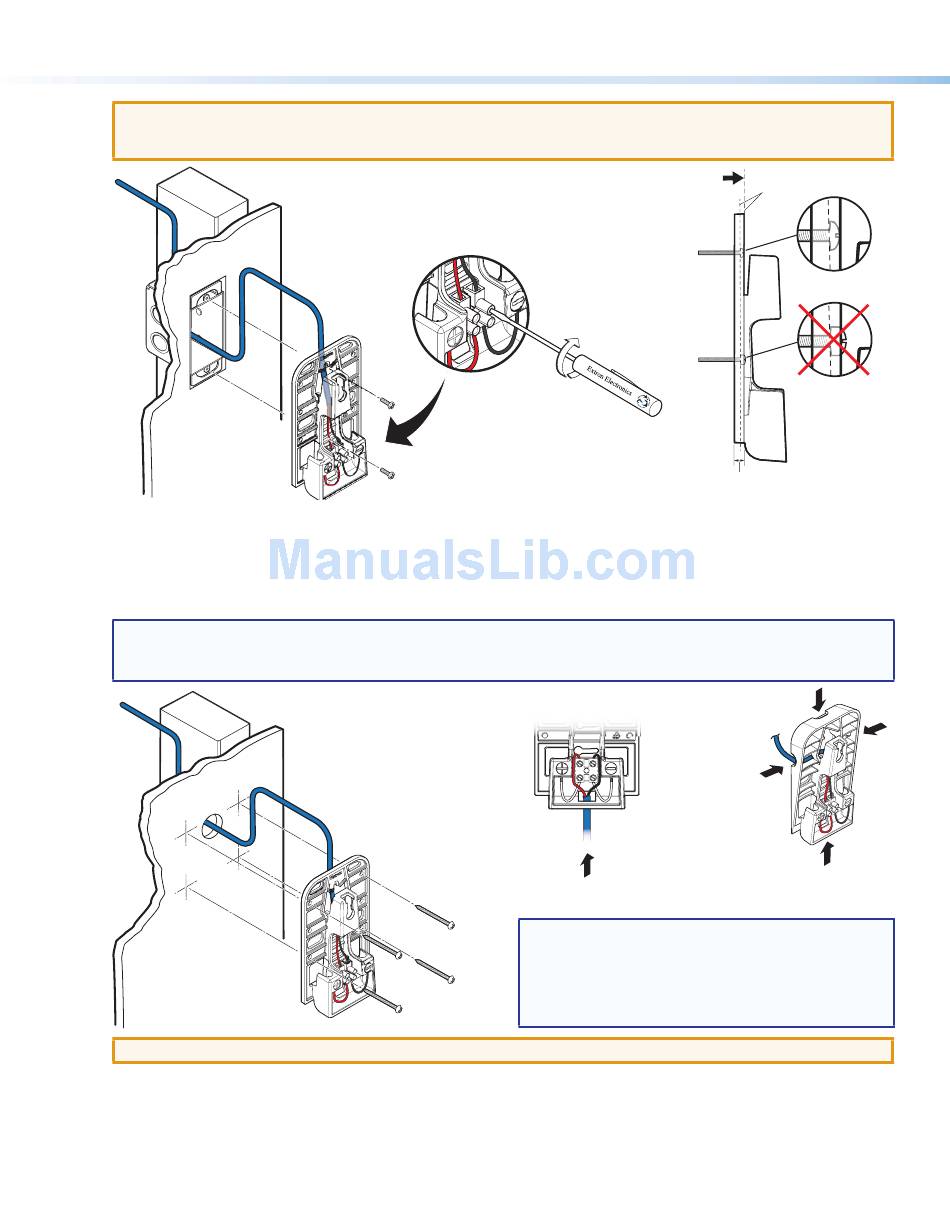

Mounting to a Wall Stud
Install the speaker cables into the wall or conduit before installing the speaker mounting plate. Leave enough slack.
1.
Locate the wall stud where the mounting plate will be installed and while positioning the mounting plate on the wall mark the
2.
location of two pilot holes using the holes on either side of the mounting plate so that the stud does not interfere with the
speaker wire routing, as shown below.
NOTE: A speaker wire access hole (see the figures below) must also be cut in the wall, so mark that hole
location now with the mounting plate positioned on the wall while ensuring that the wall stud does not
interfere with the wire routing and that the mounting plate hides the access hole.
ATTENTION:
Use the appropriate mounting screws (see the above ATTENTION).
Drill the mounting plate pilot holes and cut the speaker wire access hole, as previously marked.
3.
Route the speaker cable through the rear of the mounting plate and attach the wire ends to the quick connect contacts
4.
using a small screwdriver (see the illustrations at the top of this page). Besure to observe the correct polarity.
Attach the mounting plate to the wall.
5.
2
Quick Connect Contacts
Mounting Screws
0° Mounting Plate
Alternate Access Point
NOTE:
wires to be routed from behind (such as on masonry
or concrete walls) and the wires are routed to the
speakers via a raceway, use the alternate access
Mounting Screws
points to run the wires to the quick connect speaker
contacts (see the figures above).
0.074"
(1.9 mm)
1.97"
(5 mm)
OR
When mounting to surfaces that do not allow
Good
Bad
10° Mounting Plate
Alternate Access Points
