Hardware Installation
Turn off LCD's and PC's power before you set it up. Follow our installation step by
step.

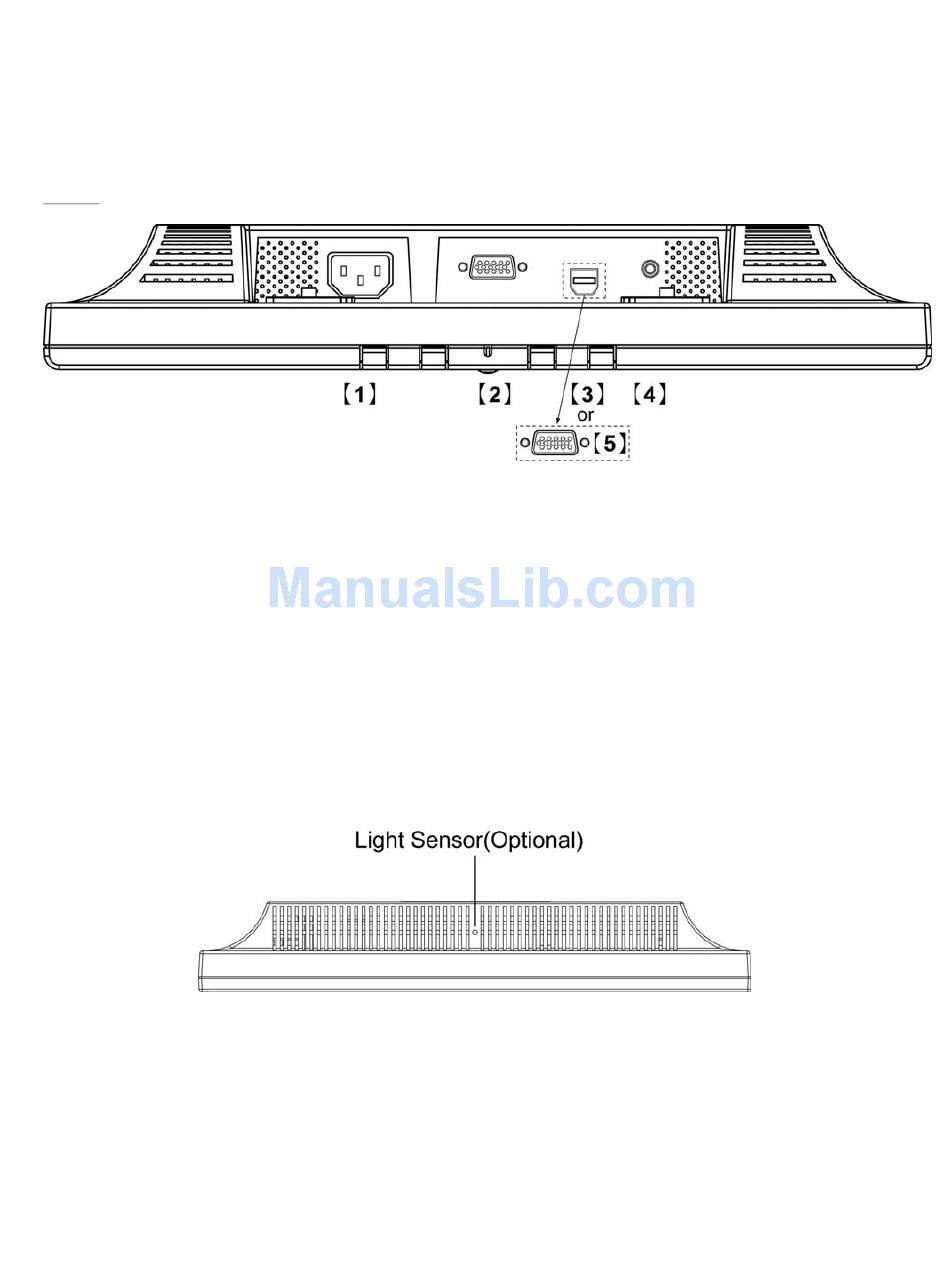

Input
【1】AC Input : This is for connecting the power cable.
【2】VGA PORT : This can be connected with the D-Sub 15 pin signal cable.
【3】Touch Panel Interface : USB
【4】Audio In : This can be connected to the PC audio-out connector of sound
resource.
【5】Touch Panel Interface：RS-232 interface (Optional)
*NOTICE: Audio function is optional feature.
